Ball valves are popular quick-acting shutoff devices in piping systems due to their simplicity, reliability, and instant 90-degree operation. However, this very mechanism, combined with their unique shape, presents a significant challenge for insulation, often causing them to be left bare and become points of energy loss and safety hazards.

The Challenge of Insulating Ball Valves

Insulating a ball valve involves more than just wrapping it in a layer of thermal material; it requires addressing the inherent challenges of its design and operation.

Operational Obstruction: This is the primary issue. The valve’s lever or actuator requires sufficient clearance to rotate 90 degrees. Bulky, rigid, fixed insulation occupies this space, preventing the valve from fully opening or closing and rendering it inoperable.
Complex and Bulky Shape: Ball valve bodies are typically spherical or block-like and much larger than the adjoining pipe, with a raised neck and stem. Using rigid materials to completely seal these components without creating gaps is virtually impossible.
Heat Loss from the Valve Body: The large surface area of the valve body is a major source of heat dissipation, leading to energy loss from the process fluid and heating the surrounding work environment.
Maintenance Accessibility Issues: Accessing the valve body bolts or stem packing for adjustments requires the destruction of fixed insulation, which is costly and inconvenient.

The Optimal Solution: Custom-Fitted Insulation Jackets for Ball Valves

Custom-fitted insulation jackets are specifically designed to accommodate the mechanics of a ball valve, ensuring effective insulation without hindering its operation.

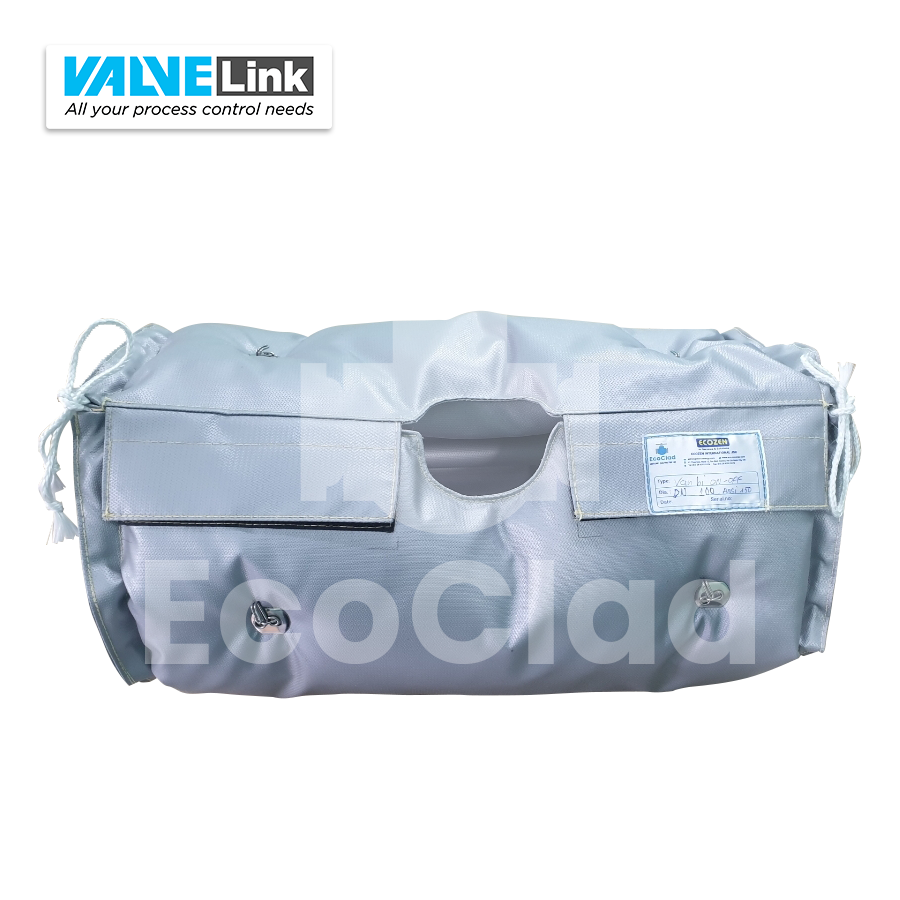

Intelligent Neck Design to Free Up Operational Space: This is the core of the solution. The jacket is designed with a “collar” that fits snugly around the lower part of the valve neck, but leaves a completely open space for the lever or actuator to rotate a full 90 degrees freely. Opening and closing the valve is as quick and decisive as it was before insulation.
Snug Fit for Optimal Thermal Efficiency: While the neck is designed for operation, the body of the jacket is tailored to completely envelop the bulky valve body, completely eliminating heat loss from the valve’s largest surface area.
Quick to Remove and Reinstall for Easy Maintenance: For maintenance, the entire jacket can be removed in minutes thanks to its system of buckles and drawstrings. Once work is complete, the jacket is reinstalled intact, ready for the next service cycle at no additional cost.
Enhanced Workplace Safety: By covering the hot surface of the valve body, the insulation jacket protects operators from the risk of burns, which is especially important for valves that require frequent and rapid operation.
Durable and Professional: Made with high-grade, industrial-environment-resistant materials, the jacket offers a long-term solution while creating a clean, uniform appearance for the entire system.

Don’t let insulation compromise the operability of your ball valves. With custom-fitted insulation jackets, you can achieve both goals: flexible operation and maximum energy savings.

Are the ball valves in your facility operated by a lever or an actuator? Let us know so we can design an insulation solution that will not obstruct any of your operational procedures.
