Moisture separators play a critical role in removing condensed water vapor, helping to supply dry, clean steam to user equipment. However, if not properly insulated, this very component can cause heat loss, reduce steam quality, and consume significant energy.
Challenges in Insulating Moisture Separators
Insulating a moisture separator is not just about retaining heat; it also involves solving technical problems directly related to its function:
- Risk of Re-condensation, Reducing Steam Quality: This is the biggest challenge. When the walls of the moisture separator cool down due to heat loss to the environment, the very dry steam that has just been separated can re-condense on these surfaces, causing the steam leaving the unit to still be wet, thereby nullifying the function of the moisture separator.
- Significant Thermal Energy Loss: With its vessel-like structure and large surface area, the moisture separator is a significant source of heat loss, forcing the boiler to work harder to compensate for this wasted energy.
- Unique Shape, Difficult to Insulate: Moisture separators have a non-uniform shape with inlet/outlet pipes and especially the bottom drain port (connected to a steam trap). Using fixed insulation makes it very difficult to cover completely, which can easily create thermal bridges.
- Safety in the Operational Area: Like all equipment on a steam line, the surface of the moisture separator is at a very high temperature, posing a potential burn hazard to workers.
The Optimal Solution: Specially-Fitted ECOCLAD Insulation Jackets

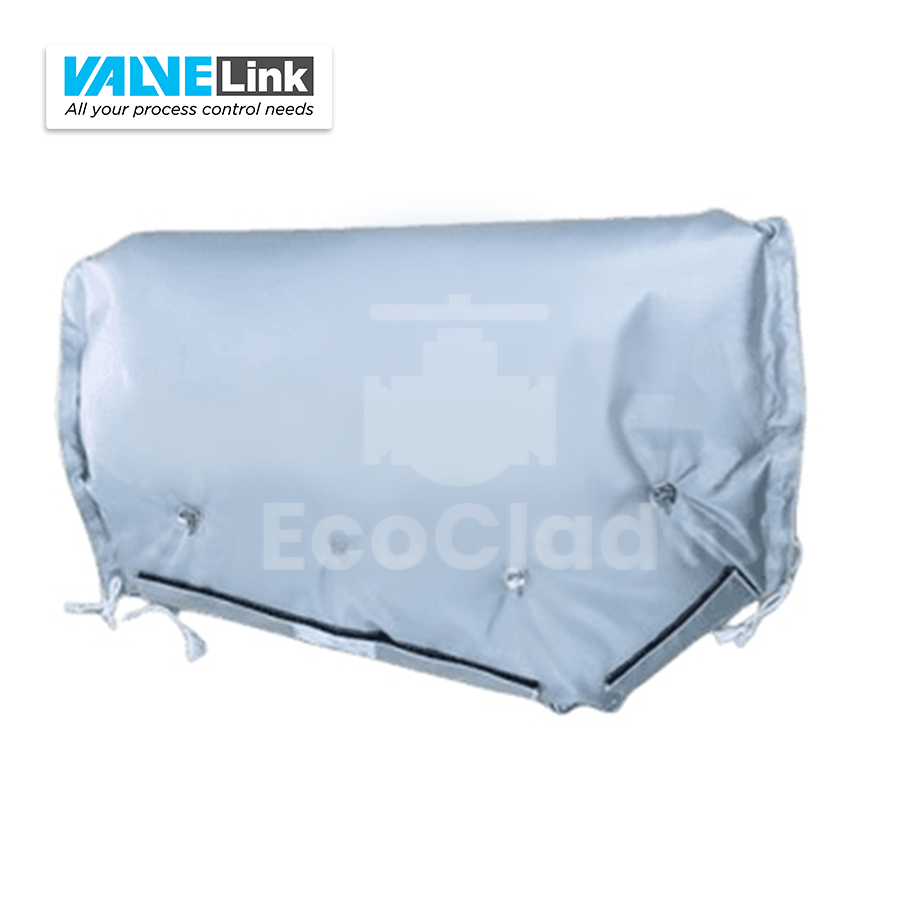

The ECOCLAD insulation jacket solution, designed specifically for moisture separators, is not just a covering but an engineered tool that enhances the operational performance of the device itself.
- Maintaining Wall Temperature to Prevent Re-condensation: This is the core benefit. The ECOCLAD jacket keeps the internal surfaces of the moisture separator hot, close to the steam temperature. This completely prevents the phenomenon of dry steam re-condensing, ensuring the quality of the outlet steam is always optimally dry.
- Optimizing the Device’s Moisture Separation Efficiency: When the internal temperature is kept stable, the dynamic properties of the steam flow are preserved, helping the separation process of liquid droplets occur at the highest efficiency, as intended by the manufacturer’s design.
- Reducing Heat Loss, Saving Fuel Costs: By completely enclosing the body of the unit, it minimizes heat radiation to the environment, directly reducing the load on the boiler and providing noticeable fuel cost savings.
- Perfectly Snug Design, Easy to Install: Each jacket is fabricated to the exact 3D shape of the moisture separator, with specific cutouts and overlaps for connecting pipes, ensuring no gaps are left and installation is extremely quick.
- Enhancing Workplace Safety: The jacket lowers the surface temperature to a safe level, eliminating a dangerous hot spot in the plant and helping to make the work environment safer.
Ensuring your moisture separator is properly insulated with an ECOCLAD jacket is to ensure it is performing its function correctly, supplying clean and efficient energy for the entire system.
Is your steam system having problems with wet steam quality? Share the model of the moisture separator you are using, and we will advise on an effective insulation solution.
