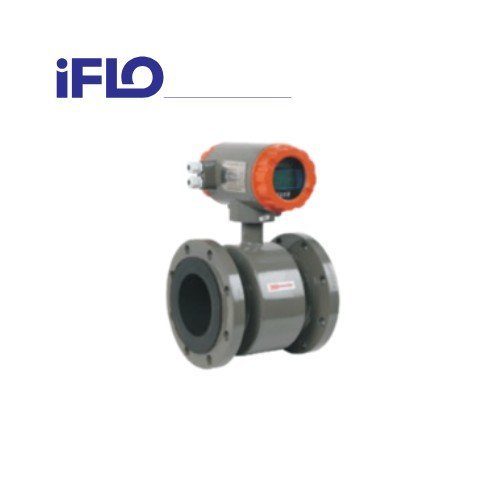

In today’s demanding industrial environments, accurate and reliable flow measurement is paramount. Valvelink is proud to introduce the IFLO series, featuring the highly efficient Electromagnetic Flow meter-compact. This advanced solution is engineered for businesses seeking precision, durability, and ease of use in measuring conductive liquids and slurries. The IFLOLD intelligent electromagnetic flow meter, a key part of this series, offers high performance and reliability for a wide array of applications.
How Electromagnetic Flow Meter – Compact Work?
The IFLOLD Electromagnetic Flow meter-compact operates based on Faraday’s Law of Electromagnetic Induction. The core of the meter, the sensor, consists of a measuring tube with an insulating lining, a pair of electrodes, and coils that generate a magnetic field. As a conductive fluid passes through this magnetic field, it induces a voltage signal directly proportional to the fluid’s average flow rate. This signal is then amplified and processed by the converter to provide various display functions and output signals.
Key Features and Benefits of the IFLOLD Electromagnetic Flow Meter-compact
Valvelink’s IFLOLD Electromagnetic Flow meter-compact is designed to deliver exceptional performance and a host of benefits for your operations:
- Unaffected by Fluid Properties: Measurements remain accurate regardless of variations in fluid density, viscosity, temperature, pressure, and conductivity (for liquids with conductivity greater than 5 μs/cm).
- Minimal Process Disruption: With no obstructing components in the measuring tube, there’s no pressure loss, and the requirements for straight pipe sections are low, allowing for flexible installation.
- User-Friendly Interface: Equipped with an LCD backlight, the converter ensures easy reading in various lighting conditions, from direct sunlight to dark rooms. For harsh environments, parameters can be set via infrared touch buttons without opening the converter cover (customizable feature).
- Versatile Measurement & Output: The system supports bidirectional measurement and includes three built-in totalizers for positive, reverse, and net total flow. It offers a range of output options, including current (4-20mA), pulse, frequency, RS-485, and HART protocol.
- Robust and Reliable: The Electromagnetic Flow meter-compact is suitable not only for general processes but also for challenging applications involving ore pulp, mud, coal slurry, paper pulp, and paste liquids. High-pressure models with PFA lining are available for demanding industries like petroleum and chemical.
- Advanced Diagnostics: The converter features self-diagnosis alarm outputs, no-load detection alarms, flow upper and lower limit alarms, and batch control capabilities (customizable).
- Compact Design Options: The IFLOLD series includes integrated models, such as those with caliber ranges from DN3 to DN3000, and specific integrated units for calibers DN6-DN100, which are inherently designed for space efficiency. Clamp-on electromagnetic flow meters also offer a compact installation footprint.
Technical Specifications Overview
The IFLO Electromagnetic Flow meter-compact boasts impressive technical parameters:
| Feature | Specification | Source(s) |
| Caliber Range | DN3-DN3000 (various models, including compact options like DN3/DN4 flange clamping, and specific integrated types from DN6-DN100). | |
| Lining Materials | Polychloroprene rubber, PTFE, F46, PFA, silicon fluoride, polyurethane rubber. | |
| Electrode Materials | 316L, Hastelloy B (HB), Hastelloy C (HC), Titanium (Ti), Tantalum (Ta), Platinum-iridium alloy, Stainless steel coated with tungsten carbide. | |
| Accuracy | Standard ±0.5% of indicated value. Optional ±0.3% or ±0.2% can be customized. | |
| Power Supply | AC220V 50HZ, DC24V, DC12V, 3.6V battery power supply (depending on model). Integrated types often support 85~250V AC or 20VDC-36VDC. | |
| Output Signals | Analog (0~10mA/4~20mA), Frequency, Pulse, Alarm, RS485, Modbus, HART protocol (optional), Profibus DP (optional). | |
| Protection Class | Sensor: IP65, IP67, IP68 (optional). Converter: IP65. | |
| Pressure Range | Generally 0.6~42MPa (high pressure needs customization). Specific models like clamp-on: 0.6-4.0MPa. | |
| Temperature Resistance | Typically −25∘C∼80∘C. Lining material choice influences actual temperature limits (e.g., PTFE: −40∘C∼+170∘C). Consult Valvelink for specific application needs. |
Diverse Applications for the Electromagnetic Flow Meter-compact
The versatility and robustness of the IFLOLD Electromagnetic Flow meter-compact make it an ideal choice for a multitude of industries:
- Steel and Metallurgy
- Power Generation
- Petroleum and Chemical Industries
- Coal Mining
- Pulp and Paper Manufacturing
- Water Supply and Drainage Systems
- Food and Beverage (including sanitary types)
- Pharmaceutical Industry
- Heat metering for residential and commercial buildings (Electromagnetic cold heat meter variant)
Why Valvelink is Your Trusted Partner for Electromagnetic Flow Meter-compact Solutions
Valvelink is committed to providing top-tier process control solutions. Our IFLOLD Electromagnetic Flow meter-compact series is manufactured under strict quality standards, evidenced by our ISO 9001 certification. We offer not just a product, but a partnership, providing expert consultation to ensure you select the optimal flow meter configuration for your specific needs. With a global presence, including offices in Vietnam, ASEAN, Europe, and China, Valvelink is well-positioned to support your business.
Connect With Valvelink Today
Elevate your flow measurement capabilities with the IFLOLD Electromagnetic Flow meter-compact. Contact Valvelink today for a detailed consultation, product demonstration, or quotation. Our team of experts is ready to assist you in finding the perfect flow measurement solution to enhance your operational efficiency and accuracy.
