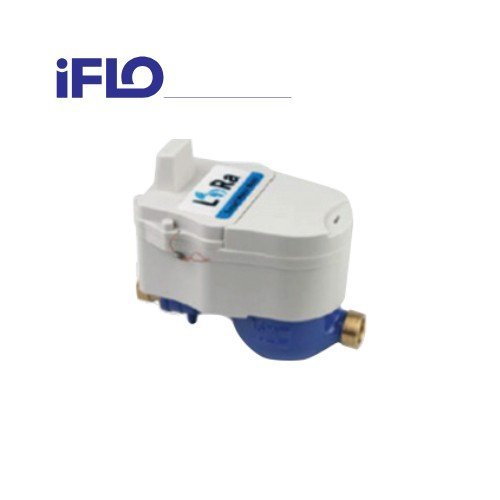

In an era of digital transformation, efficient utility management is paramount for any successful enterprise. Valvelink is proud to introduce the IFLO LoRaWAN Water Meter (Model: IFLO-LXSY-15-LXSY-300), a state-of-the-art solution designed to bring unparalleled accuracy, reliability, and remote management capabilities to your water distribution networks. This advanced LoRaWAN water meter is engineered for businesses looking to optimize operations, reduce costs, and enhance data-driven decision-making.
The IFLO system is a comprehensive solution, composed of the LoRaWAN water meter, a collector, a concentrator, and a network server, complete with complimentary software for our clients.
Key Features and Advanced Capabilities
-
Ultra Long-Distance and Reliable Communication
At the core of our smart water meter is the powerful LoRa communication protocol. This technology enables exceptional long-range data transmission, ensuring connectivity even in the most challenging environments:
- Urban Environment: Communication distance of up to 4-5km between the meter and the concentrator.
- Rural Environment: Extended communication range of 10-15km.
Furthermore, the system utilizes frequency hopping technology, which actively avoids co-channel interference, significantly improving the reliability and success rate of data transmission.
-
Exceptional Durability and Extended Service Life
The IFLO LoRaWAN water meter is built to last, offering a low total cost of ownership.
- Ultra-Low Power Consumption: The meter module features an average power consumption of ≤20uA.
- Long Battery Life: Depending on the selected working mode (LOP1, LOP2, or LOP3), the battery can last for 6, 8, or even 10 years, based on using only 50% of the ER18505 battery’s capacity.
- Robust Construction: With a protection class of IP68, the meter is fully waterproof and dust-tight. It is available in a durable brass body (with valve) or iron body (without valve) and can withstand a maximum working pressure of PN16.
- Large-Scale Management and Data Integrity
Designed for large-scale deployments, the IFLO system offers robust management capacity. A single concentrator can support up to 5,000 LoRa water meters and securely store 10 years of data for each meter, ensuring you have a complete historical record for analysis and reporting.
- Simplified Installation and Flexible Operation
The system is designed for easy installation and operational flexibility. It features a dual meter reading mode, allowing for both 24-hour active data reporting and real-time meter reading for functions like valve control. This enables administrators to monitor consumption and manage the water supply dynamically from a central management terminal.
System Architecture and Working Principle
The IFLO LoRaWAN water meter transmits data wirelessly to a local concentrator. The concentrator then aggregates data from multiple meters and sends it to a central system server via 2G/3G/4G or Ethernet. Administrators can access this data through a management query terminal for monitoring, analysis, and billing. The system also supports an online portal for customers to query their usage and make payments, creating a seamless and transparent process for all stakeholders.
Technical Specifications
The IFLO LoRaWAN water meter meets rigorous international standards, ensuring top-tier performance and accuracy.
| Specification | Details |
| Model | IFLO-LXSY-15E, IFLO-LXSY-20E, IFLO-LXSY-25E |
| Sizes | DN15, DN20, DN25 (Larger sizes up to DN300 available) |
| Flow Rate (Q3) | 2.5 m3/h (DN15), 4.0 m3/h (DN20), 6.3 m3/h (DN25) |
| Max Permissible Error | ±5% for slow flow rates (Q1≤Q<Q2); ±2% for fast flow rates (Q2≤Q≤Q4) at water temperatures ≤30∘C |
| Pressure Loss | ≤0.063Mpa |
| Communication | Protocol: LoRa; Frequency: 470-510MHZ / 868-915MHZ |
| Standards & Certificates | ISO4064, MID Certificate |
Dimensions (L x W x H):
- IFLO-LXSY-15E: 165mm x 99mm x 140mm
- IFLO-LXSY-20E: 195mm x 99mm x 140mm
- IFLO-LXSY-25E: 225mm x 99mm x 140mm
Partner with Valvelink for Your Smart Metering Needs
Valvelink is your trusted partner for all process control needs. We are committed to providing innovative and reliable solutions to our business customers across the globe.
To learn more about how the IFLO LoRaWAN water meter can transform your water management system, please contact our expert team for a consultation.
