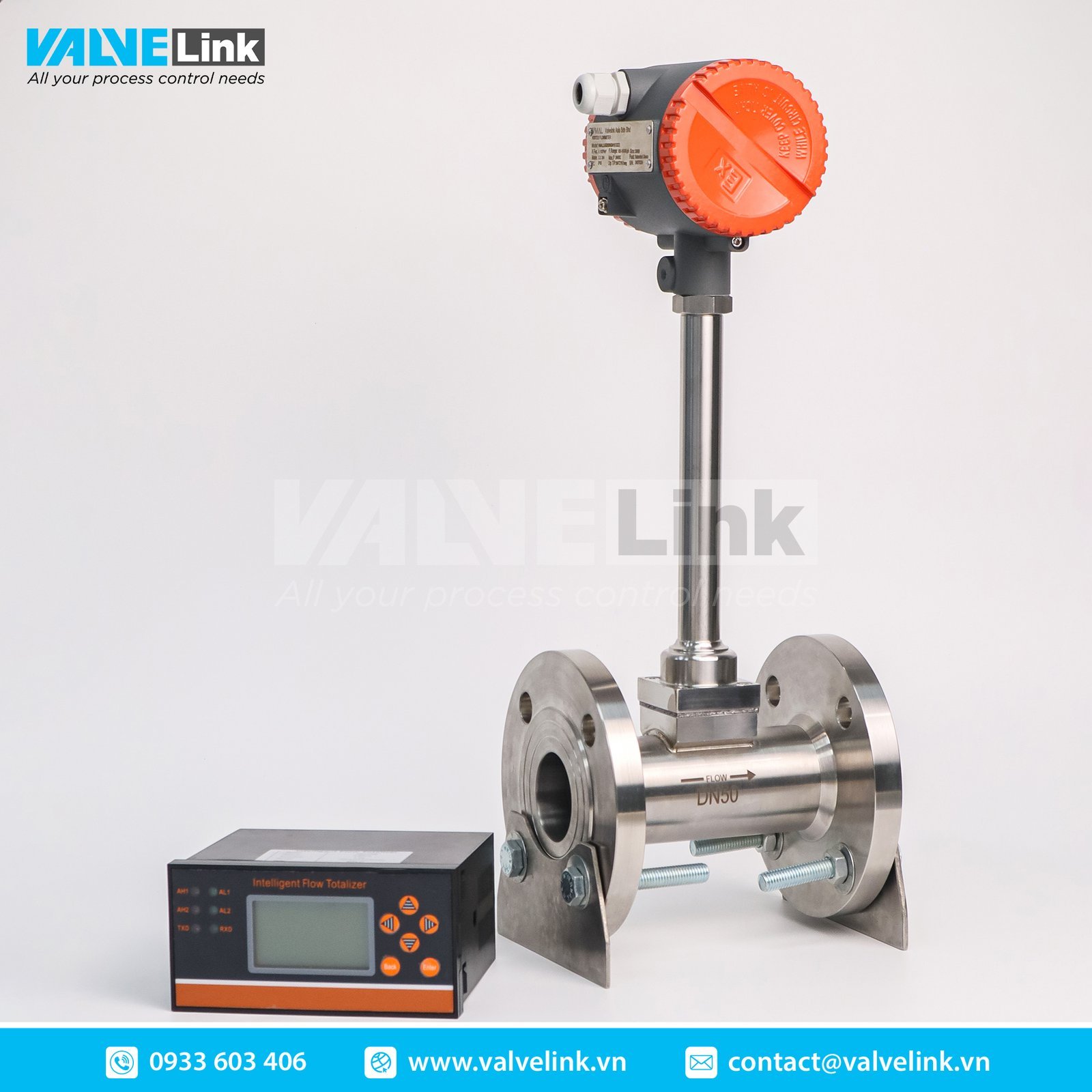

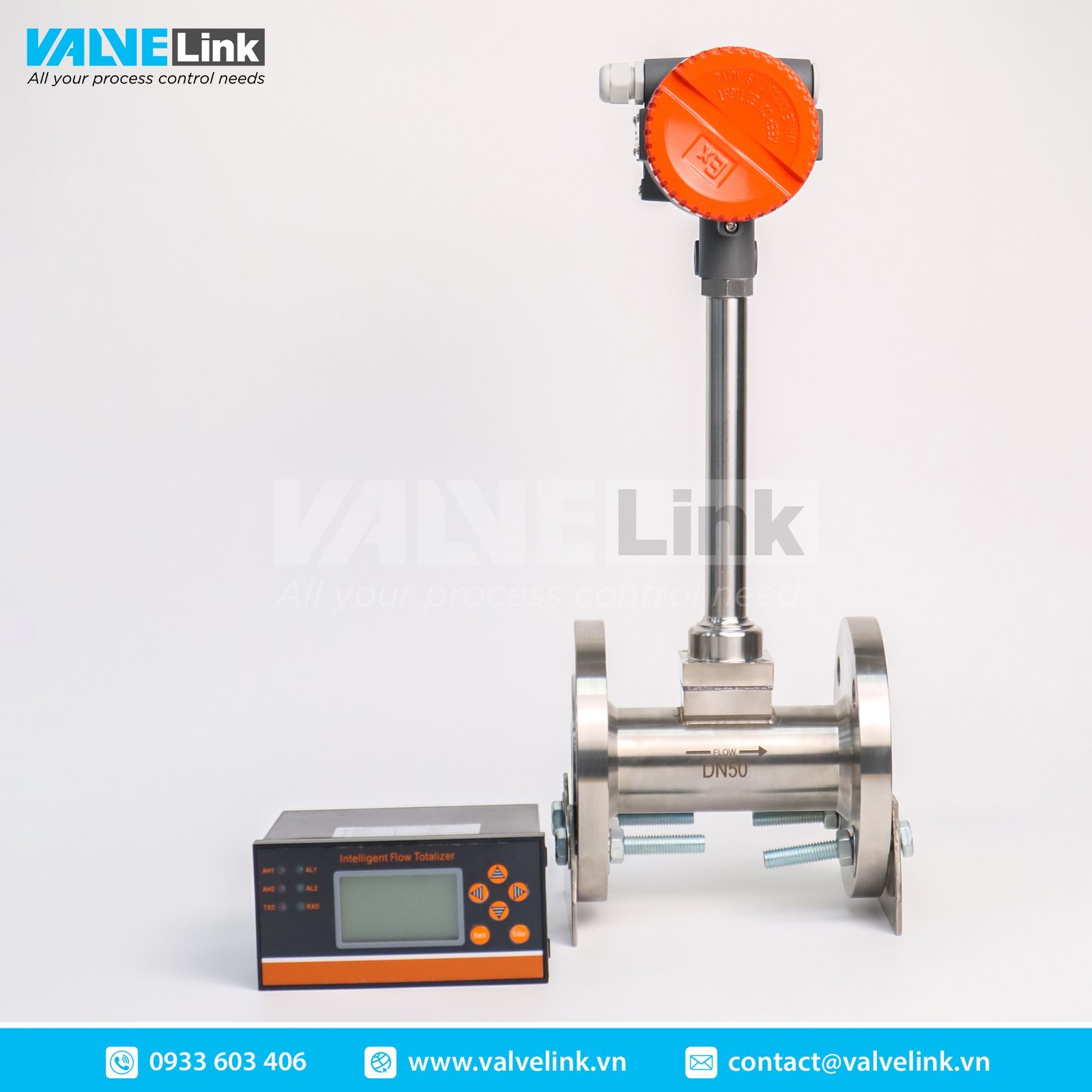

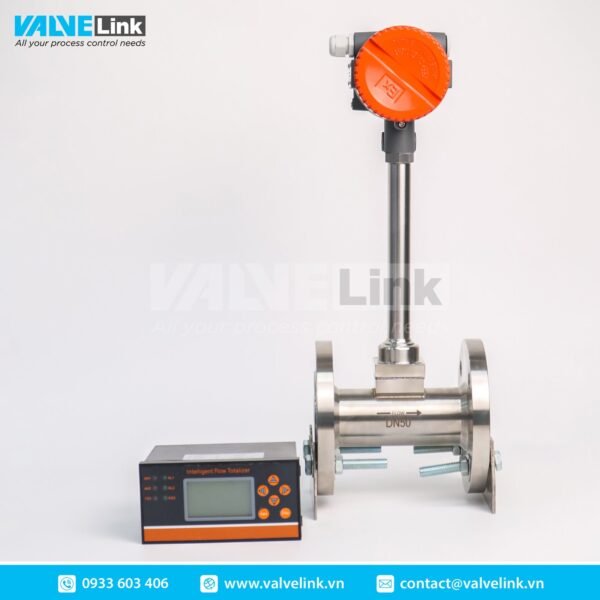

IFLO-LUGB Vortex flowmeter, a cutting-edge solution engineered for precise metering, measurement, and control of steam, gas, and liquid flow. This advanced Vortex flowmeter is designed to offer exceptional medium versatility, high stability, and unwavering reliability, making it an ideal choice for a wide array of industrial applications. Its robust construction with no moving parts ensures a simple structure and a low failure rate, translating to reduced maintenance and long-term operational efficiency.
Unveiling the IFLO-LUGB Vortex Flow Meter: Superior Features
The IFLO-LUGB Vortex flowmeter stands out due to its innovative design and comprehensive feature set, tailored to meet the demanding needs of modern industries.
- No Moving Parts: This key characteristic leads to easy installation and significantly reduced maintenance requirements.
- Enhanced Performance: Equipped with a digital filter amplifier, the Vortex flowmeter offers a wider measurement range and superior anti-interference performance.
- Wide Flow Ratio: It features an impressive flow ratio of up to 33:1.
- High Accuracy: The IFLO-LUGB Vortex flowmeter delivers high accuracy, with an optional precision of up to ±0.2%. Standard accuracy for gas and steam is ±1.5% of rate (with an optional ±1.0% for DA Type), and for liquid, it’s ±1.0% of rate.
- Extreme Temperature Tolerance: This Vortex flowmeter can operate effectively across a broad temperature spectrum, with a maximum temperature handling capability of up to +420∘C.
- Versatile Installation: Options for both inline and insertion type installations are available to suit diverse piping configurations.

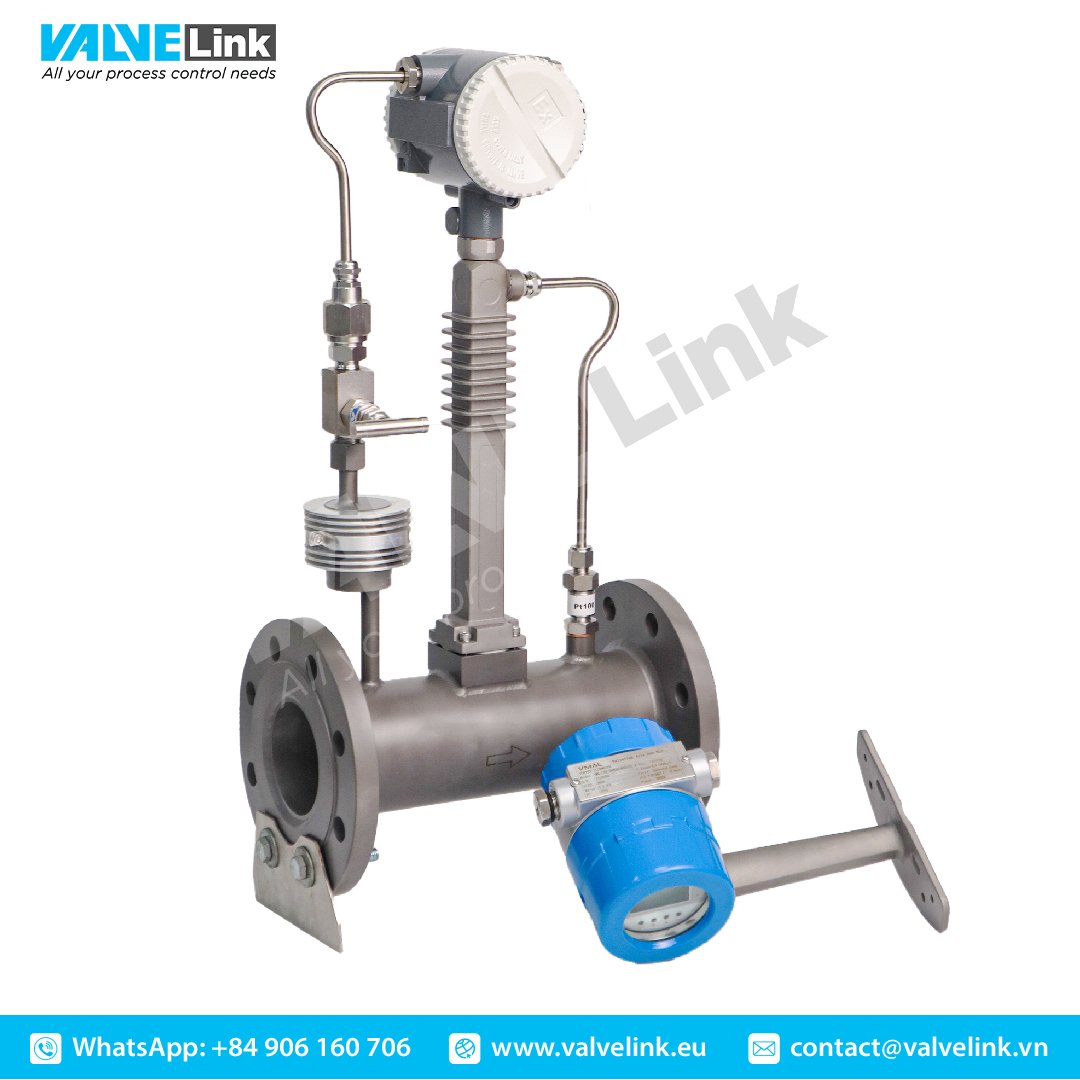

- Flexible Transmitter Options: Users can choose between integrated and remote transmitter setups. The remote type notably supports pressure and temperature compensation for enhanced accuracy in varying process conditions.
- Data Integrity: A power-off record function ensures that valuable measurement data is retained even in the event of a power outage.
- Certified Quality: The IFLO-LUGB Vortex flowmeter comes with CE and calibration certificates, assuring compliance with international standards. It also features HART communication protocol and is designed with Ex (explosion-proof) and SIL (Safety Integrity Level) considerations.
Diverse Applications Across Industries
The versatility of the IFLO-LUGB Vortex flowmeter makes it an indispensable tool in numerous sectors:
- Boiler industry (critical for steam measurement)
- Compressed air industry
- Textile industry
- Paper industry
- Heating industry
- Metallurgical industry
- Plastics processing
Technical Specifications Overview
The IFLO-LUGB Vortex flowmeter is available in a range of specifications to meet specific application requirements:
- Diameter:
- DN10-DN500 (DA Type)
- DN15-DN700 (DB Type)
- DN200-DN2000 (Insertion Type)
- Body Material: Options include SS304 and SS316 for durability and compatibility with various media.
- Process Temperature:
- T1:−20∘C⋯+100∘C
- T2:−20∘C⋯+250∘C
- T3:−20∘C⋯+300∘C
- T4:−20∘C⋯+420∘C (only for DA type)
- Ambient Temperature: −10⋯+50∘C
- Connection Types: Flange, wafer, thread, and tri-clamp connections are available.
- Protection: IP65 and IP68 protection ratings ensure reliability in challenging environments.
- Power Supply: 24V DC and battery options provide flexibility.
- Communication: RS485 and HART protocols are supported for seamless integration into control systems.
- Output Signals: Standard 4-20mA and pulse outputs are provided.
Comprehensive Model Selection and Flow Range Capabilities
Valvelink offers a detailed model selection guide for the IFLO-LUGB Vortex flowmeter, allowing customers to choose the perfect configuration based on fluid type (liquid, gas/air, steam), diameter, structure (compact or remote), converter type, body material, explosion-proof rating, connection, and temperature range.
The IFLO-LUGB Vortex flowmeter demonstrates a wide operational flow range across different media:
- Liquid Measurement: The flow meter can accurately measure liquids with densities ranging from 500 kg/m3 to 1800 kg/m3, with varying minimum and maximum flow rates (Qmin and Qmax in m3/h) depending on the diameter (DN15 to DN300).
- Gas/Air Measurement: For gases and air, it accommodates densities from 0.5 kg/m3 to 20 kg/m3, again with specific Qmin and Qmax values (m3/h) for diameters from DN15 to DN300.
- Saturated Steam Measurement: The Vortex flowmeter is also adept at measuring saturated steam across various pressures (Mpa) and corresponding temperatures (∘C) and densities (kg/m3). Flow ranges (Qmin and Qmax in kg/h or t/h) are provided for diameters from 15mm to 125mm.
Your Partner for Advanced Flow Measurement
The IFLO-LUGB Vortex flowmeter from Valvelink represents a significant advancement in flow measurement technology. Its robust design, high accuracy, wide application range, and comprehensive feature set make it the preferred choice for businesses seeking reliable and efficient flow control solutions. With options for pressure and temperature compensation, various materials, and communication protocols, this Vortex flowmeter can be tailored to virtually any industrial process.
For detailed model selection assistance, specific flow range inquiries, or to learn more about how the IFLO-LUGB Vortex flowmeter can optimize your operations, please contact Valvelink Europe Ent. Our team of experts is ready to provide you with the ideal flow measurement solution.
