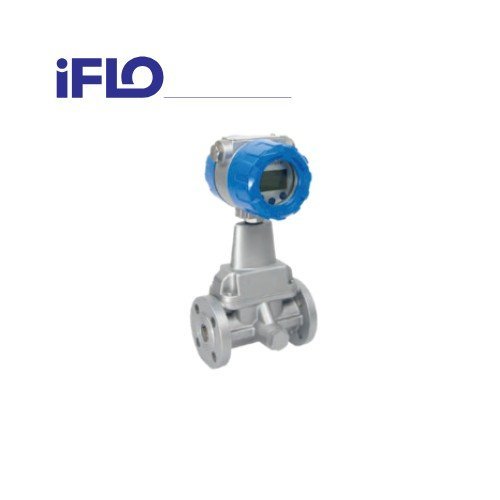

For industrial applications demanding robust, accurate, and low-maintenance flow measurement, Valvelink Europe is proud to introduce the IFLO-LUX Swirl Flow Meter. This advanced instrument is engineered for high performance in measuring various gases and liquids, making it an essential component for a wide range of industries. The IFLO-LUX Swirl Flow Meter integrates flow, temperature, and pressure measurement into a single, durable device.
The IFLO-LUX Swirl Flow Meter is designed without any mechanical moving parts, which significantly extends its operational lifetime and eliminates the need for special maintenance, even after prolonged use. This design philosophy ensures reliability and reduces the total cost of ownership for our business customers.
Key Features and Advanced Technology
The IFLO-LUX Swirl Flow Meter stands out with its sophisticated engineering and user-centric design:
- Enhanced Durability: The absence of mechanical moving parts results in a longer lifespan.
- Advanced Signal Detection: It employs a dual detect technique to boost signal intensity and minimize disruptions from pipeline vibrations.
- Vibration Resistance: Specialized vibration-proof technology effectively suppresses interference caused by vibrations and pressure oscillations.
- Flexible Installation: The gauge head can be rotated 360 degrees, allowing for easy installation and viewing in any orientation.
- Superior Low-Flow Performance: The meter features a low flow starting point, ensuring accuracy even at lower velocities.
- Integrated Measurement: It combines the functions of measuring flow capacity, temperature, and pressure in one unit.
Diverse Industrial Applications
The versatility of the IFLO-LUX Swirl Flow Meter makes it the ideal solution for numerous applications, including:
- Natural gas and mashgas measurement
- Oil and gas plant operations
- Oxygen and compressed air measurement
- Biochemical pools
Technical Specifications
The IFLO-LUX Swirl Flow Meter is built to perform reliably under demanding industrial conditions.
| Specification | Value |
| Accuracy | ±1.5% of rate; ±1.0% of rate |
| Ambient Temperature | −30 to +65∘C |
| Fluid Temperature | −20 to +80∘C |
| Power Supply | 24VDC±15%; 3.6V Lithium Battery |
| Output Signals | 4-20mA; Pulse; RS485 |
| Ingress Protection | IP65 |
| Connections | Flange; thread |
Extensive Flow Range
The IFLO-LUX series is available in a wide variety of sizes to accommodate different flow requirements.
| Diameter (mm) | Flow Range (m3/h) |
| 15 | 0.3-9 |
| 25 | 2.5-30 |
| 50 | 10-150 |
| 80 | 28-400 |
| 100 | 50-800 |
| 150 | 150-2250 |
| 200 | 360-3600 |
| 300 | 500-5000 |
Customizable Model Selection
Valvelink offers a comprehensive model selection process to ensure your Swirl Flow Meter meets your exact specifications. Customization options include:
- Structure: Choose the compact type for integrated functionality.
- Power & Output: Select from battery power for digital display only, or 24V DC power for 4-20mA output, RS485 communication, and HART protocol options, all with temperature and pressure compensation.
- Body Material: Options include SS304, SS316, and Cast Aluminum.
- Safety: Available with ExdIIBT6 explosion-proof rating or as a non-explosion-proof unit.
- Connections: A full range of flange connections are available, including DIN, ANSI, and JIS standards, as well as threaded connections for select sizes.
For a reliable, accurate, and long-lasting measurement solution, the IFLO-LUX Swirl Flow Meter from Valvelink is the definitive choice. Contact us today to learn more about how we can support your operational needs.
