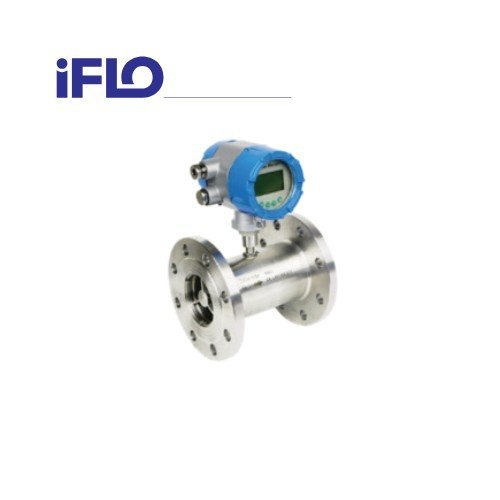

In the world of industrial processing and fluid management, accuracy, reliability, and versatility are paramount. IFLO-LWGY Liquid Turbine Flow Meter, a state-of-the-art solution engineered for precise liquid measurement across a multitude of applications. Operating on the trusted turbine principle, the IFLO-LWGY is the definitive choice for businesses seeking to optimize their fluid handling systems.
Engineered for Performance and Reliability
The IFLO Liquid turbine flow meter is specifically designed to meet the rigorous demands of modern industries. Its robust construction and advanced features ensure high performance, whether you are measuring light oils, pure water, or other clean liquids.
Key Features Include:
- High-Temperature Operation: The meter is capable of functioning in fluid temperatures up to +150°C, making it suitable for a wide range of thermal applications.
- Versatile Measurement Units: It offers a variety of selectable units, including GPM, Kg/h, Ft³/h, LPM, m3/h, and Ton/h, to seamlessly integrate into your existing systems.
- Advanced Communication: Equipped with Modbus RS485 communication, the IFLO-LWGY allows for easy integration with industrial control systems for real-time monitoring and data logging.
- User-Friendly Interface: Features such as a digital display with a backlight option, a totalizer reset function, and high/low alarms enhance usability and operational control.
- Superior Accuracy: Standard accuracy of ±1.0% of Rate is available, with an option for higher precision at ±0.5% of Rate, ensuring reliable and consistent measurements.
Robust Technical Specifications
The IFLO-LWGY Liquid turbine flow meter is built with high-quality materials and offers extensive customization to meet specific operational needs.
| Specification | Details |
| Accuracy | ±1.0% of Rate; ±0.5% of Rate |
| Output Signals | Pulse; 4-20mA |
| Fluid Temperature | −20°C to +150°C |
| Ambient Temperature | −20°C to +60°C |
| Body Material | SS304 or SS316 |
| Rotor Material | 2Cr13 or CD4MCu |
| Bearing Material | Tungsten Carbide |
| Power Supply | 24V DC; Battery; 220V AC |
| Protection | IP65 |
| Explosion Proof | Exd IICT6 Gb |
Connection Options:
- Flange: DIN, JIS, ANSI standards available from DN15 to DN200.
- Thread: G, BSP, NPT options from DN4 to DN50.
- Sanitary Tri-Clamp: For hygienic applications, available from DN10 to DN100.
- Wafer: Available for sizes from DN50 to DN200.
Wide Range of Applications
The versatility of the IFLO Liquid turbine flow meter makes it an ideal instrument for a variety of industries and systems, including:
- Petrochemical and Energy Industry
- Hydraulic and Lubrication Systems
- Food and Beverage Industry
- Distilled and Clean Water Measurement
- Industrial Test Systems
Customized for Your Needs
Valvelink understands that no two applications are the same. The IFLO-LWGY series offers extensive model selection options to ensure you get the perfect configuration for your project. You can specify everything from the diameter and converter type (including digital display, pulse, or 4-20mA outputs) to the body material, flow range, and connection type. With flow ranges available for pipe diameters from 4mm to 200mm, the IFLO-LWGY can handle flow rates from as low as 0.04 m3/h to as high as 800 m3/h.
Partner with Valvelink
Choose the IFLO-LWGY Liquid turbine flow meter for a reliable, accurate, and versatile liquid measurement solution. Backed by the expertise and support of Valvelink, you can be confident in a product that delivers performance and value.
Contact us today to learn more about the IFLO-LWGY, request a quote, or discuss your specific application requirements with our team of experts.
