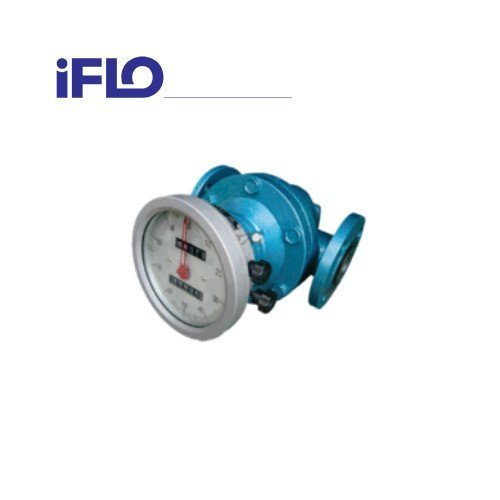

IFLO Oval Gear Flow Meter, a robust and highly accurate solution designed for a wide array of industrial applications. This positive displacement flow meter excels in measuring various fluid viscosities, offering exceptional repeatability and ease of installation. The IFLO Oval Gear Flow Meter is an ideal choice for businesses seeking reliable and precise flow measurement, particularly in demanding environments.
The IFLO Oval Gear Flow Meter is a light volume flow meter featuring a point wheel with cumulative count and zero functionalities. Its core strength lies in its innovative spiral rotor design, which ensures even rotation with minimal vibration. This contributes significantly to the meter’s overall performance and longevity.
Key Features of the IFLO Oval Gear Flow Meter:
- High Accuracy: Achieves impressive accuracy levels of up to ±0.2%, ensuring precise measurement for critical processes.
- Wide Measurement Range: Capable of handling a broad spectrum of flow rates.
- Excellent Repeatability: Delivers consistent and dependable readings.
- Viscosity Versatility: Effectively measures higher viscosity liquids and is not sensitive to changes in viscosity.
- Simplified Installation: Does not require straight pipe runs, making installation more flexible and convenient.
- Durable Construction: Available in various body materials including Cast Iron, Cast Steel, SS304, and SS316 to suit different operational needs.
Diverse Applications:
The versatility of the IFLO Oval Gear Flow Meter makes it suitable for numerous industries and applications, including:
- Mining industry
- Middle and small oil depots
- Shipyards
- Oil storehouses
- Measurement of diesel fuel, crude oil, and gasoline
Technical Specifications Overview:
The IFLO Oval Gear Flow Meter offers a comprehensive range of sizes and flow capacities. For example, with a fluid viscosity of 3-200mPa.s, the DN25 model (25mm diameter) can achieve a flow range of 1-6 m3/h with ±0.2% accuracy, or 1.2-6 m3/h with ±0.5% accuracy. For higher viscosity fluids (200-2000mPa.s), the same DN25 model offers a flow range of 0.6-3 m3/h with ±0.5% accuracy. The series extends to diameters as large as 200mm, accommodating flow rates up to 340 m3/h.
Tailored Model Selection:
Valvelink offers an extensive selection of IFLO Oval Gear Flow Meter models to precisely match your specific requirements. Customers can specify:
- Diameter: Ranging from DN10 to DN200.
- Converter Type: Options include mechanical displays with no output (MO), mechanical displays with pulse output (M1) or 4-20mA output (M2), and various LCD display configurations with options for no output (B, battery powered), pulse output (L1), 4-20mA output (L2), or both 4-20mA and pulse output (L3). All electronic display options typically operate on 24V DC.
- Totalizer: Available with or without a totalizer.
- Accuracy: Choose between ±0.2% or ±0.5% of rate.
- Structure: Standard type, high temperature type (up to 280∘C), or high viscosity type (up to 3000 mPa.s).
- Body Material: Cast Iron (CI), Cast Steel (CS), SS304 (S4), or SS316 (S6).
- Connection: A variety of flange options (DIN, ANSI, JIS) or thread connections (stainless steel only) are available.
The IFLO Oval Gear Flow Meter from Valvelink stands as a testament to precision engineering, offering businesses a dependable and accurate method for fluid measurement. Its robust design, coupled with a wide range of customizable options, ensures that the IFLO Oval Gear Flow Meter can be seamlessly integrated into diverse industrial processes, enhancing efficiency and control. Contact Valvelink today to learn more about how the IFLO Oval Gear Flow Meter can benefit your operations.
