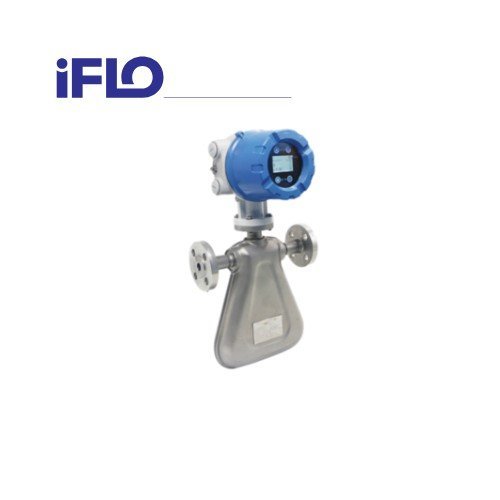

IFLO-SCM Coriolis Mass Flow Meter, a cutting-edge solution engineered for highly accurate direct mass flow measurement across a wide range of applications. This sophisticated instrument is designed to meet the demanding needs of modern industrial processes, delivering high-fidelity mass flow data with unmatched measurement stability and process adaptability.
The IFLO Coriolis Mass Flow Meter operates on the Coriolis principle, enabling it to directly measure the mass of the flowing medium. A key advantage of this technology is that the accuracy of the measurement remains unaffected by variations in fluid properties such as temperature, pressure, density, or viscosity, eliminating the need for complex compensation calculations.
Key Features and Advantages of the IFLO-SCM Coriolis Mass Flow Meter
The IFLO-SCM series boasts a robust set of features designed for optimal performance and stability:
- Superior Design and Stability: The U-type design (available from DN40 and above) provides excellent stability and repeatability in measurements.
- Enhanced Performance: A dedicated Application-Specific Integrated Circuit (ASIC) with digital closed-loop control (DLC) significantly improves the performance, especially for gas-liquid flow measurements.
- System Stability: Dynamic Vibration Balance (DVB) technology enhances overall system stability during operation.
- Accuracy and Compensation: The meter incorporates 2-point temperature compensation and process pressure compensation to ensure high accuracy. Flow rate accuracies are available at ±0.1%, ±0.2%, and ±0.5%.
- Versatile Applications: The IFLO Coriolis Mass Flow Meter is suitable for a diverse range of media, including both gases and liquids. It excels in applications such as custody transfer, reactor feed ratio control, density measurement, and batch control.
- Durable Construction: Measuring tubes are available in robust SS316L stainless steel or Hastelloy C for compatibility with various process fluids. The body material can be specified as SS304 or SS316.
- Wide Operating Conditions: The meters can handle a broad spectrum of medium temperatures, with options ranging from -50°C up to +350°C. Ambient temperature tolerance is from -25°C to +60°C with an LCD, and -40°C to +85°C without an LCD.
- Comprehensive Output and Communication: Standard outputs include 4-20mA and pulse. A variety of communication protocols are supported, including RS485, HART, Profibus DP, and FF, ensuring seamless integration into existing control systems.
Tailored to Your Needs: Model Selection and Specifications
Valvelink offers a comprehensive range of IFLO-SCM Coriolis Mass Flow Meters to precisely match your application requirements.
- Types and Sizes: Models include U-Type (for diameters DN40 and above), V-Type (for DN2, DN5, DN10), and UT-Type (for DN15, DN25). Diameters range from DN1 up to DN250. Custom sizes such as 3mm, 6mm, and 8mm can also be provided.
- Flow Ranges: The U-Type models offer liquid flow ranges from 20 kg/h (for DN1) up to 1,800,000 kg/h (for DN250). V-Type models cover liquid flow ranges from 600 kg/h up to 60,000 kg/h. Gas flow ranges can be determined using the provided K-gas coefficient and process density.
- Process Connections: A variety of process connections are available, including ANSI, DIN, and JIS flanges, as well as Tri-clamp (sanitary connection) and thread connections (for <DN40).
- Safety and Protection: The meters are designed with safety in mind, featuring ExdiblICT6Gb explosion protection and an IP67 protection rating.
- Display and Power: Options include compact type with a local display or a remote display with a bracket. Power supply can be 24V DC or 220V AC.
The IFLO Coriolis Mass Flow Meter from Valvelink represents a significant advancement in flow measurement technology. Its high accuracy, robustness, and versatility make it the ideal choice for businesses seeking to optimize their processes, ensure precise material balancing, and enhance operational efficiency.
For more detailed information on the IFLO-SCM Coriolis Mass Flow Meter, including specific model configurations and flow ranges, please contact Valvelink Company. Our team of experts is ready to assist you in selecting the perfect solution for your unique application.
