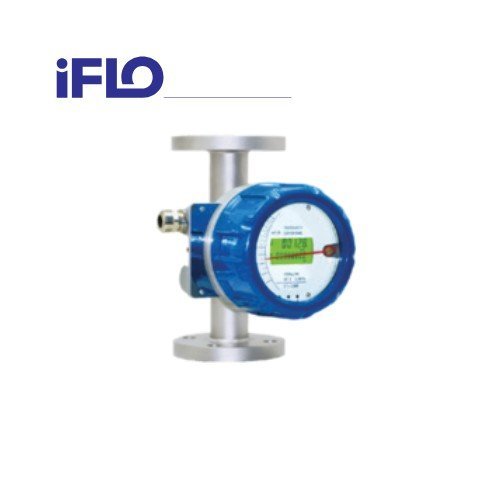

IFLO-SH250 Variable Area flow meter, a robust and versatile solution for precise flow rate measurement across a wide range of industrial applications. This instrument, commonly known as a rotameter, operates on the cone-and-float principle, offering reliable performance and clear readings for liquids, gases, and steam. The IFLO Variable Area flow meter is engineered to meet the demanding requirements of modern industrial processes.
The IFLO Variable Area flow meter stands out with its all-stainless steel construction, ensuring safe and durable operation even with aggressive or hazardous fluids, and under high temperature and pressure conditions. Its design incorporates both mechanical and LCD displays, providing operators with clear and immediate flow rate information. A key advantage of the IFLO series is its short-stroke design, which enables the measurement of high flow rates using a comparatively short metering tube.
Key Features of the IFLO Variable Area Flow Meter:
- Dual Display Options: Offers both mechanical and LCD displays for user convenience.
- High Flow Rate Measurement: The innovative short-stroke design facilitates the measurement of high flow rates within a compact device.
- Robust Construction: The all-stainless steel design ensures compatibility with a variety of liquids, gases, and steam, providing longevity and safety.
- Versatile Applications: Suitable for hazardous or aggressive fluids, as well as high temperature and high-pressure environments.
- Heating Jacket Option: The measuring section can be equipped with a heating jacket for specialized applications.
- Installation Flexibility: Primarily designed for vertical installation. Horizontal installation is also an option based on model selection.
Broad Industrial Applications:
The IFLO Variable Area flow meter is an indispensable tool across numerous sectors, including:
- Gas supply equipment
- Electric power generation
- Petroleum industry
- Chemical processing
- Metallurgy
- Pharmaceutical industry
Technical Specifications:
The IFLO-SH250 Variable Area flow meter delivers high performance, with technical specifications that include:
- Measuring Range: Capable of measuring liquid flow rates from 0.03m3/h up to 3000m3/h. (Note: The document specifies 0.03m2/h, which is likely a typo and should be m3/h for volume flow rate of liquids, and the upper range for air is 3000m3/h. Page 3 confirms water flow up to 200000L/h=200m3/h. The 3000m3/h likely refers to air). Air flow measurements range from 0.03m3/h to 3000m3/h.
- Accuracy: Offers an accuracy of ±1.5% of rate, with an option for ±1.0% of rate.
- Pressure Rating: Standard pressure ratings are up to 4.0 MPa for DN15-DN50 and 1.6 MPa for DN80-DN200. Special configurations can handle pressures up to 32 MPa (DN15-DN50) and 16 MPa (DN80-DN200).
- Temperature Range: Standard SS304 models operate from −40∘C to +100∘C. PTFE lined models are suitable for 0∘C to +100∘C, and high-temperature versions can withstand up to +450∘C.
- Viscosity Limits: Accommodates various fluid viscosities, for example, <5 mPa.s to <30 mPa.s for DN15 and up to <300 mPa.s for DN50-DN150.
- Output Signals: Available with 4-20mA output (2-wire or 4-wire system) and pulse output. Options for RS485 and Hart communication are available for certain converter types.
- Protection: IP65 rated enclosure.
- Explosion Proof: Options for ExdIIBT1-6 and ExiaIICT1-6 are available.
Customizable Model Selection:
Valvelink offers a comprehensive model selection matrix for the IFLO-SH250 Variable Area flow meter. This allows customers to specify parameters such as diameter (DN15 to DN200), display and converter type, fluid type (liquid or gas), body and float material (SS304, SS316, SS316L, PTFE combinations), installation orientation (vertical or horizontal), structural features (standard, heat insulation, damper for gas, high temperature, high pressure), explosion-proof rating, and connection type (flange, wafer, thread, tri-clamp). This ensures that the Variable Area flow meter is perfectly tailored to your specific process needs.
The IFLO Variable Area flow meter from Valvelink provides a reliable, accurate, and adaptable solution for your flow measurement requirements. Its robust design and wide range of configurable options make it an excellent choice for enhancing process control and efficiency across diverse industrial applications. Contact Valvelink today to discuss how the IFLO Variable Area flow meter can benefit your operations.
