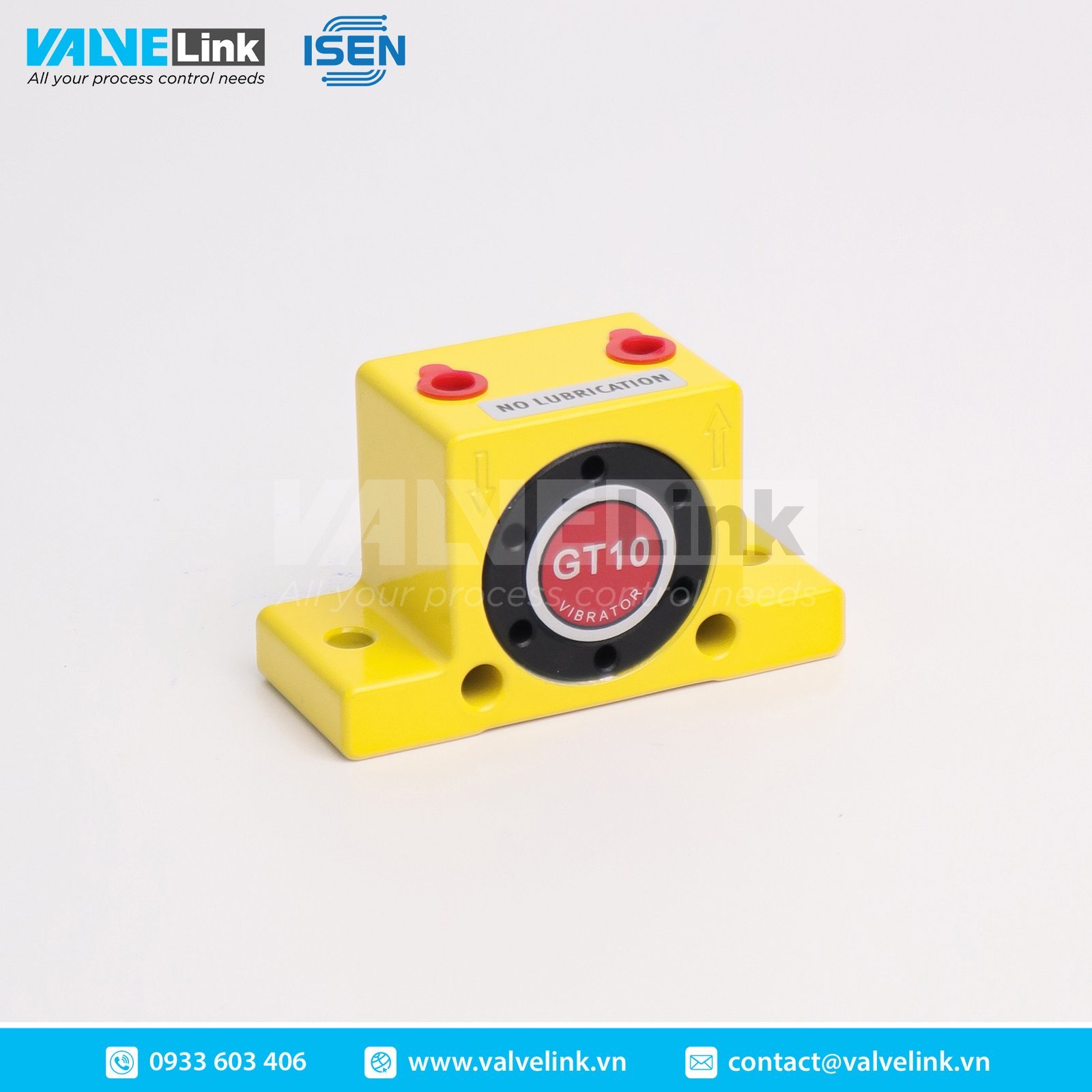

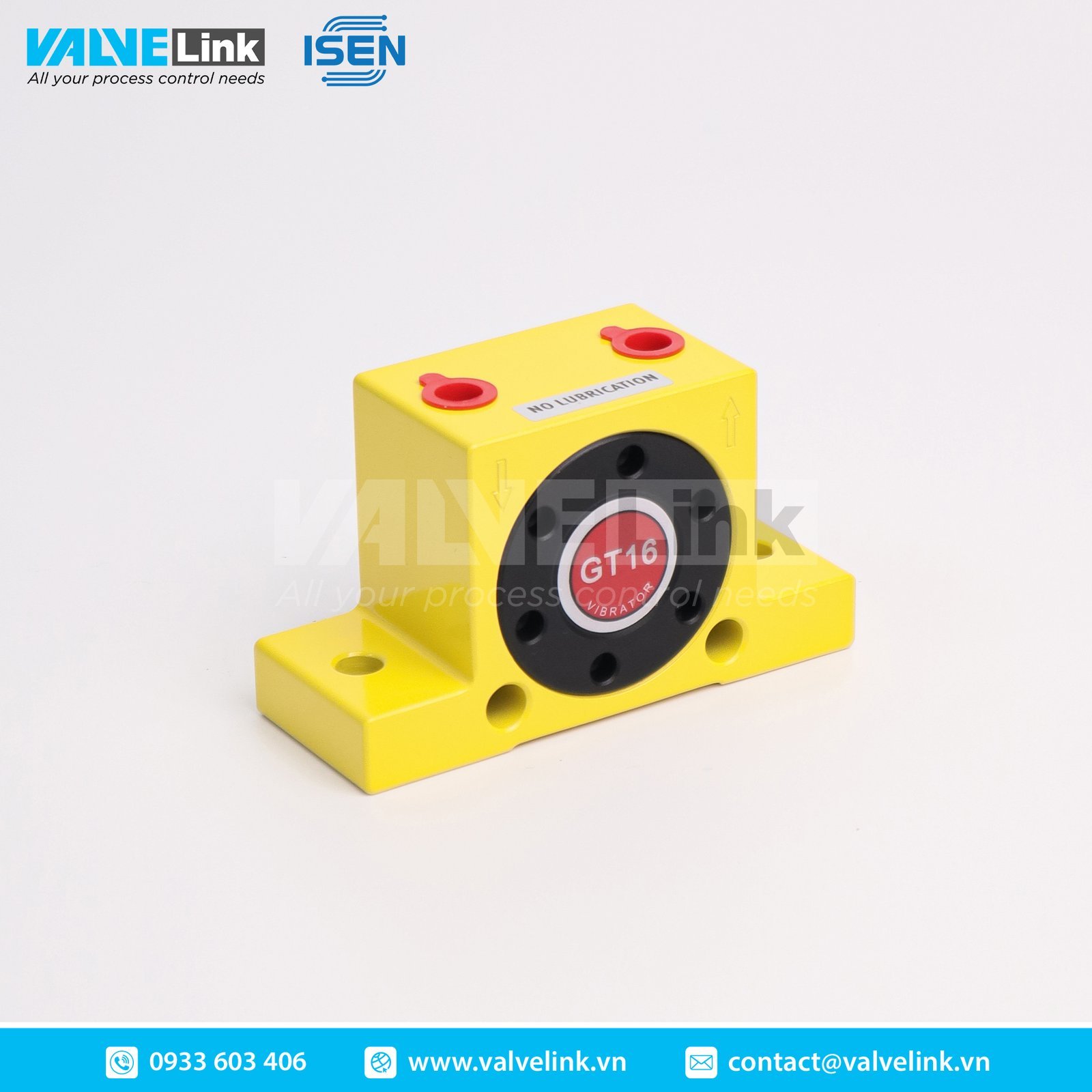

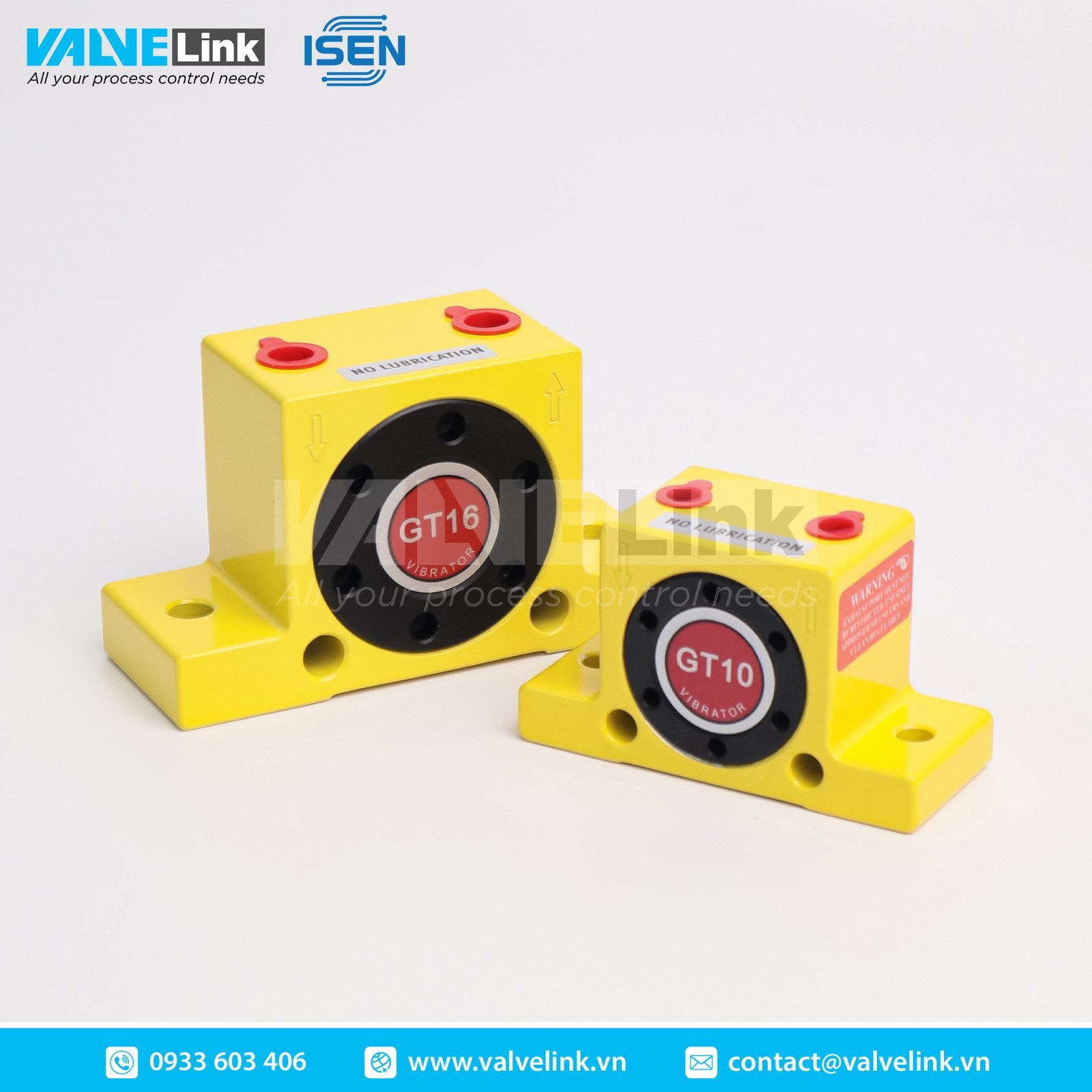

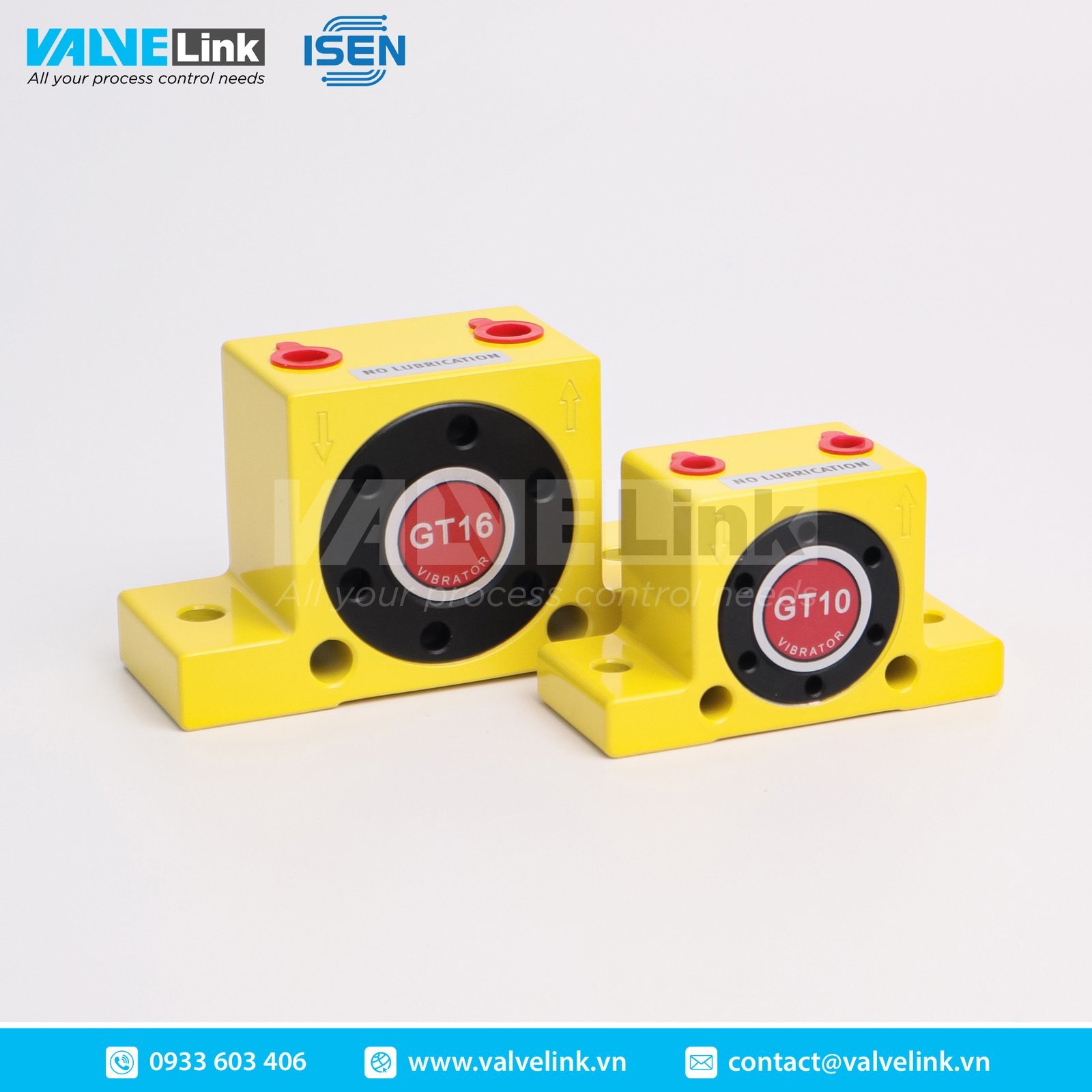

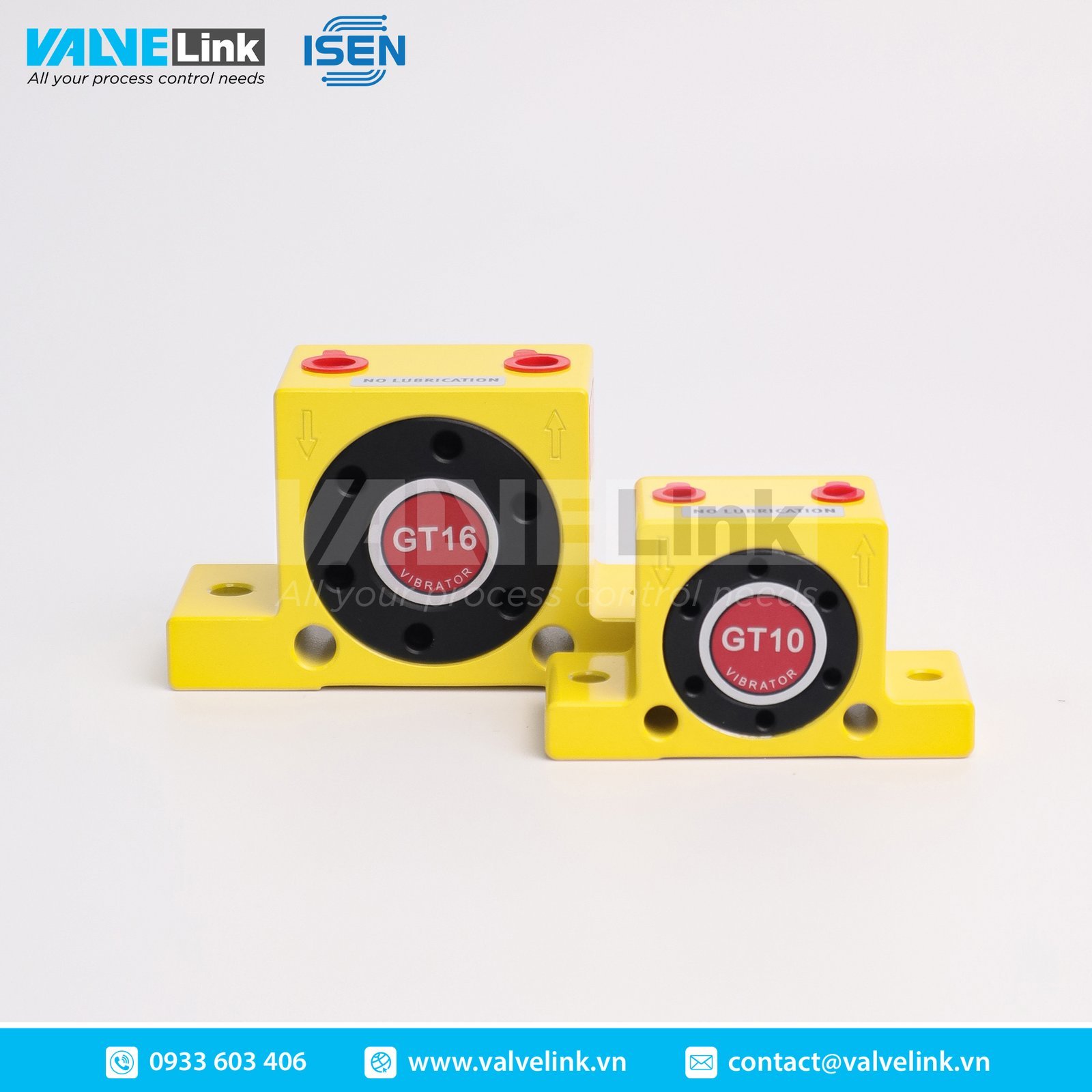

ISEN Air Hammer & Pneumatic Vibrator, a versatile and efficient solution designed to meet a wide range of industrial material handling needs. This advanced pneumatic vibrator offers superior performance, reliability, and cost-effectiveness for your business operations.
The ISEN Air Hammer & Pneumatic Vibrator is an air-powered device that produces rotary vibration. Its amplitude and frequency can be conveniently adjusted during operation by controlling the pneumatic pressure. Engineered for efficiency, this Air Hammer & Pneumatic Vibrator provides a compelling alternative to traditional electric vibrators, offering excellent performance, affordability, stable and reliable quality, a compact and lightweight design, straightforward maintenance, and low operational costs. A key advantage is its ability to operate solely on clean air, eliminating the need for a power supply and ensuring a potent vibration force for effective material flow.
Key Features and Benefits of the ISEN Air Hammer & Pneumatic Vibrator:
- Cost-Effective and Safe Operation: Utilizes air as its vibration source, ensuring safety, low expense, and simple maintenance. It boasts low operating costs and a low failure rate.
- Robust and Versatile Design: Features a simple structure with few points of failure, is easy to replace, and is suitable for a wide array of applications.
- Precision and Reliability: Offers instant start and stop capabilities, ensuring high accuracy and dependability in operations.
- Adjustable Performance: Vibration force, speed, and amplitude can be freely adjusted during operation to suit specific requirements.
- Superior Vibratory Force: Capable of achieving high vibration counts and significant vibration force, often outperforming standard electrical vibrators.
- Material Flow Enhancement: Automatically prevents the adhesion, clogging, and bridging of powders and other objects in pipelines, hoppers, and silos during conveying, without causing damage or deformation to the equipment itself.
- Environmentally Conscious: This new generation Air Hammer & Pneumatic Vibrator is an energy-saving and environmentally friendly solution.
Diverse Applications:
The ISEN Air Hammer & Pneumatic Vibrator is expertly designed for tasks such as:
- Conveying materials
- Feeding components
- Pounding or compacting substances
- Separating various types of materials
It is effective with a multitude of materials including chemical powders, corn, sand, gravel, and cement. This Air Hammer & Pneumatic Vibrator can be deployed in both indoor and outdoor environments, though it is not designed for submersion in liquids.
Technical Highlights:
The ISEN GT series, a prominent line within our Air Hammer & Pneumatic Vibrator offerings, operates with remarkable efficiency. The frequency is controlled by air pressure. Different models cater to varied operational needs, with operating air pressure ranges such as 0.1∼0.4MPa for the ISEN-GT8/10 models and 0.4∼0.8MPa for the ISEN-GT40/48 models. Key operational parameters include:
- Minimum working air pressure: 1 bar.
- Maximum working air pressure: 8 bar (this should not be exceeded).
- Noise level: A relatively quiet 60 to 75 dBA.
- Media: Can operate using non-air media such as nitrogen.
- Maximum working ambient temperature: Should not exceed 120∘C.
Valvelink Company is committed to providing high-quality industrial solutions. The ISEN Air Hammer & Pneumatic Vibrator stands as a testament to this commitment, offering an advanced, reliable, and economical tool to optimize your material handling processes.
For more detailed information on the ISEN Air Hammer & Pneumatic Vibrator, including specific model dimensions and performance characteristics, please contact Valvelink.
