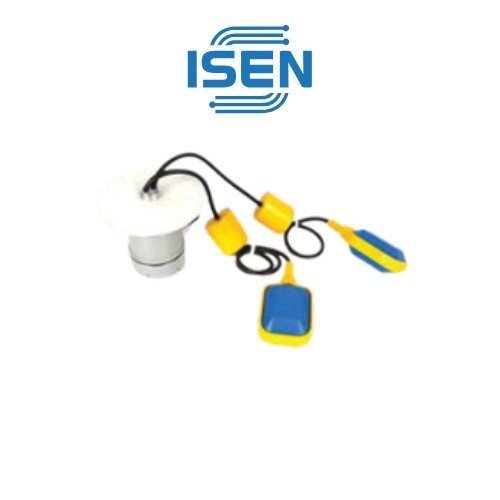

ISEN Cable Float Level Switch, a robust and efficient solution designed for accurate liquid level signaling in a variety of industrial applications. This product utilizes the fundamental principles of gravity and buoyancy to deliver a simple, yet highly reliable, switching mechanism. The ISEN Cable Float Level Switch offers a dependable method for automating the control of pumps, alarms, and other devices based on liquid levels.
Principle of Operation
The ISEN Cable Float Level Switch is engineered with a straightforward and effective design. At its core, the device features a float body which houses a large-capacity microswitch and a driving mechanism. This assembly is connected via a three-core cable and includes a weight to ensure proper operation. The operational principle centers on a contact integrated within the float that transmits signals. Specifically, a sliding magnetic ring and a reed switch contact are securely sealed inside the float. As the liquid level rises or falls, causing the float to reach a predetermined position, the float rapidly tilts. This tilting motion activates the magnetic ring, which in turn actuates the contact, thereby signaling a change in liquid level. The activation point and operational range of the Cable Float Level Switch can be conveniently adjusted to meet specific requirements.
Key Features and Advantages
The ISEN Cable Float Level Switch stands out due to its numerous beneficial features:
- Advanced Technology: Incorporates imported patented technology for overall plastic molding, ensuring durability and quality.
- Reliable Performance: Boasts a simple and reasonable structure, leading to stable and dependable operation.
- Ease of Use: Designed for very easy installation and use, with convenient on-site adjustment.
- Versatile Applications: Compatible with a variety of water pumps and is extensively used in water supply, drainage, and the automatic control of corrosive and suspended liquids.
- Multi-Point Control: Can be configured into a group, facilitating convenient multi-point liquid level control.
Technical Specifications
The ISEN Cable Float Level Switch is built to handle demanding industrial environments:
- Contact Capacity: 15A/250VAC
- Operating Temperature (PP Model): -10°C to 80°C
- Rated Current: 10A
- Conventional Heating Current: 15A
- Switching Life: 1 million times
- Cable Length: Standard lengths of 3M, 5M, and 10M are available, with options for customized lengths.
Selection Guide
To ensure the optimal Cable Float Level Switch for your specific needs, Valvelink provides a comprehensive selection guide. Key selection parameters include:
- Model: ISEN-LPF
- Liquid Receiving Material: Options include SUS+Silicone Cable (S) for temperatures ranging from -10°C to 180°C (220VAC, 2A, SPDT) and PP+Rubber Cable (P) for temperatures from -10°C to 80°C (220VAC, 10A, SPDT).
- Configuration: Available as single float (A) or assembled floats (B).
- Number of Floats (N): Customizable based on application requirements.
- Cable Length (L): Specified in millimeters.
The ISEN Cable Float Level Switch from Valvelink offers a dependable, adaptable, and easy-to-implement solution for your liquid level control challenges. Its robust design and versatile features make it an ideal choice for a wide array of industrial processes.
