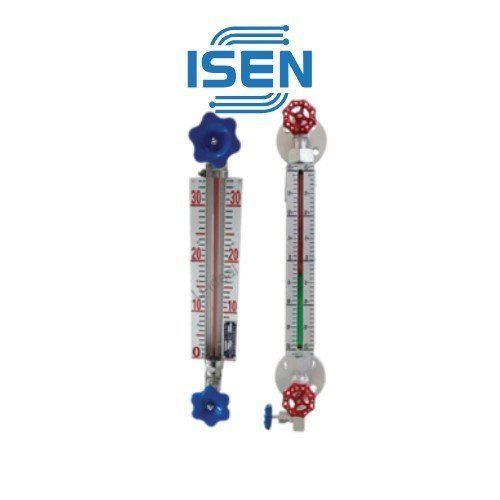

ISEN Glass Tube Level Gauge, a premier solution for direct liquid level measurement across a wide range of industrial applications. This robust and versatile instrument provides clear and accurate readings, ensuring operational safety and efficiency for your business.
Unparalleled Clarity and Reliability with the ISEN Glass Tube Level Gauge
The Glass Tube Level Gauge is a fundamental instrument for visual liquid level indication in tanks and boilers. The ISEN series offers a diverse selection of gauges, ensuring a perfect fit for various pressure, temperature, and corrosive environments
Featured ISEN Glass Tube Level Gauge Models
Valvelink offers several specialized ISEN models to meet specific industry needs:
ISEN-UGS-A (GZS-A) Bi-color Quartz Glass Tube Liquid Level Gauge
Designed for high-pressure and high-temperature applications, this model provides an exceptionally clear visual distinction between liquid and gas phases.
- Display: Utilizes a red and green glass sheet system where green indicates liquid and red indicates air. An optional electric light can be added to enhance visibility.
- Operating Range: Handles temperatures from -20°C up to 600°C and pressures up to 10MPa.
- Measurement Range: Available in lengths from 300mm to 3200mm.
- Materials: Constructed from durable carbon steel or SS304 stainless steel.
- High-Pressure Tube: Features a robust quartz glass tube with an outside diameter of 29mm and 10mm thickness, tested to a pressure of le13MPa.
ISEN-GZS-C Series Economic Glass Tube Water Level Gauge
For standard applications requiring reliability and cost-effectiveness, the GZS-C series is an ideal choice.
- Versatile Range: Measures ranges from 300mm up to 5000mm.
- Operating Conditions: Suitable for temperatures up to le180circC and pressures from 0 to 16 Bar.
- Material Options: Body can be made from carbon steel, SS304, or SS316.
- Safety and Protection: Features a needle valve with an internal safety ball check and a U-shaped aluminum housing to protect the transparent tube.
- Connection Flexibility: Can be ordered with any type of thread or flange connection.
ISEN-B49HT Double Color Quartz Glass Tube Water Level Indicator
This model is specifically engineered for boiler applications, incorporating critical safety features.
- Safety First: The gauge is equipped with upper and lower valves that house a safety steel ball. If the quartz glass tube breaks, high-pressure steam automatically pushes the steel ball to the valve seat, shutting off the channel until the valves can be manually closed. The ball resets automatically once pressure is equalized.
- Clear Bi-Color Display: Provides an unmistakable visual indication, showing green for the water level and red for air (steam). An LED light assembly can be included for constant, clear viewing.
- High-Performance Specifications:
- Working Temperature: −20circC to 450circC, with options for up to 600circC.
- Pressure Rating: Available for PN2.5, PN4.0, PN6.4, and PN10MPa systems.
- Materials: A105, SS304, or SS316.
- Connections: Standard DN25 flange, with other options available.
Comprehensive Customization for Your Application
The ISEN Glass Tube Level Gauge can be tailored to your precise operational requirements. Our extensive selection of components ensures you receive an instrument perfectly matched to your needs.
| Feature | Options |
| Pressure Rating | Models available for 1.0MPa, 2.0MPa, 4.0MPa, 6.4MPa, and 10.0MPa. |
| Temperature Range | Options include $<60^{\circ}C$, $<100^{\circ}C$, $<180^{\circ}C$, $<450^{\circ}C$, and $<600^{\circ}C$. |
| Body Materials | Choose from Carbon Steel (CS), Stainless Steel (304, 316), PVC, PP, or Stainless Steel with a PTFE lining for anti-corrosive needs. |
| Glass Tube Types | <ul><li>Borosilicate Glass: For temperatures $<100^{\circ}C$ and pressures $<1MPa$. Available for center-to-center lengths up to 1840mm or longer. </li><li>Quartz Glass: Suitable for high temperatures of $<450^{\circ}C$ or $<600^{\circ}C$. </li><li>Acrylic, PVC, or PTFE Tubes: For various lengths and anti-corrosive applications. </li></ul> |
| Connections | Flange sizes from DN15 to DN50 are available. |
For a durable, accurate, and customizable liquid level monitoring solution, trust the ISEN Glass Tube Level Gauge from Valvelink Europe Ent. Contact us today to discuss your specific requirements and let our experts guide you to the perfect product.
