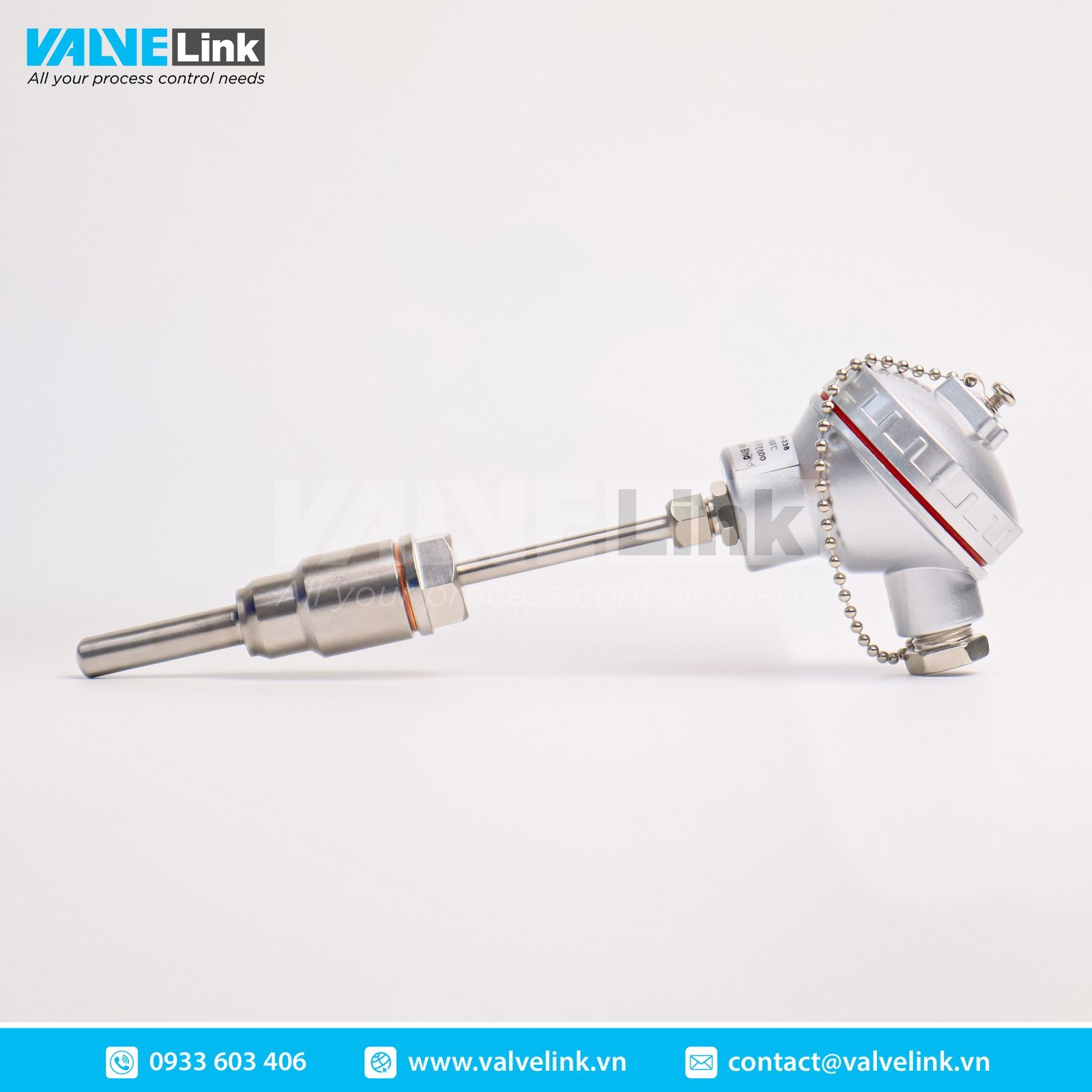

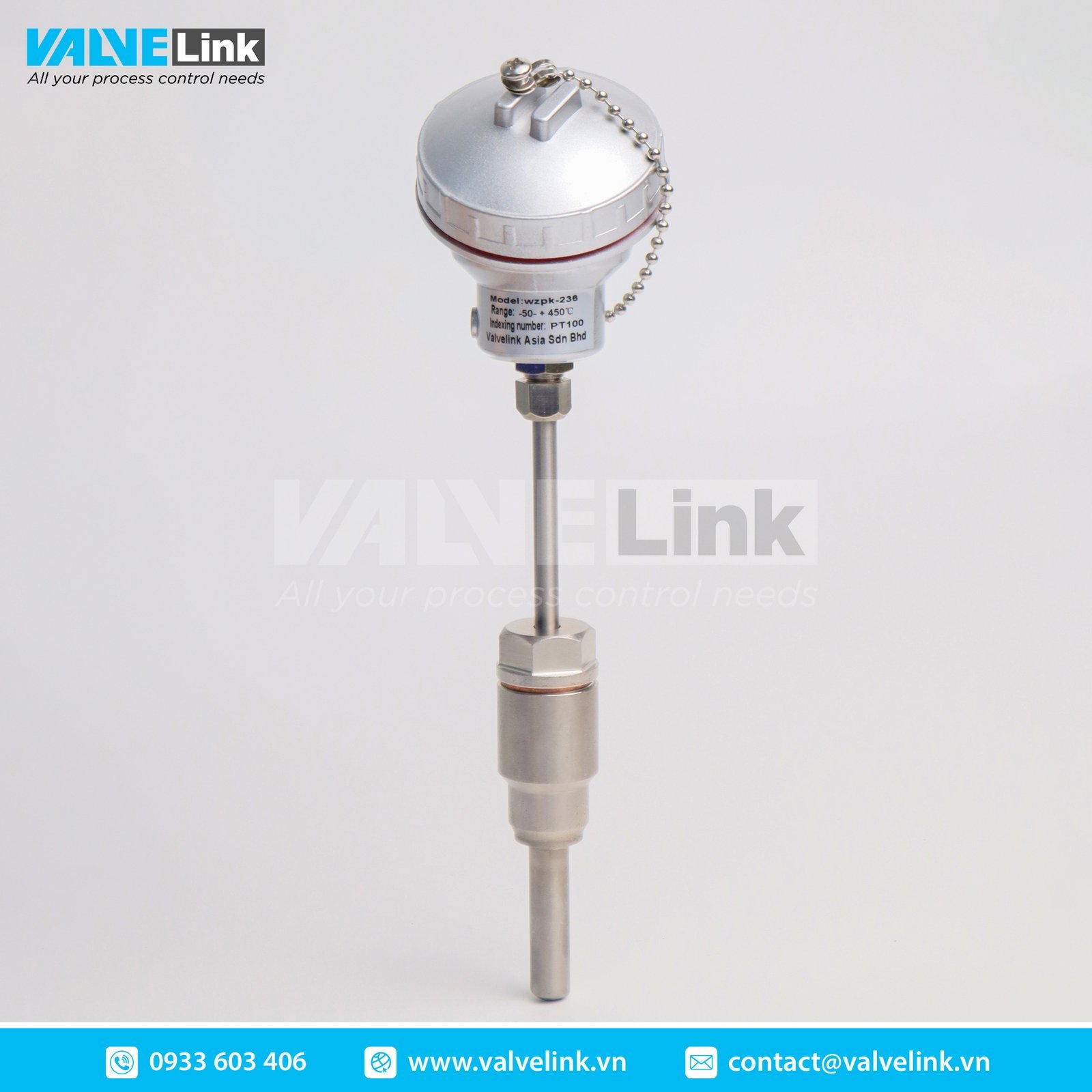

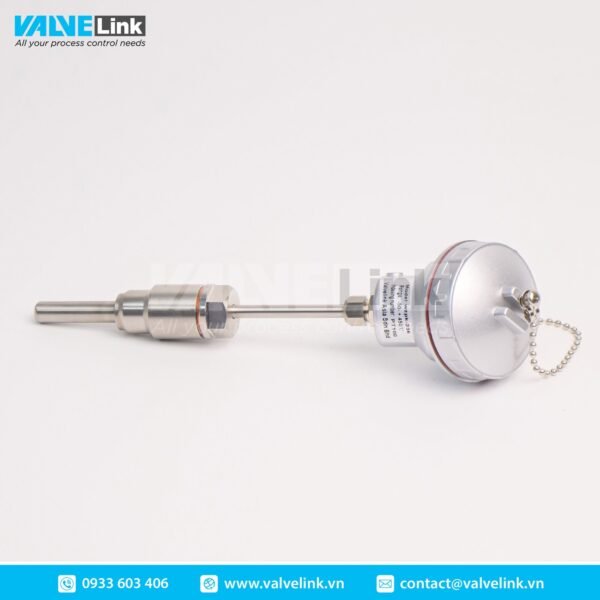

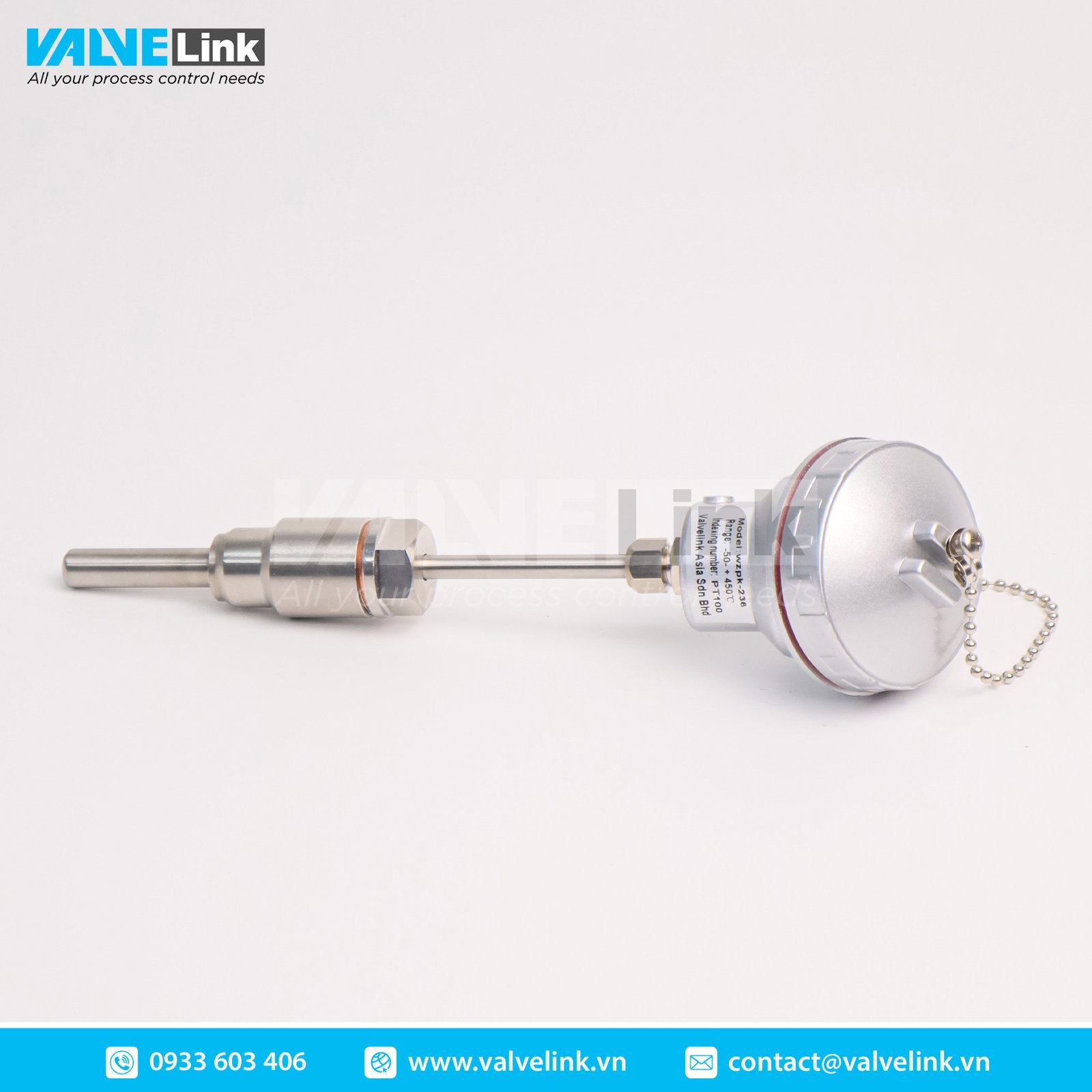

Isen Temperature Transmitter, a state-of-the-art electronic device meticulously engineered to convert signals from a wide array of temperature probes, including those detecting critical PT100 temperature change, into industry-standard outputs. This robust transmitter is designed for seamless integration into automated measurement and control systems such as PLCs, DCSs, and PCs, offering unparalleled reliability for your industrial processes.
In today’s demanding industrial environments, accurate temperature monitoring is paramount. The Isen Temperature Transmitter stands out with its high customizability and stable performance, making it the ideal solution for supervising and controlling temperature across diverse applications. For operations that rely on the precision of platinum resistance thermometers, understanding and accurately transmitting PT100 temperature change is crucial, and the Isen transmitter is specifically designed to excel in this area.
Key Features and Benefits: Driving Efficiency and Reliability
The Isen Temperature Transmitter is packed with features that deliver tangible benefits to your operations:
- Versatile Sensor Compatibility: The Isen transmitter supports the most common temperature sensors used in industry today:
- Resistance Temperature Detectors (RTD): Including the highly accurate Pt100 (essential for precise PT100 temperature change measurement) and Cu50.
- Thermocouples (TC): Types J, K, E, T, B, S.
- Expansive Temperature Measurement Range: Capable of accurately measuring temperatures from −200°C to +600°C, catering to a vast spectrum of industrial requirements.
- Industry-Standard Output Signal: Provides a reliable analog 4−20mA (2-wire) output, facilitating easy connection and integration into existing control architectures.
- Optional HART Protocol: A version supporting the HART protocol is available, enabling convenient remote setup, configuration, and diagnostics of the device. This is particularly beneficial for monitoring PT100 temperature change in hard-to-reach locations.
- Dependable Accuracy: Choose between accuracy classes of ±0.5% or ±1.0% to meet your specific process needs.
- Unmatched Configuration Flexibility: The Isen transmitter can be tailored to your exact specifications via its model code, offering extensive customization:
- Structural Design: Available in Assembly or Armour types.
- Installation Options: Non-fixed, Threaded (M27x2, G3/4″, M33x2, G1″), or Flanged (fixed/movable).
- Protection Tube Material: Standard options include Stainless Steel SS304, SS316, and SS316L. Specialized anti-corrosion materials such as Corundum Ceramic, Ceramic, and PTFE are available for aggressive media.
- Protection Tube Diameter: Standard diameters are ∅16mm and ∅20mm, with ∅12mm and other sizes available upon request.
- Protection Tube Length (L): Customizable from 30mm to 500mm.
- Junction Box Variants: Options include column type, standard, splash-proof, waterproof, explosion-proof, and models with an integrated display.
- Optional Local Display: Enhance on-site monitoring with a linear dial indicator, LCD, LED, or Smart LCD.
- Enhanced Safety: For hazardous environments, optional explosion-proof certifications are available, including Ex iaIICT6 and Ex dIIBT4.
The Significance of Accurate PT100 Temperature Change Measurement
The Isen Temperature Transmitter is particularly adept at handling signals related to PT100 temperature change. Pt100 sensors are renowned for their stability and accuracy over a wide temperature range. The Isen transmitter ensures that every minute PT100 temperature change is precisely captured, converted, and transmitted, providing reliable data for critical process control and safety. This precision is vital in applications where even slight temperature deviations can impact product quality, efficiency, or safety.
Diverse Industrial Applications
The versatility and reliability of the Isen Temperature Transmitter make it suitable for a multitude of industries and applications, including:
- Water Supply and Treatment Systems
- Chemical Fiber Production
- Rubber and Plastics Industries
- Boilers, Heating, and Cooling Systems
- Food and Beverage Processing
- HVAC and Building Automation Systems
Key Technical Specifications (focused on PT100 applications)
When configured for PT100 temperature change measurement, the Isen Temperature Transmitter offers:
- Supported Sensor Types: RTD (Pt100, Cu50), Thermocouple (J, K, E, T, B, S)
- Measurement Range: −200°C to +600°C
- Output Signal: 4−20mA (2-wire), with optional HART integration
- Power Supply: 9–36VDC
- Accuracy: ±0.1% of span (standard)
- Standard Probe Material: SS304, SS316, SS316L
- Standard Probe Diameter: ∅16mm,∅20mm
- Probe Length (L): 30mm<L<500mm
- Electrical Connection: Terminal block, DIN IP65 Junction Box (standard)
- Optional Explosion-Proof Standards: Ex iaIICT6, Ex dIIBT4
Partner with Valvelink for Your Temperature Measurement Needs
With its extensive configuration options, the Isen Temperature Transmitter can address virtually any industrial temperature measurement challenge, especially those involving precise PT100 temperature change monitoring.
The Valvelink technical team is ready to assist you in selecting the optimal configuration for your specific requirements and to provide a competitive quotation.
Valvelink – Your trusted partner for advanced automation measurement and control solutions!
