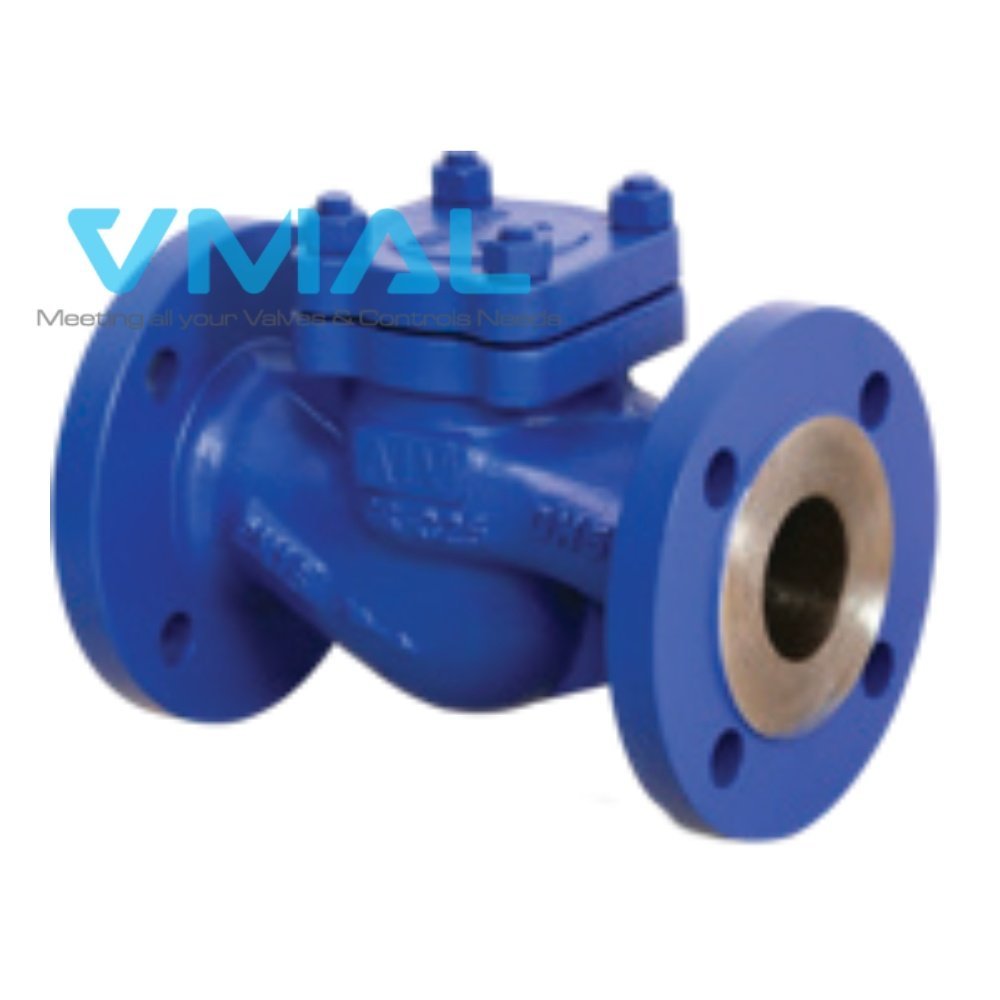

For businesses seeking robust and reliable flow control solutions, Valvelink Europe is proud to introduce the VMAL DIN Lift check valve. This self-sealing valve is meticulously engineered to prevent backflow in critical systems, ensuring operational safety and efficiency. Its superior design and quality materials make it an ideal choice for a wide range of industrial applications.
The VMAL Lift check valve is distinguished by its intelligent design features. The valve operates automatically, with a disc that acts against the media flow to prevent reversal. A key advantage is its spring-loaded disc, which allows the valve to be installed and function effectively in any orientation—vertical, horizontal, or otherwise. This versatility simplifies system design and installation. Customers can expect a valve with a rational structure, dependable sealing, excellent performance, and an appealing design.
Engineered for Excellence: Technical Specifications and Quality Materials
The VMAL Lift check valve adheres to rigorous German Industrial Standards (DIN), guaranteeing quality and interoperability.
Technical Specifications:
- Design Standard: DIN 3356
- Face-to-face Dimension: DIN 3202
- Flanged Ends: DIN 2543-2545
- Test & Inspection: DIN 3230
The durability and performance of this Lift check valve are rooted in its high-quality materials. Valvelink has selected robust materials for each component to ensure longevity and reliability, even in demanding environments.
Main Part Materials:
| Part Name | Material Options |
| Body | GS-C25, 1.4301, 1.4408 |
| Cover | GS-C25, 1.4301, 1.4408 |
| Disc | 1.4021, 1.4301+Stellite |
| Seat | 1.4301, Stellite |
| Spring | 1.4301, 1.4401 |
| Gasket | Stainless steel + Flexible graphite |
| Bolts & Nuts | ASTM 193-B7/A193-B8 & ASTM 194-2H/A194-8 |
Versatile Applications
The robust construction and reliable design make the VMAL Lift check valve perfectly suited for various systems, including:
- Hot oil systems
- Steam systems
- Hot and cold water systems
The VMAL DIN Lift check valve from Valvelink is a premier choice for businesses that require dependable, high-performance valves. Its adherence to DIN standards, quality construction, and versatile design ensure it meets the complex needs of modern industrial systems.
