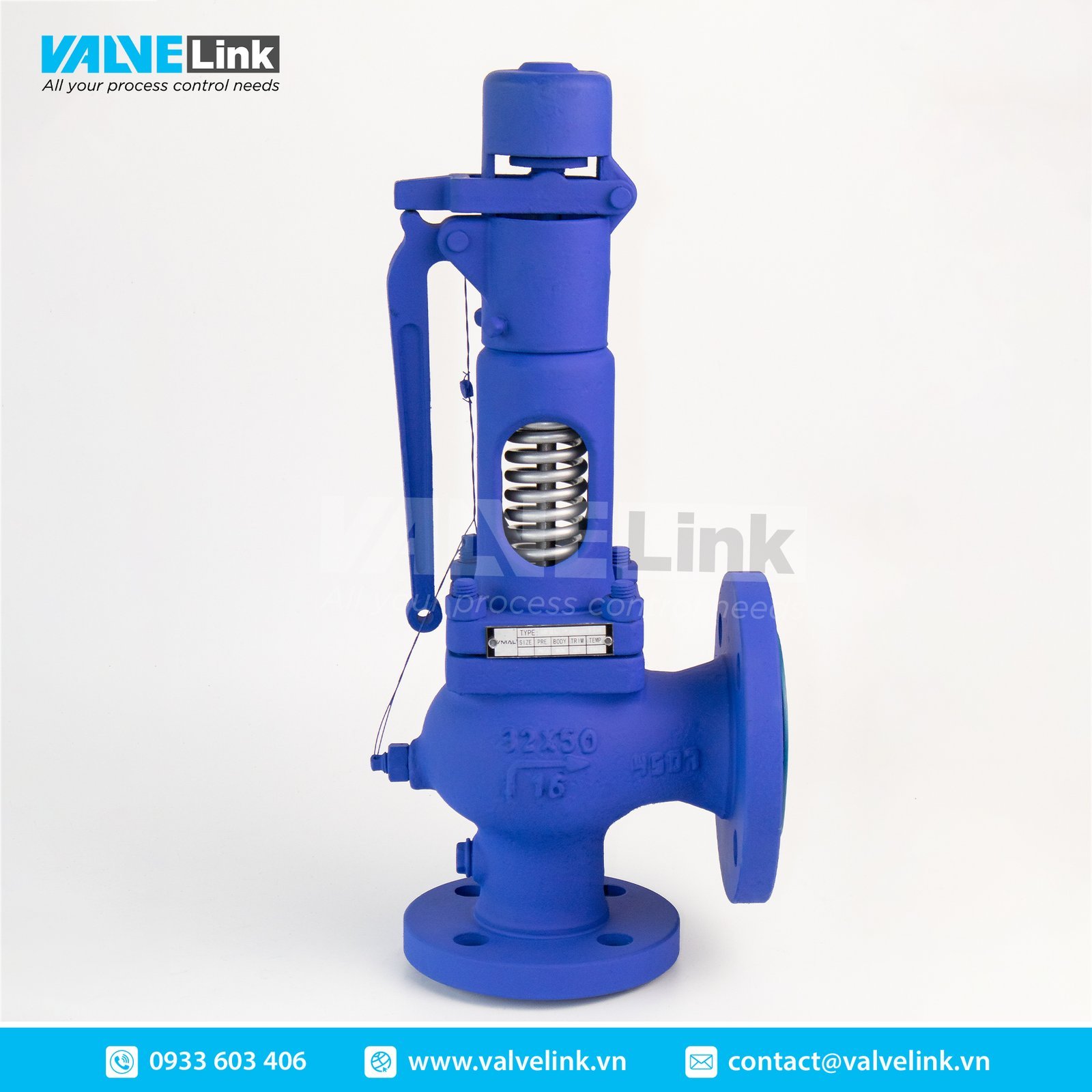

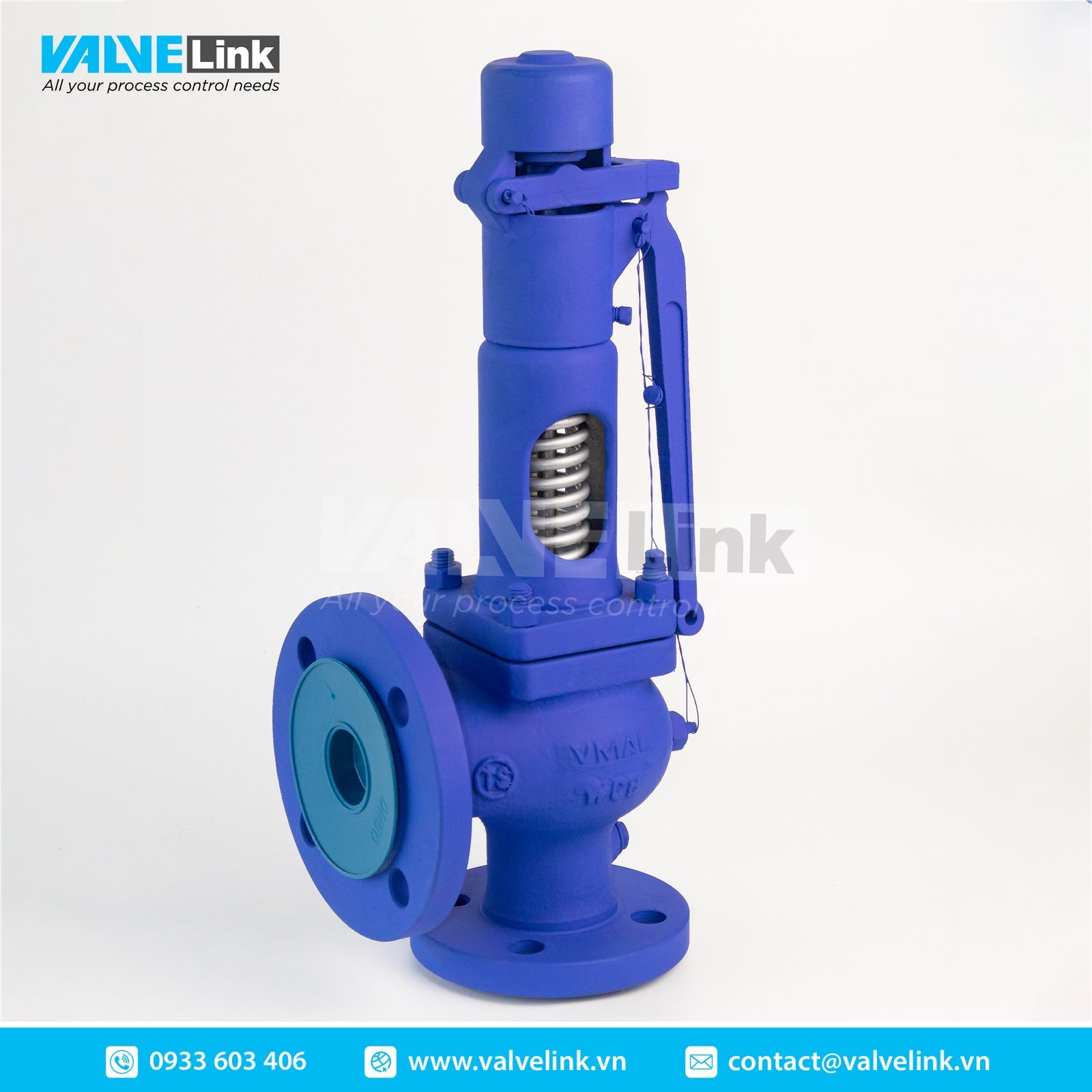

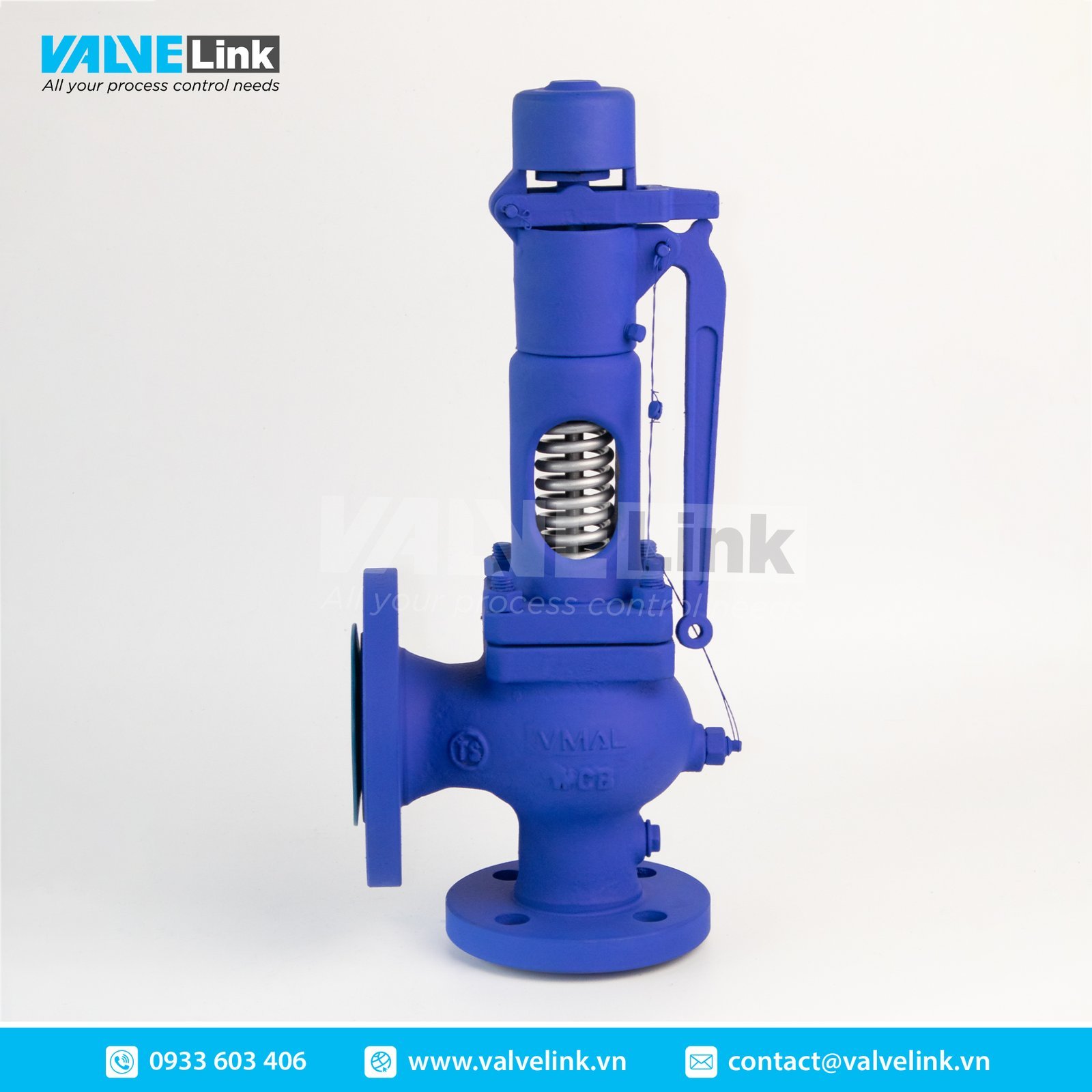

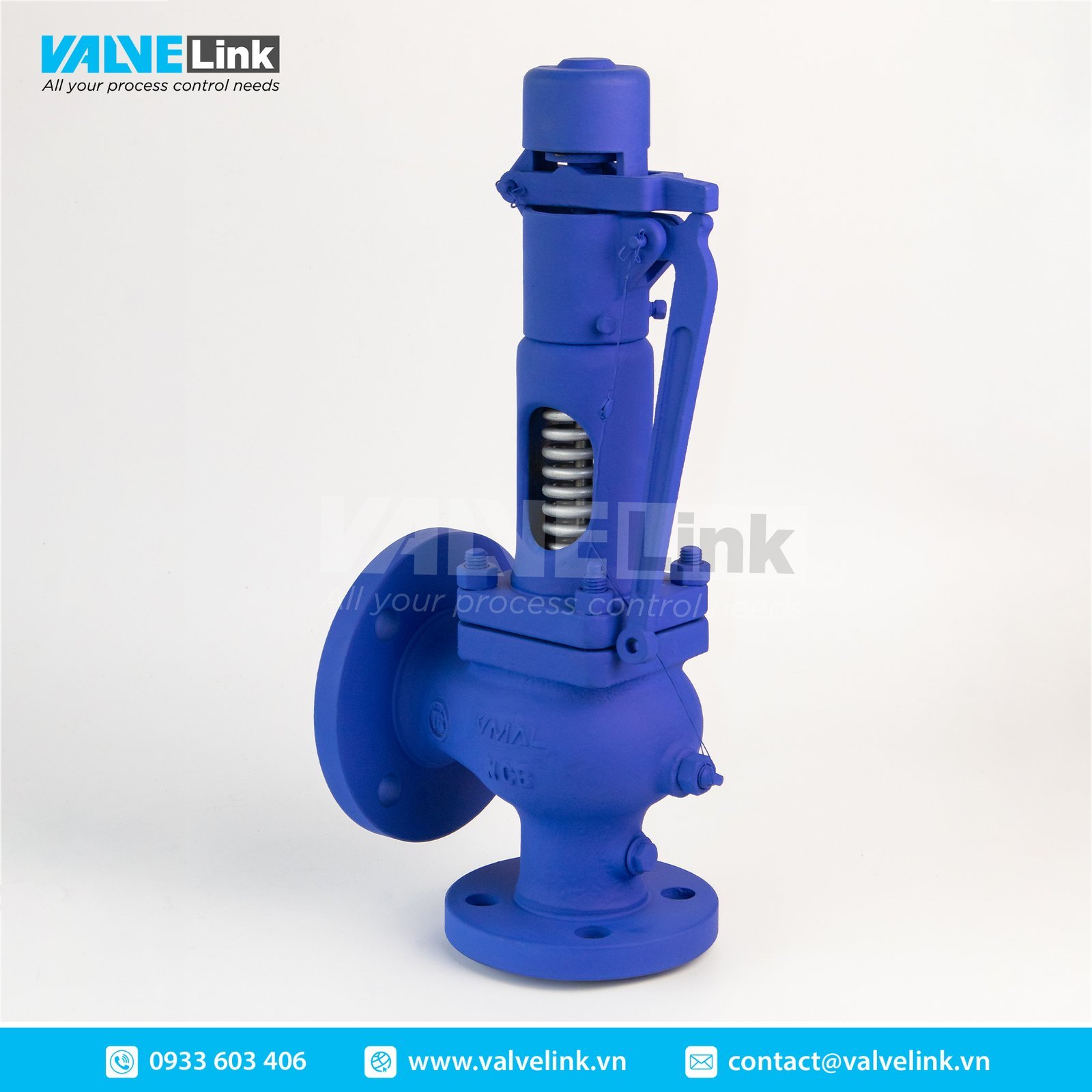

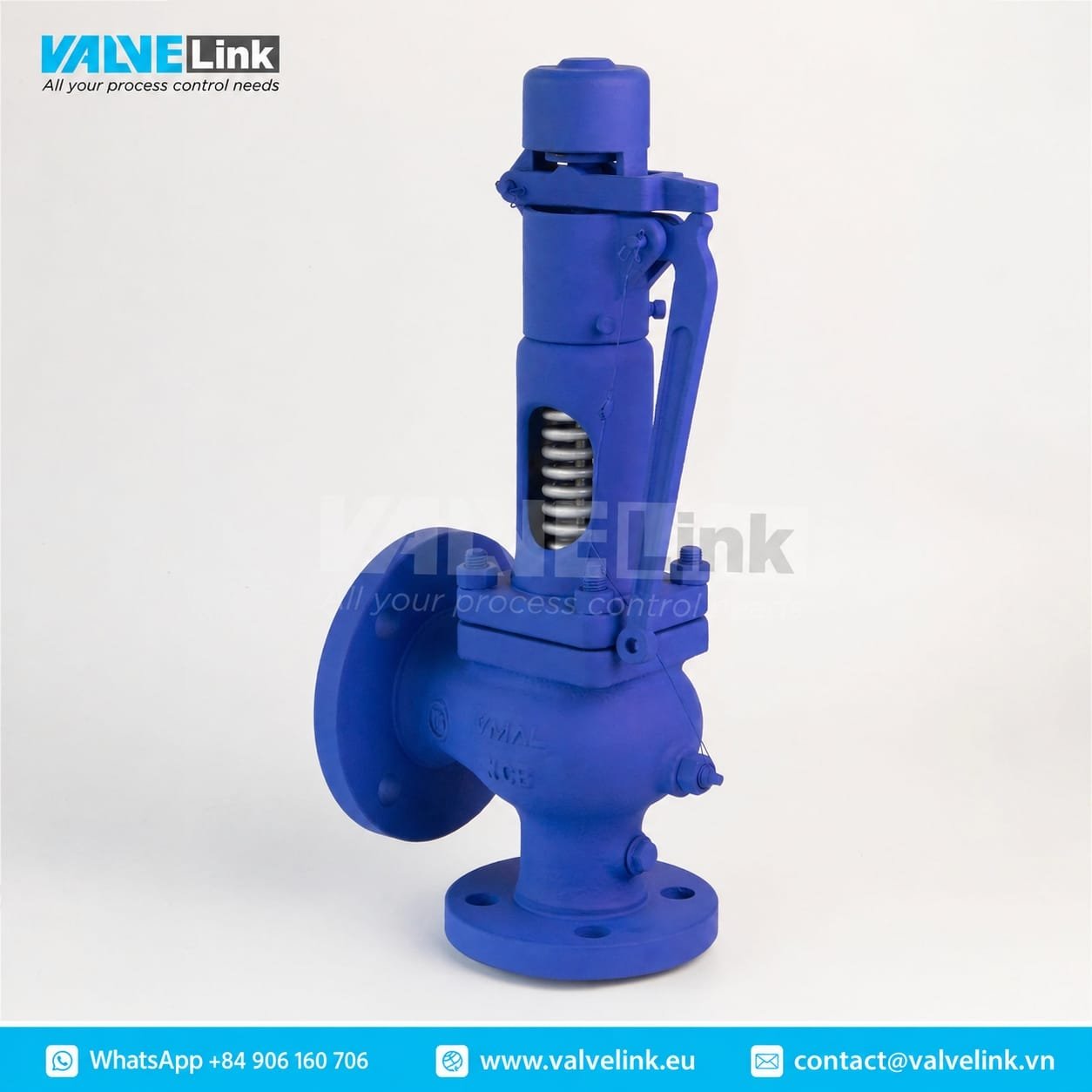

In industrial environments where pressure systems are integral to operations, ensuring safety is not just a priority, it is a necessity. Valvelink, a leading provider of high-quality valves and control solutions, is proud to introduce the VMAL DIN Safety Valve. Engineered to the highest standards, this crucial component is designed to protect your valuable assets and personnel from the dangers of overpressure events.
The VMAL Safety Valve is a reliable, high-performance solution for a wide range of applications, including hot oil systems, steam systems, and both hot and cold water systems. Its primary function is to automatically discharge any excess pressure from your equipment and pipelines, safeguarding your entire system from potential failure.
Uncompromising Quality and Compliance
Adherence to stringent international standards is a hallmark of the VMAL Safety Valve. Designed and manufactured in accordance with German Institute for Standardization (DIN) regulations, this valve guarantees exceptional quality and interchangeability.
Technical Specifications:
- Design Standard: DIN 3320
- Face-to-face Dimension: DIN 3202
- Flanged Ends: DIN 2543-2545
- Test & Inspection: DIN 3230
Each VMAL Safety Valve undergoes rigorous testing and inspection as per DIN 3230 to ensure it performs flawlessly when it matters most.
Robust Construction for Demanding Environments
The durability and reliability of a safety valve are determined by the quality of its components. The VMAL series is constructed from a selection of premium materials, ensuring longevity and resistance to corrosion and wear in various industrial settings.
| Part Name | Material Options |
| Body | GS-C25, 1.4301, 1.4401 |
| Seat | 1.4301, Stellite |
| Disc | 1.4021, 1.4301+Stellite |
| Spring | 1.4301, 1.4401 |
| Copper Guide Sleeve | Copper alloy, D2, BL2 |
| Gasket | Stainless steel Flexible graphite |
| Cover | GS-C25, 1.4301, 1.4401 |
| Nut | ASTM 194-2H, A194-8 |
| Double-headed Bolt | ASTM 193-B7, A193-B8 |
This meticulous selection of materials ensures that the VMAL Safety Valve can withstand the demanding conditions of your specific application, providing you with peace of mind.
A Key Advantage in Pipeline Installation
Beyond its primary safety function, the VMAL Safety Valve offers a distinct advantage for system design and installation. It can be installed in the commutation of the pipeline to help reduce the amount of welding required. This simplifies the installation process, saving time and reducing overall project costs.
For a robust, reliable, and standards-compliant safety valve solution, look no further than the VMAL DIN Safety Valve from Valvelink. Protect your systems, your personnel, and your bottom line.
Contact Valvelink today to learn more about the VMAL Safety Valve and how we can meet all your valve and control needs
