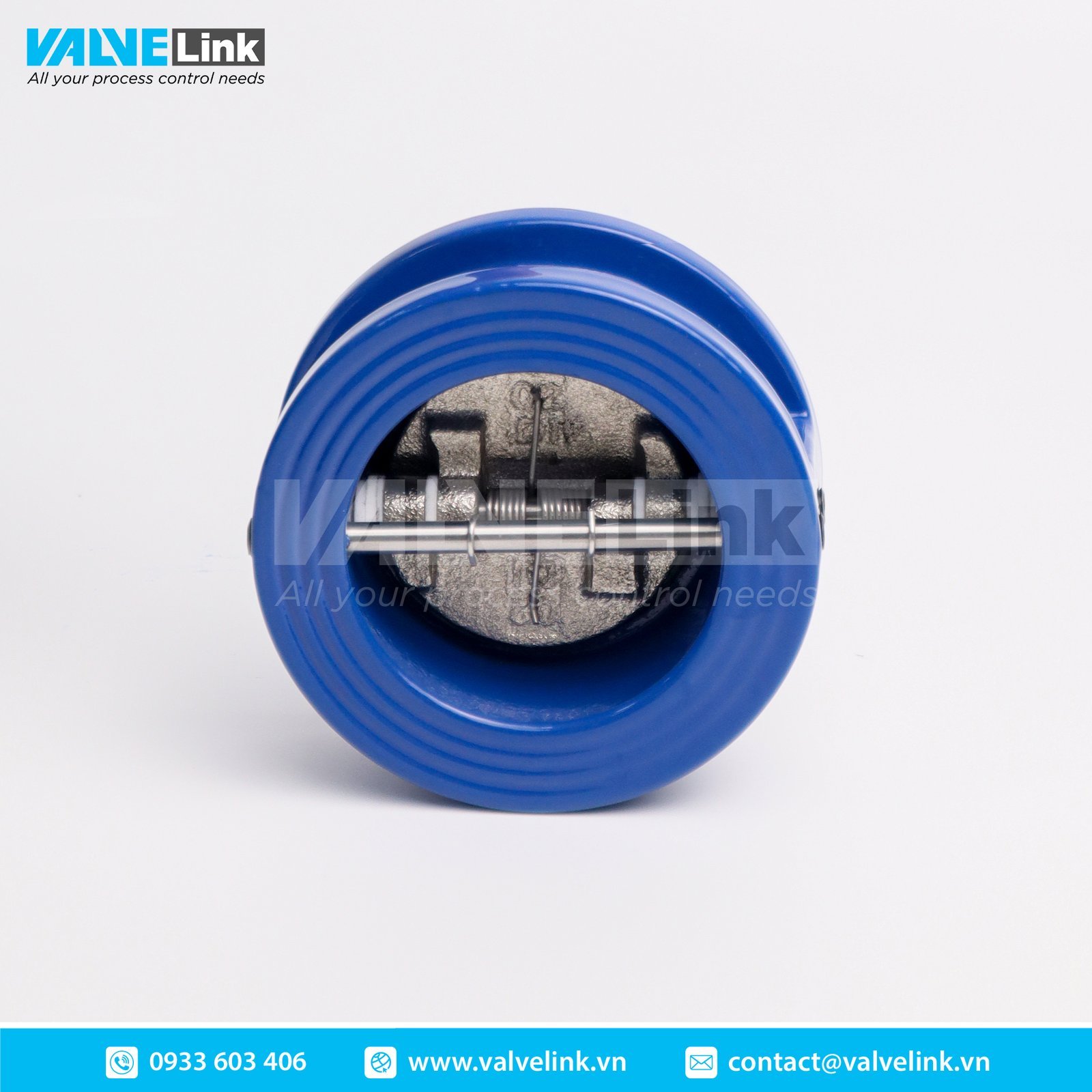

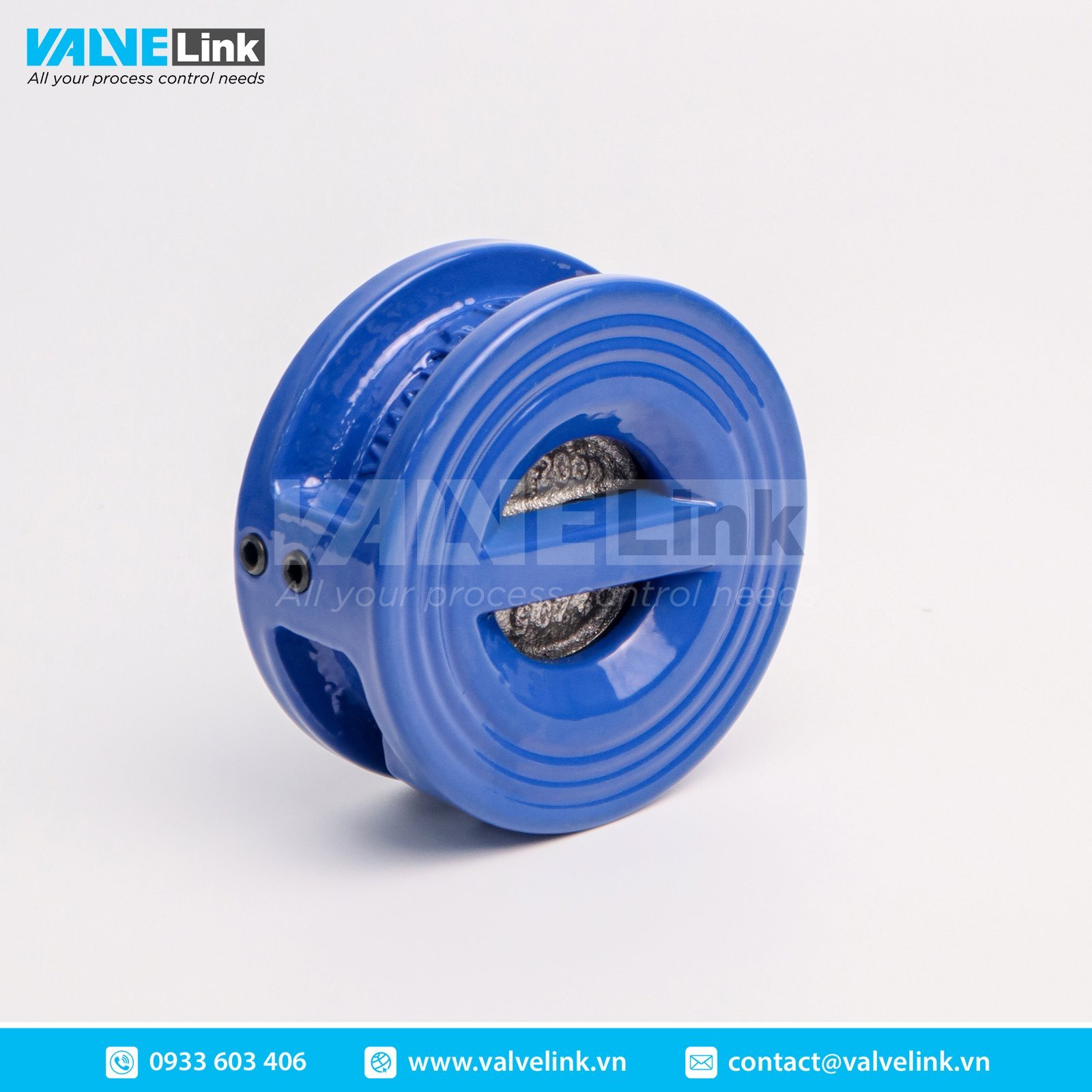

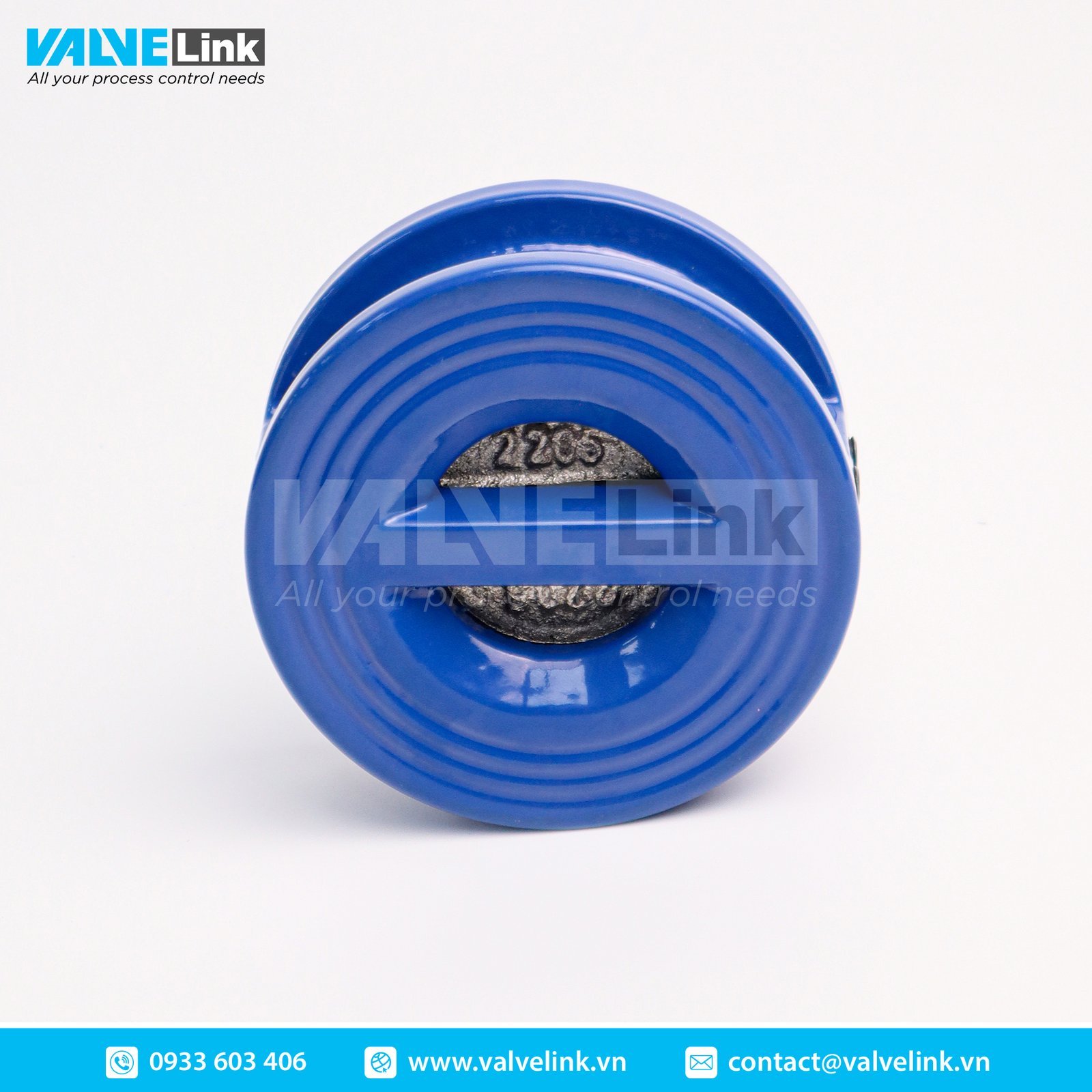

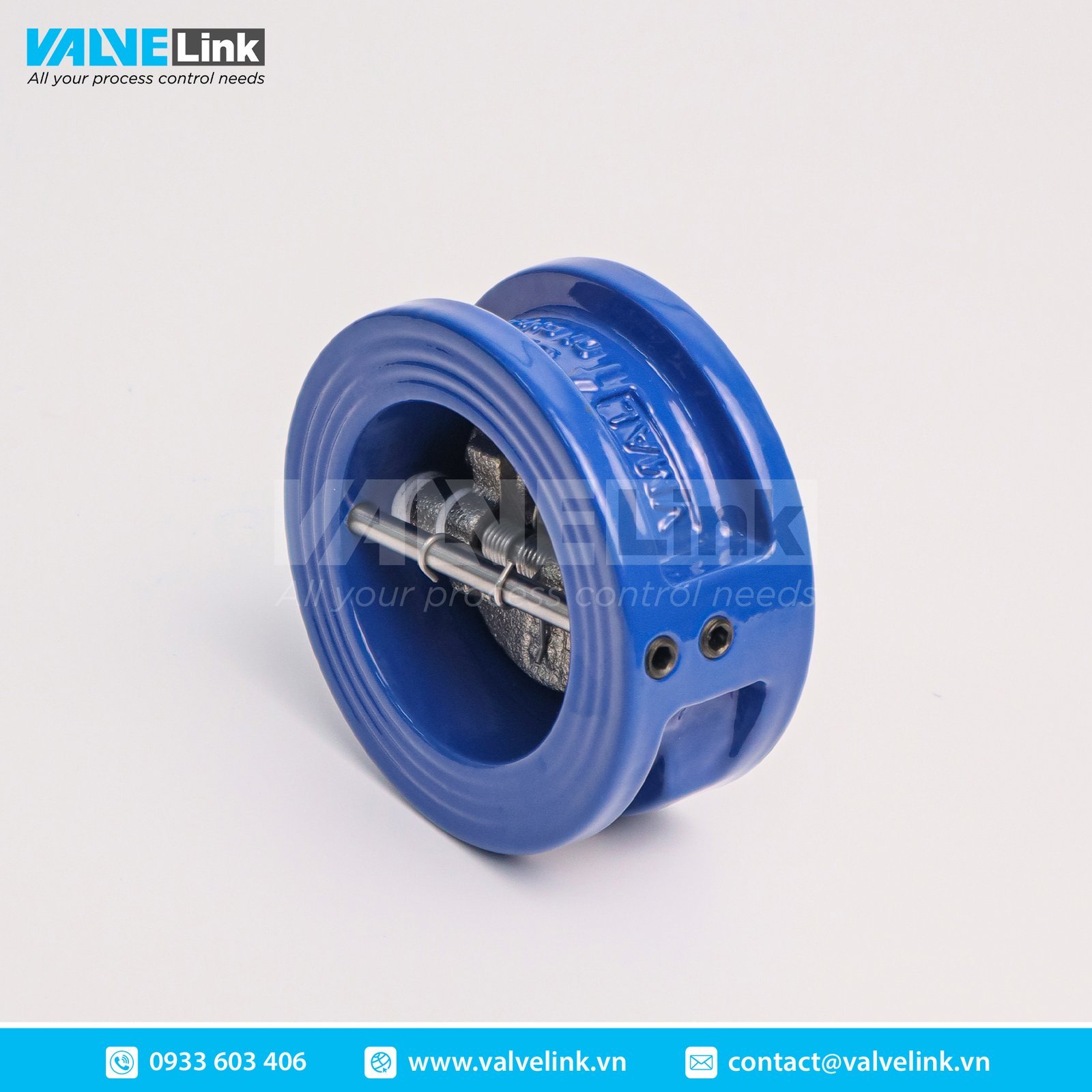

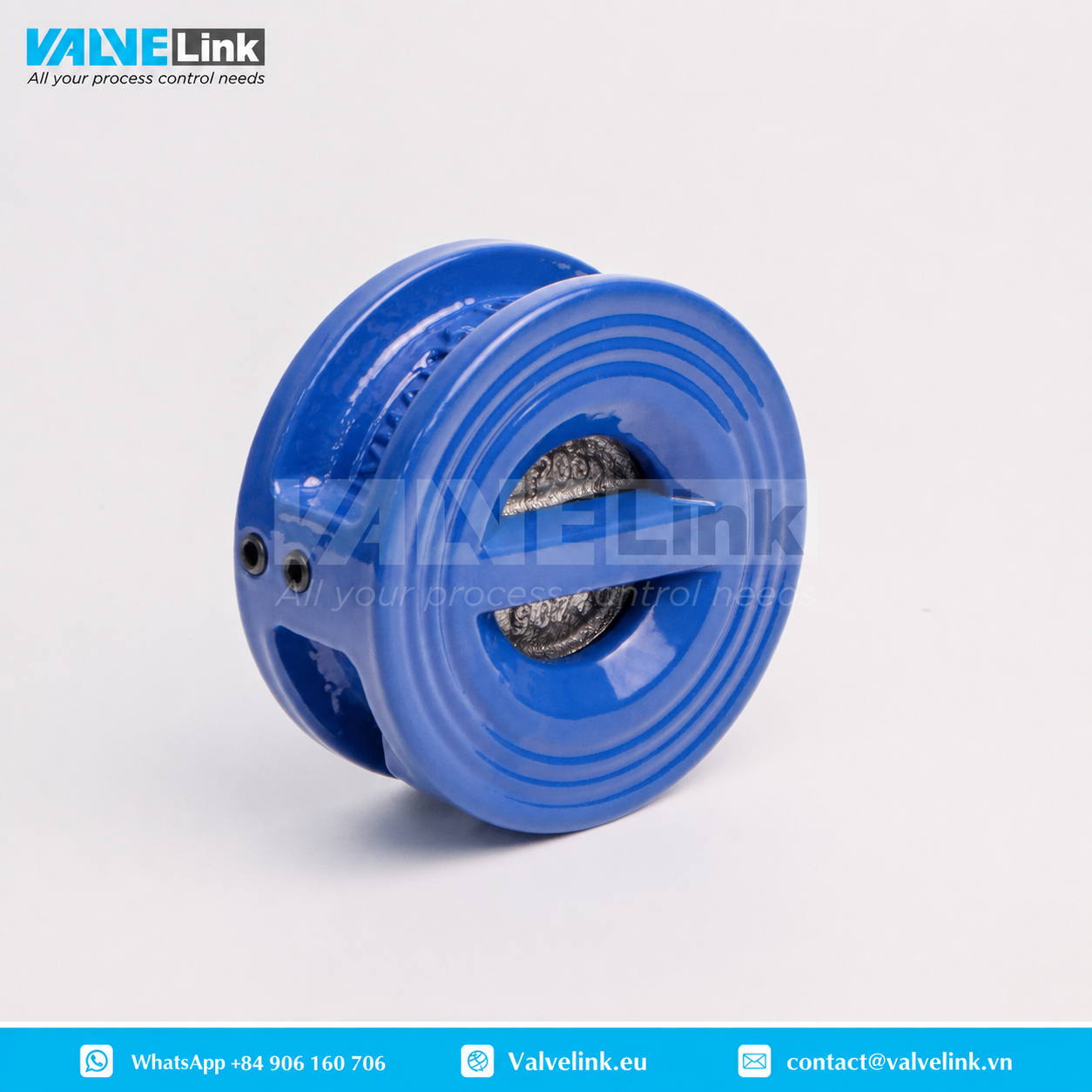

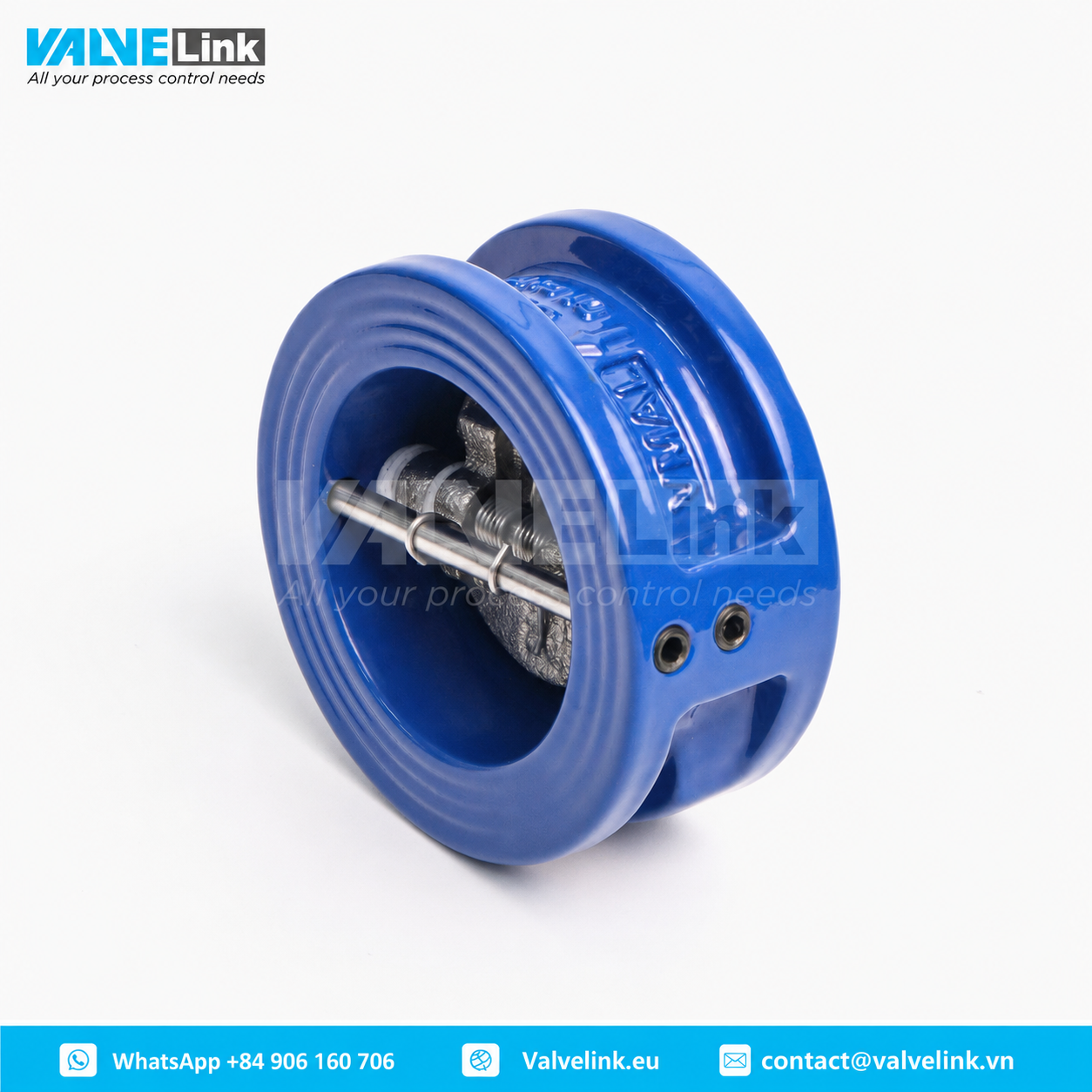

VMAL Dual Plate Wafer Check Valve, an expertly engineered solution designed to meet the rigorous demands of modern industrial systems. This high-performance valve offers reliability and efficiency, making it the ideal choice for a wide array of applications, from water management to petrochemical processing. The dual plate wafer valve is a critical component for preventing backflow and ensuring the smooth, safe operation of your fluid control systems.
Engineered for Excellence and Versatility
The VMAL dual plate wafer valve is distinguished by its robust design and adherence to stringent international standards. Its compact wafer-style body is designed for installation between flanges, saving space and simplifying mounting.
Key Specifications:
- Type: Wafer.
- Face to Face Standards: API609, BS5155, DIN3202, IS05752.
- Flange Compatibility: DIN, BS, UNI, ISO, ANSI, AS, JIS.
- Mounting Flange: ISO5211.
- Working Pressure: Designed to handle a working pressure of PN16 (200PSI).
Superior Construction with Quality Materials
Every component of the VMAL dual plate wafer valve is crafted from high-quality materials to ensure durability and long-term performance. This meticulous construction guarantees reliable operation even in challenging environments.
Standard Materials of Main Parts:
| Item | Part Name | Material |
| 1 | Body | DI, CI |
| 2 | Plate | CF8, CF8M, DI+Ni, Bronze |
| 3 | Spring | Stainless Steel 416 |
| 4 | Hinge Pin | Stainless Steel 416 |
| 5 | Plug | Carbon Steel |
| 6 | Body Bearing | PTFE |
| 7 | Spring Bearing | PTFE |
| 8 | Stop Pin | Stainless Steel 416 |
| 9 | Eye Bolt | Carbon Steel |
| 10 | Body Seat | EPDM, NBR, Viton, Neoprene |
Broad Range of Applications
The versatility of the VMAL dual plate wafer valve makes it an essential component across numerous industries. Its reliable design ensures optimal performance in a variety of sectors, including:
- HVAC
- Water Supply & Sewage
- Food & Beverage
- Chemical/Petrochemical/Processing
- Power and Utilities
- Paper and Pulp
- Ship Building
Comprehensive Sizing for Every Need
Valvelink offers the VMAL dual plate wafer valve in an extensive range of sizes to meet your specific project requirements. Dimensions are available for nominal diameters (DN) from 50 (2 inches) up to 800 (32 inches), with compatibility across DIN PN10/16, ANSI 150, and JIS 10K standards. This ensures a precise fit for your piping system.
For a reliable, high-quality dual plate wafer valve that delivers exceptional performance and value, look no further than the VMAL series from Valvelink Contact us today to learn how we can support your business with our premier fluid control solutions.
