Valvelink is pleased to introduce the VMAL Flange Cast Iron Ball Valve, a high-performance valve engineered for reliability and versatility across a wide range of industrial systems. This valve is meticulously designed to meet the stringent demands of modern fluid control applications, offering superior durability and functionality.

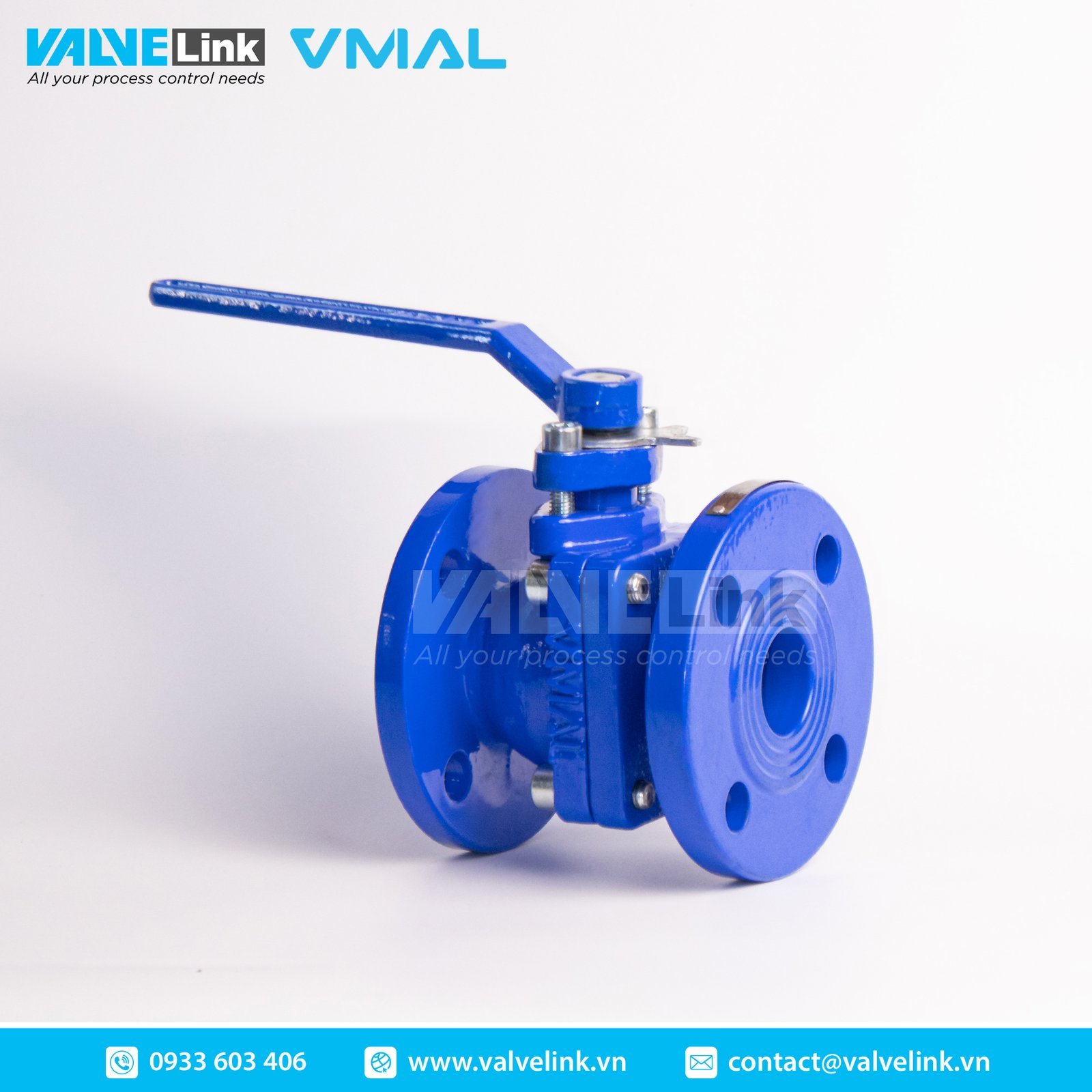

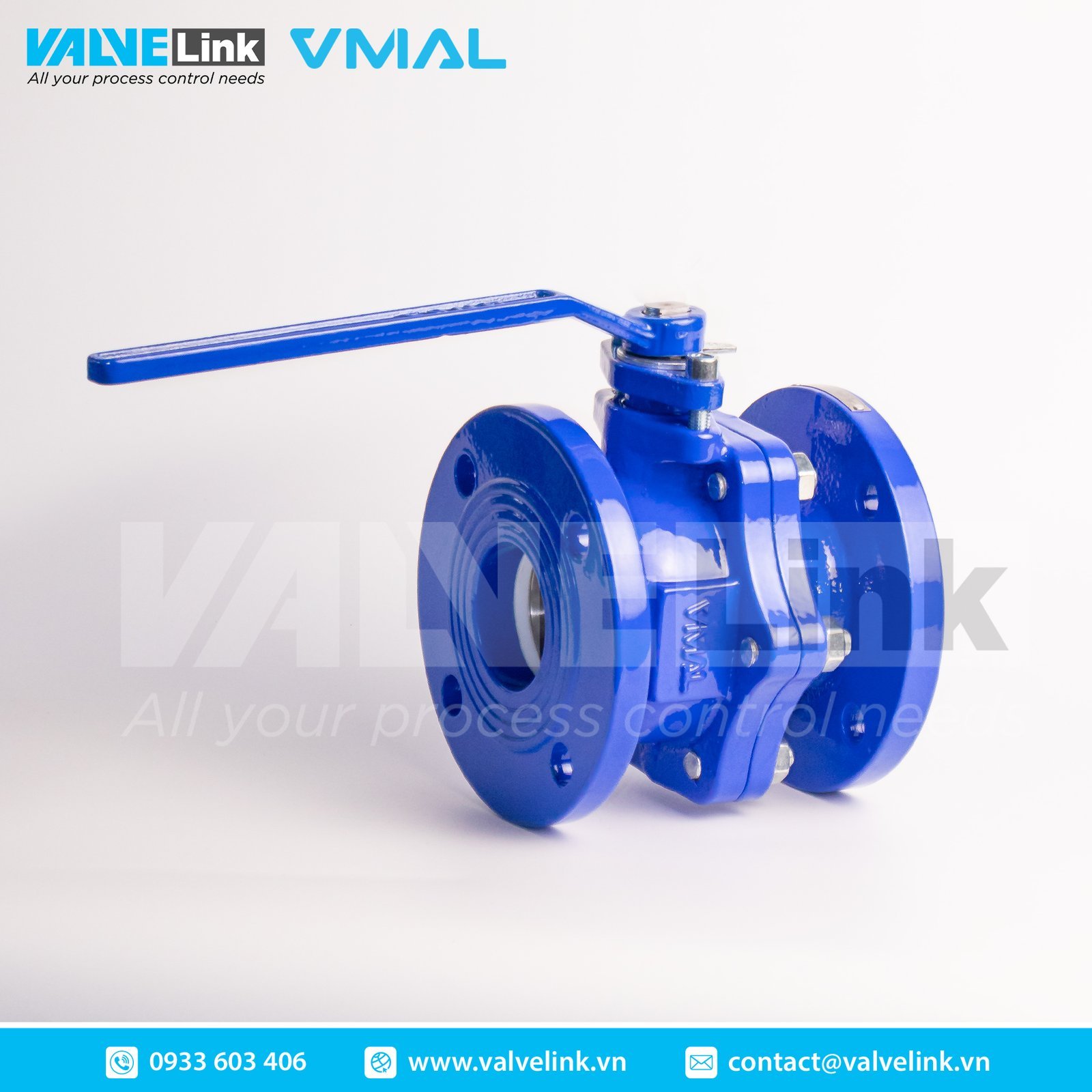

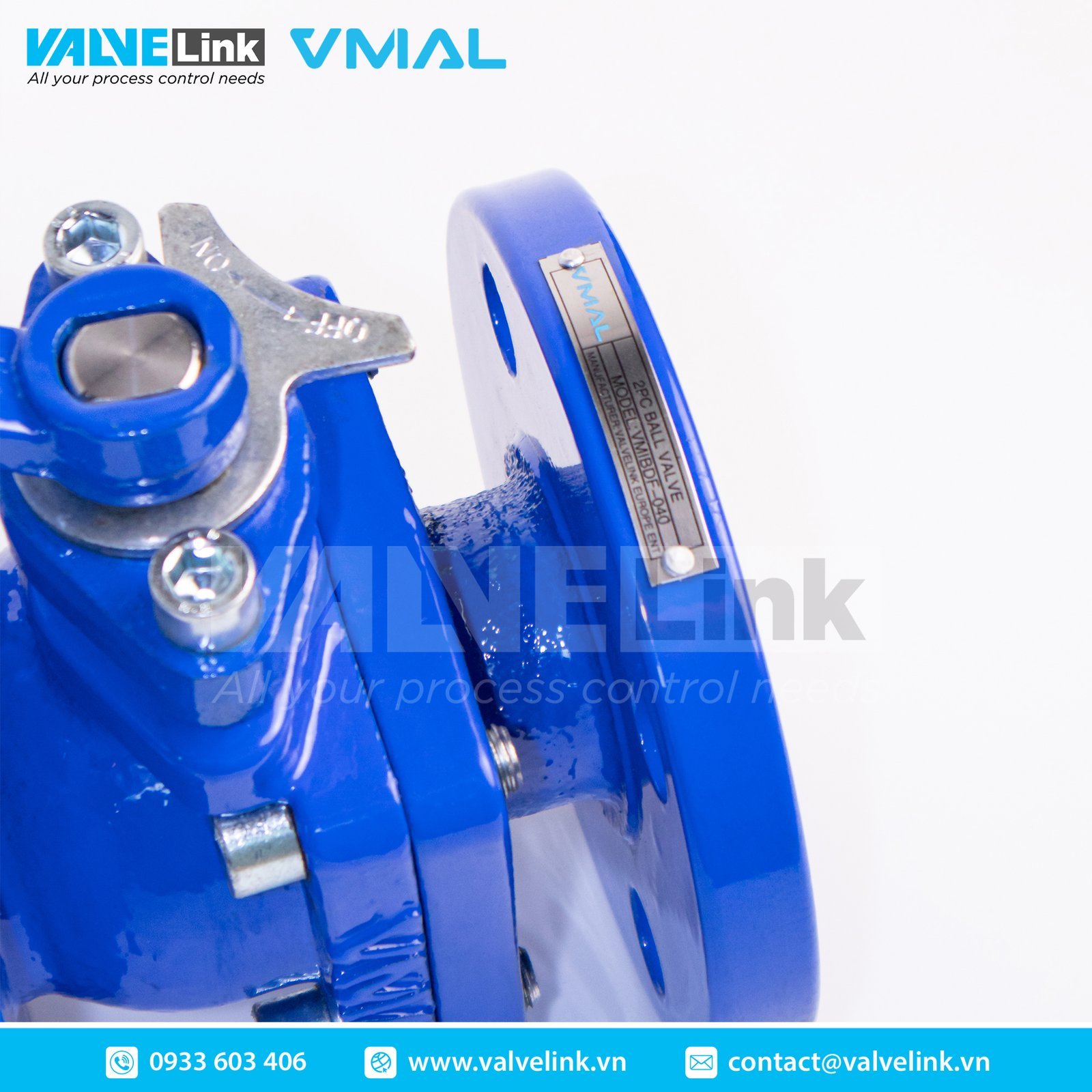

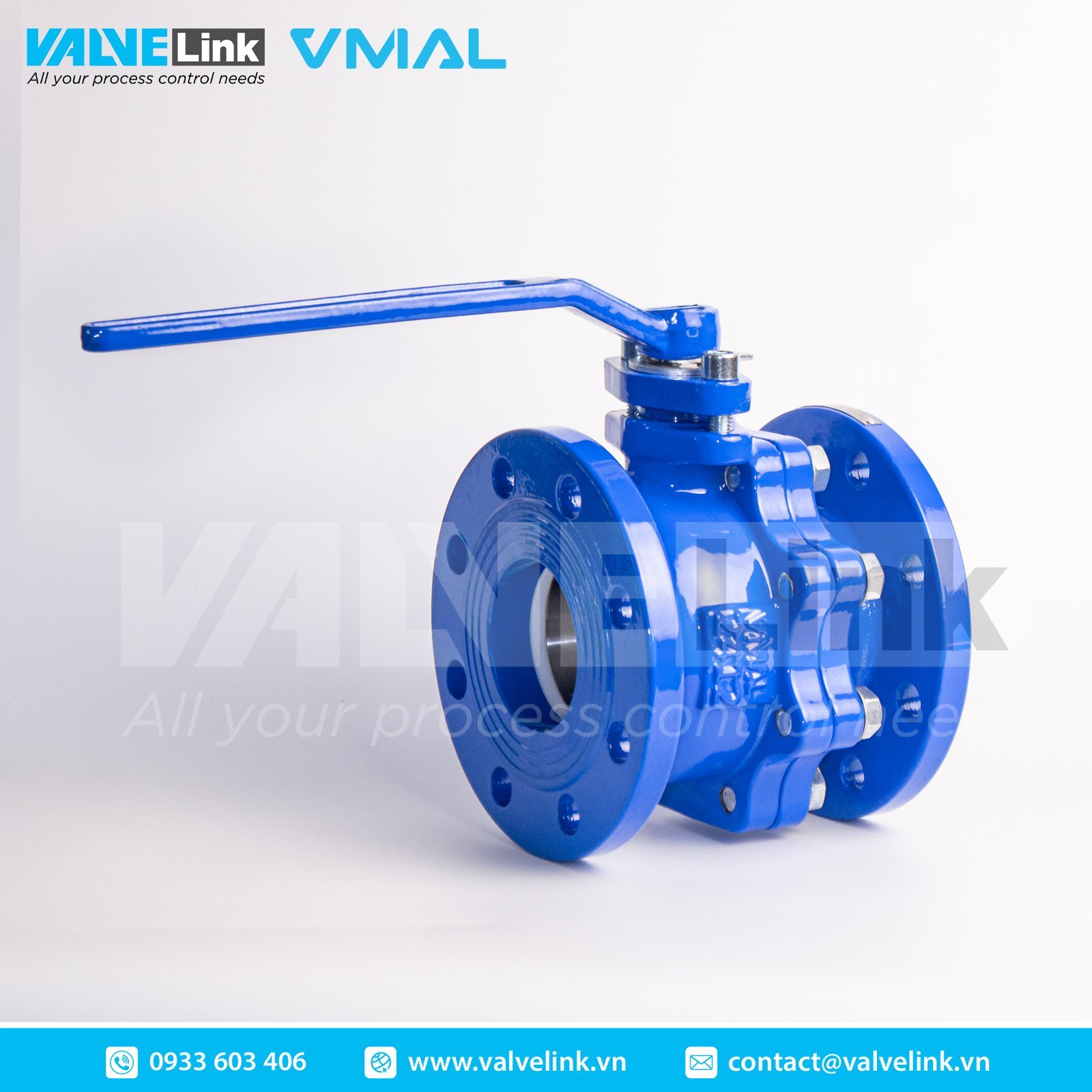

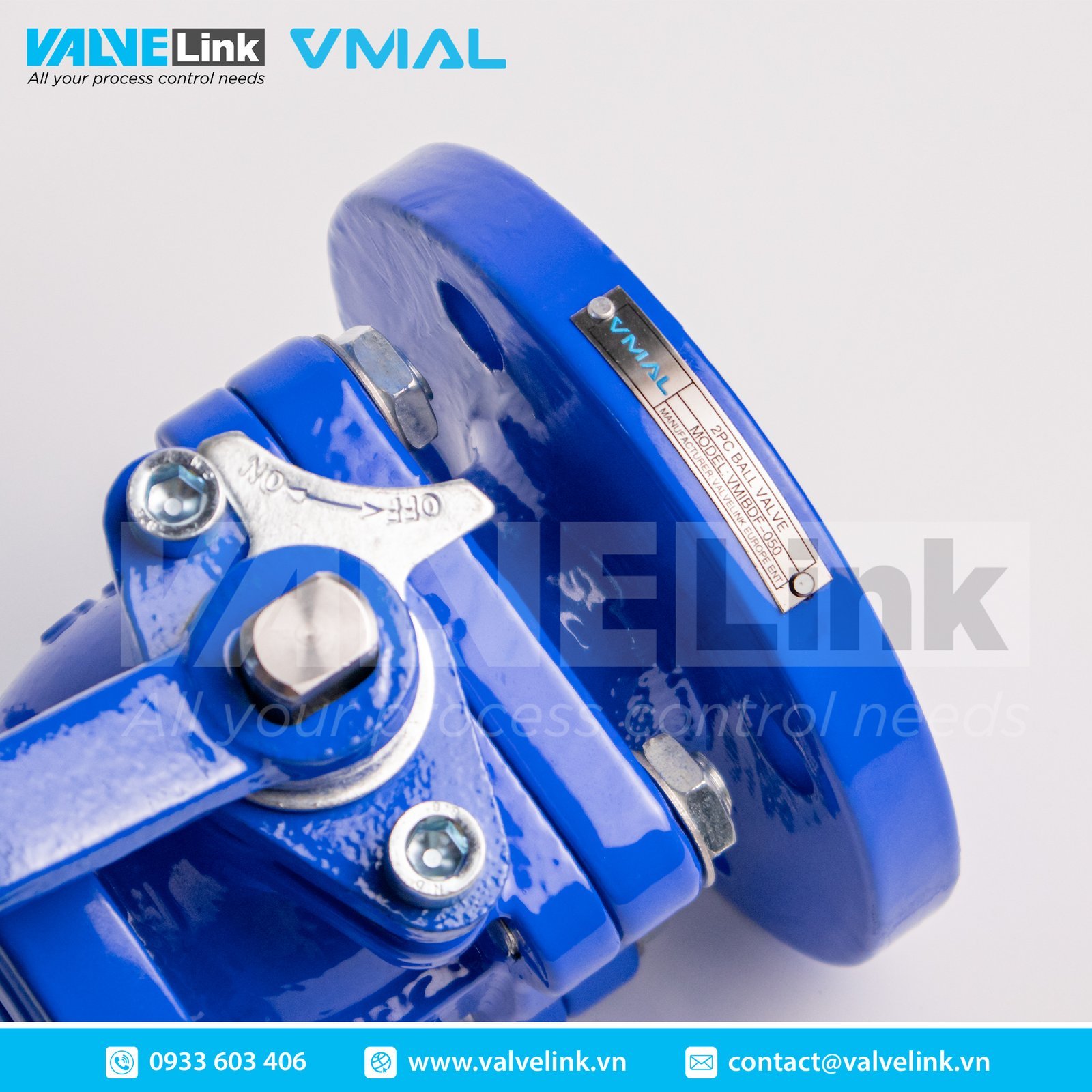

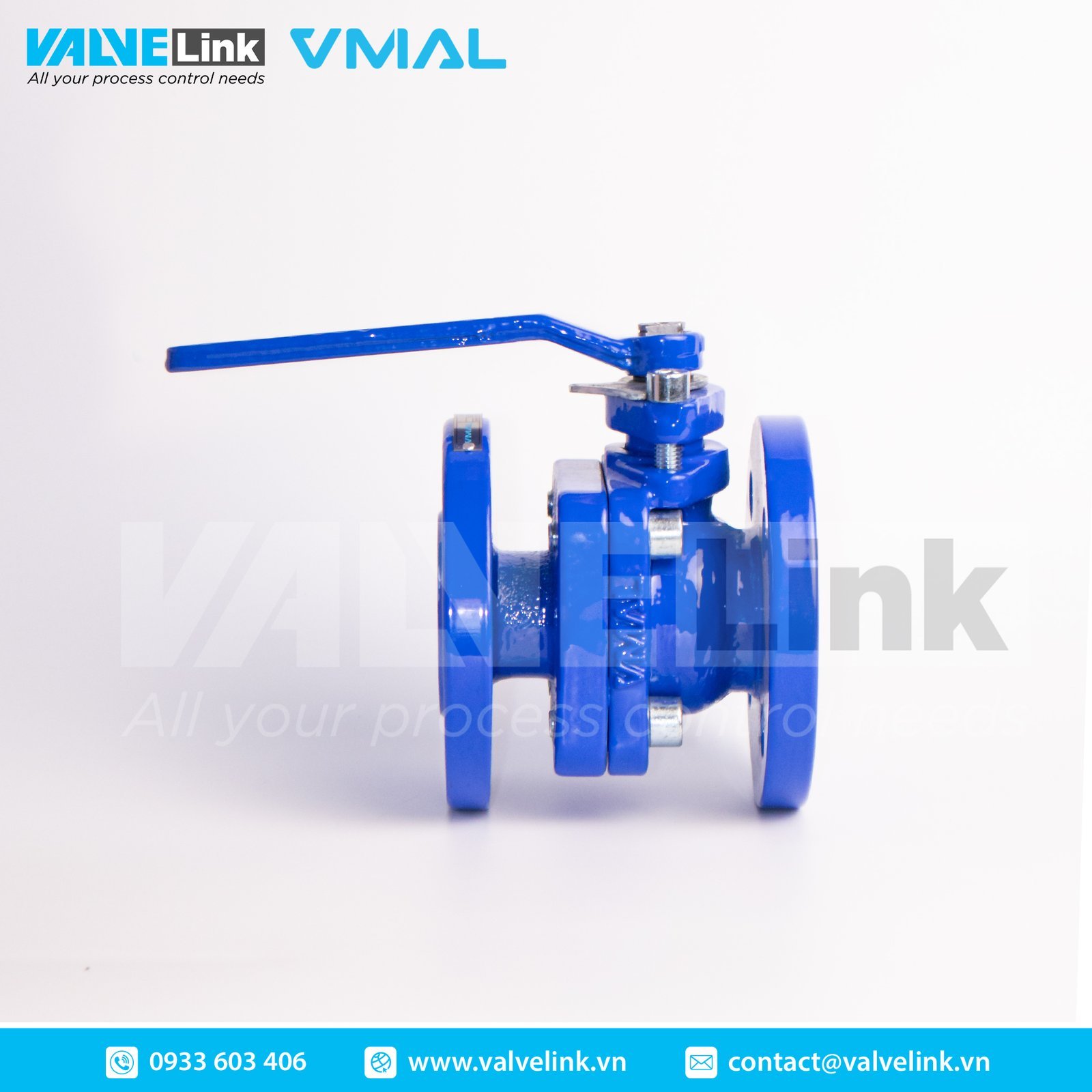

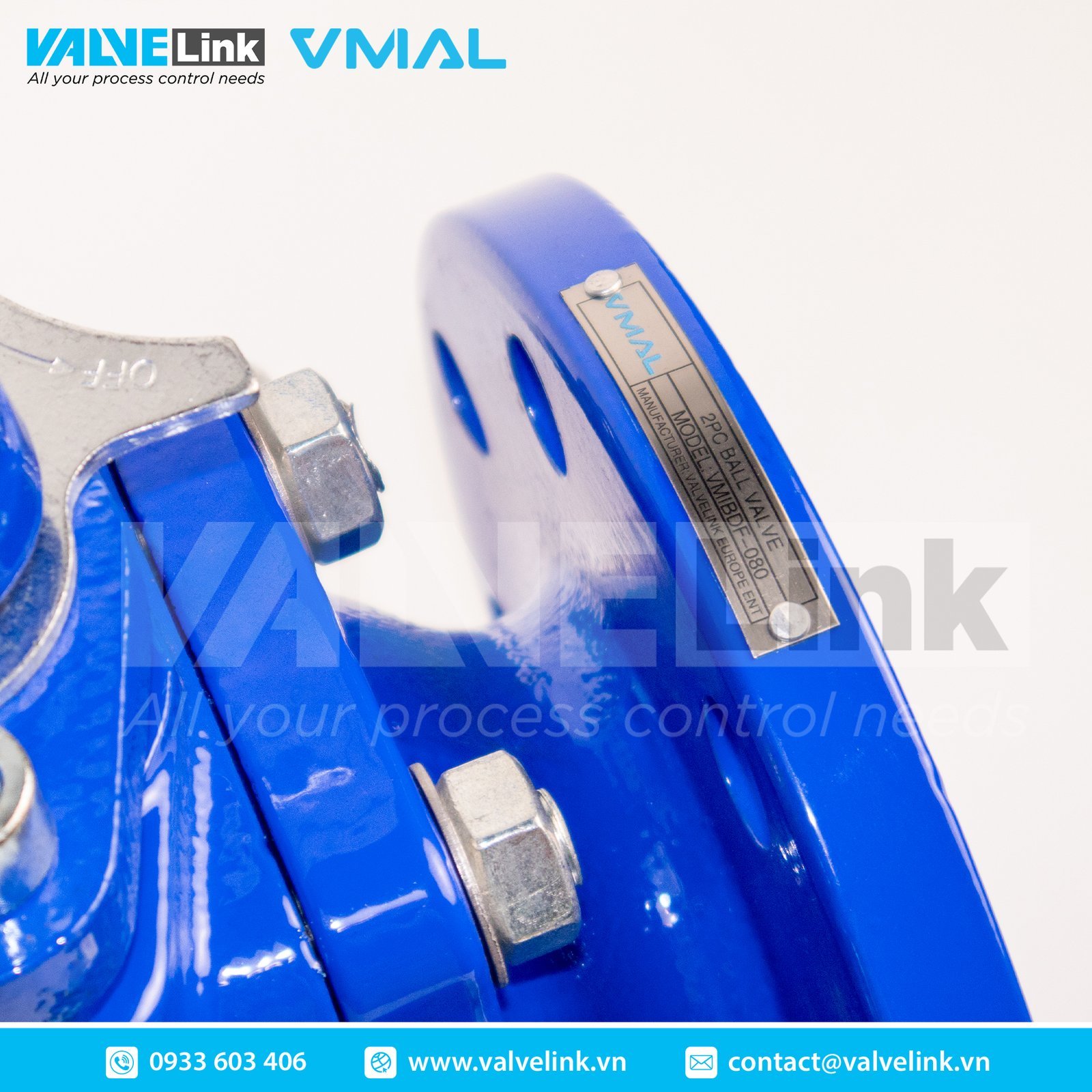

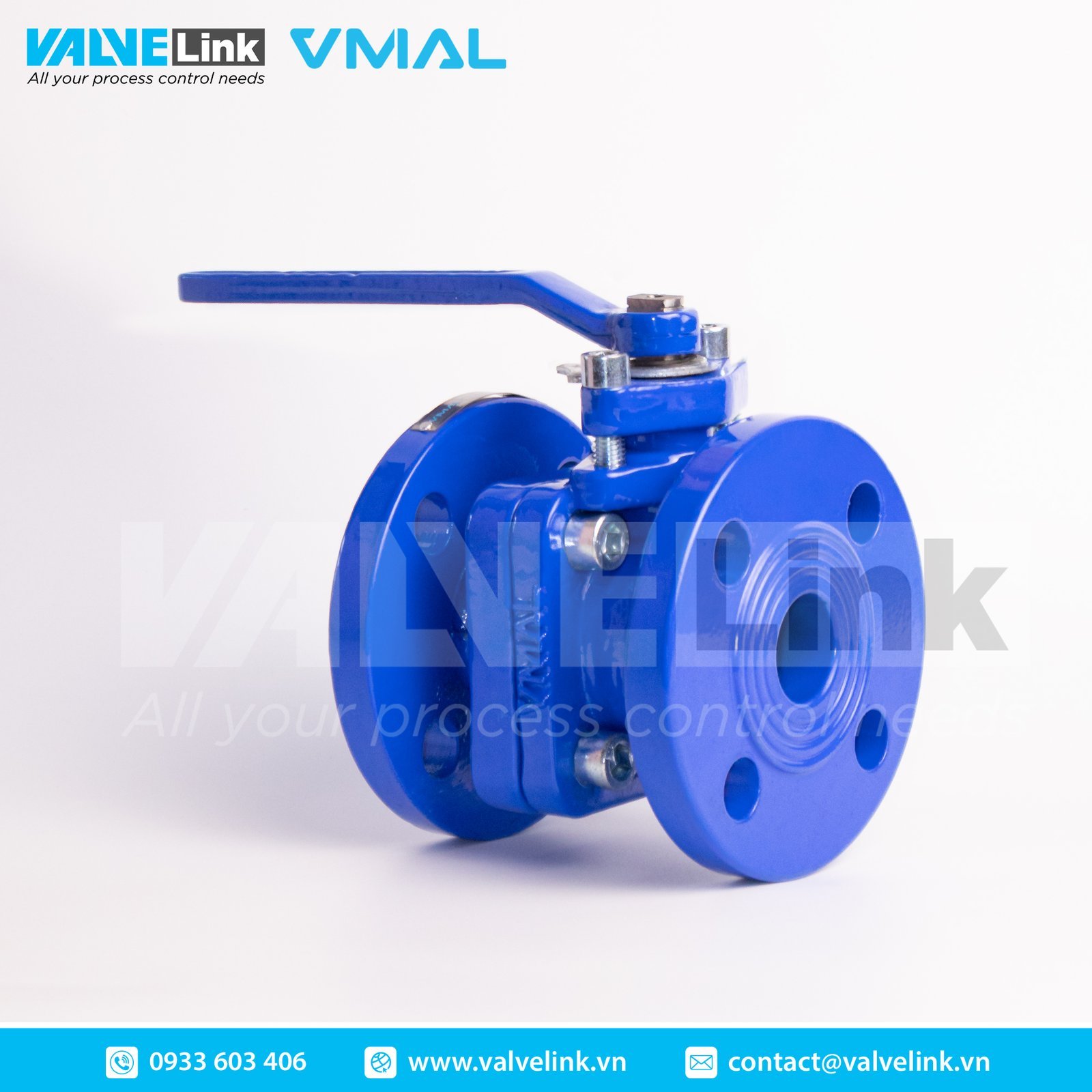

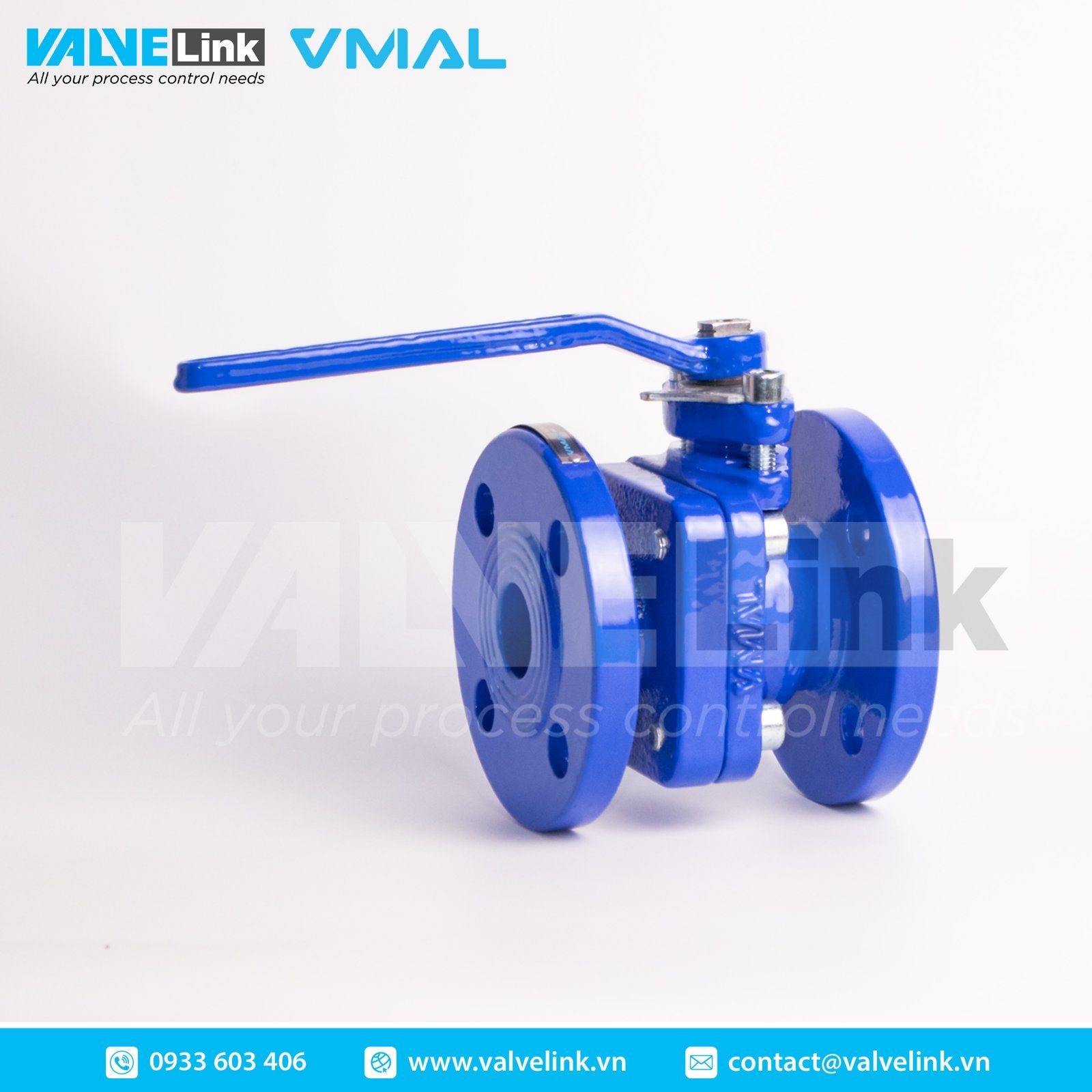

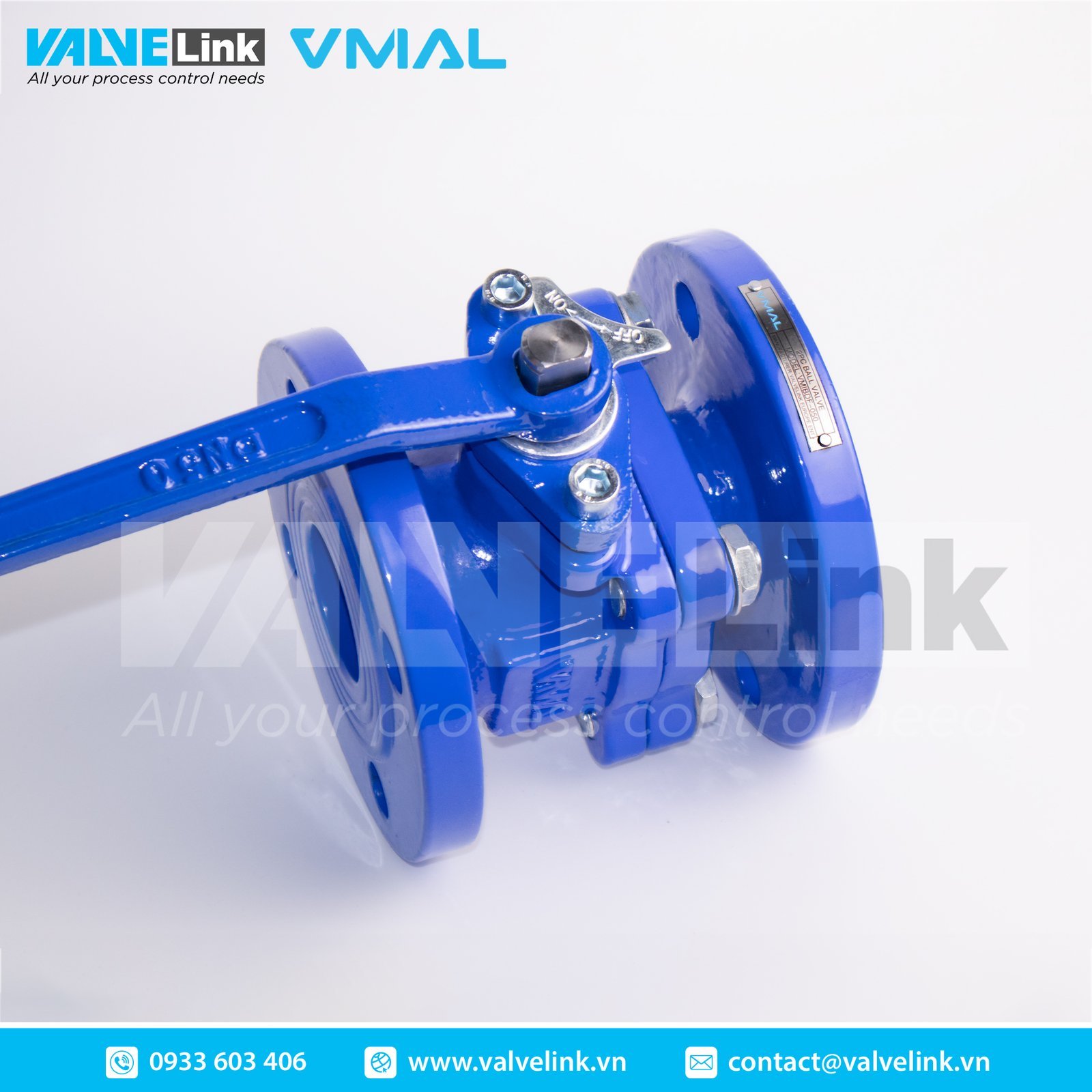

The VMAL Flange Cast Iron Ball Valve is a flanged type valve designed for easy and secure installation into various piping systems. It features a robust construction with a body and bonnet made from high-quality Cast Iron (CI) or Ductile Iron (DI), ensuring long-lasting performance even in challenging environments.
Key Features and Specifications:
- Durable Materials: The valve’s core components are engineered for maximum durability and compatibility. The ball is constructed from Stainless Steel (SS) for excellent corrosion resistance, while the stem is made of SS410. The seat is made from PTFE, providing a tight seal and smooth operation. The hand lever is also available in Cast Iron or Ductile Iron.
- Broad Application Range: This versatile Flange Cast Iron Ball Valve is suitable for a multitude of applications, including HVAC systems, water supply and sewage, food and beverage processing, chemical and petrochemical industries, power and utilities, pulp and paper manufacturing, and shipbuilding.
- Compliance with International Standards: The VMAL valve adheres to multiple international standards to ensure interchangeability and compliance with global engineering requirements.
- Face to Face Dimensions: API609, BS5155, DIN3202, ISO5752.
- Flange Connections: DIN, BS, UNI, ISO, ANSI, AS, JIS.
- Mounting Flange: ISO5211 for easy actuation.
- Pressure Rating: The valve is rated for a working pressure of PN16 (200PSI), making it a reliable choice for moderate pressure applications.
Dimensional Details:
The VMAL Flange Cast Iron Ball Valve is available in a wide range of sizes to fit various piping configurations. Nominal Diameters (DN) range from 15 (1/2′′) to 200 (8′′). Detailed dimensions (in mm) for length (L), height (H), and flange diameters (D, D1) are available to ensure precise system design and integration.
| DN | 1/2′′ | 3/4′′ | 1′′ | 141′′ | 121′′ | 2′′ | 2.5′′ | 3′′ | 4′′ | 5′′ | 6′′ | 8′′ |
| L | 115 | 120 | 125 | 130 | 140 | 150 | 170 | 180 | 190 | 325 | 350 | 400 |
| H | 59 | 63 | 75 | 86 | 105 | 115 | 135 | 155 | 170 | 195 | 240 | 295 |
| D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 |
| n-d | 4-15 | 4-15 | 4-15 | 4-19 | 4-19 | 4-19 | 4-19 | 8-19 | 8-19 | 8-19 | 8-23 | 12-23 |
Valvelink’s VMAL Flange Cast Iron Ball Valve represents a commitment to quality, reliability, and performance. Its robust design and adherence to international standards make it the ideal choice for business customers seeking a dependable and cost-effective solution for their fluid control needs. For more information, please contact Valvelink.
