In any fluid or pumping system, maintaining prime in the pump and preventing backflow are critical for operational efficiency and longevity. This is where a high-quality foot valve becomes an indispensable component. Valvelink is proud to introduce the VMAL Foot Valve, an expertly engineered solution designed to ensure reliability and superior performance across a multitude of industrial applications.

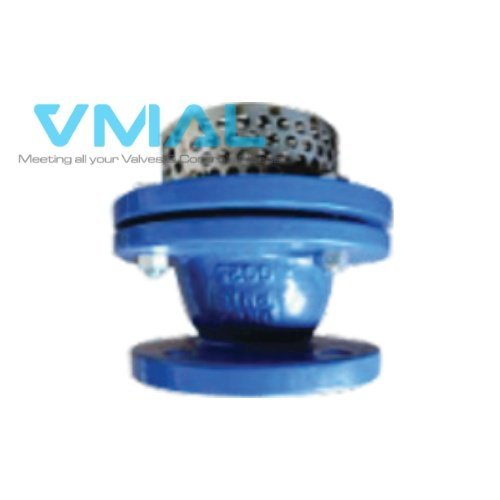

The VMAL Foot Valve is a specialized type of check valve, installed at the bottom of a pump suction line. Its primary function is to keep the pump primed by preventing the fluid from flowing back out of the suction pipe when the pump is turned off. It also acts as a strainer, with its integrated screen preventing debris from entering the pump and causing damage.
Engineered for Excellence and Versatility
The VMAL Foot Valve is a flanged-type valve designed to meet rigorous international standards, ensuring seamless integration into new and existing systems.
- International Standards Compliance: Adherence to multiple standards for face-to-face dimensions (API609, BS5155, DIN3202, ISO5752) and flange specifications (DIN, BS, UNI, ISO, ANSI, AS, JIS) makes it a versatile choice for global projects.
- Actuator Ready: Features an ISO5211 mounting flange for easy and standardized mounting of actuators.
- Pressure Rating: Designed for a working pressure of PN16 (200PSI), making it suitable for a wide range of demanding tasks.
Robust Construction with Premium Materials
The durability and performance of a foot valve are determined by the quality of its components. The VMAL Foot Valve is constructed from high-grade materials to guarantee a long service life and resistance to wear and corrosion.
Standard Materials of Main Parts:
| No. | Part Name | Material |
| :– | :— | :— |
| 1 | Body | Carbon Steel |
| 2 | Screen | Carbon Steel |
| 3 | Gasket | Brass |
| 4 | Flange Plate | GG25+Rubber |
| 5 | Stud Bolt | Gg25 |
| 6 | Lock Block | Carbon Steel |
| 7 | Lock Block | Gg25 |
| 8 | Disc | Graphite |
| 9 | Valve Guide | Stainless Steel |
| 10 | Bolt Nut | Gg25 |
The robust Carbon Steel body and screen provide excellent mechanical strength, while the Stainless Steel valve guide ensures smooth, reliable operation. This meticulous selection of materials makes the VMAL foot valve a dependable component for your critical operations.
Wide Range of Applications
The versatile design and robust construction of the VMAL Foot Valve make it the ideal choice for a diverse set of industries and applications, including:
- HVAC systems
- Water Supply & Sewage
- Food & Beverage
- Chemical, Petrochemical, and Processing
- Power and Utilities
- Paper and Pulp
- Ship Building
Technical Specifications and Dimensions
The VMAL Foot Valve is available in a comprehensive range of sizes to meet your specific requirements.
- Nominal Diameter (DN): Available in sizes from DN 40 up to DN 350.
- Detailed Dimensions: Valvelink provides detailed dimensional data, including overall diameter, height, and flange configurations to assist with precise system design and installation.
For businesses seeking a reliable, high-performance foot valve, the VMAL series from Valvelink offers an exceptional solution. Its adherence to international standards, premium material construction, and wide range of applications make it a smart investment for ensuring the efficiency and protection of your pumping systems. Contact Valvelink today to learn more about how the VMAL Foot Valve can benefit your operations.
