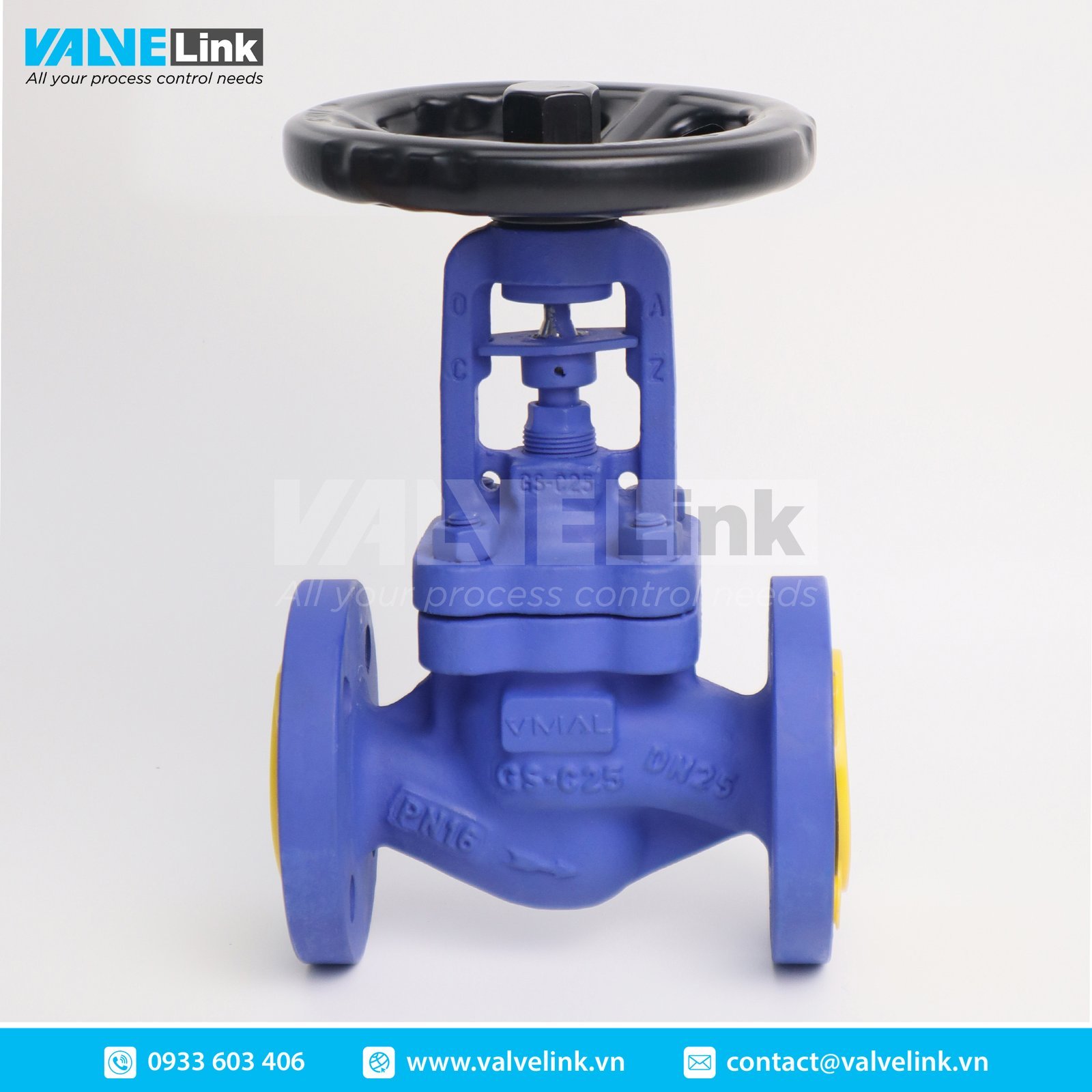

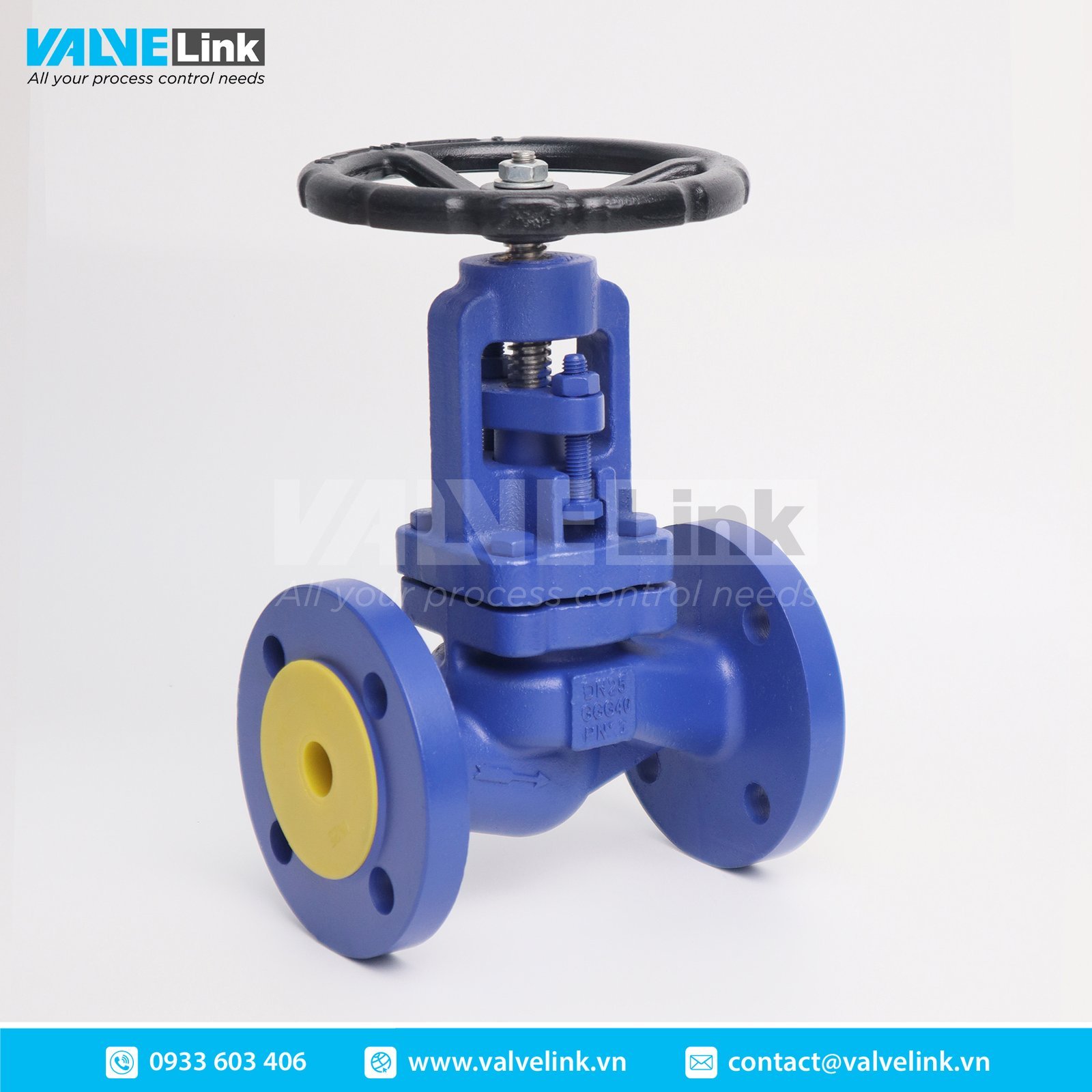

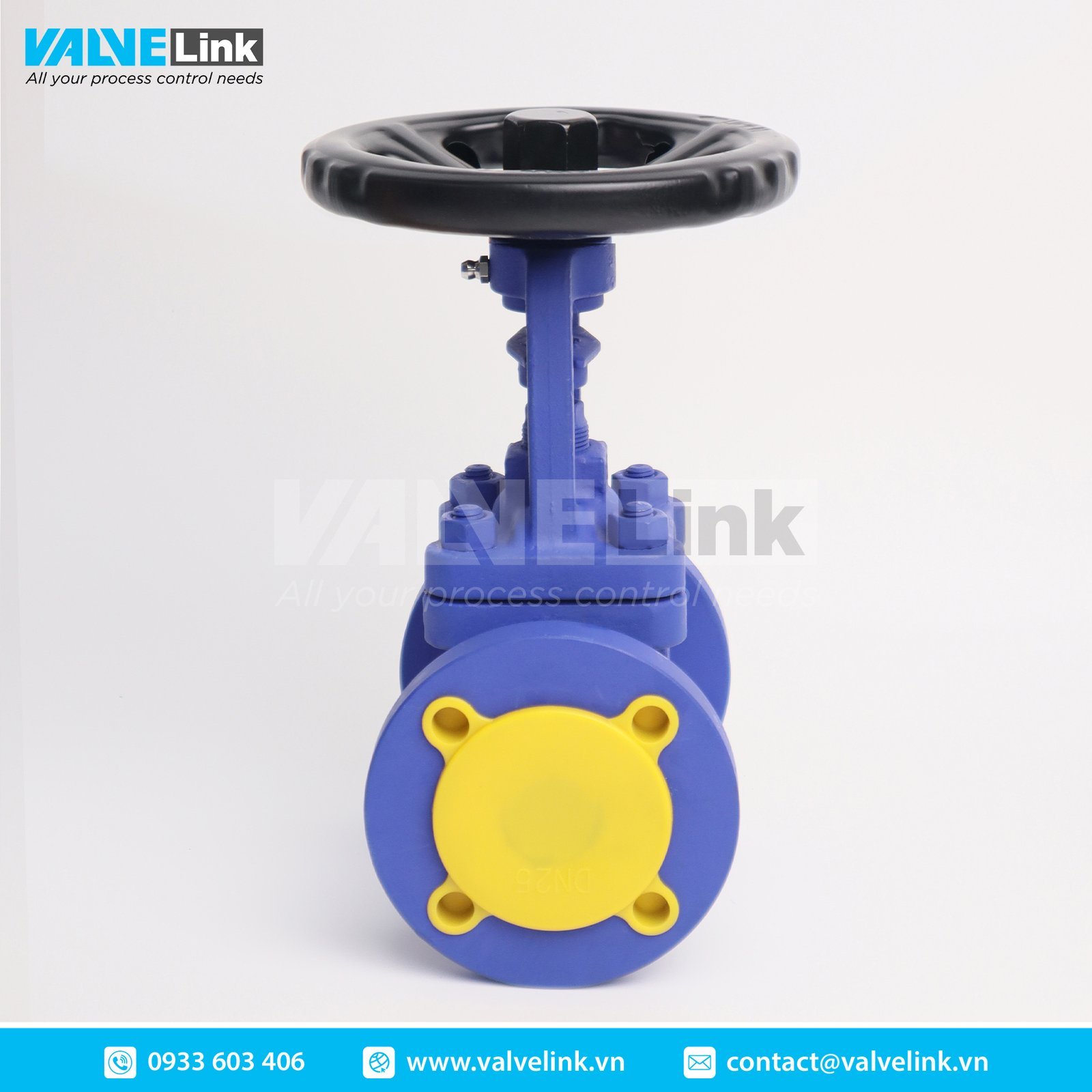

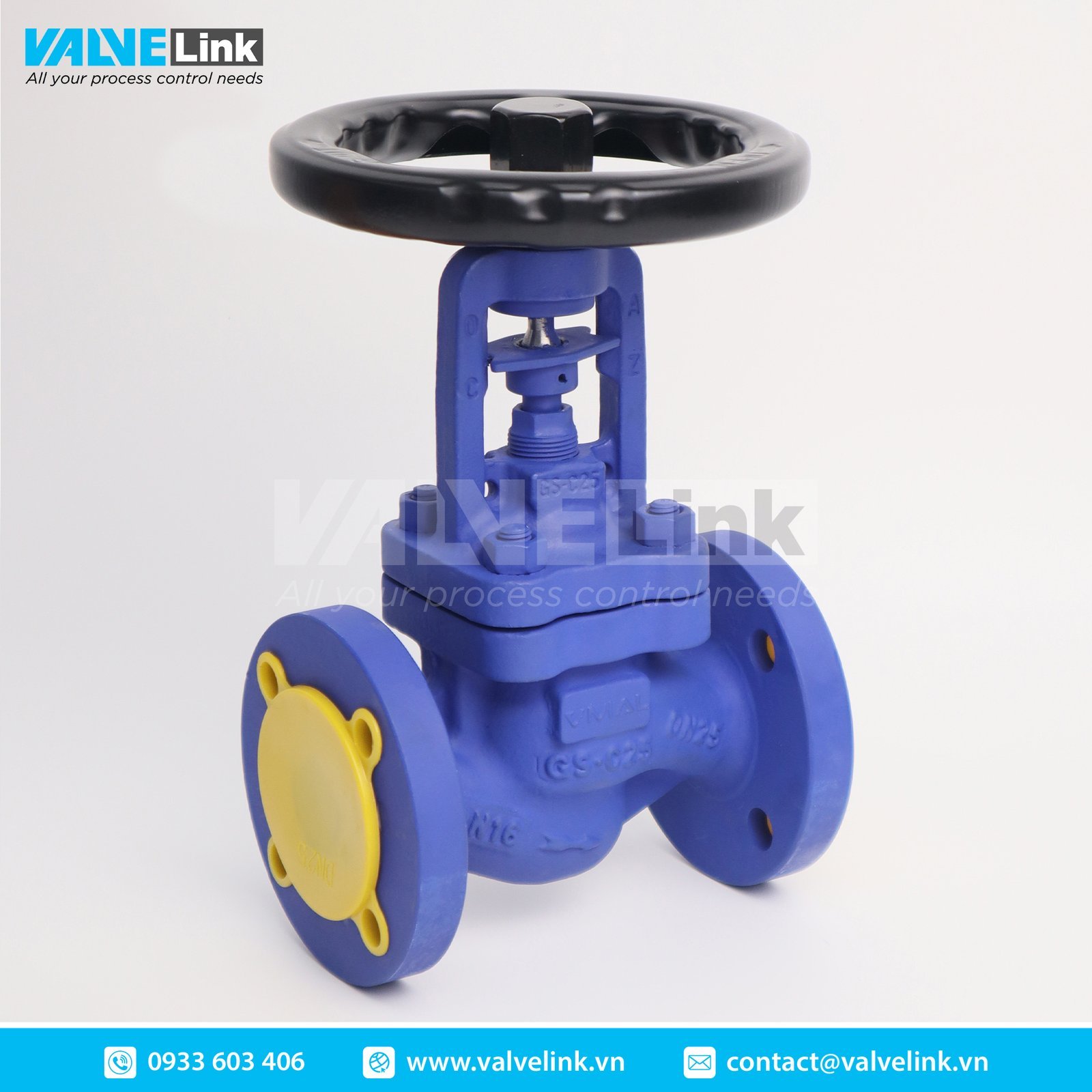

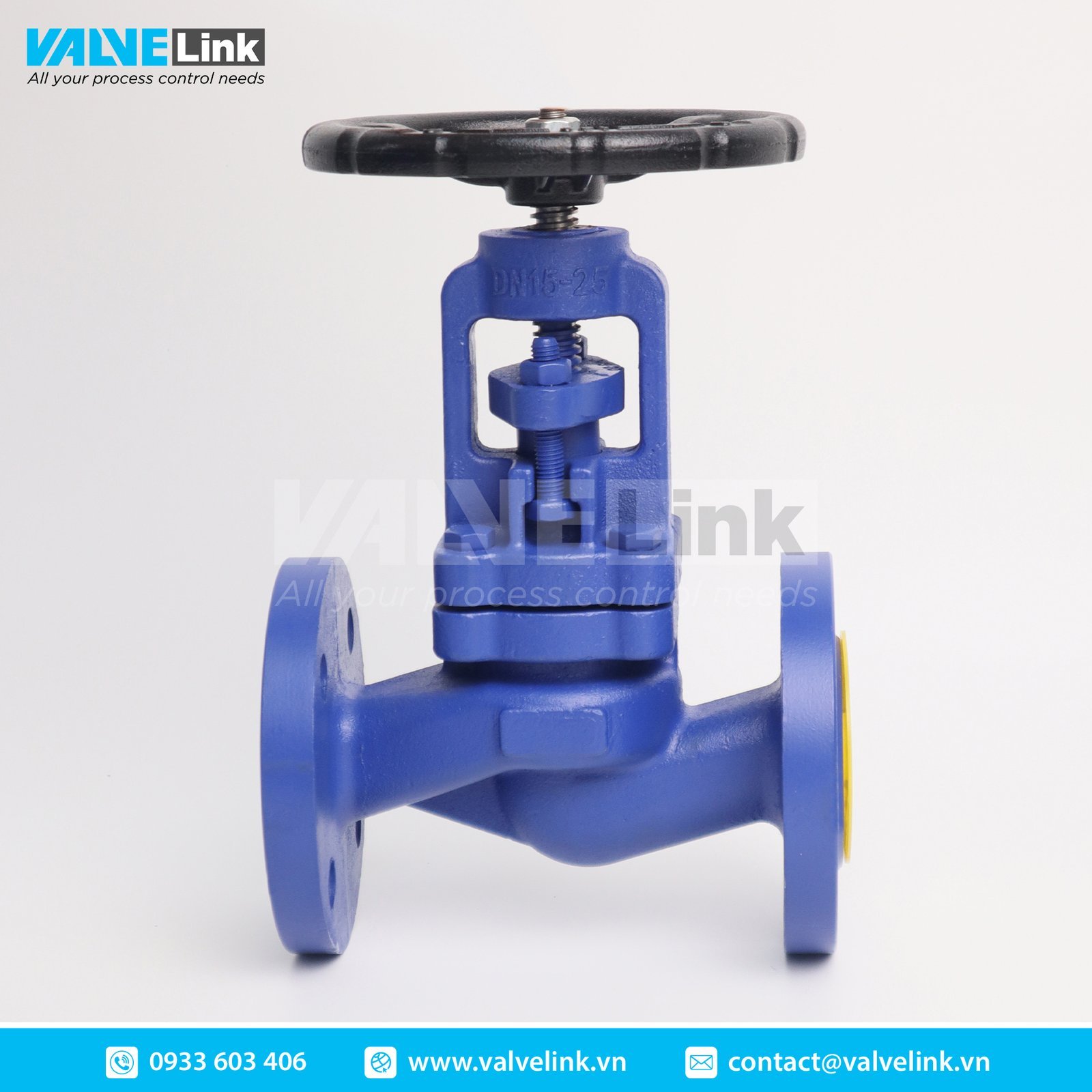

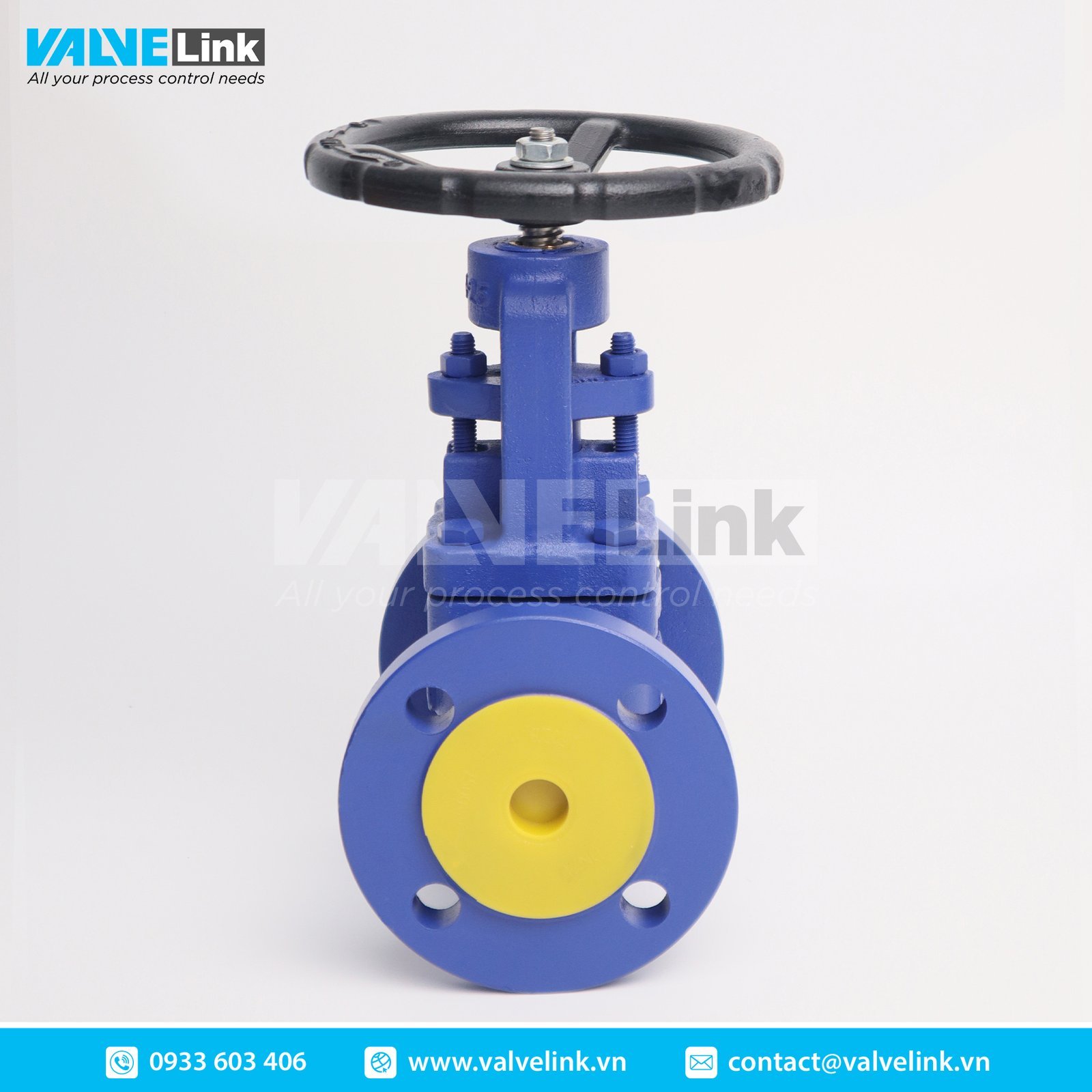

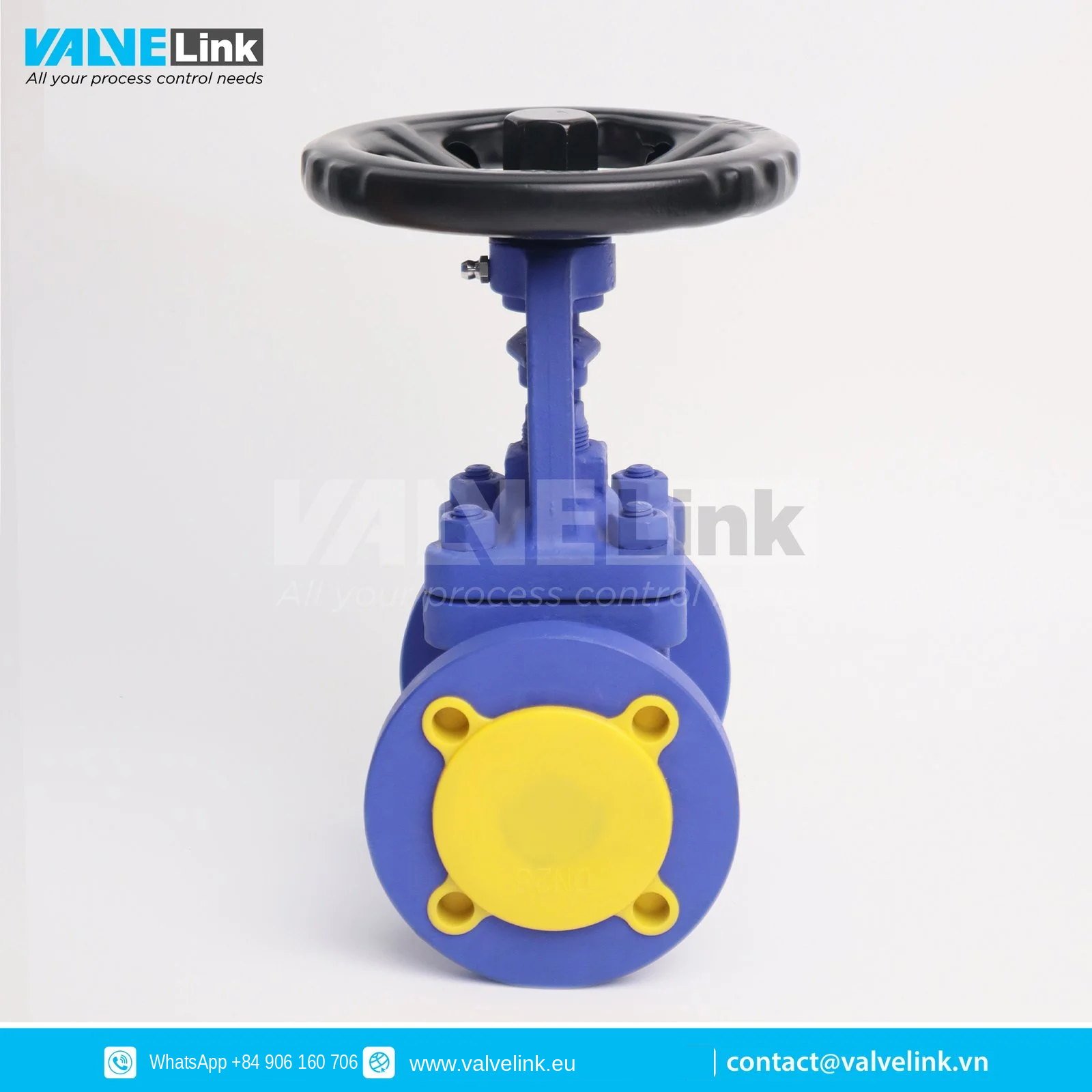

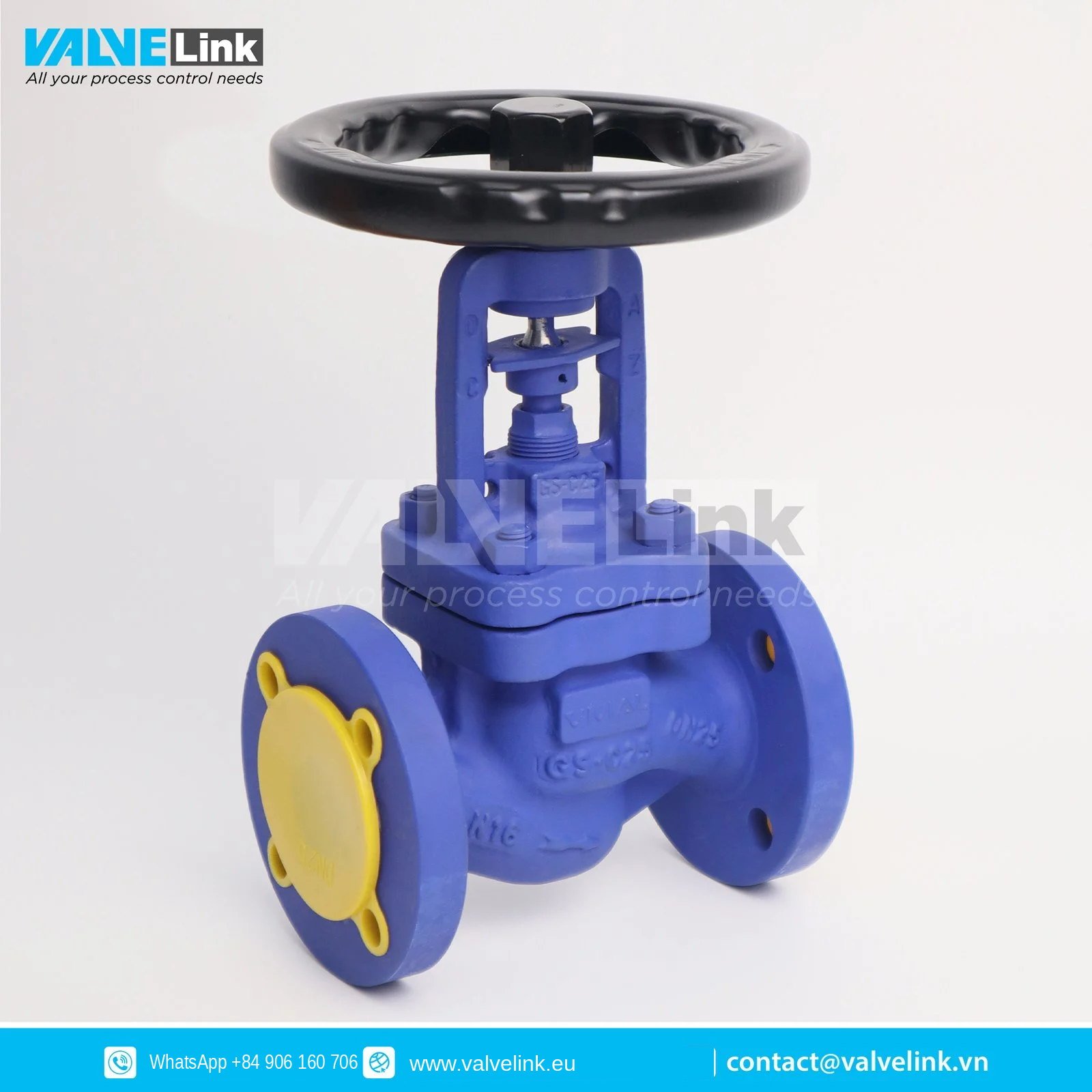

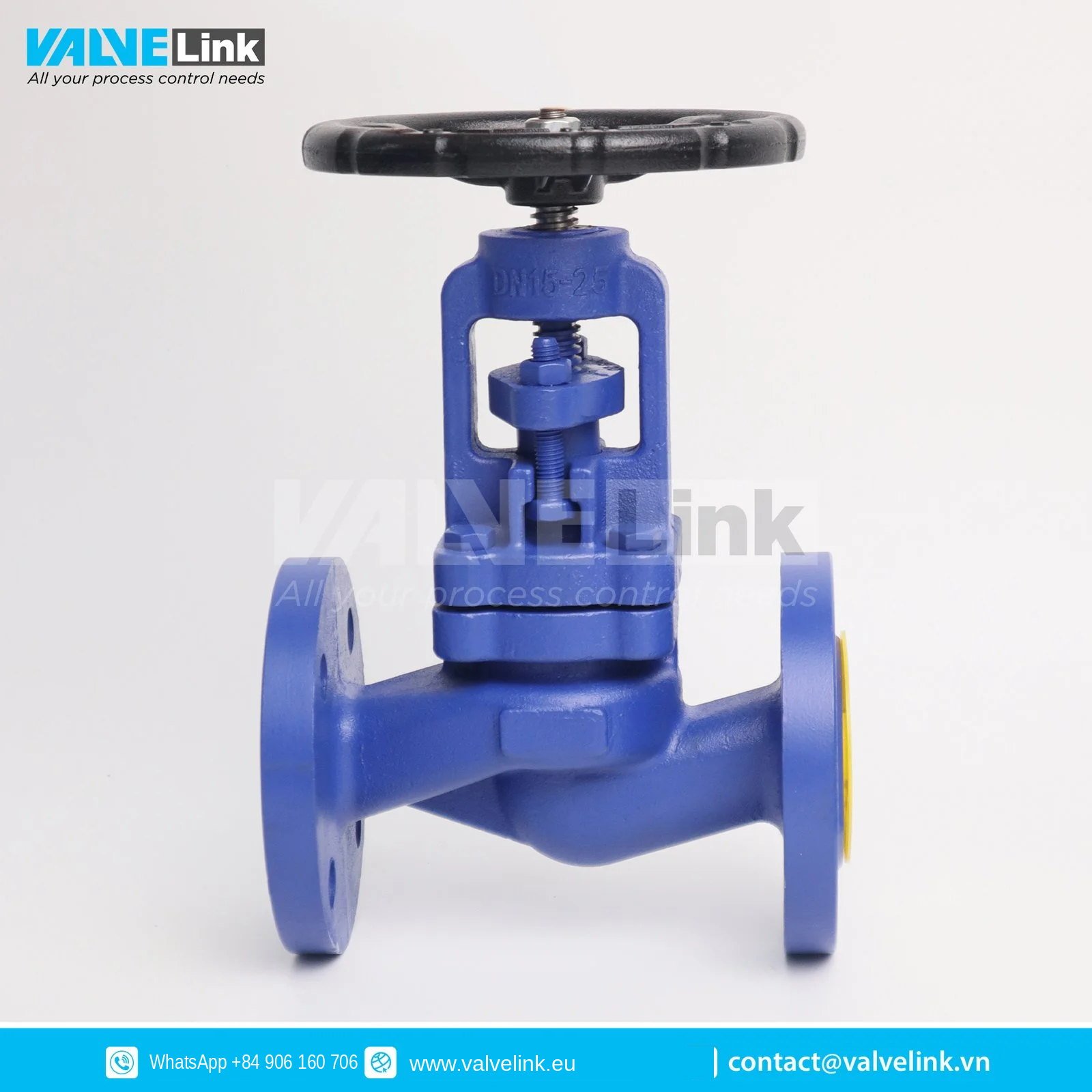

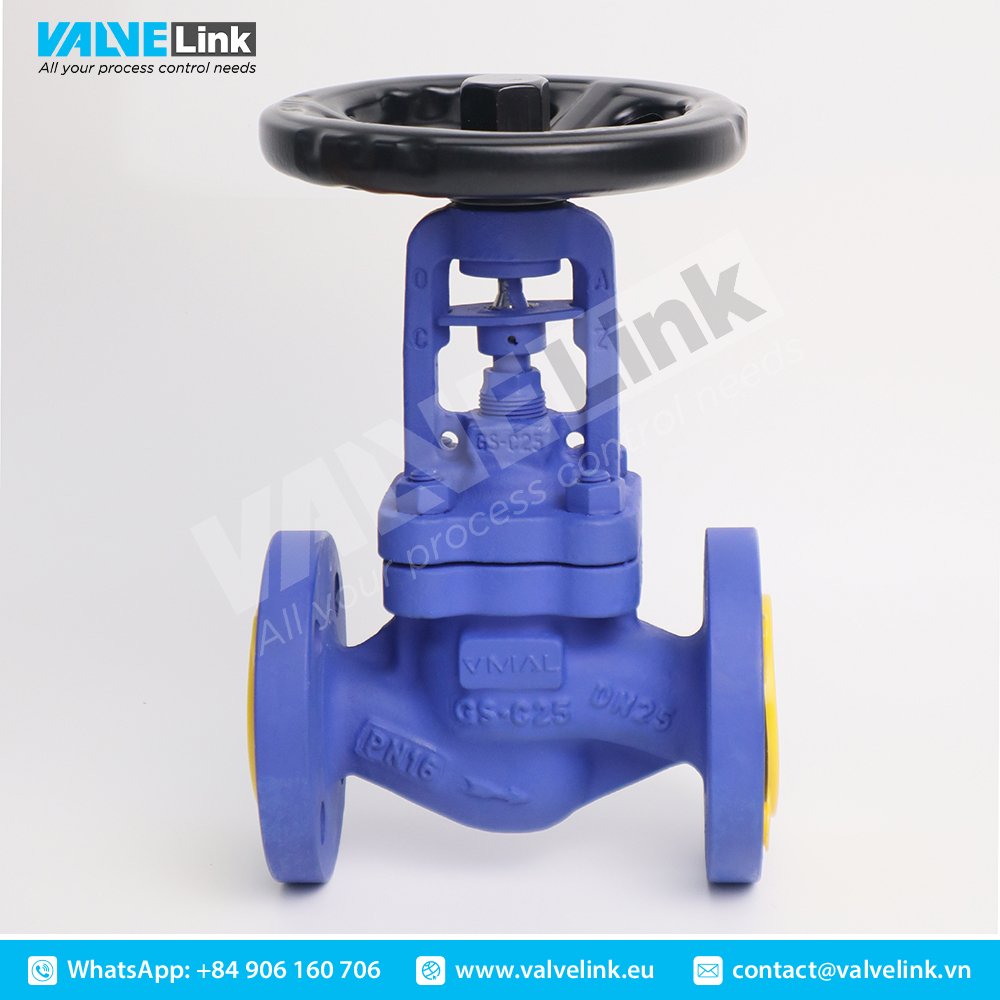

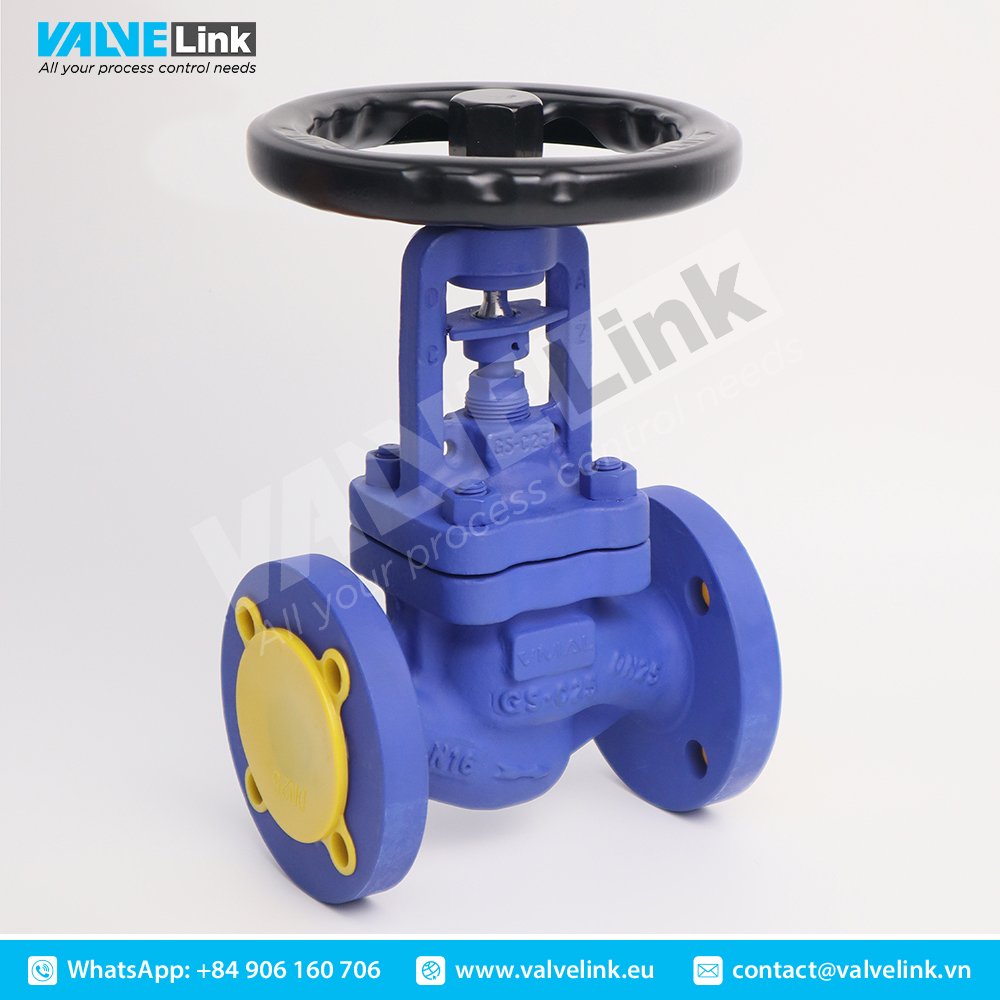

For businesses seeking robust and reliable flow control solutions, Valvelink is proud to introduce the high-performance VMAL Globe Valve. Engineered to meet the stringent demands of various industrial applications, the VMAL Globe Valve offers superior sealing, extended service life, and operational excellence. Available in both DIN and ANSI standards, this valve is the definitive choice for systems requiring precise regulation and leak-free operation.
The VMAL Globe Valve is expertly designed for use in hot oil systems, steam systems, and both hot and cold water systems. Its advanced features ensure it delivers consistent performance and safety across all applications.
Key Advantages of the VMAL Globe Valve
The VMAL Globe Valve integrates several innovative features to provide exceptional performance and a long service life.
- Advanced Bellow Seal Element: The core of the VMAL Globe Valve is its mental bellow, which connects the cover and stem through automatic roll welding. This crucial component ensures a leak-free stem, providing enhanced safety and reliability.
- Double Seal Design: To guarantee a superior seal, the valve incorporates a double seal design consisting of both bellows and packing. This redundant system protects against leaks and ensures the integrity of your operations.
- Durable and Efficient Disc: The valve disc’s conical and streamlined shape contributes to a reliable seal and a longer operational lifespan. Different disc designs are available to suit various working conditions, including regulating discs, globe-check discs, and soft seal discs.
- Enhanced Stability: For sizes above DN150, a triangle position device is included. This feature protects internal components from shaking, resulting in less noise and greater tensile strength.
- Ease of Maintenance and Operation: A grease nipple allows for direct lubrication of the stem, nut, and sleeve, simplifying maintenance. The ergonomic hand wheel is designed for easier operation and extended service life.
Technical Specifications
Valvelink offers the VMAL Globe Valve in two distinct series to meet global standards.
DIN Bellow Globe Valve
- Design Standard: DIN 3356
- Face to Face Dimension: DIN 3202
- Flanged Ends: DIN 2543-2545
- Test & Inspection: DIN 3230
ANSI Bellow Globe Valve
- Design Standard: ASME B16.34
- Face to Face Dimension: ASME B16.10
- Flanged Ends: ASME B16.5
- Test & Inspection: API 598
High-Quality Materials of Construction
The VMAL Globe Valve is constructed from a range of high-quality materials to ensure compatibility with various media and operating conditions.
| Part Name | DIN Series Materials | ANSI Series Materials |
| Body/Cover | GS-C25, GGG-40, 1.4401, 1.4408 | WCB, CF8, CF3 |
| Seat | 1.4301, Stellite | 304 Stellite |
| Disc | 1.4021, 1.4401+Stellite | 13C, F304, F316 |
| Stem | 1.4021, 1.4301, 1.4401 | 13CL, F304, F316 |
| Bellow Assemble | 1.4301, 1.4401 | SS304, SS316L |
| Packing | Flexible graphite | Flexible graphite |
| Gasket | Flexible graphite stainless steel | Flexible graphite stainless steel |
| Stem Nut | Copper alloy, D2, BL2 | Copper alloy, D2, BL2 |
| Hand wheel | 1025/KTH330 | 1025/KTH330 |
For a reliable, long-lasting, and high-performance Globe Valve, trust the VMAL series from Valvelink to meet all your valve and control needs.
