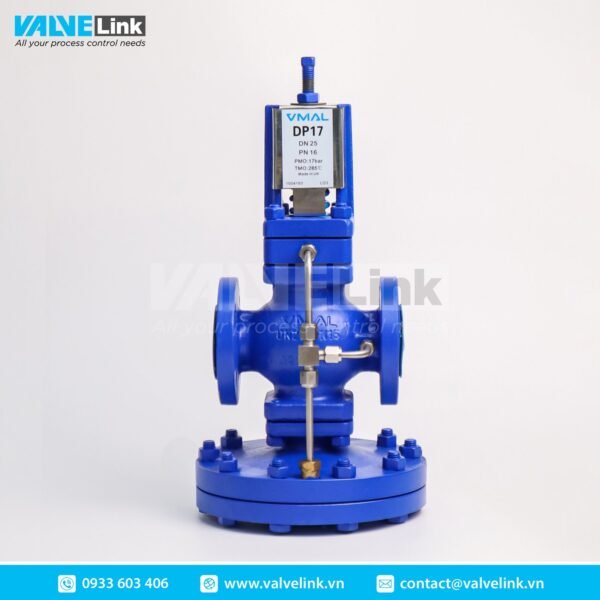

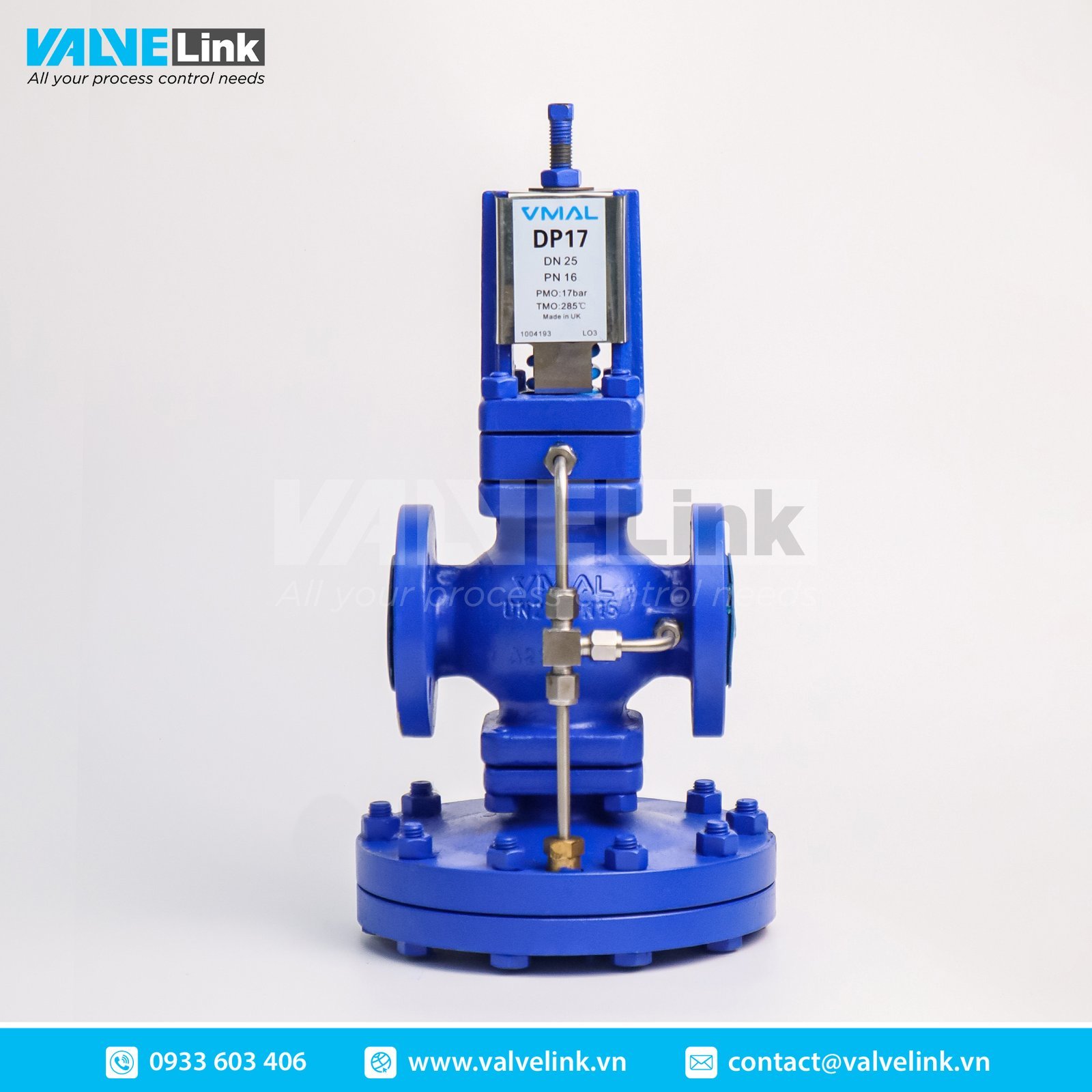

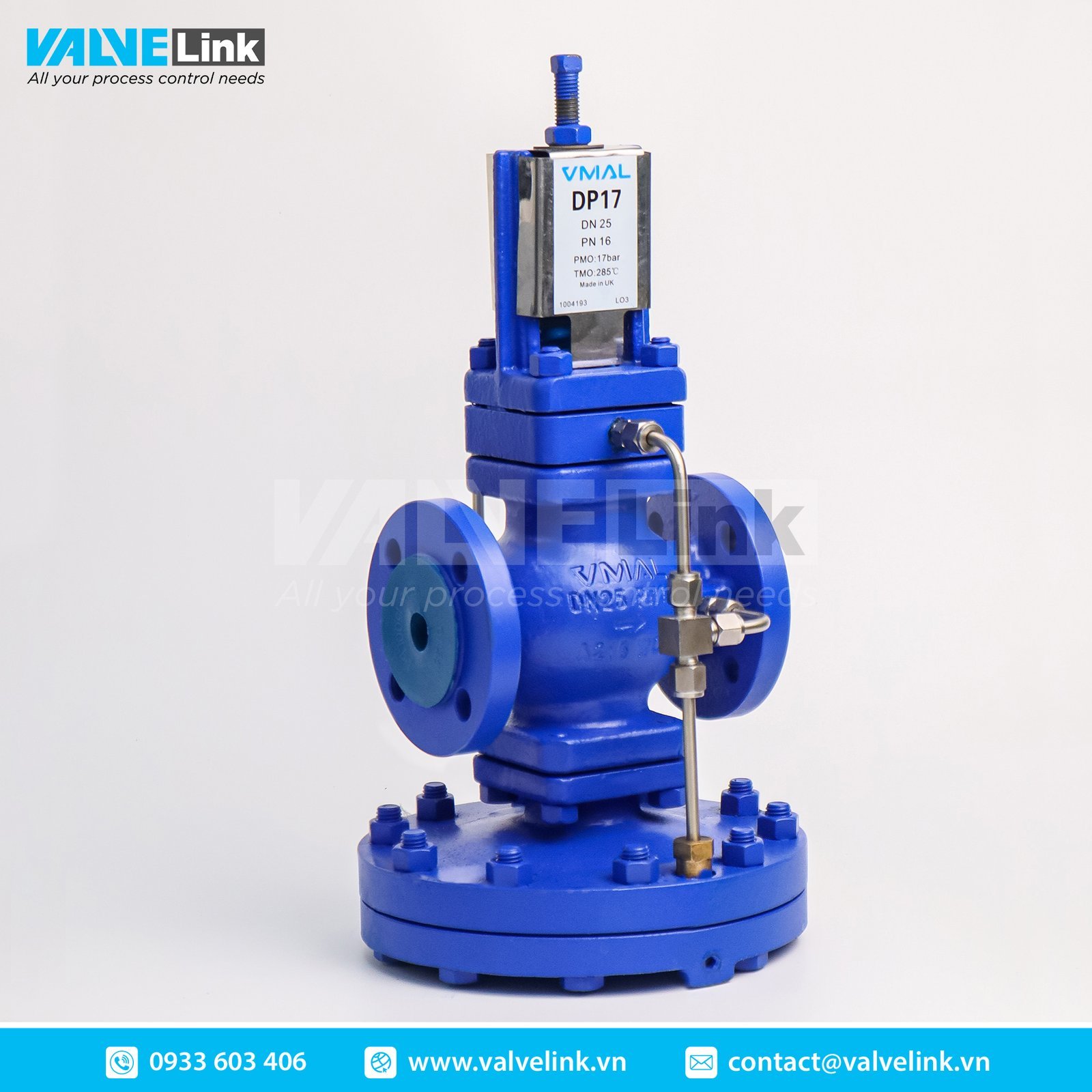

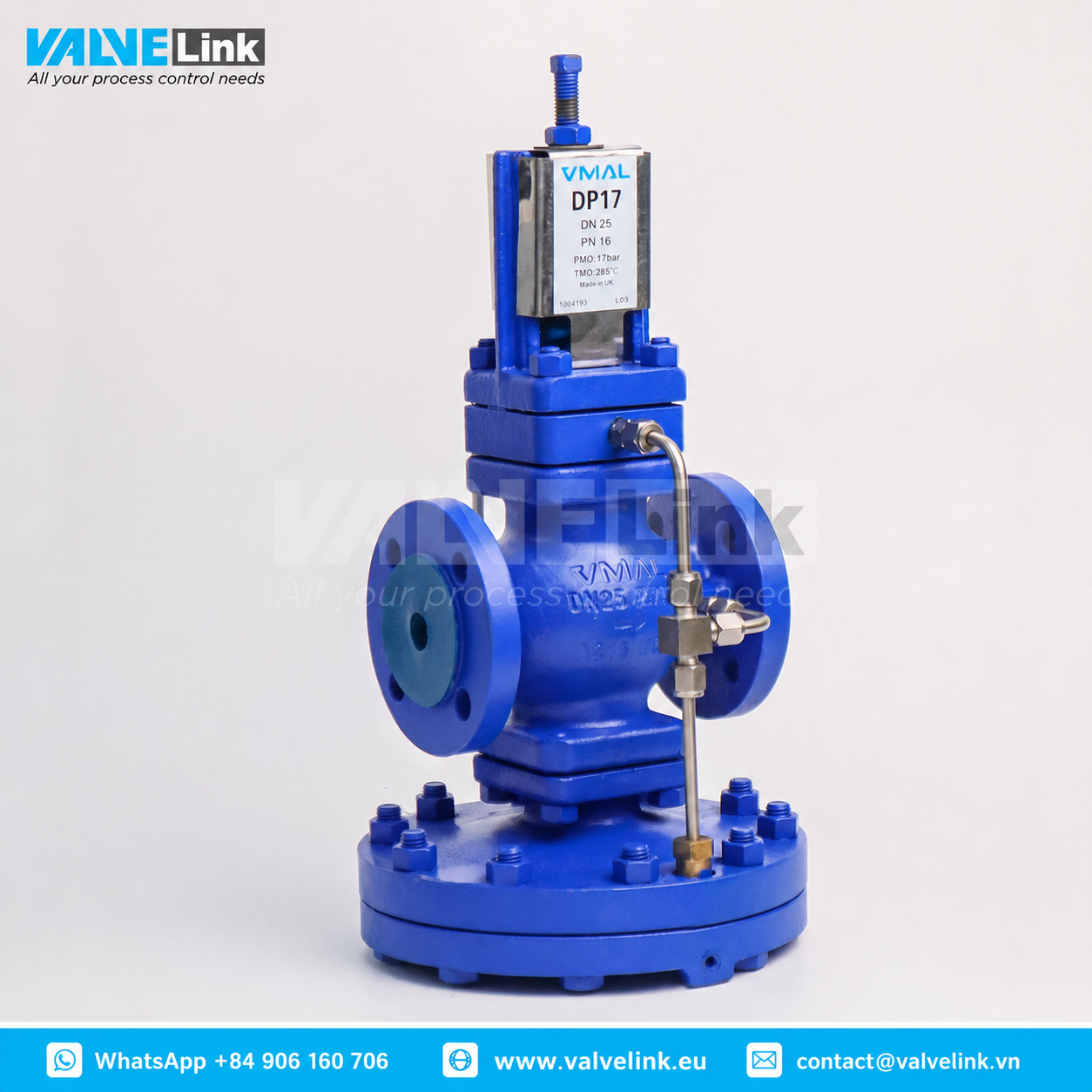

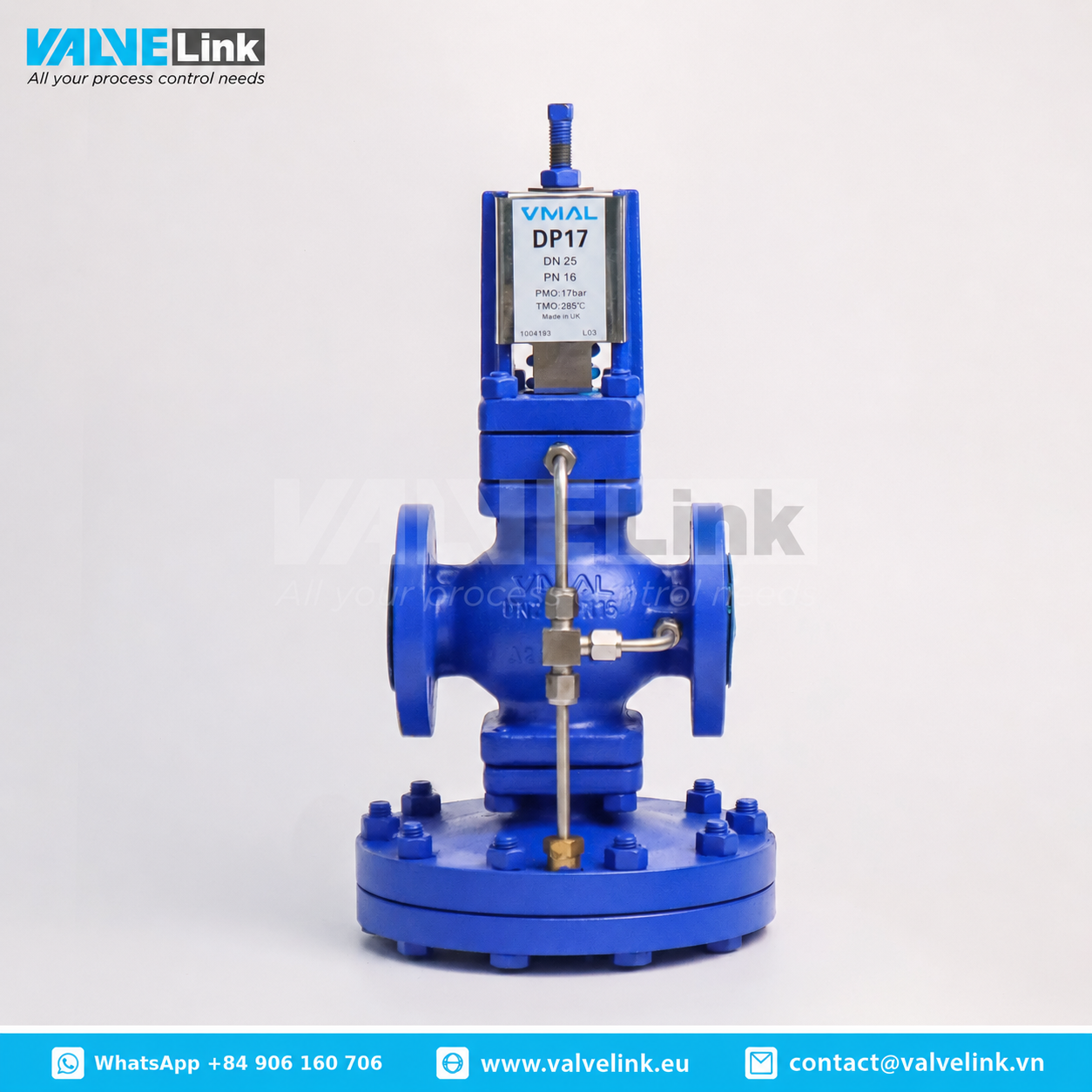

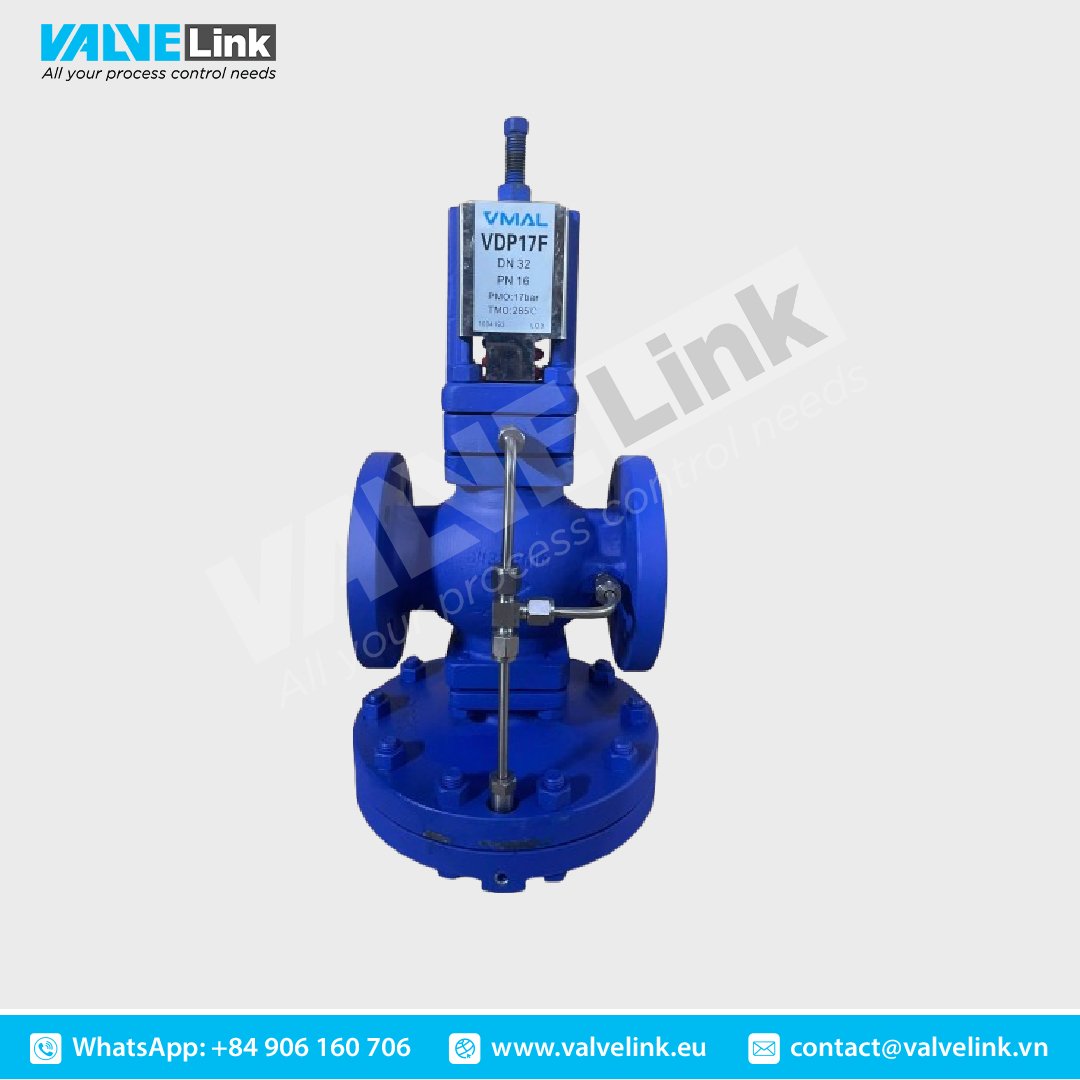

For businesses seeking robust and precise pressure control, Valvelink introduces the VMAL Pilot operated pressure reducing valve. This high-performance valve is engineered to deliver exceptional accuracy and reliability across a range of demanding industrial applications, ensuring operational efficiency and safety.
The VMAL Pilot operated pressure reducing valve is an ideal solution for managing pressure in hot oil systems, steam systems, and both hot and cold water systems. Its design and functionality make it especially suitable for steam and water applications, offering superior control and longevity.
Key Specifications and Advantages
Engineered to meet rigorous standards, the VMAL Pilot operated pressure reducing valve provides a host of technical advantages for your operations:
- High-Pressure Handling: The valve is built to manage maximum inlet pressures of 16 bar and 25 bar.
- Wide Outlet Pressure Range: It offers flexible outlet pressure settings with a color-coded spring system:
- Yellow Spring: 1-3 bar
- Blue Spring: 2-8 bar
- Red Spring: 7-12 bar
- Broad Temperature Tolerance: The VMAL valve operates effectively in media temperatures ranging from 0 to 285°C.
- Significant Pressure Reduction: It can handle a maximum inlet to outlet pressure ratio of 10:1.
- Versatile Sizing: Available in diameters from 15mm to 200mm to suit various system requirements.
- Compliance with Standards: The valve adheres to GB12244 design, testing, and inspection standards, with DIN, ANSI, and GB flange end options available.
Robust Construction for Lasting Performance
The durability of the VMAL Pilot operated pressure reducing valve is guaranteed by its high-quality materials of construction. Each component is selected to withstand demanding industrial environments and ensure long-term reliability.
Main Part Materials:
| Part Name | Material |
| Body | WCB |
| Seat | 2Cr13 |
| Disc | 2Cr13 |
| Stem | 2Cr13 |
| Diaphragm | 1Cr18Ni9 |
| Adjustment Spring | 60Si2Mn |
| Cover | GS-C25, 1.4301, 1.4401 |
| Nut | ASTM 194-2H, A194-B |
| Double-headed Bolt | ASTM 193-B7, A193-B8 |
The VMAL Pilot operated pressure reducing valve, provided by Valvelink, is the definitive choice for businesses that require precise and dependable pressure regulation. Its robust design, adherence to international standards, and suitability for a wide range of applications make it a valuable addition to any fluid or steam control system.
To learn more about how the VMAL Pilot operated pressure reducing valve can enhance your operations, please contact a Valvelink representative today.
