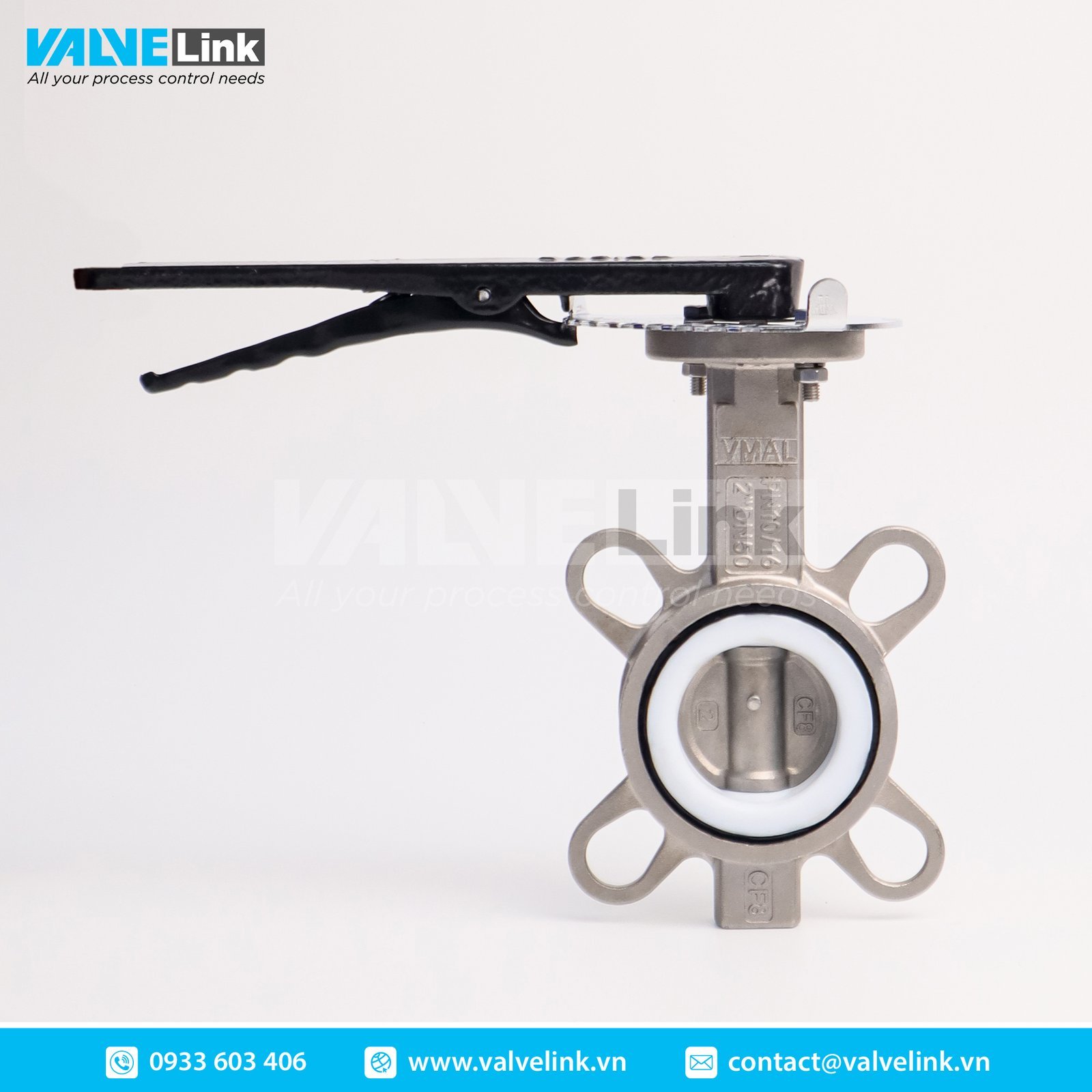

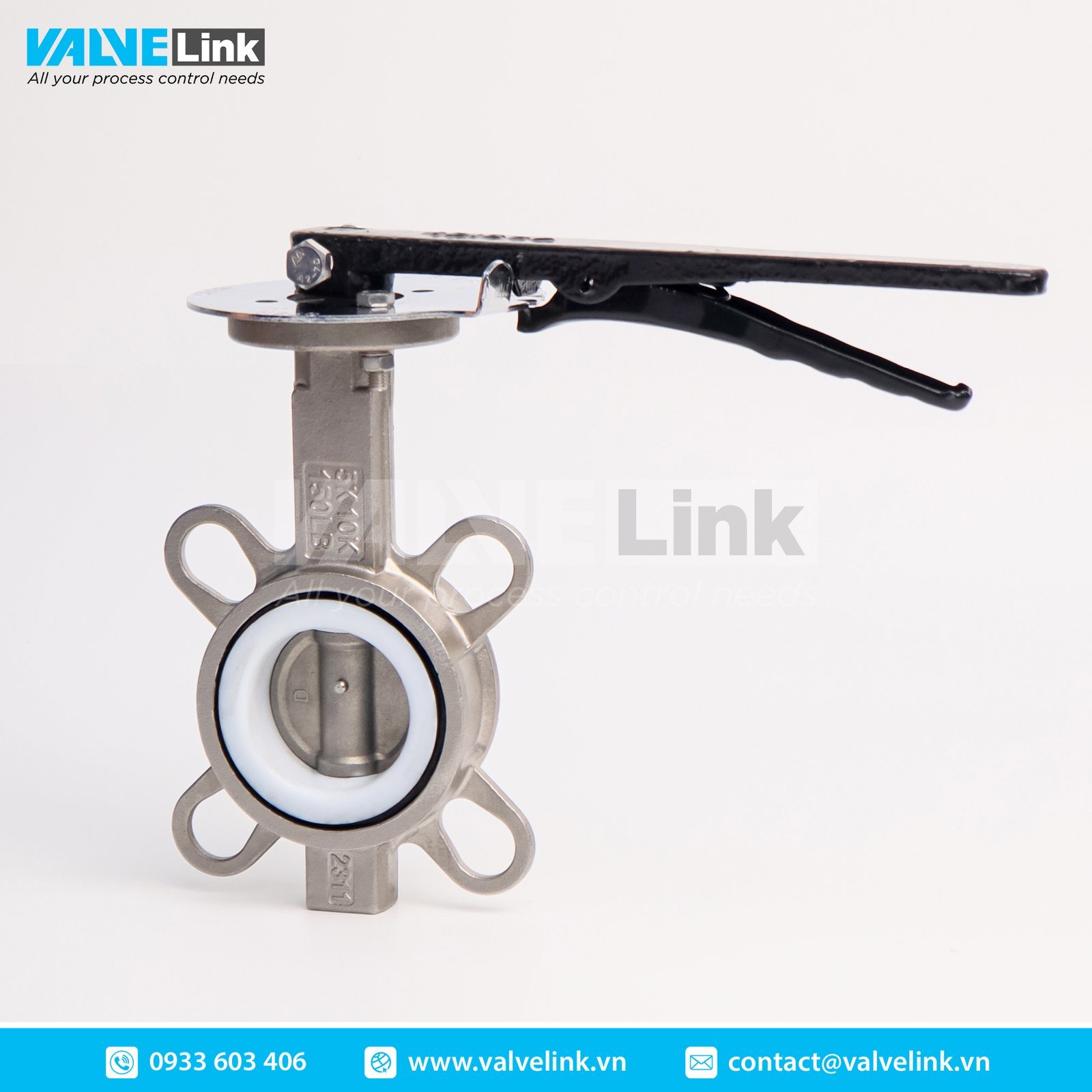

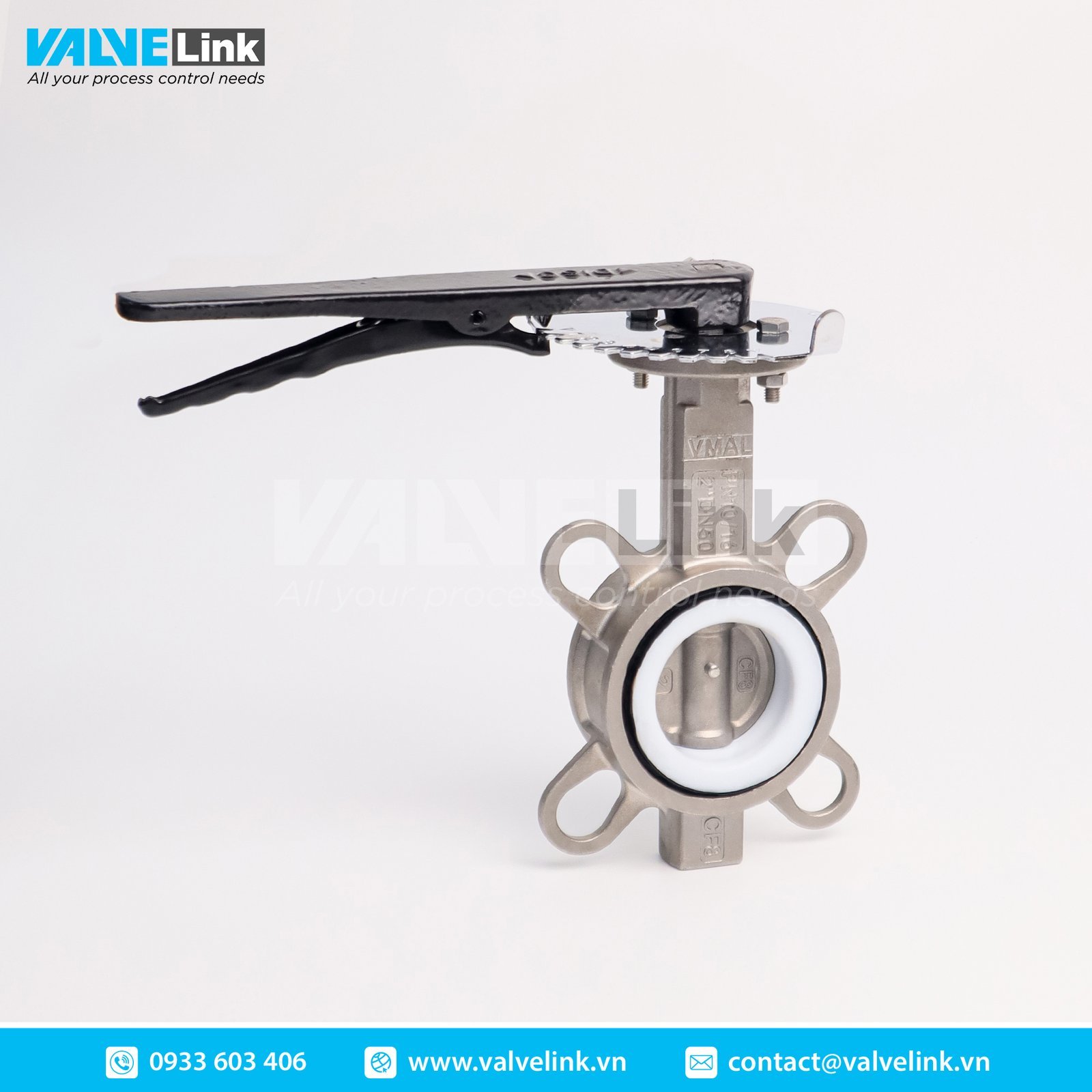

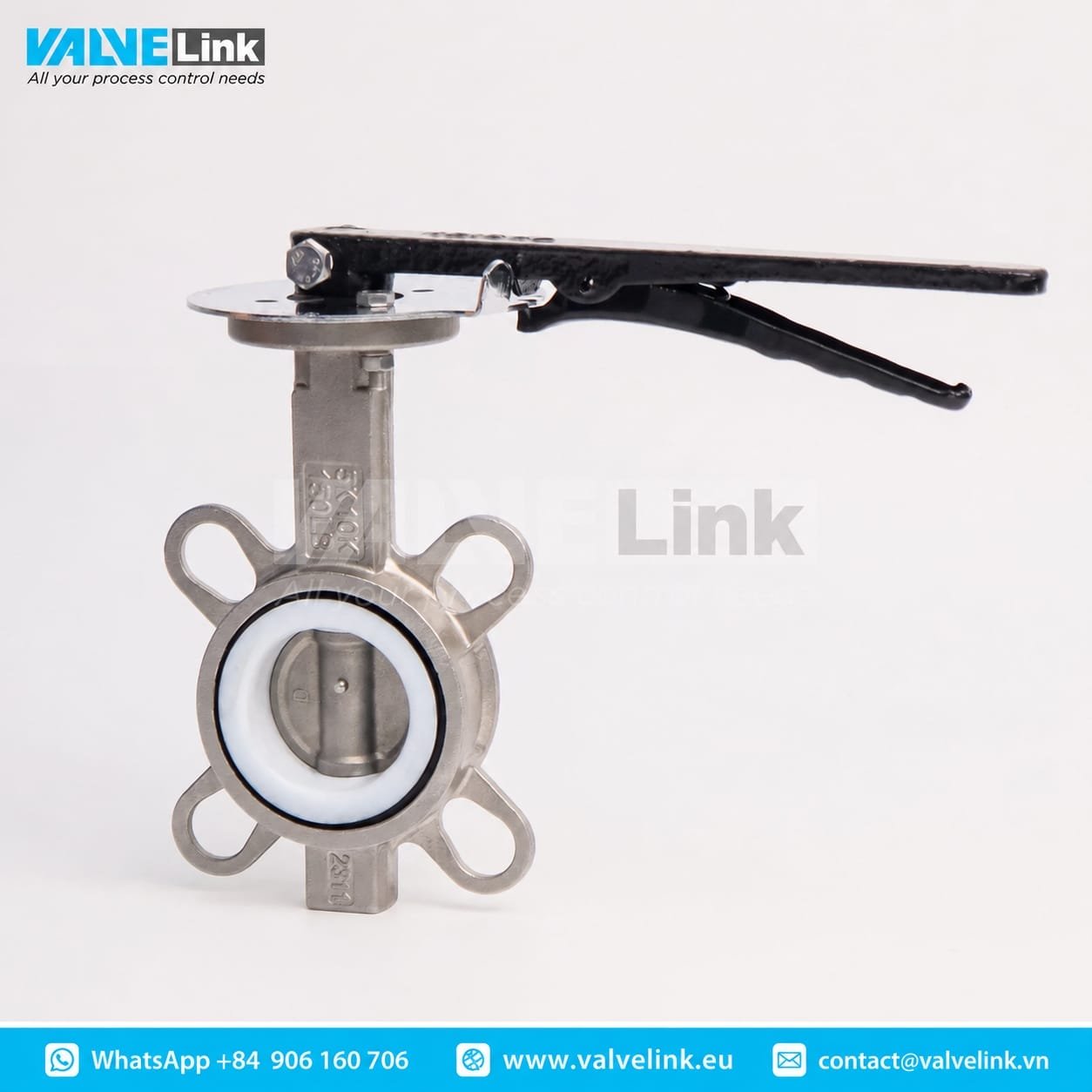

In today’s competitive industrial landscape, efficiency, durability, and hygiene are paramount. Valvelink is proud to introduce the VMAL series premium manual butterfly valve, a top-tier solution designed to meet the most stringent requirements. The SS butterfly valve, seat PTFE (Model VMIBSW16) is engineered for optimal performance in high-stakes environments, offering unparalleled corrosion resistance, exceptional durability, and reliable operation under pressure.
This wafer-type valve, featuring a robust full stainless steel construction and a chemically inert PTFE seat, is the premier choice for applications in the food and beverage, chemical, and pharmaceutical industries, as well as any process where purity and resilience are non-negotiable.
Technical Specifications and Standards
The VMAL VMIBSW16 is built to exact specifications to ensure seamless integration and long-term performance in your systems.
- Model: VMIBSW16 (Example: VMIBSW16-050 for DN50)
- Valve Type: Wafer Type Butterfly Valve
- Operation: Handlever Operated
- Size Range: DN50 (2”) to DN300 (12”) (Available on request)
- Working Pressure: PN16 (Equivalent to 200 PSI)
- Connection Style: Wafer (Designed for clamp installation between two flanges)
- Compatible Flange Standards: DIN, BS, UNI, ISO, ANSI, AS, JIS
- Face-to-Face Standard: Conforms to API609, BS5155, DIN3202, ISO5752
- Mounting Flange Standard (for actuation): ISO 5211
Superior Material Configuration: The Full Stainless Steel Advantage
The exceptional performance of the VMAL valve stems from its superior material composition. Each component is carefully selected to provide maximum longevity and safety.
- Valve Body: Fabricated from Stainless Steel 304 (SS304), offering effective protection against rust and corrosion.
- Valve Disc: Constructed from Stainless Steel 304 (SS304 / CF8), ensuring that the component in direct contact with the process fluid is safe, clean, and resistant to chemical reactions.
- Valve Shaft: Made of Stainless Steel 416 (SS416), which provides excellent torque strength and robust corrosion resistance.
- Sealing Gasket (Seat): The critical seal is made from PTFE (Teflon). This material gives the SS butterfly valve, seat PTFE its signature ability to withstand aggressive chemicals and high temperatures while guaranteeing a tight, leak-proof seal.
Ideal Applications for the VMAL SS Butterfly Valve with PTFE Seat
Thanks to its premium stainless steel build and high-resistance PTFE gasket, the VMAL VMIBSW16 valve is perfectly suited for a wide range of critical industries and processes:
- Food & Beverage: Ensures hygienic processing and easy cleaning, preventing contamination.
- Chemical / Petrochemical: Provides reliable shut-off and control of corrosive fluids and aggressive media.
- Clean Water & Pure Water Treatment: The inert materials guarantee the purity of the water supply is maintained.
- Pharmaceuticals: Meets the high standards for cleanliness and material compatibility required in pharmaceutical manufacturing.
- General Industrial Processes: An excellent choice for any system that demands superior corrosion resistance, durability, and high-purity conditions.
Choose the VMAL SS butterfly valve, seat PTFE to ensure the safety, hygiene, and long-term efficiency of your system. Its robust design and superior materials provide a reliable and cost-effective solution for even the most challenging environments.
Contact ValveLink today for expert technical consultation and to receive the best quotation for your project needs!
