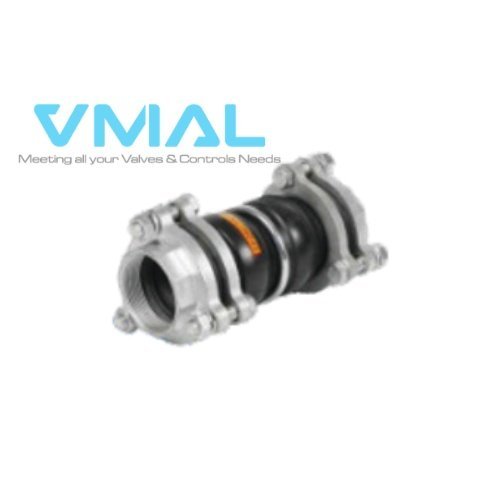

Valvelink Europe Ent. is proud to introduce the VMAL Twin Sphere rubber connector with Thread, an essential component engineered for reliability and flexibility in a wide range of industrial and commercial piping systems. This high-performance connector is designed to absorb movement, dampen vibrations, and reduce noise, ensuring the integrity and longevity of your fluid and air handling infrastructure.
The VMAL Twin Sphere rubber connector is a versatile solution, adept at handling various media, including air, compressed water, weak acids, and alkalis. Its robust design and superior materials make it an ideal choice for demanding applications.
Performance and Operational Specifications
Engineered to perform under pressure, the VMAL Twin Sphere rubber connector boasts impressive technical specifications that guarantee operational safety and efficiency.
- Working Pressure: 1.6 Mpa
- Bursting Pressure: 3 Mpa
- Angle of Deflection: 15circ
- Vacuum Rating: The connector can operate in temperatures ranging from −15sim115circ.
- Applicable Media: Suitable for Air, Compressed Water, Weak Acid, and Alkali.
Superior Construction and Materials
The durability of the Twin Sphere rubber connector is rooted in its high-quality components and thoughtful construction.
- Joint (1): Made from Cast material for a strong and secure connection.
- Liner (2): Features an NBR (Nitrile Butadiene Rubber) liner, providing excellent resistance to the specified media.
- Frame (3): A Stainless Steel frame reinforces the structure, ensuring stability.
- Steel Wire (4): Embedded CS (Carbon Steel) wire adds strength to withstand pressure and movement.
Dimensional Flexibility and Displacement
A key advantage of the Twin Sphere rubber connector is its ability to accommodate various types of pipe displacement, which is critical for protecting equipment from thermal expansion, contraction, and misalignment.
Dimensions and Displacement Capabilities (in mm)
| SIZE (in) | DN | L | Stretch | Axial Displacement Compression | Lateral Displacement |
| 1/2 | 15 | 180 | 5−6 | 22 | 22 |
| 3/4 | 20 | 180 | 5neg6 | 22 | 22 |
| 1 | 25 | 180 | 5sim6 | 22 | 22 |
| 1 1/4 | 32 | 200 | 5−6 | 22 | 22 |
| 1 1/2 | 40 | 210 | 5−6 | 22 | 22 |
| 2 | 50 | 220 | 5−6 | 22 | 22 |
| 21˜/2 | 65 | 245 | 5−6 | 22 | 22 |
This exceptional range of movement, including axial compression, stretch, and lateral displacement, makes the VMAL Twin Sphere rubber connector an indispensable component for maintaining a stable and stress-free piping system.
For more information on the VMAL Twin Sphere rubber connector or to discuss how Valvelink can meet your specific application needs, please contact our sales team today.
