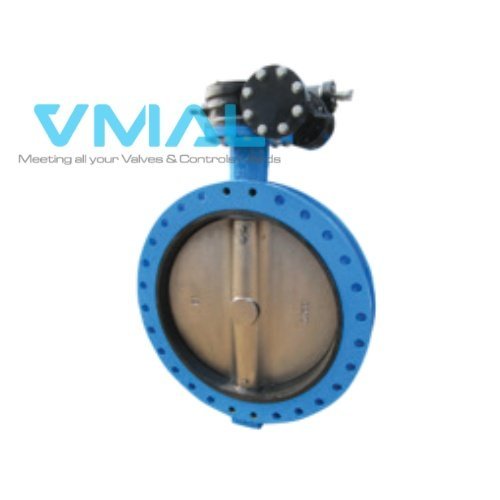

Valvelink is proud to introduce the VMAL U-Type Butterfly Valve, a high-performance solution engineered for reliability and versatility across a wide range of industrial applications. Designed to meet stringent international standards, this valve offers superior control and durability for your critical flow management needs.
The VMAL U-Type Butterfly Valve features a robust wafer-type design, ensuring a compact and efficient installation. It is built to comply with multiple international face-to-face and flange standards, including API609, BS5155, DIN3202, and ISO5752, making it a versatile choice for global projects. The valve’s compatibility extends to a variety of flange systems such as DIN, BS, UNI, ISO, ANSI, AS, and JIS.
Engineered for Durability and Performance
The exceptional quality of the VMAL U-Type Butterfly Valve lies in its premium materials of construction. Each component is carefully selected to provide maximum longevity and performance.
Standard Materials of Main Parts:
| ITEM | PART NAME | MATERIAL |
| 1 | Body | CI/DI/CS/SS |
| 2 | Seat | EPDM/PTFE/VITON/NBR/Hypalon |
| 3 | Shaft | SS416/316/304 |
| 4 | Disc | CF8/CF8M/DI+Ni |
| 5 | Pin | SS304/SS316 |
| 6 | Bushing | PTFE/Bronze |
| 7 | O Ring | NBR/EPDM |
This robust construction allows the valve to handle a working pressure of PN16 (200PSI). Furthermore, the inclusion of an ISO5211 mounting flange simplifies the process of attaching actuators, ensuring seamless integration into automated systems.
Broad Range of Applications
The versatility of the VMAL U-Type Butterfly Valve makes it the ideal choice for numerous industries and processes. Its reliable design and material options are perfectly suited for:
- HVAC
- Water Supply & Sewage
- Food & Beverage
- Chemical/Petrochemical/Processing
- Power and Utilities
- Paper and Pulp
- Shipbuilding
Comprehensive Sizing and Dimensions
To meet diverse operational requirements, the VMAL U-Type Butterfly Valve is available in a wide array of sizes, from DN50 (2 inches) up to DN1200 (48 inches). Detailed dimensions for each size, including flange specifications for PN10, PN16, and ANSI 150, are available to ensure a precise fit for any system.
For detailed specifications and to discuss how the VMAL U-Type Butterfly Valve can benefit your operations, please contact ValveLink today. Our team is ready to provide you with the high-quality solutions your business deserves.
