For businesses seeking a reliable, high-performance flow control solution, Valvelink is proud to introduce the VMAL Wafer-Type Hand Lever Butterfly Valve. Engineered for durability and versatility, this valve is an essential component for a wide array of industrial systems, ensuring efficient and dependable operation.

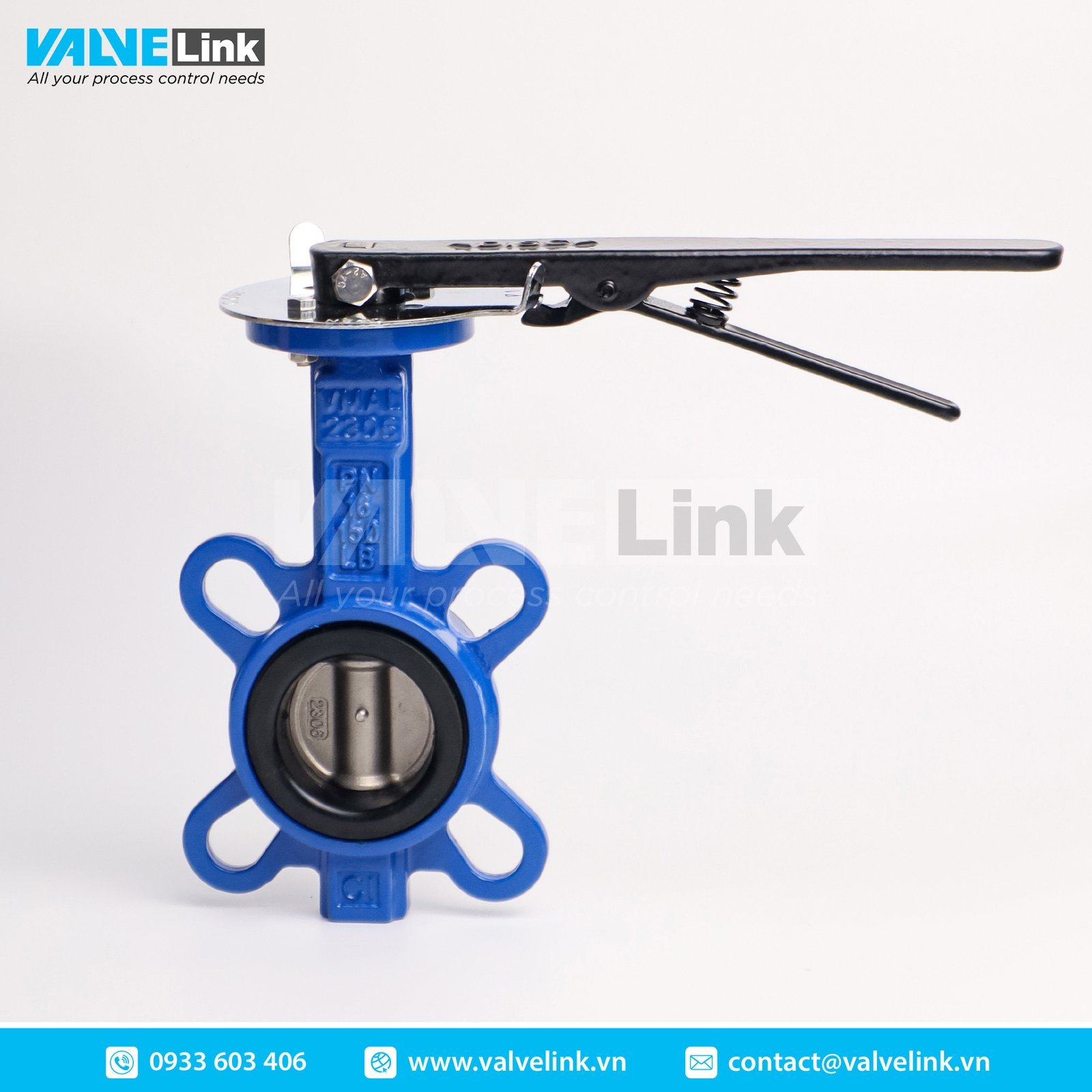

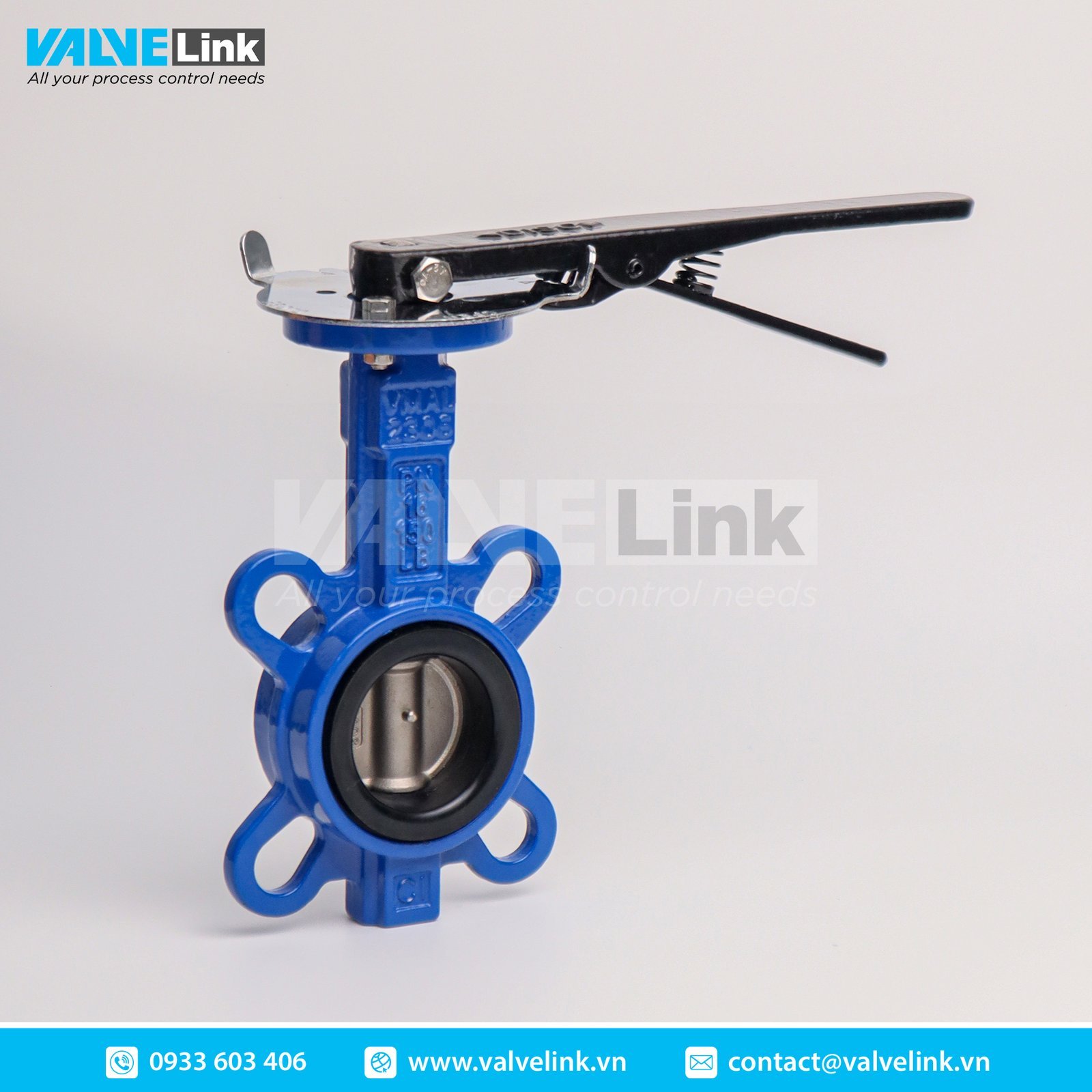

The VMAL Hand Lever Butterfly Valve is a wafer-type valve designed to meet stringent international standards. It adheres to multiple face-to-face and flange specifications, including API609, BS5155, DIN3202, ISO5752, DIN, BS, UNI, ISO, ANSI, AS, and JIS, making it a versatile fit for various piping systems globally. With a standardized ISO5211 mounting flange, this valve ensures seamless integration and actuation.

Engineered for Performance and Durability

Built to withstand demanding operational conditions, the VMAL Hand Lever Butterfly Valve operates at a working pressure of PN16 (200PSI). The quality of the valve is evident in its construction, which utilizes a range of high-grade materials for its core components.

Standard Materials of Main Parts :

Body: Available in Cast Iron (CI), Ductile Iron (DI), Carbon Steel (CS), or Stainless Steel (SS).
Seat: Offered in a variety of materials to suit different media, including EPDM, PTFE, VITON, NBR, and Hypalon.
Shaft: Constructed from robust SS416, SS316, or SS304.
Disc: Made from CF8, CF8M, or DI+Ni for excellent corrosion resistance.
Pin: SS304 or SS316.
Bushing: Options of PTFE or Bronze.
O-Ring: Available in NBR or EPDM.

This careful selection of materials ensures the valve’s longevity and compatibility with a wide range of substances, from water to corrosive chemicals.

Versatile Applications Across Industries

The robust design and material versatility of the VMAL Hand Lever Butterfly Valve make it an ideal choice for numerous applications, including:

HVAC
Water Supply & Sewage
Food & Beverage
Chemical and Petrochemical Processing
Power and Utilities
Paper and Pulp
Ship Building

Comprehensive Sizing

To meet the specific requirements of any project, the VMAL butterfly valve is available in a comprehensive range of sizes, from DN 50 (2 inches) up to DN 1200 (48 inches). Detailed dimensional data for all sizes is available to ensure a perfect fit for your system architecture.

Choose the VMAL Hand Lever Butterfly Valve from Valvelink for a reliable, standards-compliant, and cost-effective solution for your flow control needs. Contact us today for detailed specifications and to discuss how we can support your business operations.
