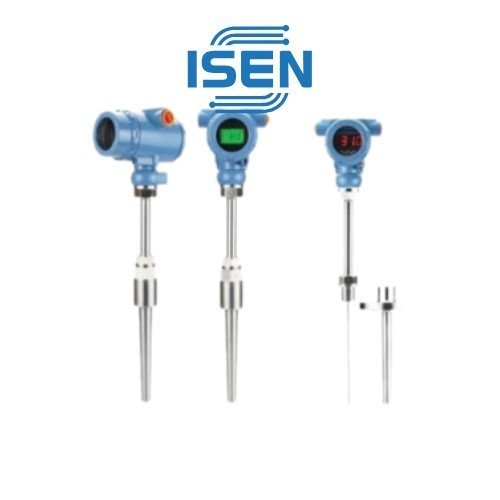

ISEN-JCTT Series Intelligent Temperature Transmitter, a high-performance temperature measurement device specifically designed for demanding industrial applications. Leveraging advanced technology and exceptional reliability, the ISEN-JCTT Series Temperature Transmitter is the premier choice for businesses seeking to enhance operational efficiency and ensure precision in their temperature monitoring processes.
Overview of the ISEN-JCTT Series Temperature Transmitter
The ISEN-JCTT Series Temperature Transmitter is a 2-wire temperature converter capable of accepting a wide variety of input signals, including Thermocouple (T/C), RTD, Ohm, and mV signals. This versatile Temperature Transmitter provides an analog 4-20mA output signal combined with the HART digital communication protocol, allowing for seamless integration into existing factory control and monitoring systems.
Salient Features and Benefits
The ISEN-JCTT Series Temperature Transmitter offers a multitude of features designed for accuracy, flexibility, and durability:
- High-Precision Measurement: Delivers reliable measurement data crucial for critical applications with an accuracy of ±0.1% of the full measuring range and stability of ±0.1% over 2 years.
- Versatile Input Signal Compatibility: Supports most common temperature sensors such as T/C (K, S, B, E, J, T, R, N) and RTD (CU50/PT100, 2/3/4-wire), along with mV and Ohm signals, offering maximum flexibility in sensor selection and integration.
- HART Communication: Enables easy remote configuration, calibration, and data retrieval, minimizing on-site maintenance time and costs.
- Convenient Configuration and Calibration: Parameters can be set directly using 3 push-buttons on the device or via HART communication. An automatic zero-point calibration function simplifies operational processes.
- Intuitive Display: Features a rotatable, backlit LCD screen that clearly displays measured values (5 digits) and a 0-100% bargraph.
- Robust Design for Harsh Environments: The housing is constructed from low-copper die-cast aluminum with a polyurethane paint finish, providing explosion-proof and weather-resistant capabilities. The Temperature Transmitter meets IP67 protection standards (Standard) and offers optional explosion-proof ratings of EEx ia IIC T5 and Ex D IIB T5.
- Effective Noise and Vibration Resistance: The device exhibits strong anti-interference capabilities and low susceptibility to vibration effects, ensuring stable operation in noisy industrial environments.
- Premium Wetted Materials: Components in contact with the process medium are made from corrosion-resistant materials such as SUS304/SUS316/Hastelloy C/Tantalum, guaranteeing product longevity even when working with aggressive media.
Key Technical Specifications
- Input: T/C (K, S, B, E, J, T, R, N), RTD (CU50/PT100, 2/3/4-wire), mV (-128 to +128mV / -1000 to +1000mV), Resistance (0-600 Ω / 0-5000 Ω).
- Output: 4-20 mA (2-wire) with HART signal. (An optional 4-wire 0-10mADC output may be considered, based on information from the JCBP model potentially applicable to ISEN).
- Power Supply: 9-36 VDC.
- Accuracy: ±0.1% of full scale.
- Stability: ±0.1% of full scale over 2 years.
- Temperature Effect: ±0.1% of full scale per 10°C change.
- Process Connection: Thread or flange.
- Installation: Direct mounting or 2″ pipe mounting.
- Ambient Operating Temperature: -25 to +85°C.
- Ambient Humidity: 0 to 100% RH.
- Protection Class: IP67 (Standard), optional EEx ia IIC T5, Ex D IIB T5.
- Weight: 60g (converter only, with display), 30g (converter only, without display).
- Measuring Range: Dependent on the connected sensor type, supporting a wide range from -200°C to +1800°C.
The ISEN-JCTT Series Temperature Transmitter from Valvelink is a reliable, accurate, and efficient temperature measurement solution for diverse industrial applications. With its intelligent features and durable design, this Temperature Transmitter helps optimize production processes and protect business assets.
For more detailed information and expert consultation regarding the ISEN Temperature Transmitter, please contact Valvelink.
