In today’s demanding industrial environments, precise and reliable liquid level control is paramount. Valvelink is proud to introduce the ISEN-LF series Magnetic Float Level Switch, a robust and versatile solution designed to meet the rigorous requirements of a wide array of applications. This advanced Magnetic Float Level Switch offers a superior alternative to traditional mechanical switches and provides enhanced performance compared to standard electronic switches.
The ISEN-LF series Magnetic Float Level Switch is engineered for safety, reliability, ease of use, and a simple structure. Its compact design allows for faster operation and a significantly longer lifespan than general mechanical switches. Furthermore, this Magnetic Float Level Switch boasts strong resistance to load impact, a critical advantage over many electronic counterparts.
Understanding the Ingenious Working Principle
The operational brilliance of the ISEN-LF Magnetic Float Level Switch lies in its straightforward yet effective design. The system features a sealed, non-conductive stainless steel tube. One or more ring magnet floats are positioned externally to this tube. Inside the tube, one or more reed switches are securely installed. As the liquid level rises or falls, the float moves in tandem. When the magnet within the float aligns with a reed switch inside the tube, it actuates the switch, causing it to make or break an electrical circuit and thereby output a switch signal. This simple, non-contact activation ensures minimal wear and tear, contributing to the device’s longevity.
Key Technical Specifications of the ISEN-LF Magnetic Float Level Switch:
The ISEN-LF series Magnetic Float Level Switch is built to perform, offering impressive technical capabilities:
- Contact Capacity: 50W
- Switching Current: 0.5A
- Switching Voltage: 220VAC/24VDC
- Insulation Resistance: >100ΜΩ
- Working Life: An exceptional 1 million times
- Working Pressure: Suitable for pressures ranging from 1.0 to 3.0 MPa
- Working Temperature:
- SUS (Stainless Steel): −10 to 200∘C
- PP (Polypropylene): −10 to 80∘C
- Specific Gravity of Medium: Requires a minimum specific gravity of >0.55
- Product Materials: Available in SUS304, SUS316, PP, PE, and PTFE to suit various chemical and temperature compatibilities.
Versatile Applications Across Industries
The adaptability and robustness of the ISEN-LF Magnetic Float Level Switch make it an ideal choice for a diverse range of industries, including but not limited to:
- Shipbuilding
- Paper Making
- Printing
- Generator Equipment
- Petrochemical Industry
- Food Industry
- Water Treatment
- Electrical Industry
- Fuel Industry
- Hydraulic Machinery
Tailored Solutions with Valvelink’s Selection Guide

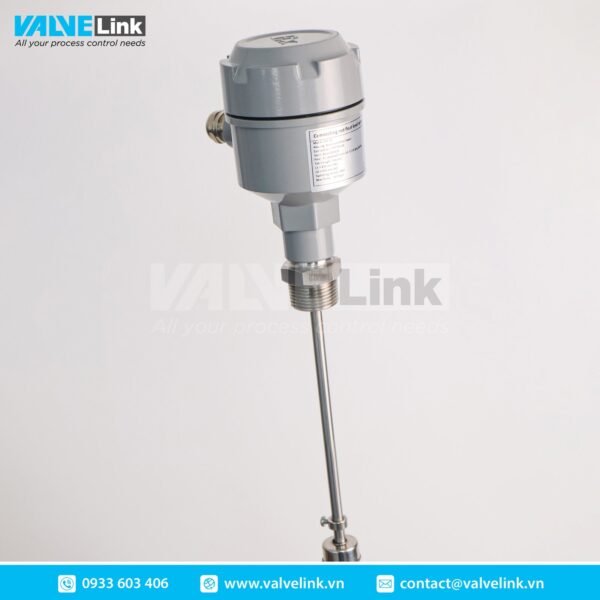

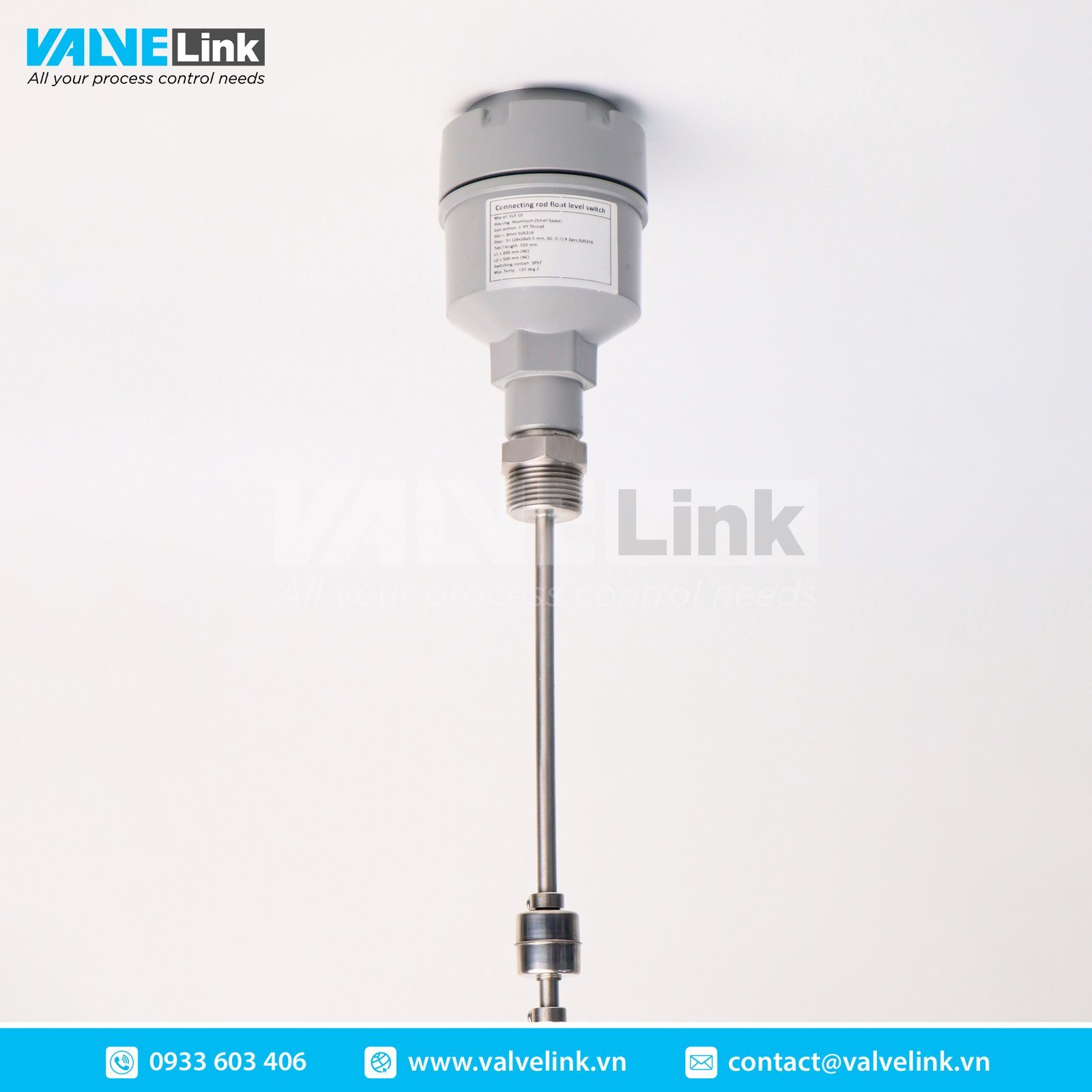

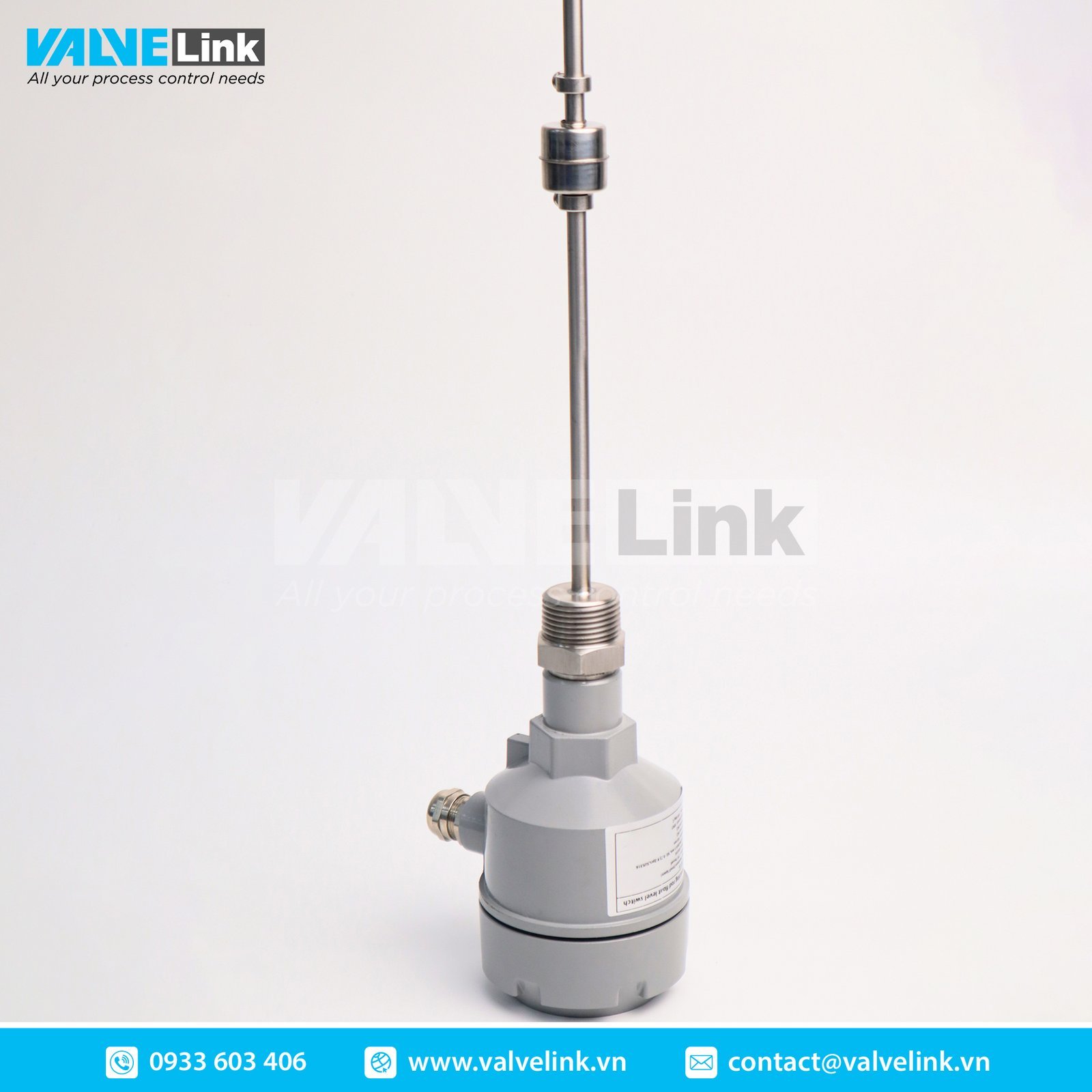

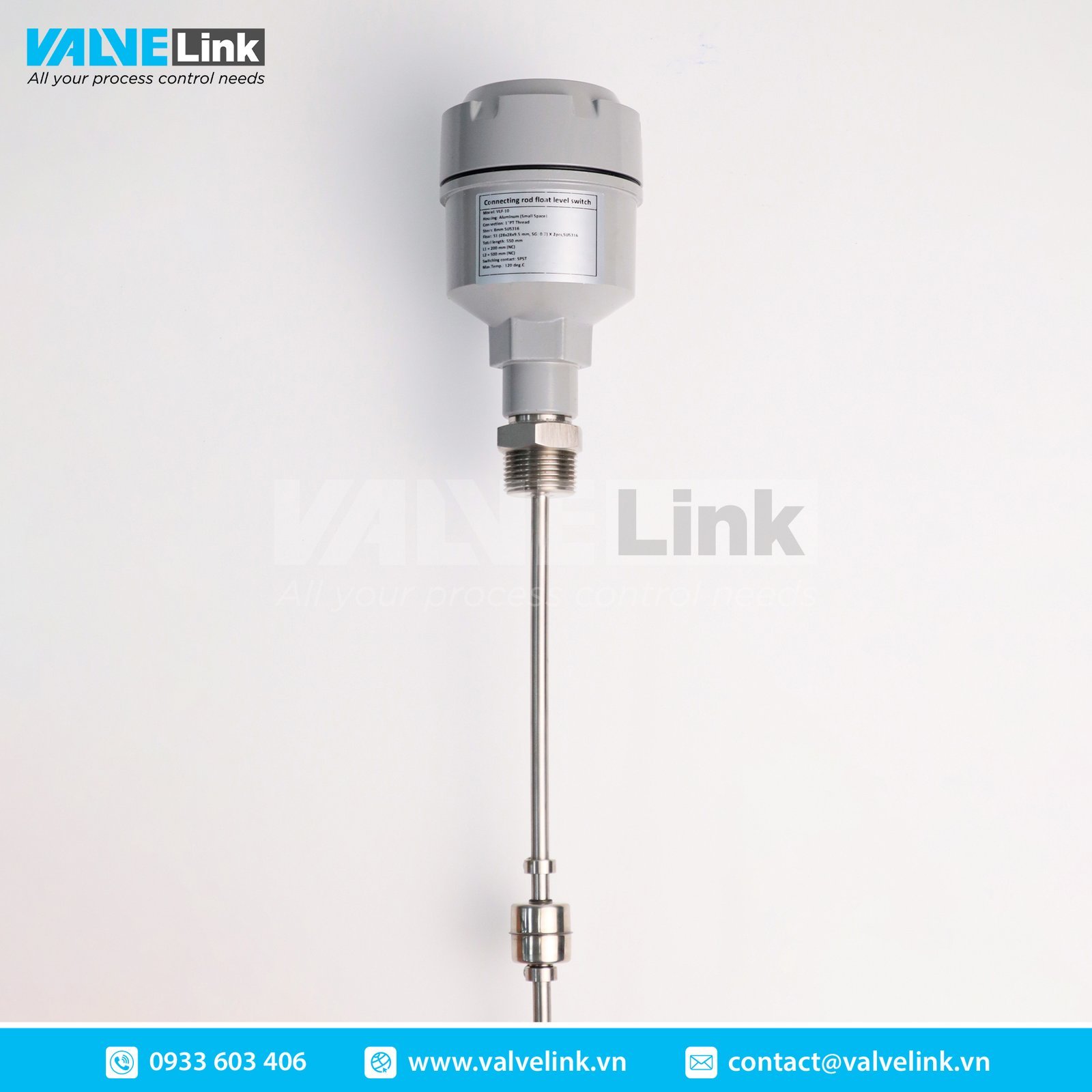

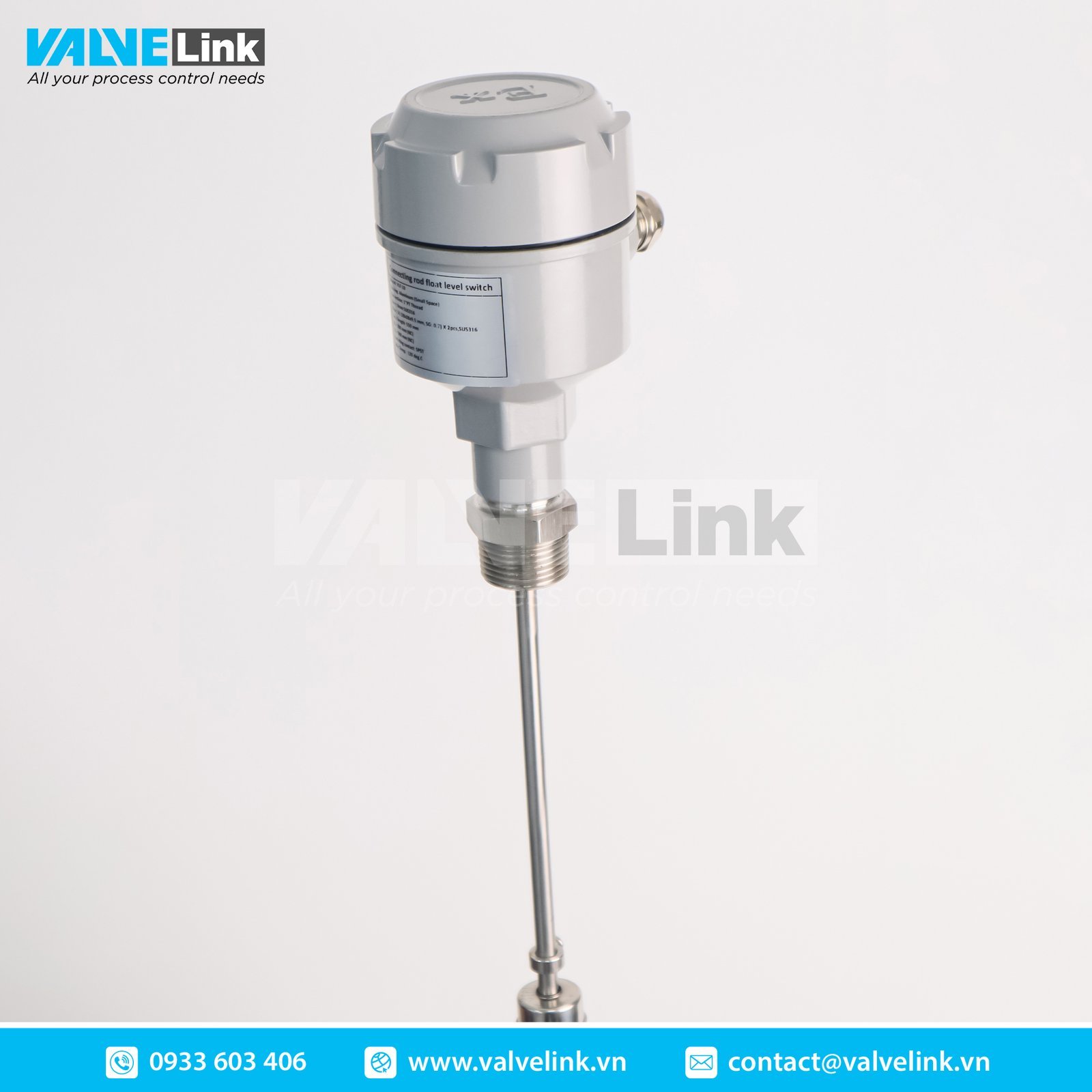

Valvelink offers the ISEN-LF series Magnetic Float Level Switch in various configurations to meet your specific needs. Our product line includes the ISEN-LF Series Connecting Rod Float Ball and the ISEN-LF Series Small Float Ball.
Customization options include:
- Junction Box: Standard, Explosion-proof, Rustproof, or No junction box.
- Float Specifications: Various sizes and materials, such as SUS304 and PP balls of different dimensions.
- Action Points: Multiple action points (1, 2, 3, 4, 5…).
- Connection Type: Flange (SUS/PP), Thread (SUS/PP), or Clamp (SUS/PP).
- Mounting Position (for Small Float Ball): Vertical or Horizontal installation.
- Mounting Thread (for Small Float Ball): Options include 1/8″PF, 3/8″PF, G1/2″, or customisation.
- Total Length / Outlet Length: Customizable to your requirements.
Valvelink provides detailed selection guides and metal float specifications to ensure you choose the perfect Magnetic Float Level Switch for your application.
Partner with Valvelink for Your Level Control Needs
The ISEN-LF series Magnetic Float Level Switch stands out for its precision, durability, and versatility. At Valvelink, we are committed to providing high-quality process control solutions. Our team is ready to assist you in selecting and implementing the ideal Magnetic Float Level Switch configuration to optimize your operations.
For inquiries and to learn more about how the ISEN-LF Magnetic Float Level Switch can benefit your business, please contact Valvelink today.
