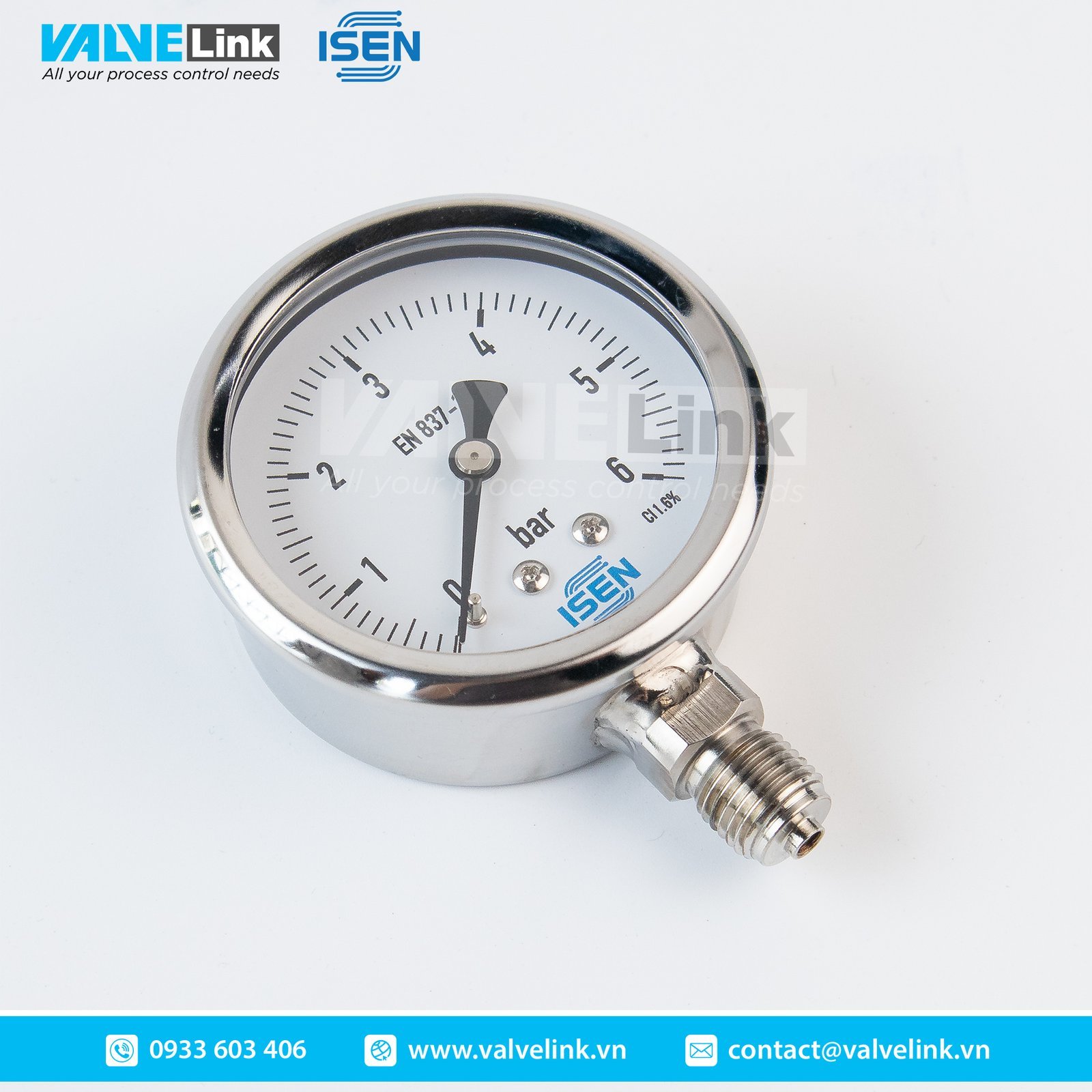

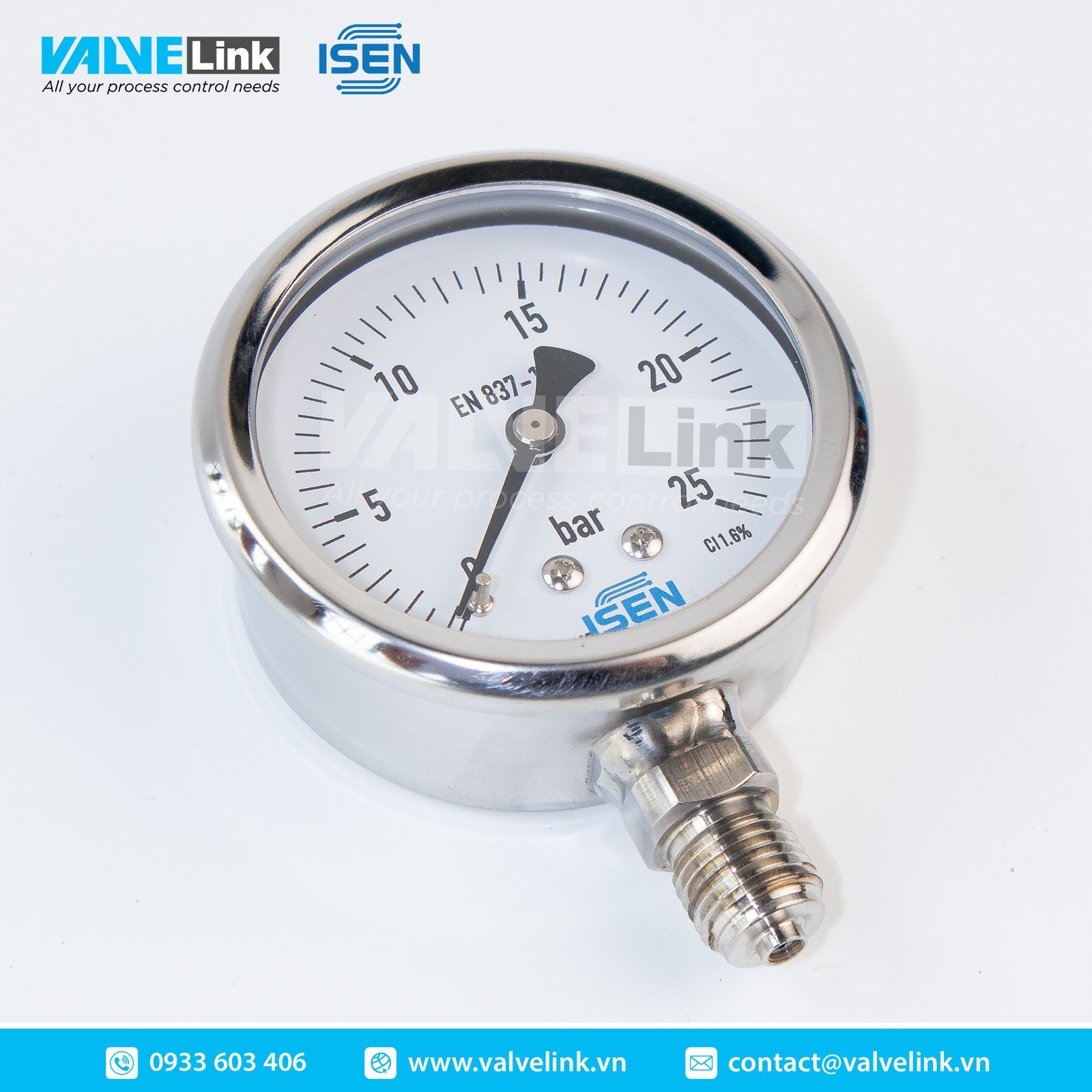

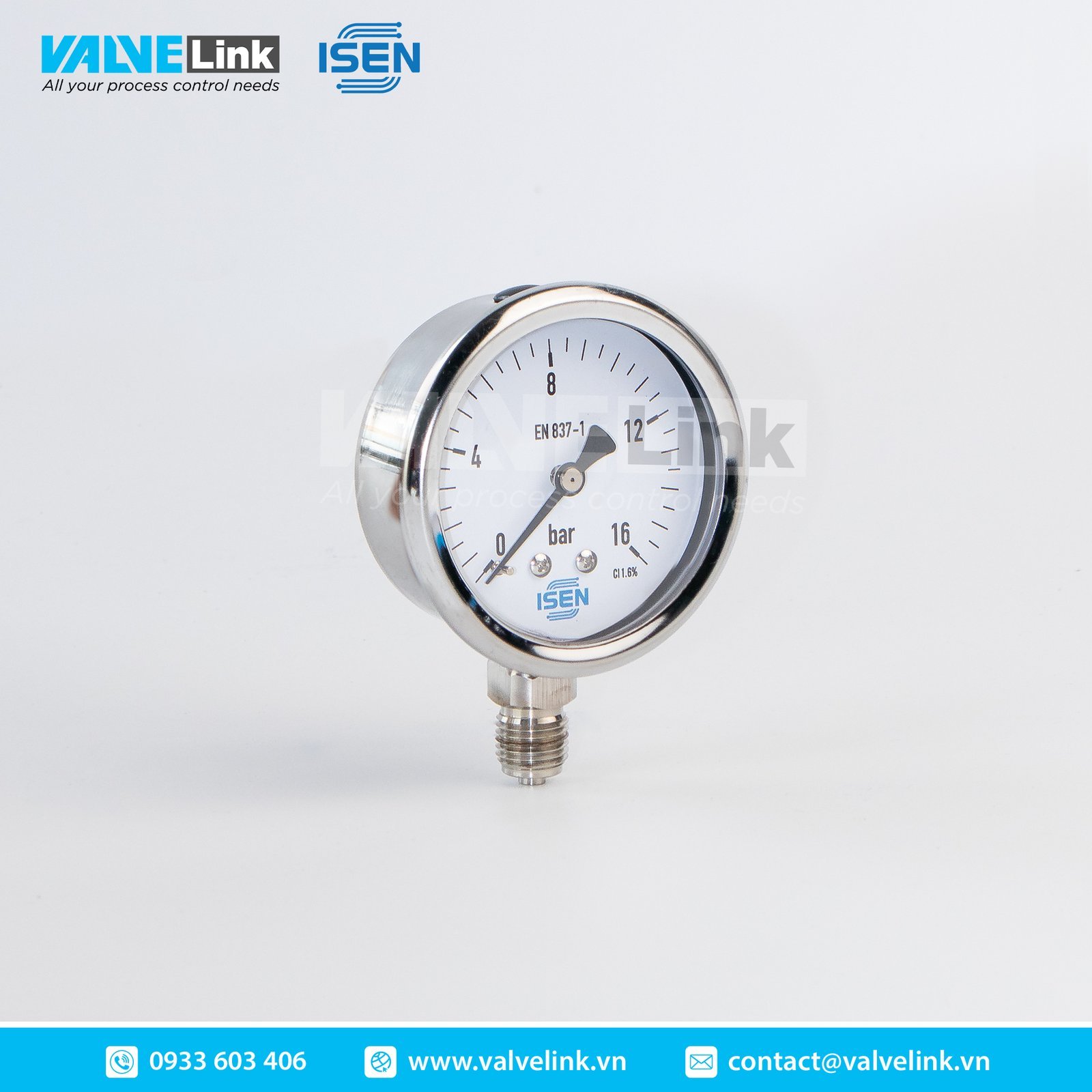

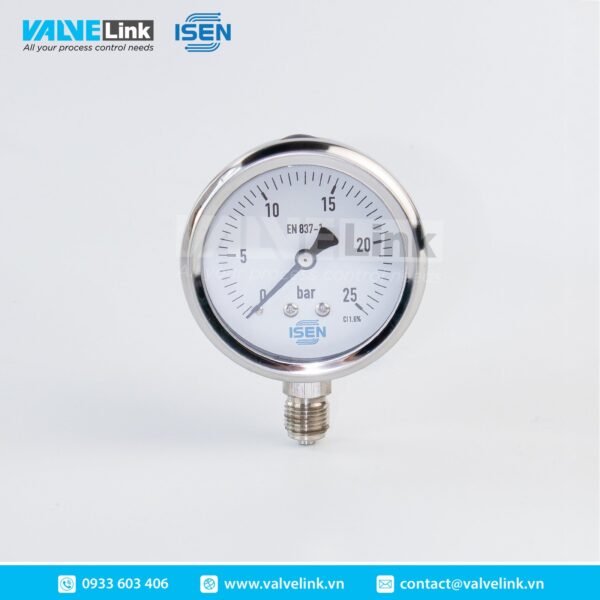

Valvelink Company, a trusted partner for all your process control needs, is pleased to present the ISEN Pressure Gauge Model MGS 10 – 18. This 4-inch liquid-fillable industrial gauge is engineered for durability and high performance in demanding environments, offering clear and accurate pressure readings critical for various industrial processes. The Pressure Gauge Model MGS 10 – 18 combines quality materials and meticulous construction to ensure reliability.

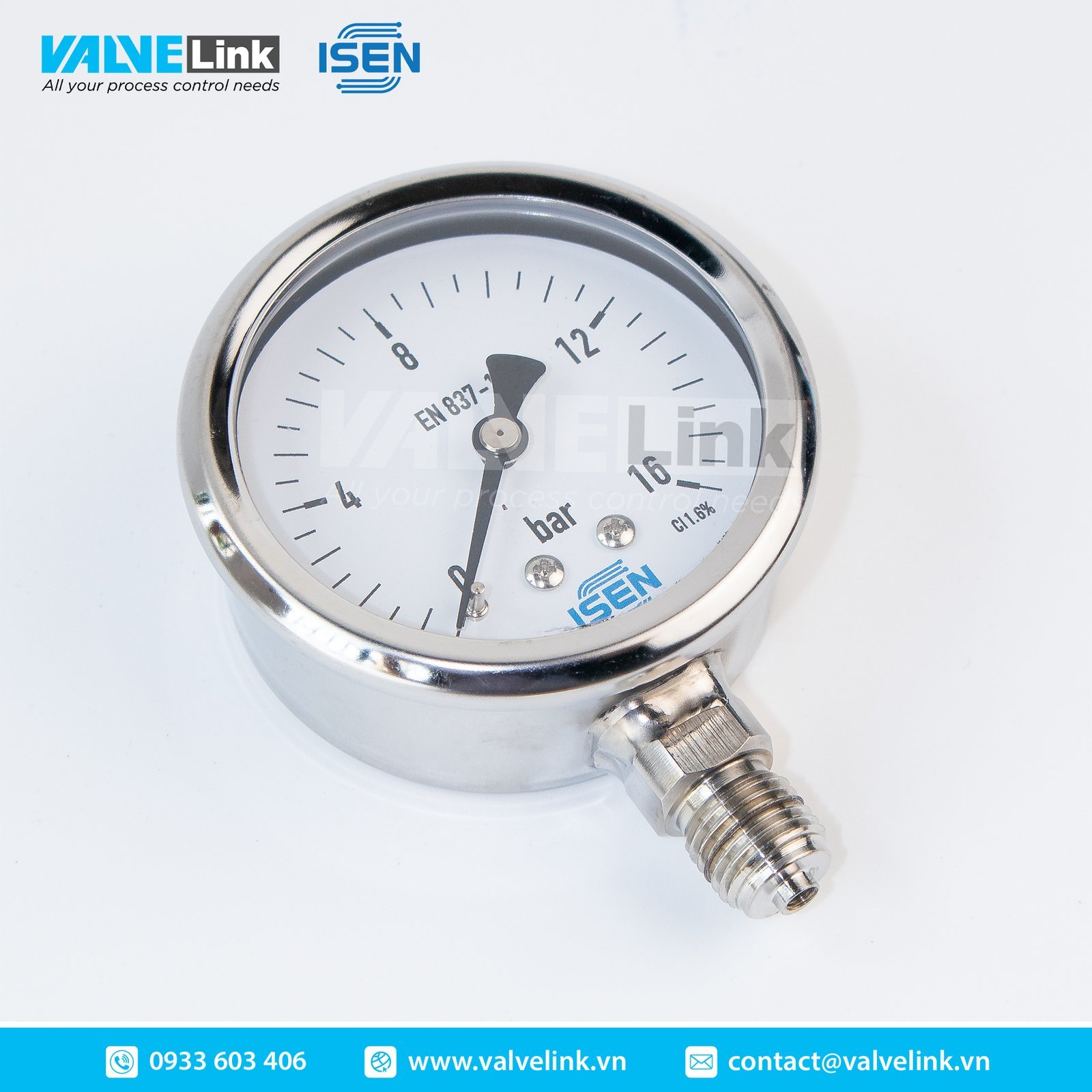

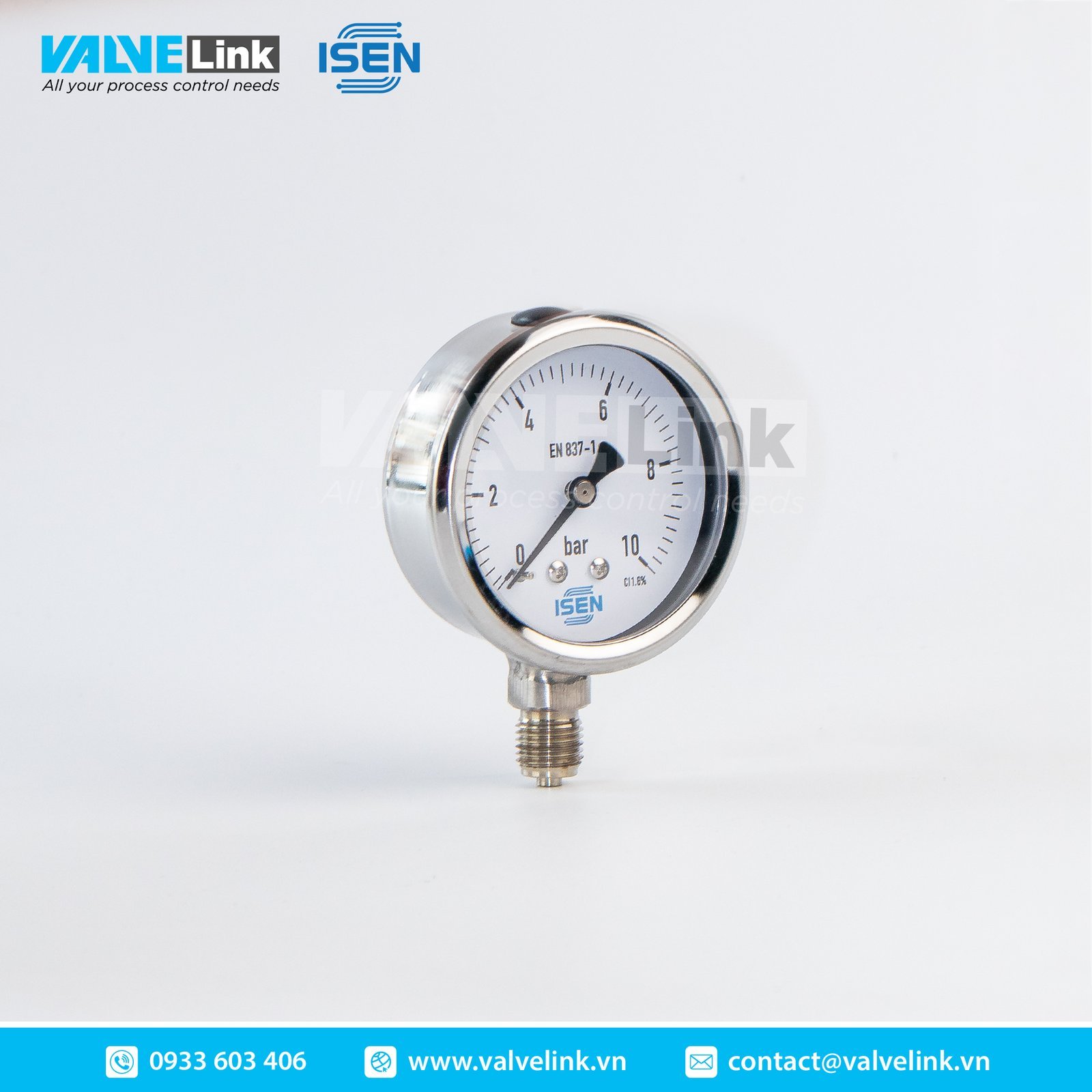

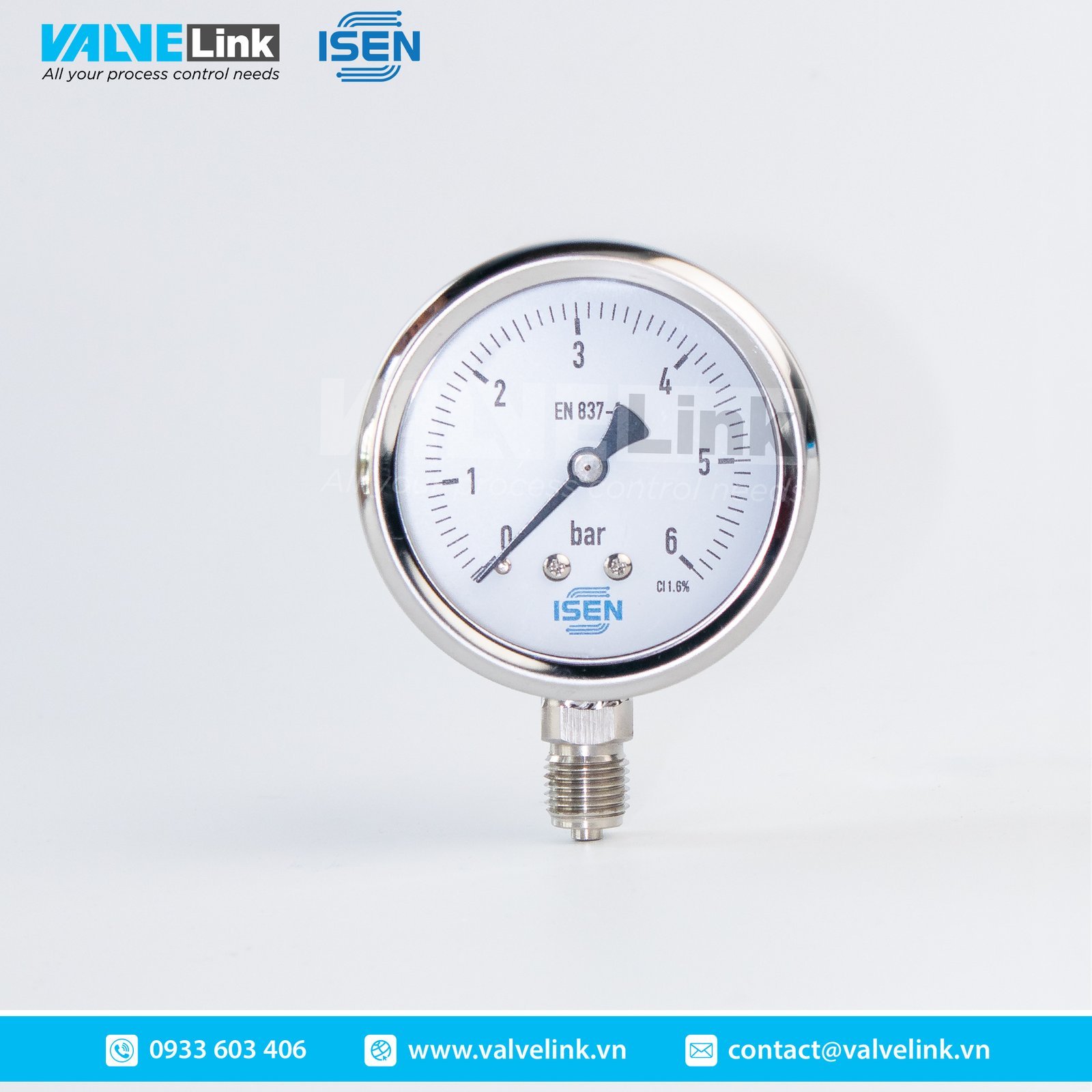

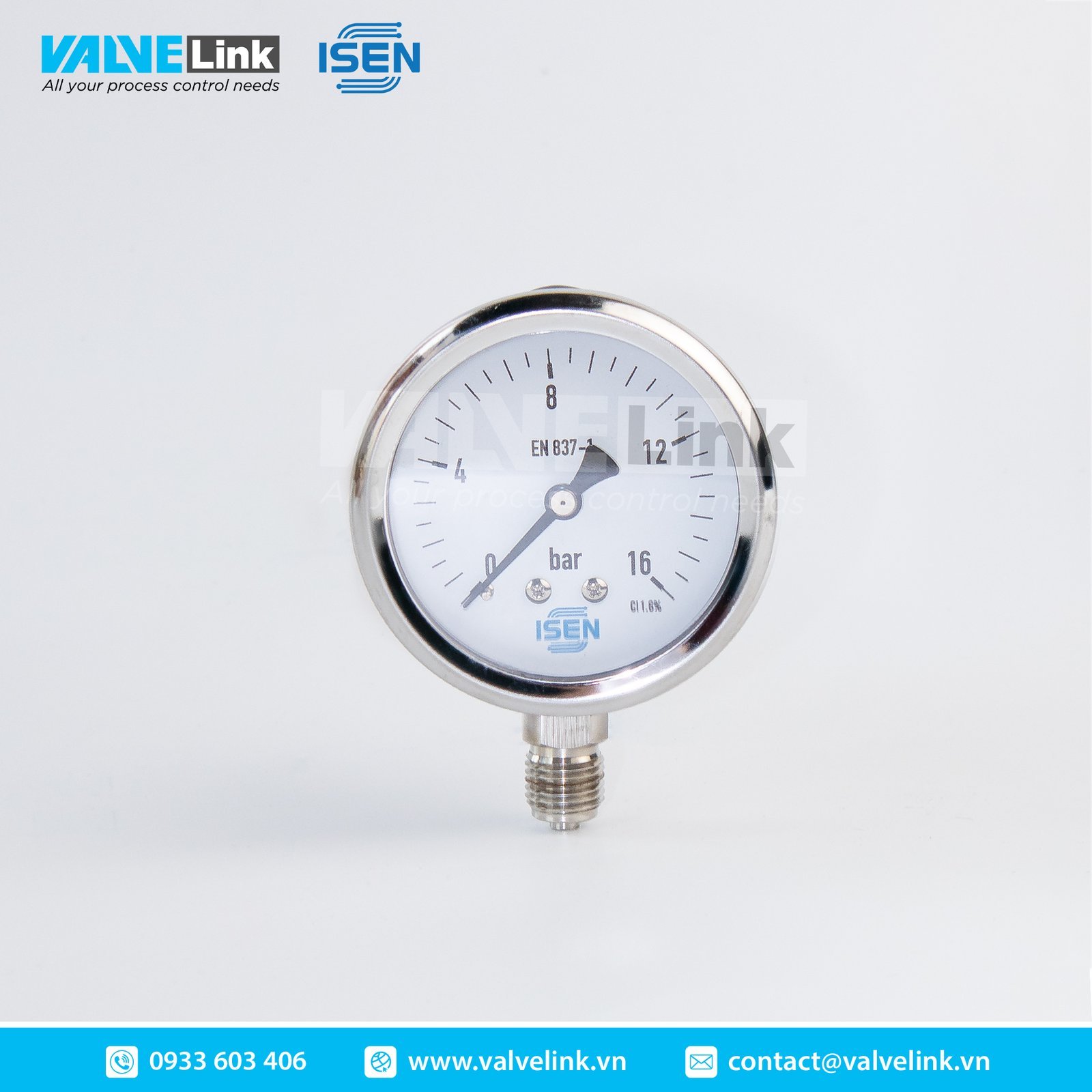

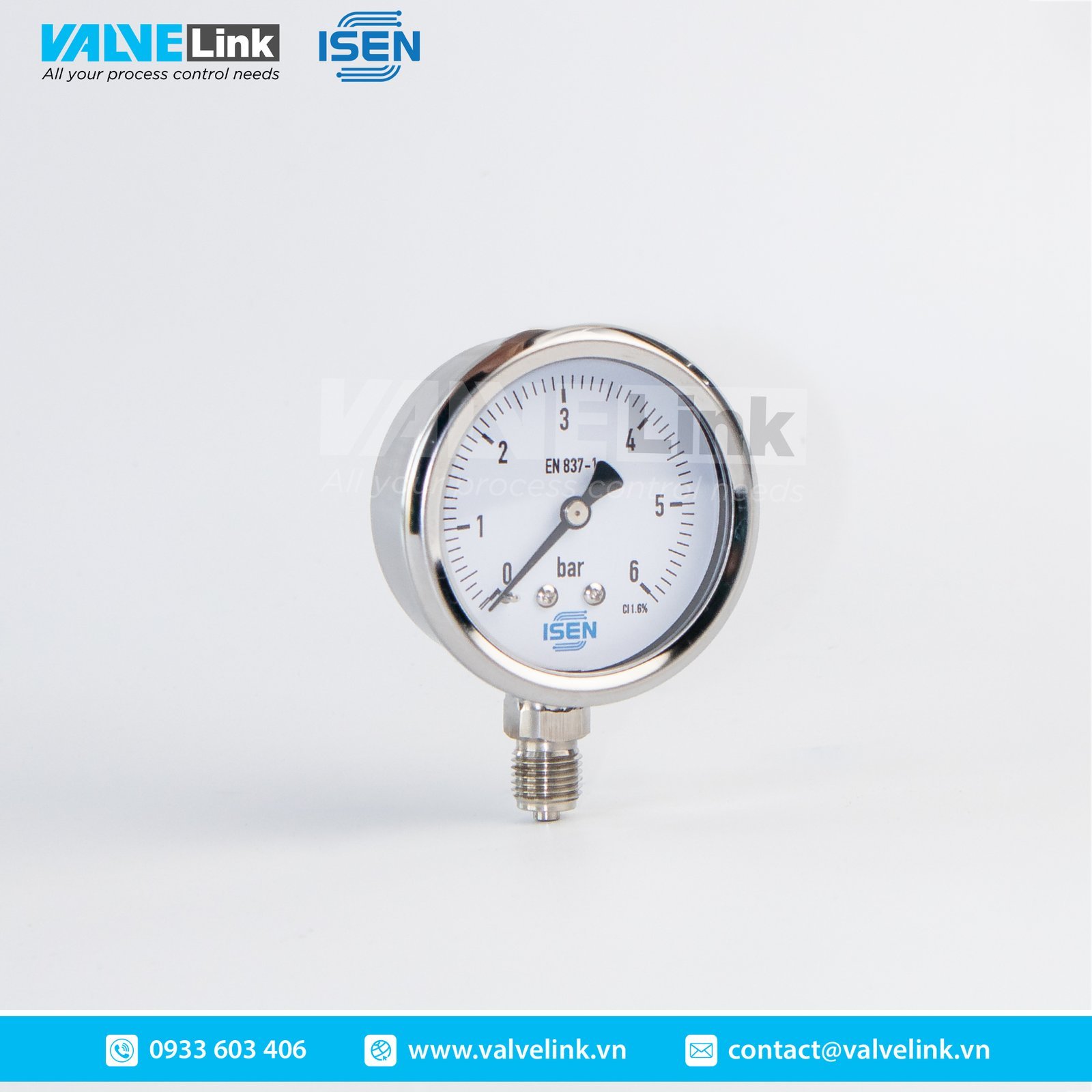

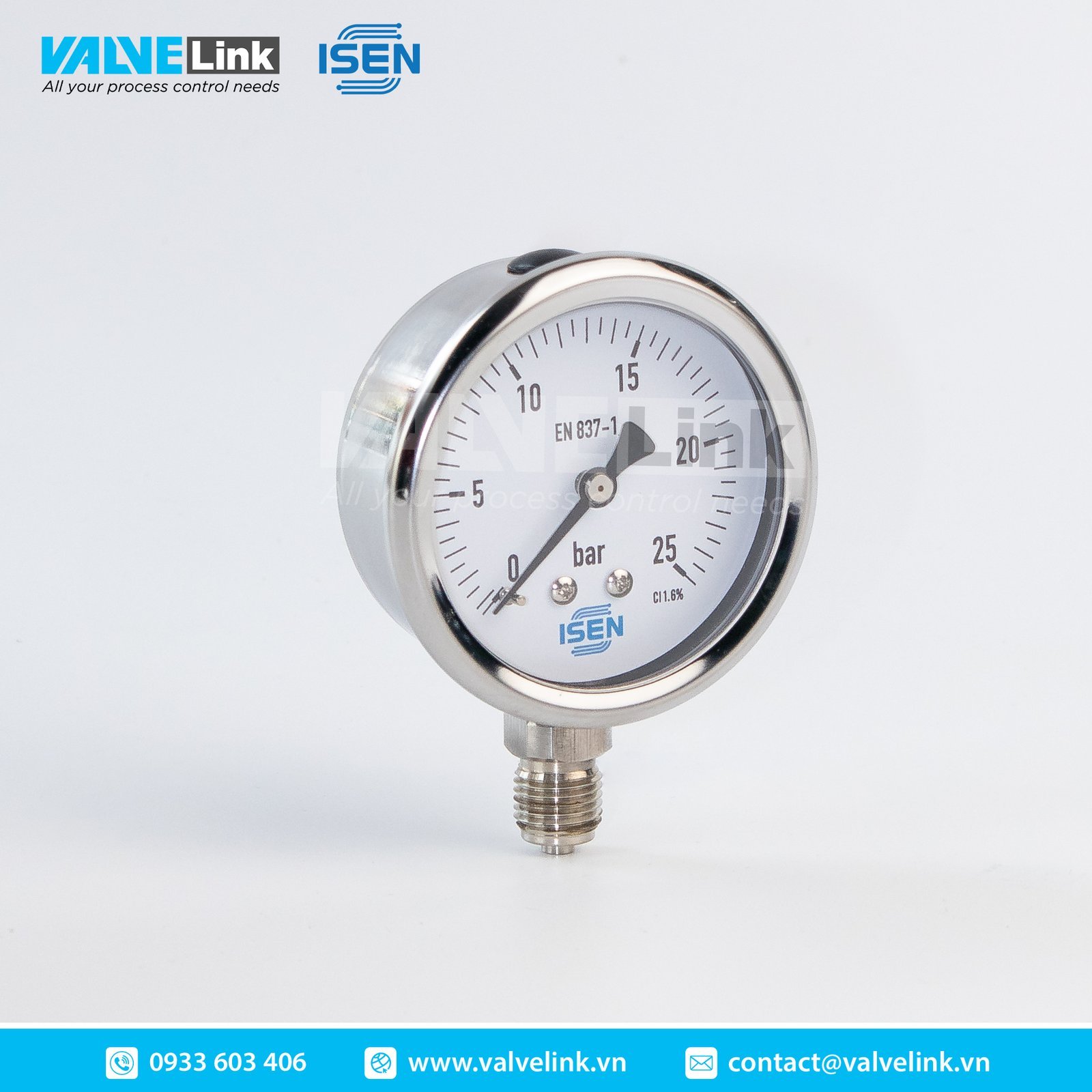

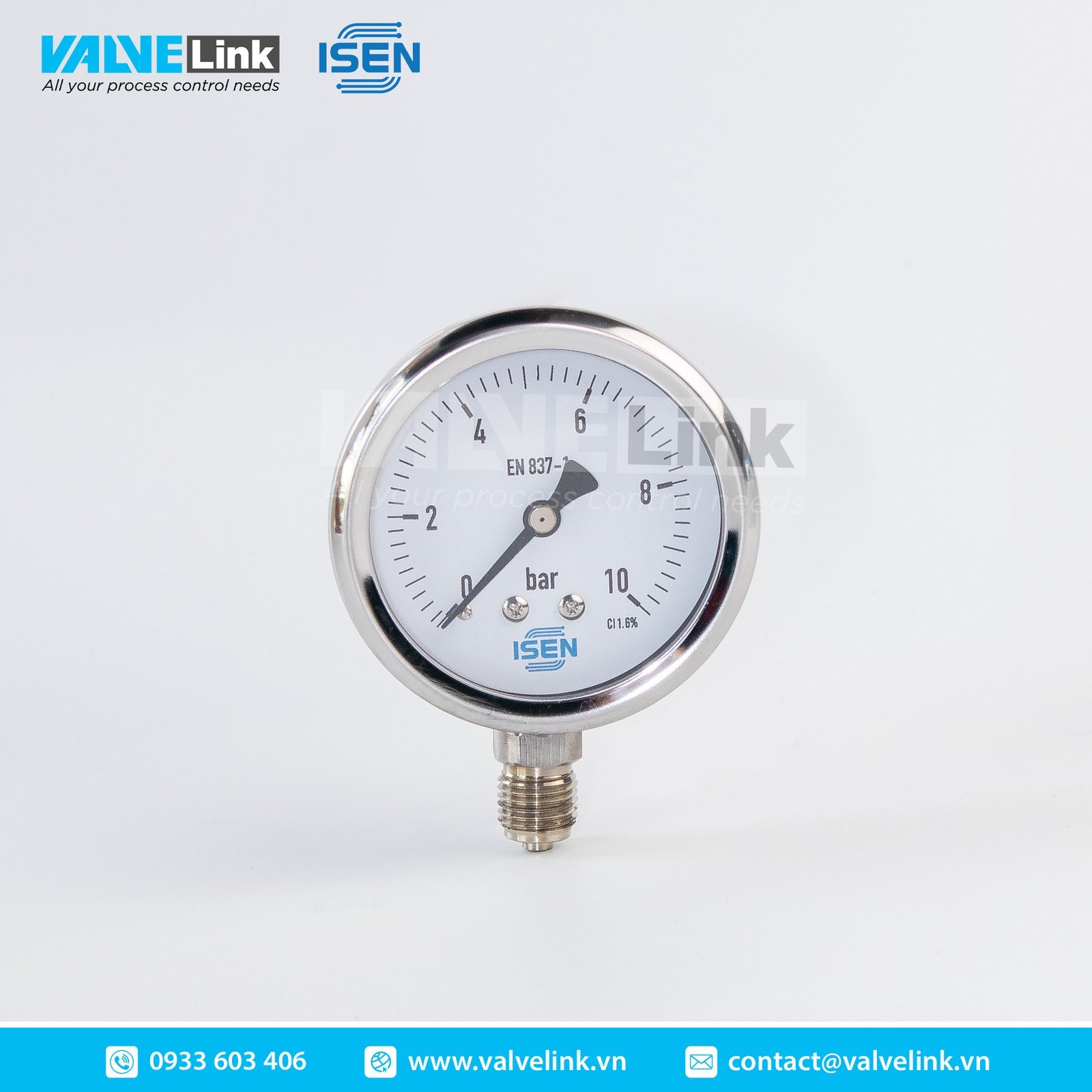

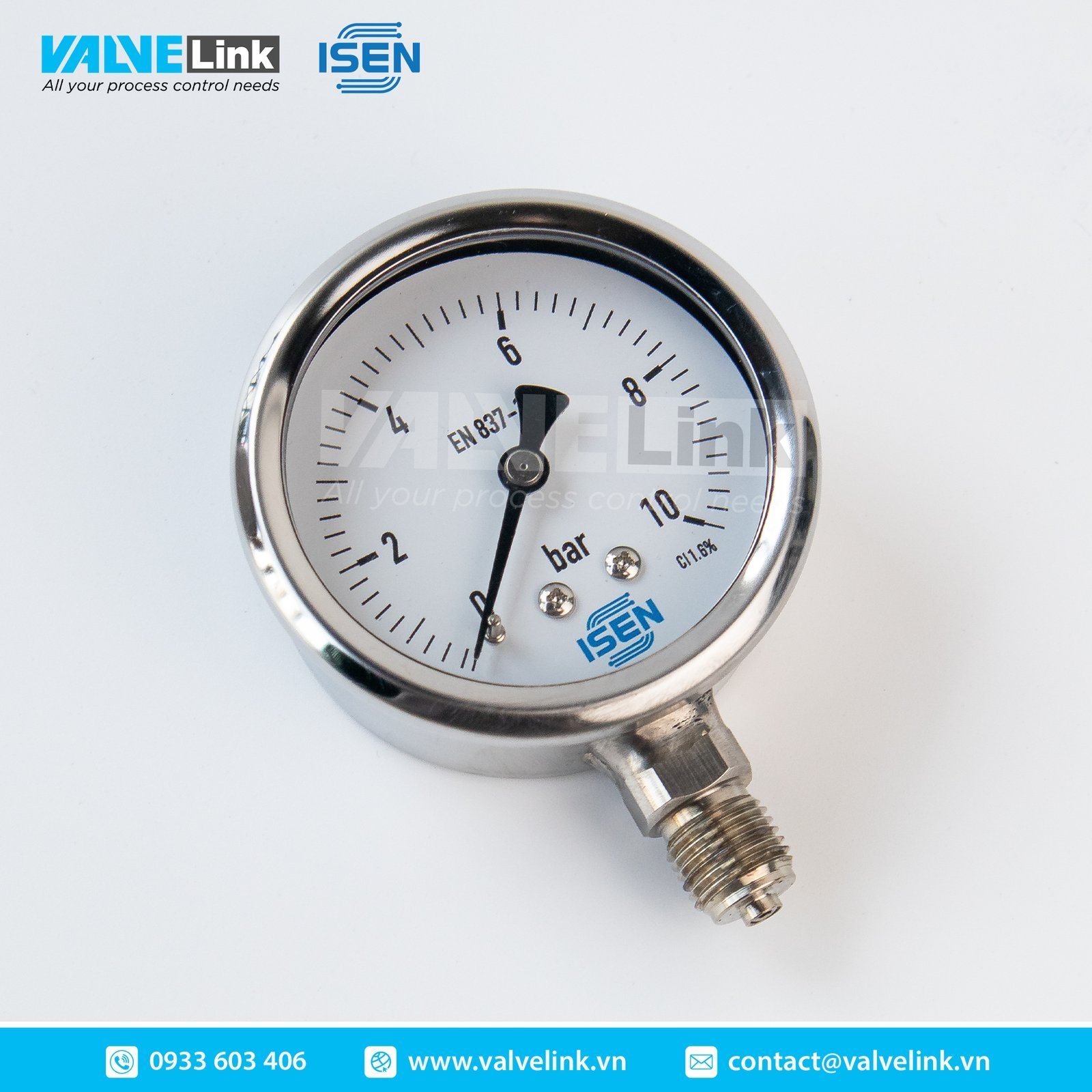

The ISEN Pressure Gauge Model MGS 10 – 18 is designed with a focus on resilience and operational excellence. Its construction features a 304 Stainless steel case and a stainless steel ring with internal rotation. The gauge is equipped with a tempered glass lens, with safety glass available as an optional upgrade. A key visual feature noted is laser welding, suggesting robust construction. The clear display consists of an aluminum dial, white finished with black markings, and an adjustable black aluminum pointer.
Internally, the Pressure Gauge Model MGS 10 – 18 boasts a stainless steel movement and high-quality 316L Stainless steel for its tube and socket. This selection of materials, including the 316 stainless steel bourdon tube and socket, ensures compatibility with a wide range of process media and resistance to corrosion.
Key Specifications of the ISEN Pressure Gauge Model MGS 10 – 18:
- Accuracy: The gauge delivers reliable readings with an accuracy of ±1% of the full scale, complying with ASME B40.100 Grade 1A standards.
- Connection Options: It offers versatile installation with connection options of 1/2′′ NPT or 1/4″ NPT.
- Operating Temperatures: The Pressure Gauge Model MGS 10 – 18 is designed to perform under a range of temperature conditions:
- Process Temperature (Dry): -40 to 250∘F (-40 to 120∘C).
- Process Temperature (Liquid Filled): 0 to 140∘F (-18 to 60∘C).
- Ambient Temperature (Dry): -40 to 140∘F (-40 to 60∘C).
- Ambient Temperature (Liquid Filled): 0 to 140∘F (-18 to 60∘C).
- Dimensions: The gauge has a nominal dial size of 4 inches (approximately 3.94 inches actual diameter).
The robust design and precise engineering of the ISEN Pressure Gauge Model MGS 10 – 18 make it an ideal choice for industries requiring consistent and accurate pressure monitoring, such as chemical processing, power generation, oil and gas, and manufacturing. Its liquid-fillable capability dampens vibration and pulsation, extending the gauge’s life and ensuring readability in challenging conditions.
For businesses seeking a dependable and accurate pressure measurement solution, the ISEN Pressure Gauge Model MGS 10 – 18 from Valvelink Company offers an excellent combination of quality, durability, and precision.
To learn more about the ISEN Pressure Gauge Model MGS 10 – 18 or to discuss your specific process control requirements, please contact Valvelink Company.
