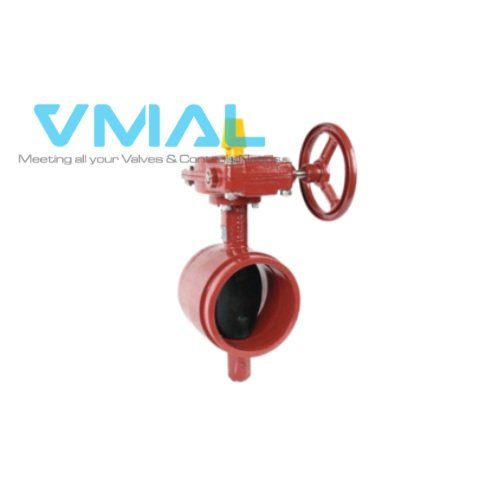

The VMAL Grooved-End Butterfly Valve is a resilient-seated butterfly valve designed for flow isolation and control in piping systems where a grooved-end connection is required. The catalog identifies this model as a clamp-type grooved end butterfly valve, with a PN16 (200 PSI) working pressure rating.
With a compact butterfly valve design and grooved connection, the VMAL valve is suitable for a wide range of industrial and building-service applications, including HVAC, water supply and sewage, food and beverage, chemical and petrochemical processing, power and utilities, paper and pulp, and shipbuilding.
VMAL Grooved-End Butterfly Valve Design
The VMAL Grooved-End Butterfly Valve uses a resilient-seated eccentric butterfly valve construction. Its grooved-end configuration is designed for clamp-type pipe connections, providing a practical solution for piping systems that use grooved coupling technology.
The valve is available in nominal sizes from DN50 to DN300, corresponding to 2″ to 12″. The catalog provides dimensional data for each available size, including H1, H2, C, L and A/B dimensions.
The mounting flange follows ISO 5211, allowing the valve to be configured with compatible actuation equipment according to the specified mounting interface.
VMAL Grooved-End Butterfly Valve Specifications
Key specifications stated in the catalog include:
- Valve type: Grooved End Butterfly Valve
- Connection type: Clamp
- Nominal size: DN50–DN300 / 2″–12″
- Working pressure: PN16 / 200 PSI
- Face-to-face standards: API 609, BS 5155, DIN 3202, ISO 5752
- Flange standards: DIN, BS, UNI, ISO, ANSI, AS, JIS
- Mounting flange: ISO 5211
- Valve design: Resilient seated eccentric butterfly valve
- Applications: HVAC, water supply & sewage, food & beverage, chemical/petrochemical/processing, power & utilities, paper & pulp, shipbuilding.
The catalog also provides a dimensional table covering the available valve sizes and corresponding installation dimensions. This information should be checked against the selected valve size before specifying the product for a particular piping system.
Standard Materials of Main Parts
The catalog specifies the standard materials for the main valve components. The listed construction includes the body, seat, shaft, disc and pin, with materials including ductile iron (DI), EPDM, SS416 and SS420, depending on the component.
For the detailed valve construction, the catalog identifies components such as:
- Body
- Seat
- Shaft
- Disc
- Pin
- Bushing
- Bottom shaft
- Packing
- Retainer
- Taper pin
- Disc sealing
- Stuffing flange
- Support
- Top shaft
- Cover
- Fasteners
The material table also indicates combinations including DI, EPDM, SS416, SS420, CF8M, CS and bronze, depending on the individual valve component and configuration.
Applications of VMAL Grooved-End Butterfly Valves
The VMAL Grooved-End Butterfly Valve is specified in the catalog for multiple industrial and building-service applications.
Typical application areas include:
- HVAC systems
- Water supply and sewage systems
- Food and beverage processing
- Chemical, petrochemical and general processing systems
- Power and utilities
- Paper and pulp
- Shipbuilding
The broad application range makes the grooved-end butterfly valve suitable for piping systems where a compact butterfly valve arrangement and grooved connection are required.
Why Choose VMAL Grooved-End Butterfly Valve?
For systems designed around grooved piping connections, the VMAL Grooved-End Butterfly Valve provides a valve configuration specifically identified by the manufacturer as a clamp-type grooved end butterfly valve. Its PN16 (200 PSI) working pressure rating, ISO 5211 mounting flange and available sizes from DN50 to DN300 provide the basic specifications needed for valve selection and system design.
The valve is also specified for several demanding service sectors, from HVAC and water systems to chemical processing, power utilities, paper and pulp, and shipbuilding.
Looking for the VMAL Grooved-End Butterfly Valve for your piping system? Contact our technical team to confirm the appropriate valve size, configuration and application requirements before ordering.
