The ISEN-TV606-120 is a Contractor’s Thermometer designed for measuring and monitoring temperature in industrial piping systems, storage tanks, and process equipment. With a temperature range of 0 to 120°C, it is suitable for a wide variety of applications requiring accurate temperature monitoring of liquids and other process media.

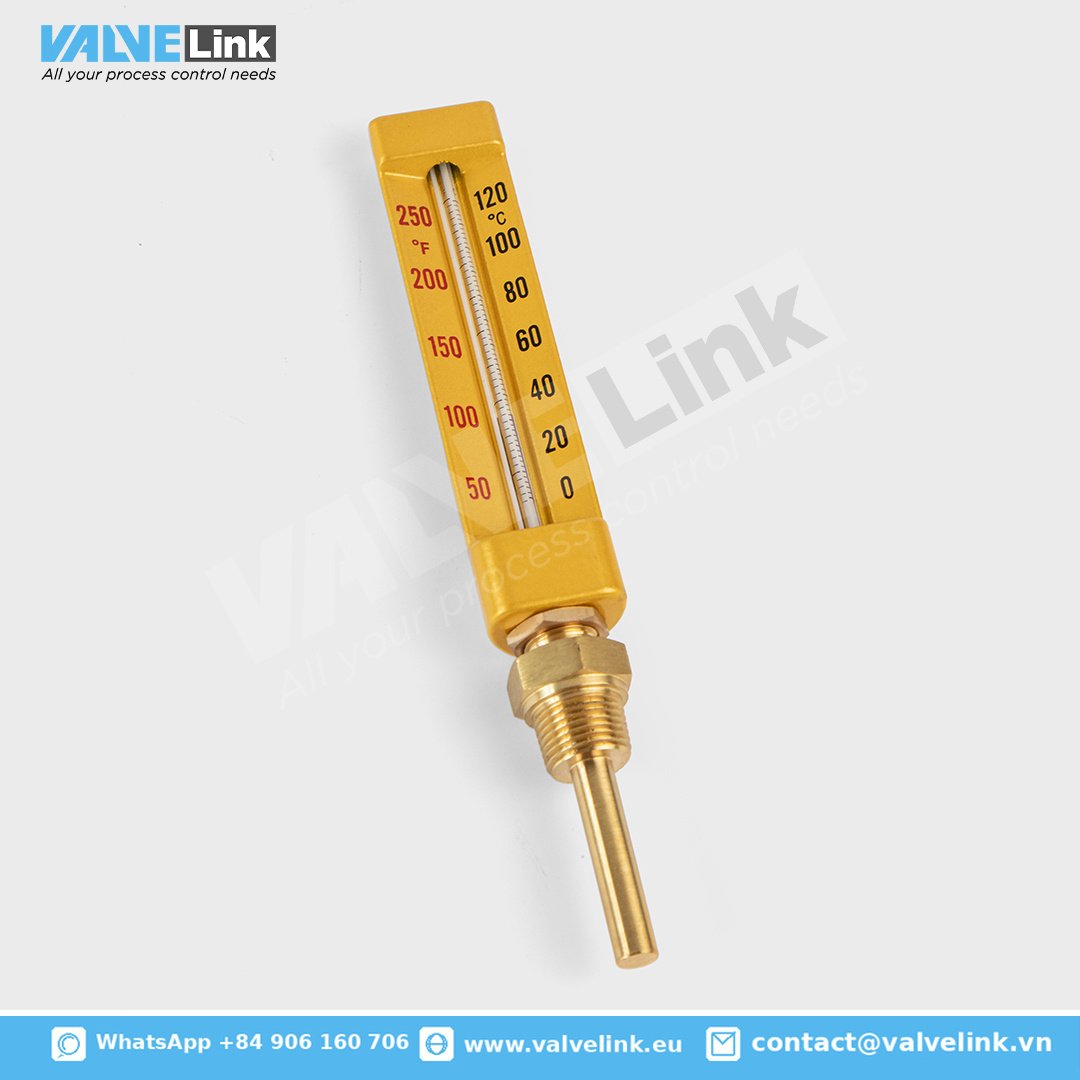

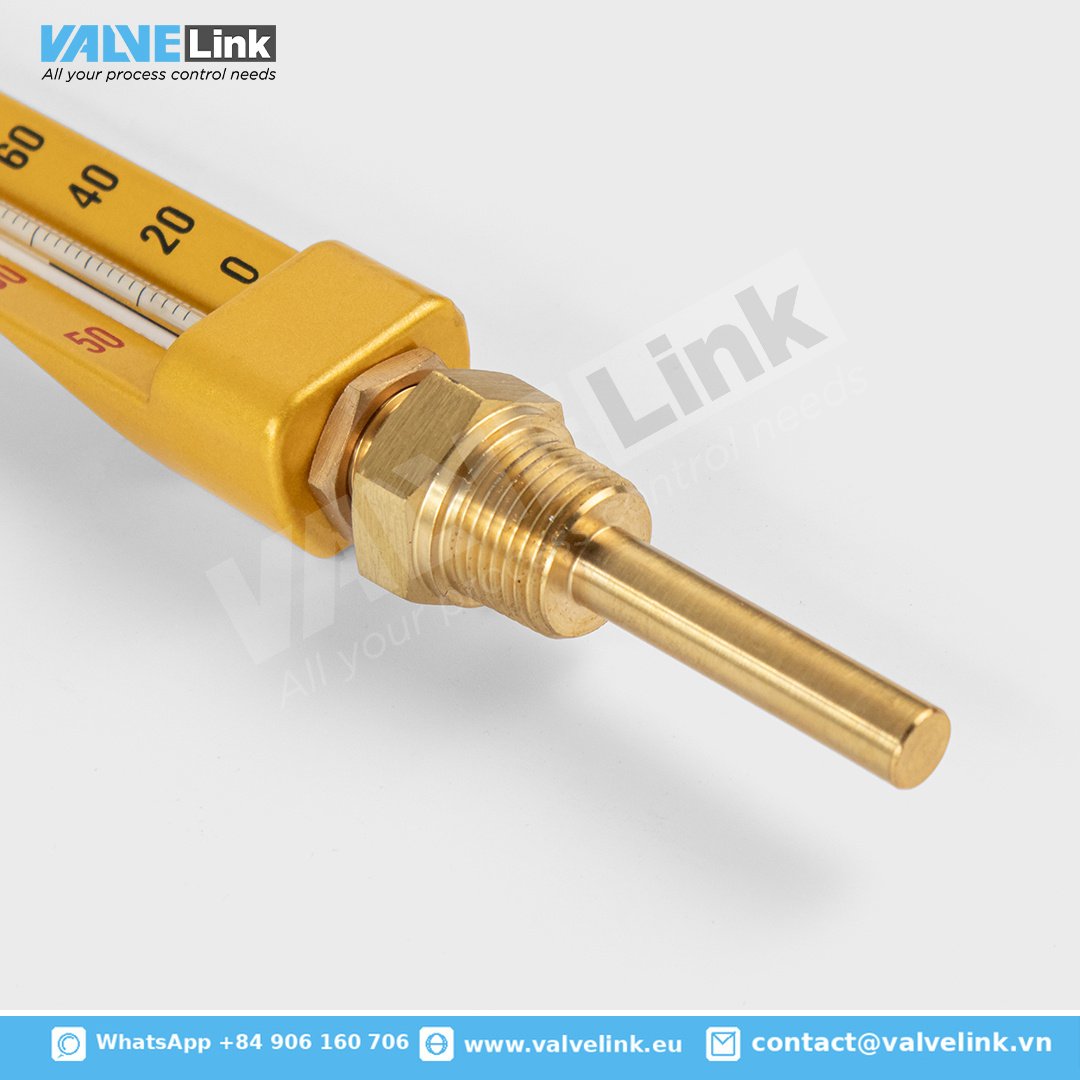

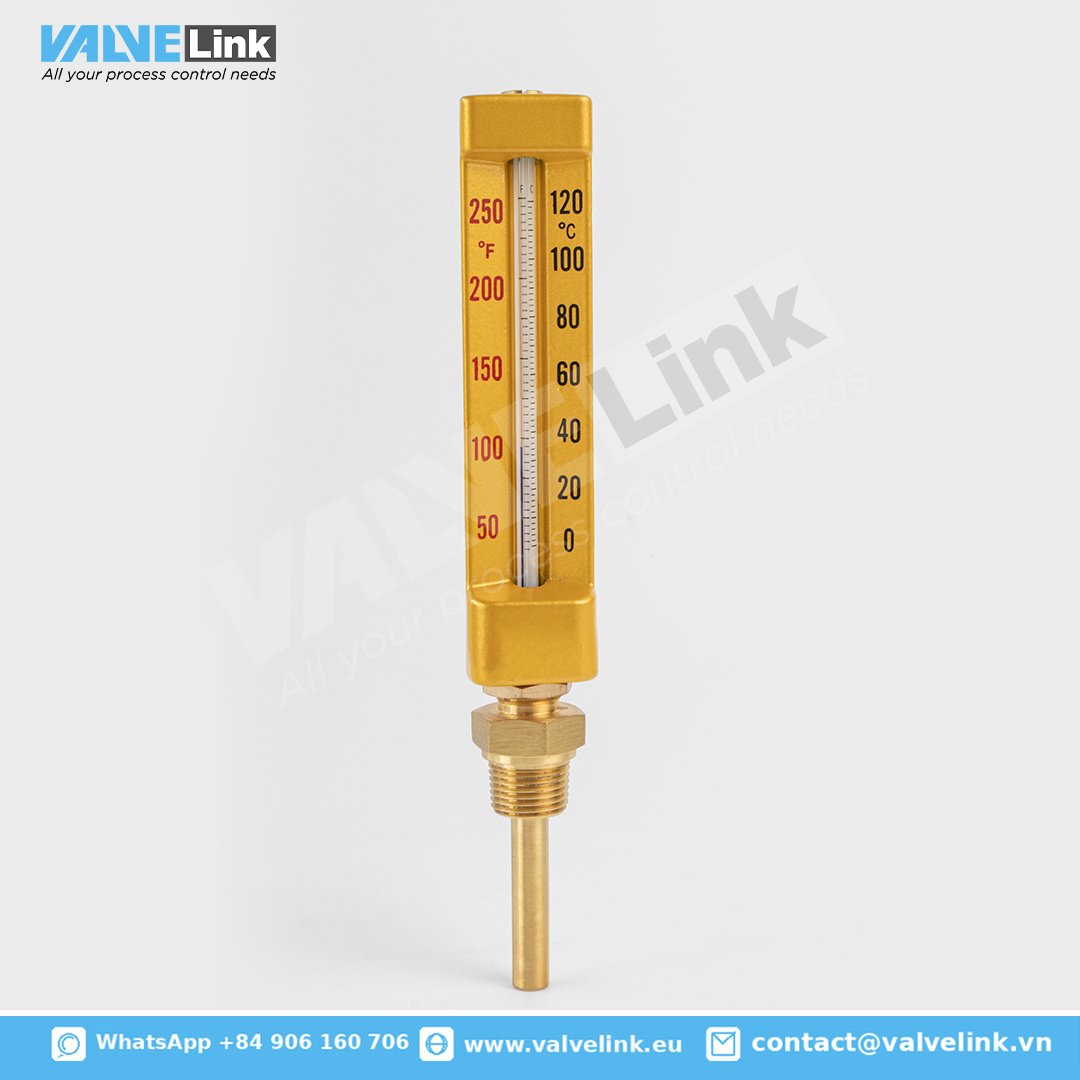

The thermometer features a durable aluminum alloy case, a glass lens, and an aluminum scale with a white finish and black markings for easy temperature reading. It is supplied with a brass thermowell and a 1/2″ NPT threaded connection, making it suitable for installation in pressurized systems while allowing the thermometer to be removed without depressurizing the pipeline.
Technical Specifications
| Specification | Value |
|---|---|
| Model | ISEN-TV606-120 |
| Product Type | Contractor’s Thermometer |
| Temperature Range | 0–120°C |
| Accuracy | ±1 |
| Case Material | Aluminum Alloy |
| Lens | Glass |
| Scale | Aluminum with White Finish and Black Markings |
| Display Type | Lens Front |
| Stem Material | Brass |
| Jam Nut Material | Brass |
| Thermowell Material | Brass |
| Connection | 1/2″ NPT |
| Immersion Length | 2-1/2″ |
| Application | Pressurized Systems |
Features
- Temperature measuring range of 0 to 120°C.
- Accuracy of ±1.
- Lightweight and durable aluminum alloy case.
- Protective glass lens for clear visibility.
- Easy-to-read white scale with black markings.
- Brass stem and brass thermowell for excellent durability and corrosion resistance.
- Standard 1/2″ NPT threaded connection.
- Supplied with a thermowell for safe installation in pressurized systems.
