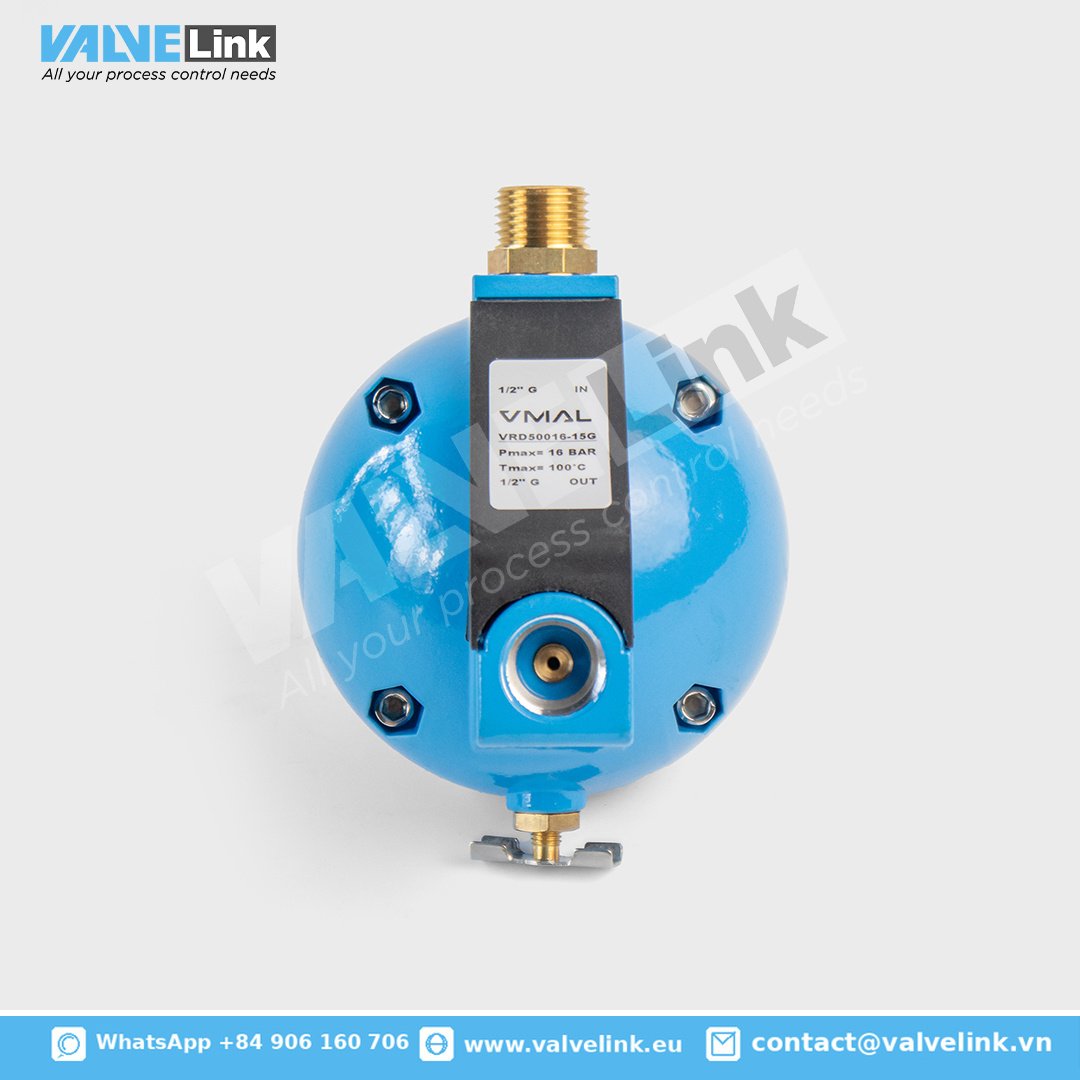

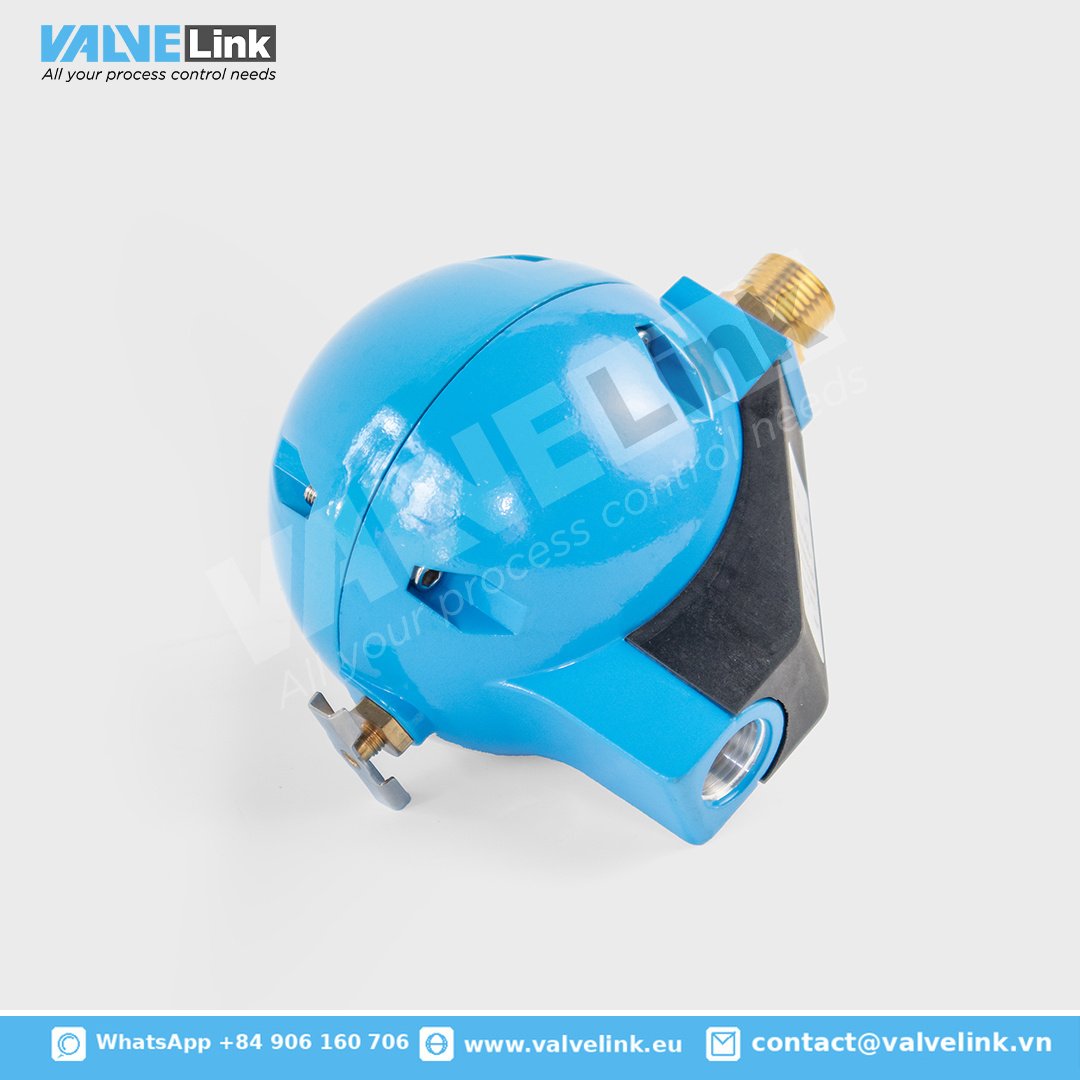

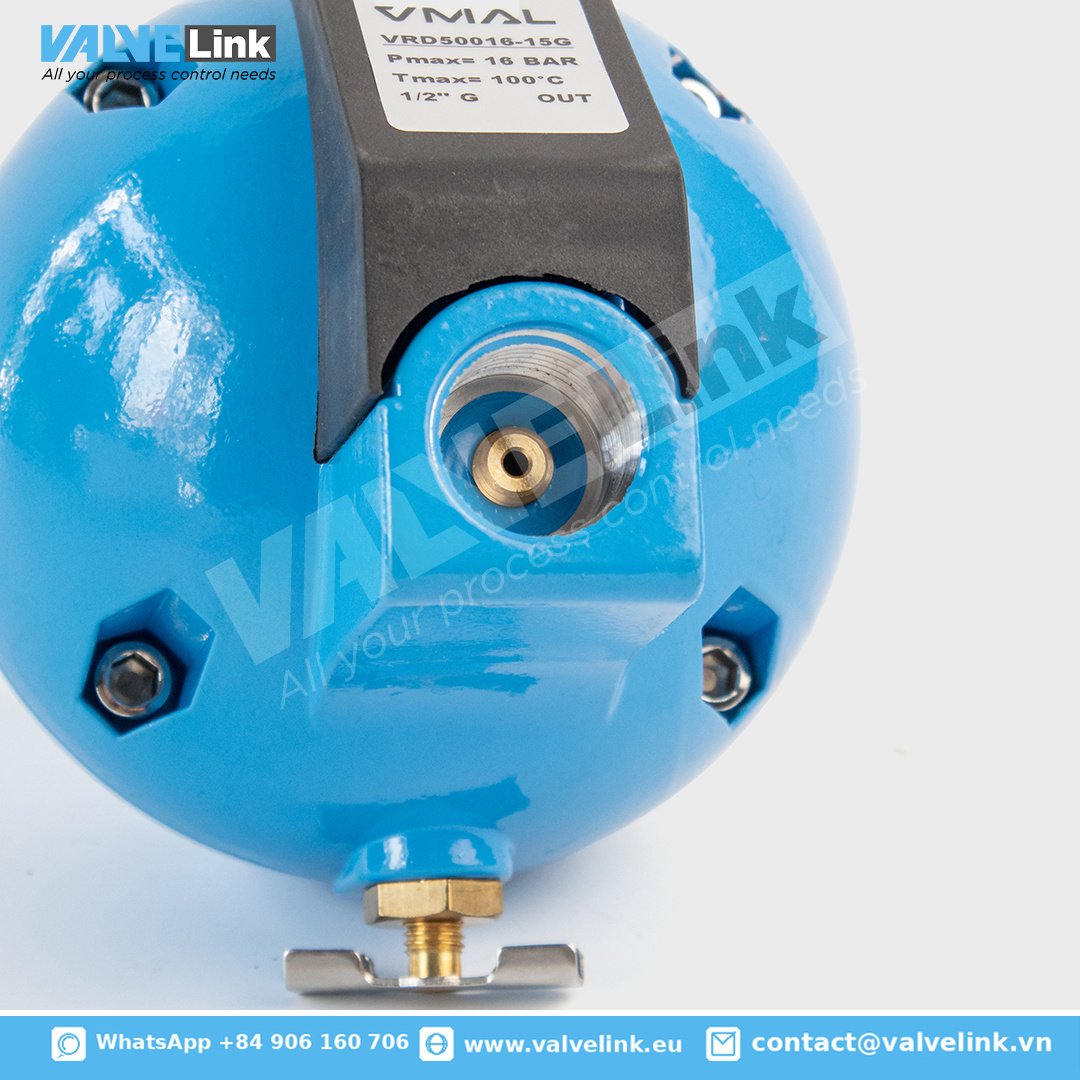

Float Type Automatic Drain Valve VRD50016-15G

The VRD50016-15G Float Type Automatic Drain Valve is a mechanical condensate drain solution designed for industrial piping systems. Distributed by Valvelink, the valve automatically removes accumulated condensate without the need for electrical power or manual operation, helping maintain efficient and reliable system performance.

Operating Principle & Key Features

The valve operates using a simple mechanical mechanism, providing reliable and maintenance-friendly performance in industrial applications.

• Automatic Drainage: The valve operates based on the principles of lever action and buoyancy (Archimedes’ principle). As condensate accumulates, the float rises with the water level and actuates the lever mechanism to automatically discharge the condensate.
• Fully Automatic Operation: No electrical power, control signal, or operator intervention is required during normal operation.
• Compact Ball-Type Design: The integrated ball-type construction minimizes installation space while maintaining reliable performance.
• Direct Pipeline Installation: Designed for direct installation on the inlet pipeline without additional mounting bolts, reducing installation time and simplifying maintenance.

Technical Specifications

Features

• Automatic condensate discharge without manual operation.
• Mechanical float and lever operating mechanism.
• No electrical power or external control required.
• Compact ball-type design for space-saving installation.
• Direct threaded installation on the pipeline.
• Reliable operation with minimal maintenance.
• Suitable for industrial condensate drainage applications.

Typical Applications

The VRD50016-15G Float Type Automatic Drain Valve is suitable for:

• Compressed air systems
• Industrial piping systems
• Air receivers and storage tanks
• Air compressors
• Water separation equipment
• General condensate drainage applications
