Product Description

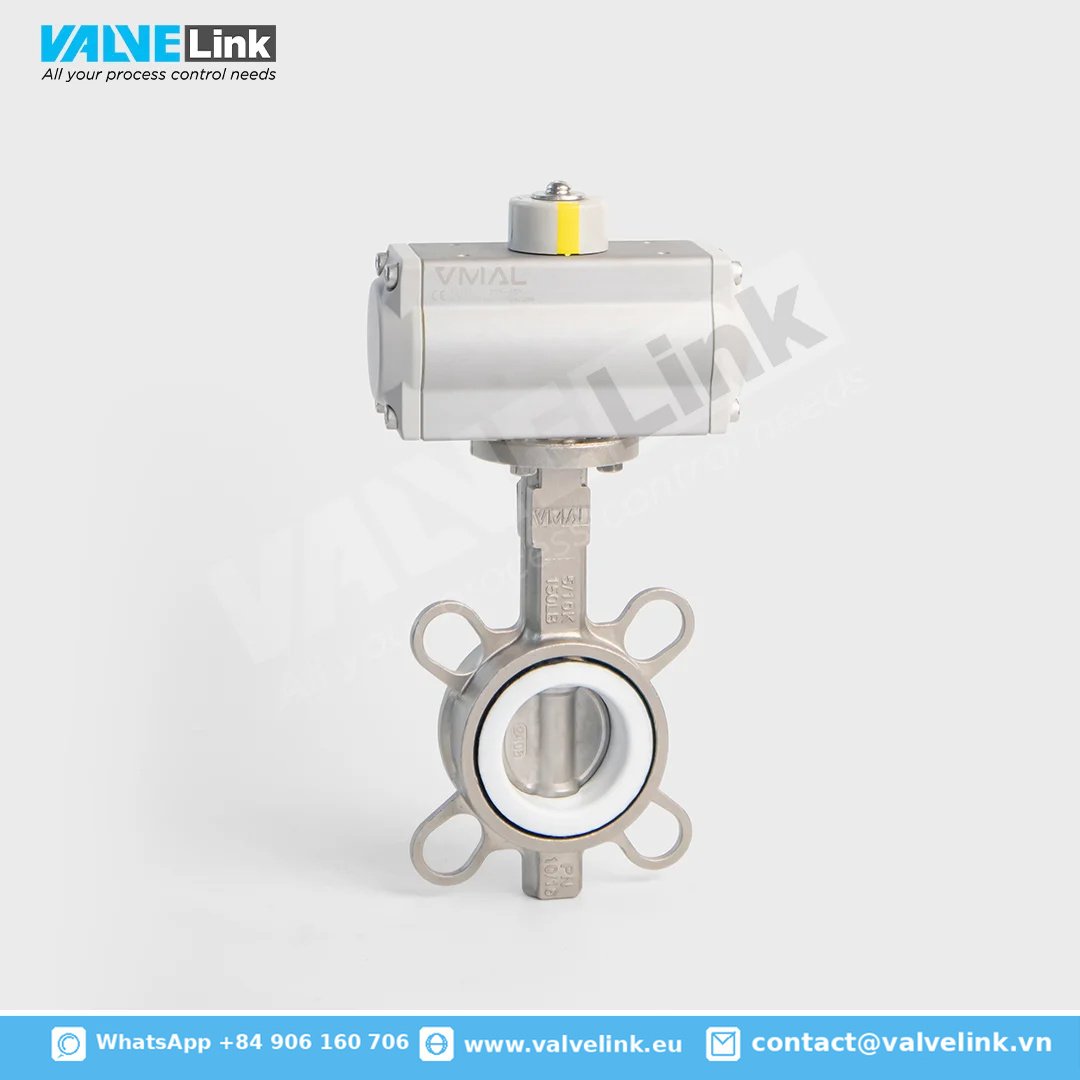

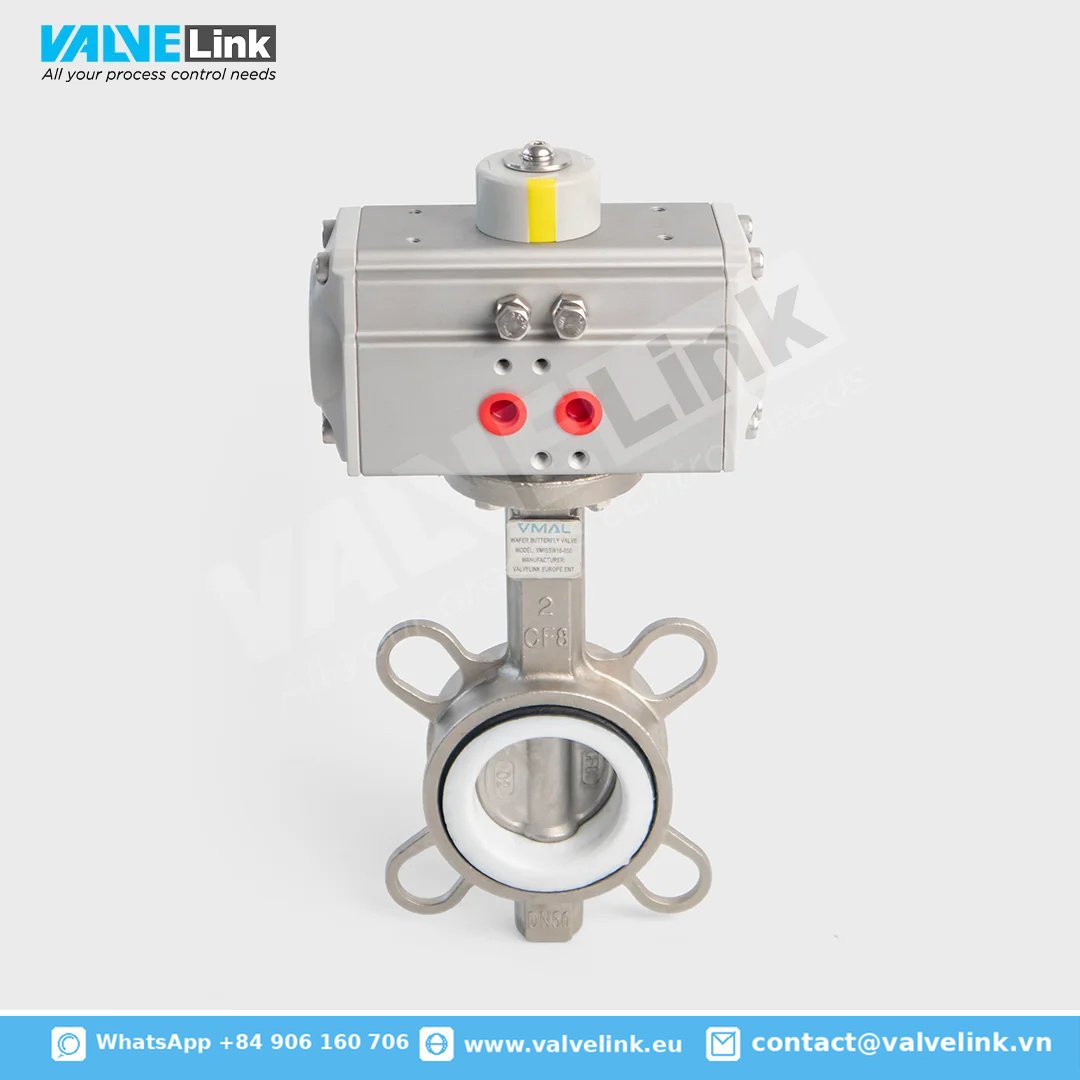

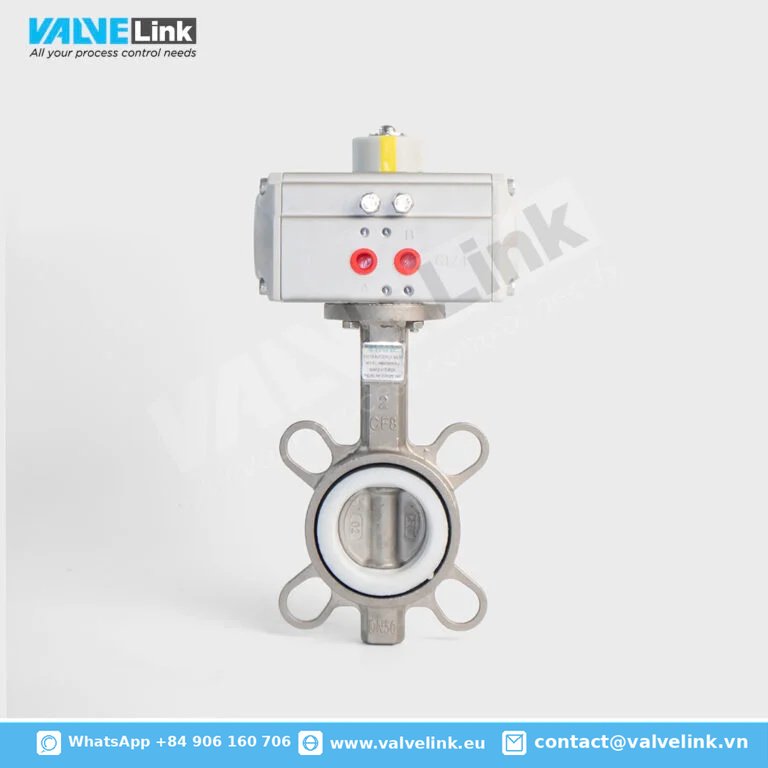

The Pneumatic Butterfly Valve is an automated flow control solution widely used in water, compressed air, chemical processing, and industrial water treatment systems. The assembly combines the VMIBSW16-050 Wafer Type Butterfly Valve with the VAX03 Pneumatic Actuator, providing fast and reliable valve operation while reducing manual intervention and improving overall system efficiency.
The valve body and disc are manufactured from SS304 stainless steel, offering excellent corrosion resistance. A PTFE seat ensures reliable sealing performance and compatibility with a wide range of process media. The pneumatic actuator delivers rapid opening and closing, stable operation, and can be easily integrated with a solenoid valve, limit switch box, or automated process control systems.
Valve Specifications
| Specification | Value |
|---|---|
| Valve Type | Wafer Type Butterfly Valve |
| Size | DN50 (2″) |
| Connection | Wafer |
| Pressure Rating | PN16 |
| Body Material | SS304 Stainless Steel |
| Disc Material | SS304 Stainless Steel |
| Shaft Material | SS416 Stainless Steel |
| Seat Material | PTFE |
| Operation | Lever Operated |
Pneumatic Actuator Specifications
Model: VAX03
| Specification | Value |
|---|---|
| Power Supply | AC220V, 50/60Hz |
| Drive Adapter | 11 mm |
| Output Torque | 40 Nm |
Features
- Fast and reliable pneumatic operation.
- SS304 stainless steel body and disc for excellent corrosion resistance.
- PTFE seat provides dependable sealing performance.
- Suitable for automated industrial piping systems.
- Easy integration with solenoid valves, limit switch boxes, and PLC control systems.
- Reduces manual operation and improves system efficiency.
- Compact wafer-type design for easy installation between flanges.
Typical Applications
- Water supply and treatment systems
- Compressed air systems
- Chemical processing
- Industrial utilities
- HVAC systems
- Automated process control systems
