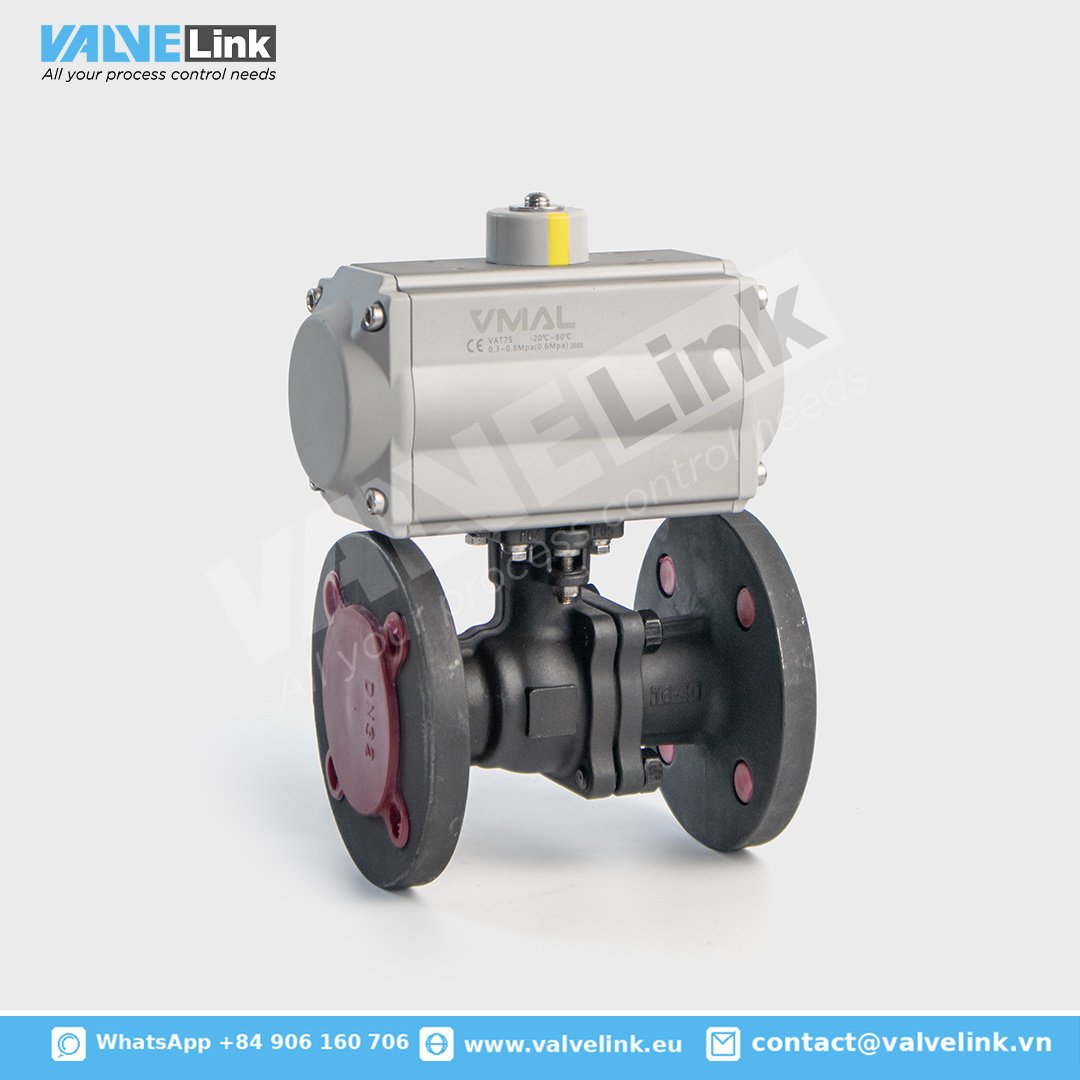

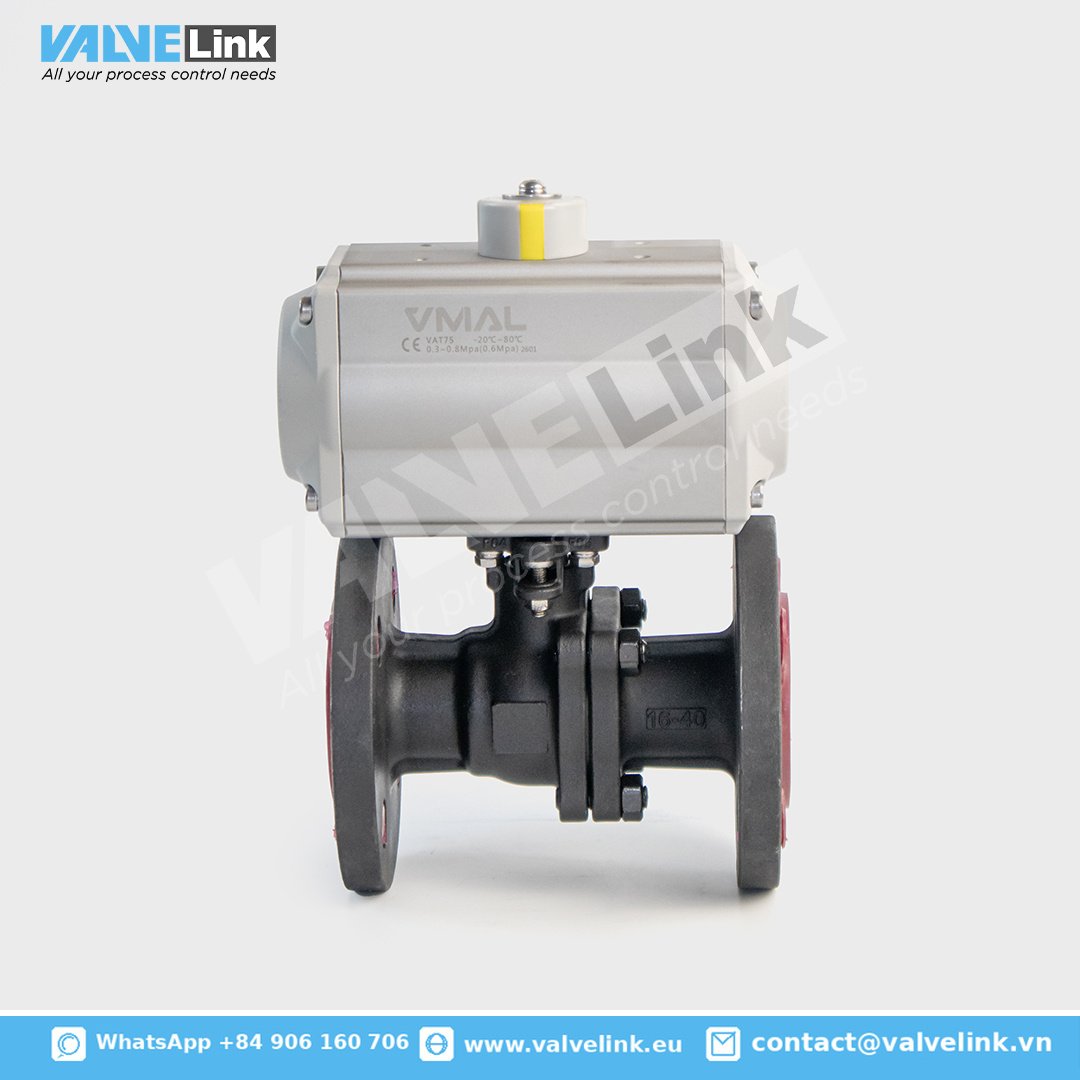

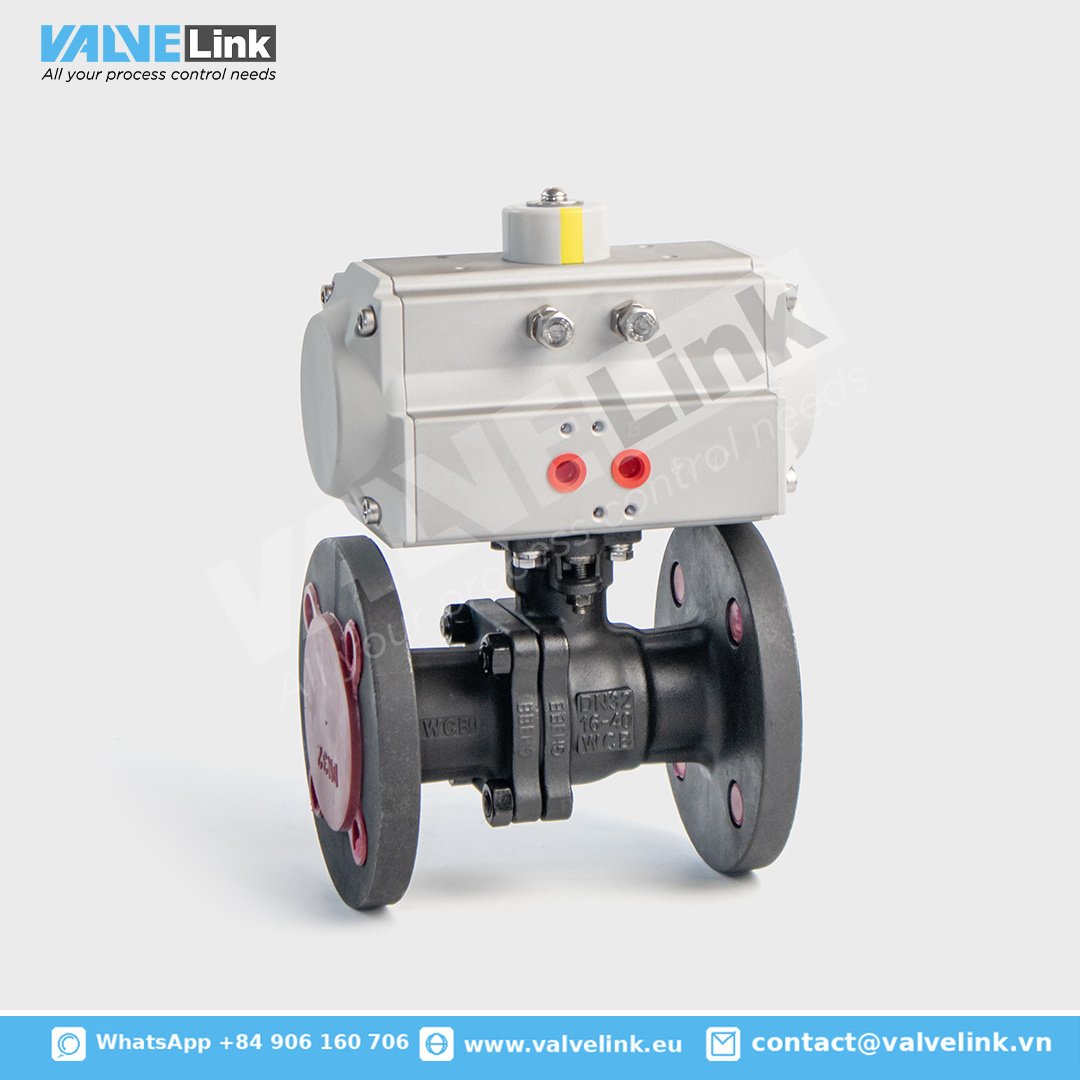

VQ641F-16C Pneumatic Ball Valve

The VQ641F-16C is a 2-way pneumatic ball valve designed for automated on/off control in industrial piping systems. The valve features a WCB carbon steel body, SS304 stainless steel ball, and a double-acting pneumatic actuator, making it suitable for water, compressed air, oil, steam, and a wide range of industrial process media.

The valve is equipped with PN16 flanged connections, providing secure installation and reliable sealing in industrial pipelines. Pneumatic actuation enables fast valve operation, reduces manual intervention, and allows seamless integration into automated control systems.

Key Features

WCB Carbon Steel Body

The valve body is manufactured from WCB cast carbon steel, offering high mechanical strength and excellent durability for demanding industrial applications. WCB is widely used in piping systems requiring long service life and reliable performance.

SS304 Stainless Steel Ball

The valve ball is made from SS304 stainless steel, providing excellent corrosion resistance and oxidation protection. Its precision-machined surface ensures smooth operation and dependable shut-off performance.

PTFE Seat

The valve is fitted with a PTFE seat, which offers excellent chemical resistance, high-temperature performance, and low friction. PTFE ensures reliable sealing and long-term durability under various operating conditions.

Double-Acting Pneumatic Actuator

The double-acting pneumatic actuator uses compressed air for both opening and closing operations. This design provides fast response, stable operating torque, and is ideal for continuous automated process control.

PN16 Flanged Connection

Standard PN16 flanged connections allow easy installation into existing piping systems while ensuring secure assembly and minimizing leakage during operation.

Technical Specifications

Specification	Value
Model	VQ641F-16C
Valve Type	2-Way Pneumatic Ball Valve
Size	DN65 (2-1/2″)
Connection	PN16 Flanged
Body Material	WCB Carbon Steel
Ball Material	SS304 Stainless Steel
Seat Material	PTFE
Actuator	Double-Acting Pneumatic
Maximum Working Temperature	180°C

Operating Principle

The VQ641F-16C Pneumatic Ball Valve operates by supplying compressed air to the pneumatic actuator. Upon receiving a control signal, the actuator generates torque to rotate the valve stem by 90°, opening or closing the flow path.

Its pneumatic operation provides rapid response and reliable performance, making it suitable for automated industrial processes requiring frequent valve actuation.

Applications

The VQ641F-16C Pneumatic Ball Valve is widely used in:

• Industrial water supply and distribution systems
• Food and beverage processing plants
• Chemical processing plants
• Compressed air systems
• Thermal oil systems
• Industrial steam systems
• Paper manufacturing
• Textile and dyeing industries
• Water and wastewater treatment plants
