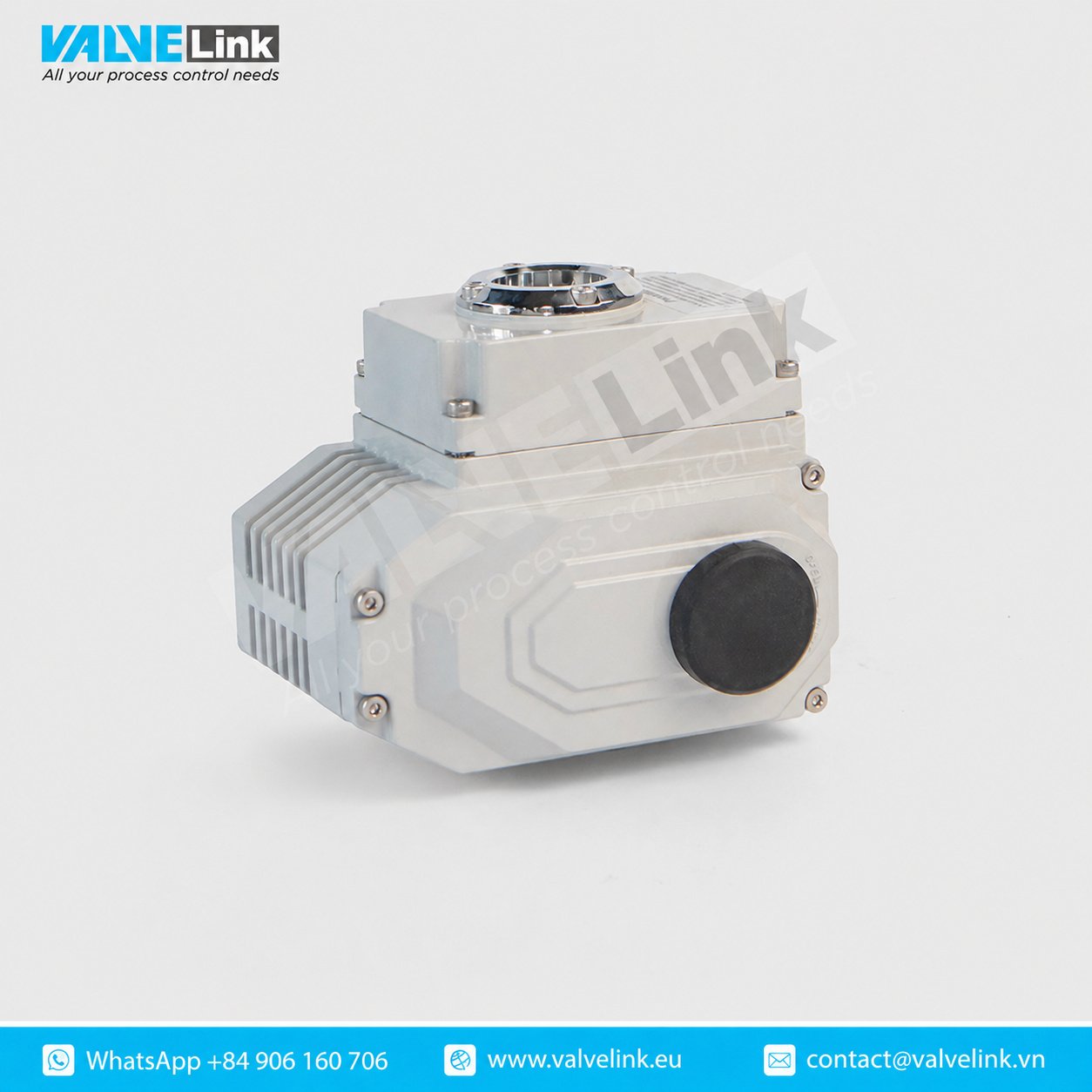

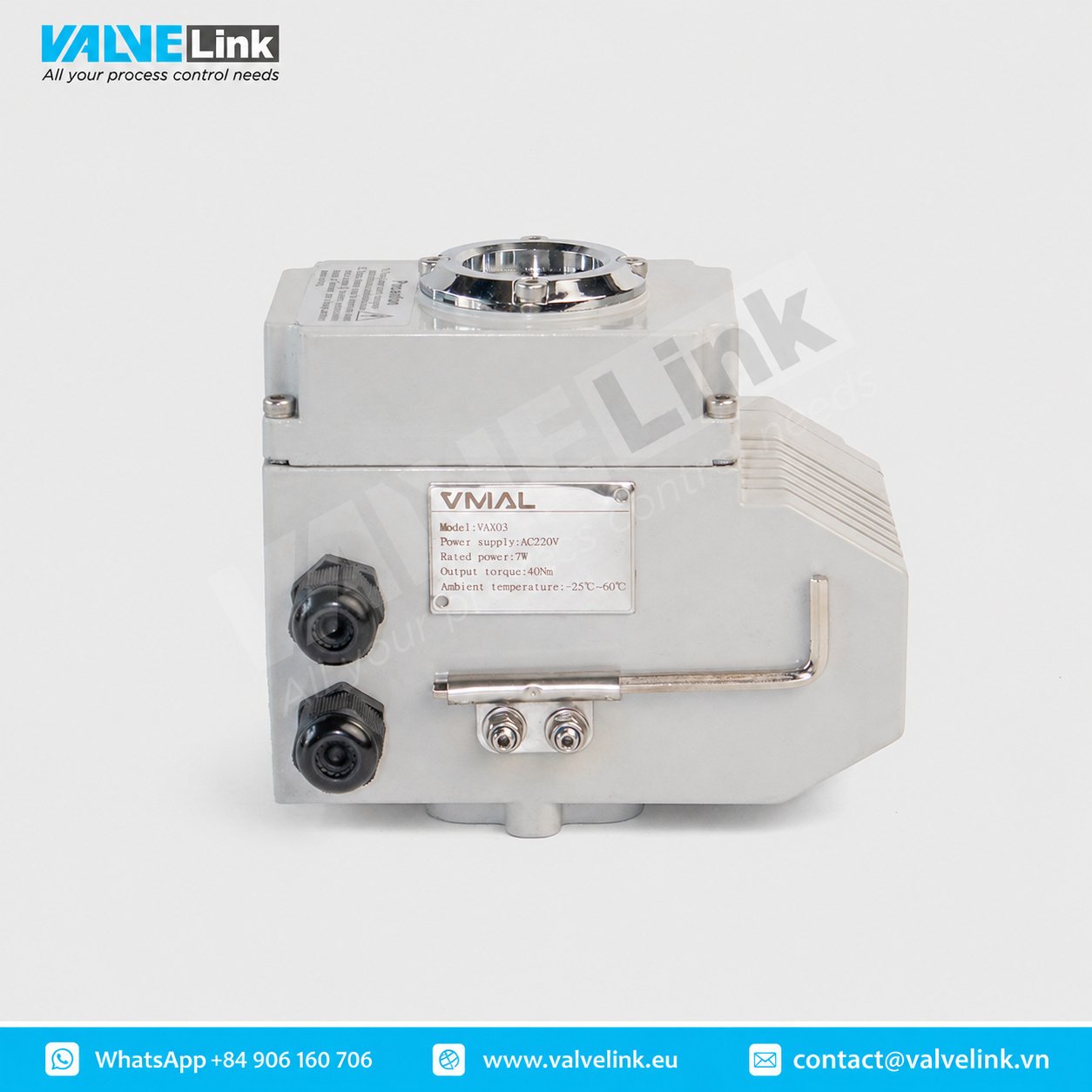

The VAX03 Electric Actuator is part of the VAX Series Electric Actuators, designed to automate quarter-turn valves in industrial control systems. Featuring a compact design, lightweight construction, and reliable operation, the actuator supports both local and remote control for a wide range of automation applications.
The VAX03 is available with AC or DC power supply options and provides an adjustable operating angle from 0° to 270°. With an IP67 protection rating and a precision die-cast aluminum housing, it is well suited for demanding industrial environments.
Key Features
- Compact and lightweight design.
- Precision die-cast aluminum alloy housing with durable painted finish.
- High-precision integrated transmission mechanism.
- Output shaft manufactured from high-strength special bronze alloy for superior wear resistance.
- Low mechanical backlash through integrated gear design.
- Class F insulated motor.
- Withstands 1500 V dielectric strength test.
- Permanently lubricated – no additional lubrication required during operation.
- Flexible installation in multiple mounting positions.

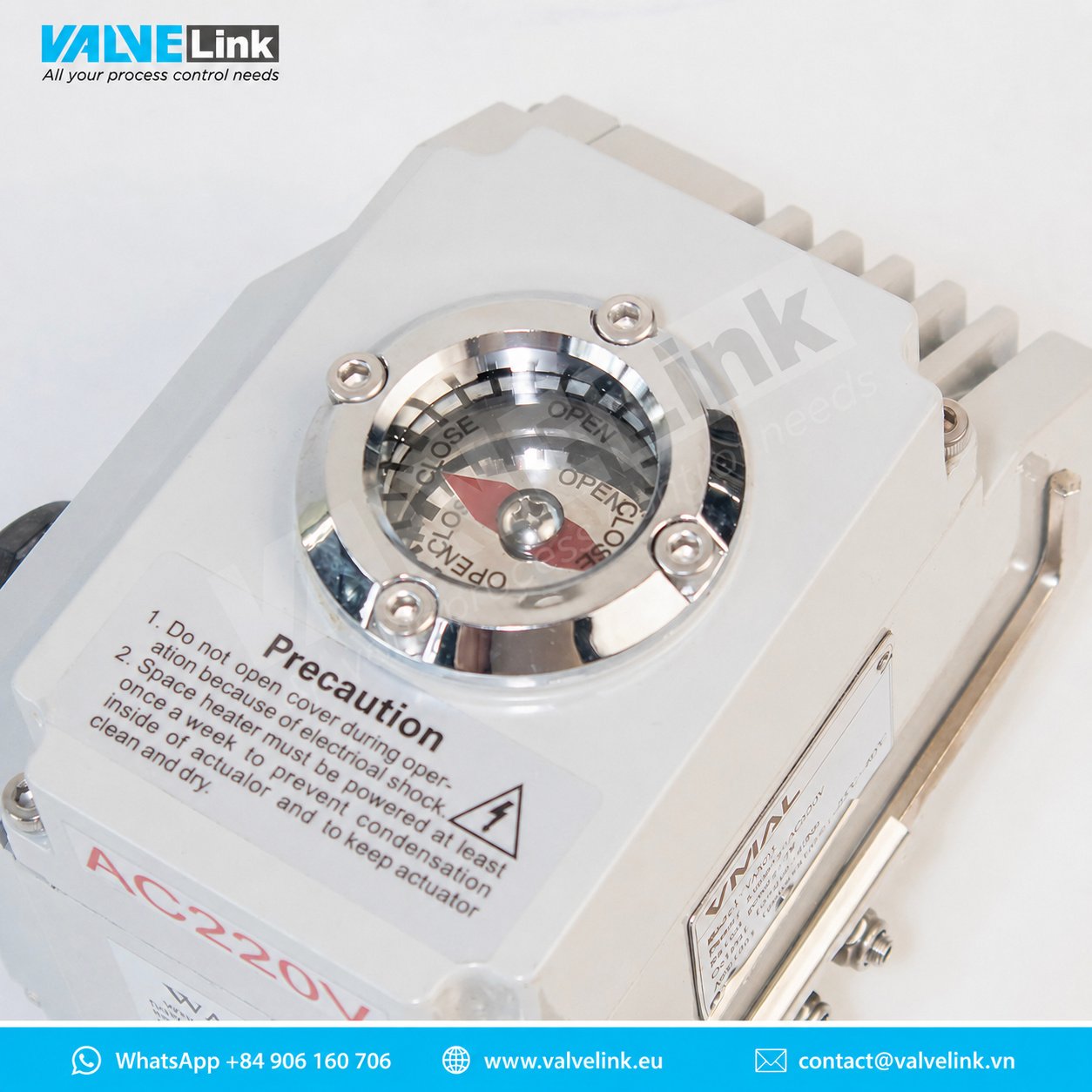

- Manual override for emergency operation during power failure.
- Water-resistant and corrosion-resistant construction.
Technical Specifications
| Specification | Value |
|---|---|
| Model | VAX03 |
| Output Torque | 40 Nm |
| Rotation Angle | 0°–270° |
| Operating Time | 9 s / 10 s / 18 s |
| Motor Power | 7 W or 8 W |
| Weight | 2.35 kg |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +60°C |
| Housing Material | Die-cast Aluminum Alloy |
| Insulation Resistance | DC24V: 100 MΩ / 300 VDC; Other Power Supplies: 100 MΩ / 500 VDC |
| Optional Features | Over-torque Protection, Anti-Condensation Heater |
Main Construction Materials
Key components of the VAX03 are manufactured from carefully selected materials to ensure durability and long service life.
- Housing & Cover: Aluminum Alloy
- Worm Gear Shaft: Bronze
- Worm Shaft: Carbon Steel
- Drive Gear: Chrome Steel #40
- Sealing Ring: EPDM
- Bearing: Chrome Manganese Carbon Steel
- Position Indicator: Stainless Steel
Operating Conditions
- Ambient temperature: -25°C to +60°C.
- Suitable for indoor or outdoor installation when protected by an appropriate weather cover.
- Waterproof cable glands are recommended to maintain the IP67 protection rating.
- For low-temperature environments or locations with significant temperature fluctuations, the version equipped with an anti-condensation heater is recommended.
Applications
The VAX03 Electric Actuator is designed to automate quarter-turn valves and is widely used in:
- Water treatment systems
- Chemical processing
- Oil and gas industries
- Metallurgical plants
- Paper manufacturing
- Food and beverage processing
- Pharmaceutical industries
- Building automation systems
- Marine and shipbuilding applications
Recommended Valve Sizes
According to the manufacturer’s selection guide, the VAX03 is suitable for the following valve sizes:
Soft-Seated Ball Valves
- DN10 to DN20
Soft-Seated Butterfly Valves
- DN32 to DN65
The final actuator selection should be based on the actual operating torque of the valve. For optimal performance and service life, the manufacturer recommends that the valve operating torque be maintained between 60% and 80% of the actuator’s rated output torque.
