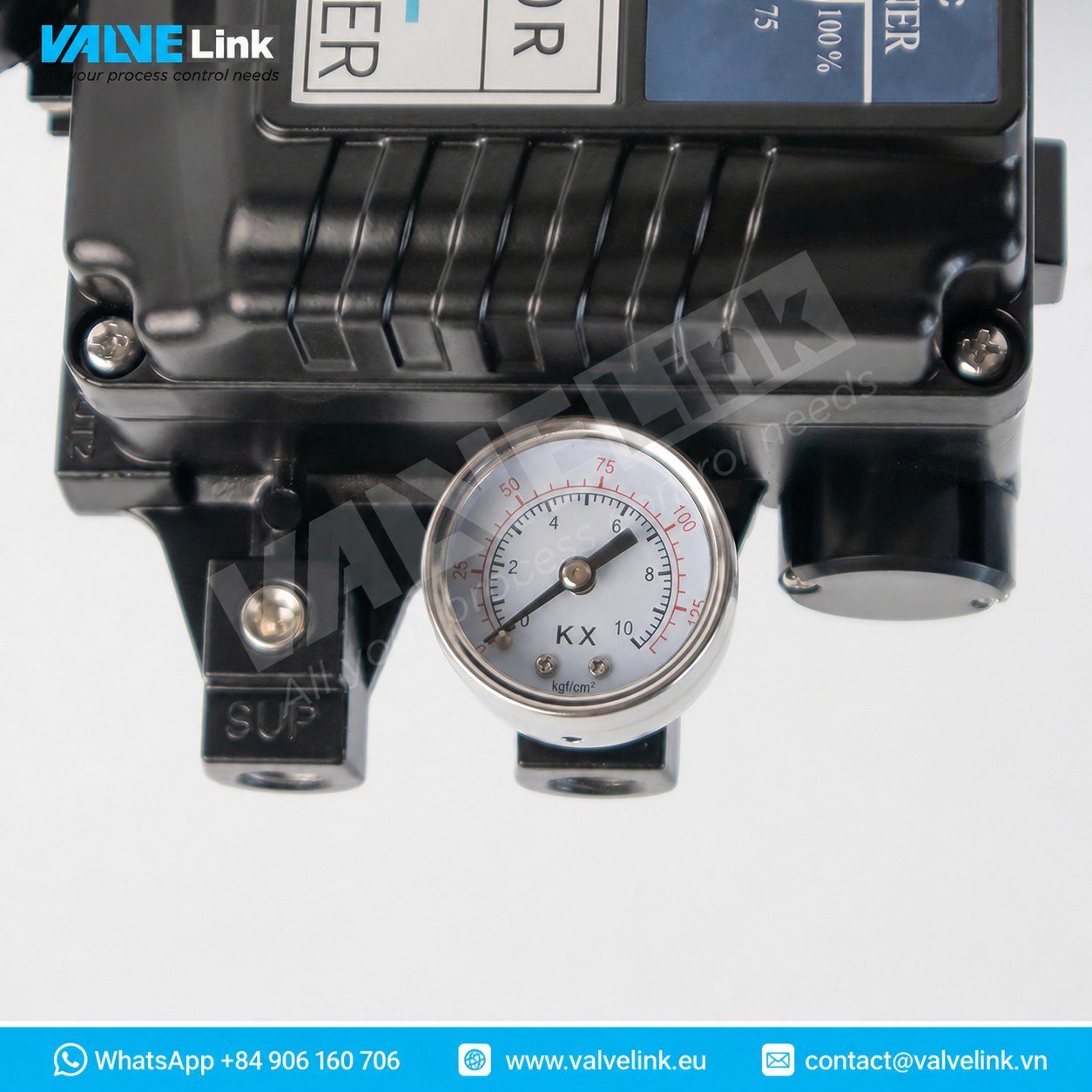

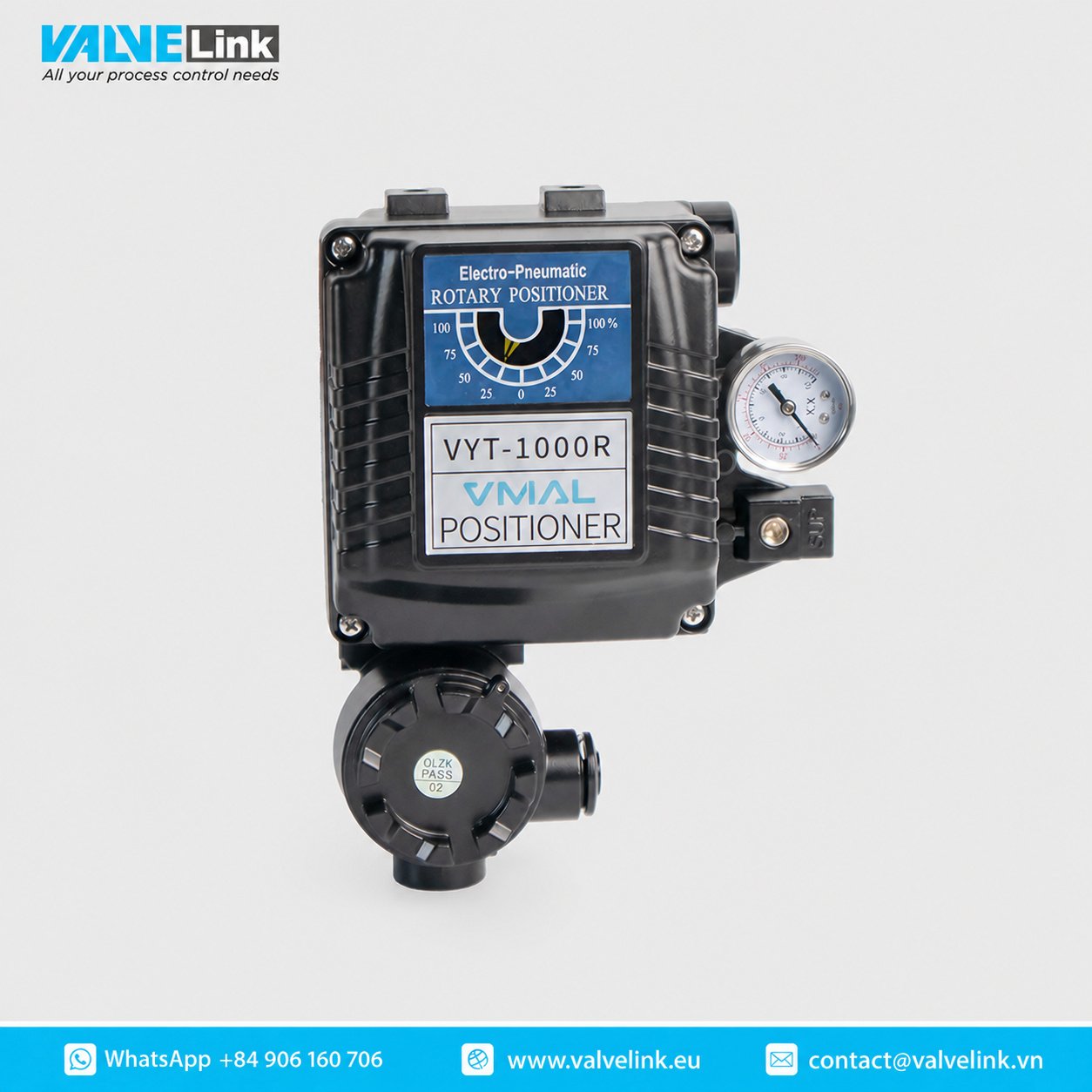

The VYT-1000R Electro-Pneumatic Positioner is designed for ball valves and butterfly valves, converting a 4–20 mA control signal into a proportional pneumatic output for accurate valve positioning. The positioner enables precise modulation of valve opening, improving process control accuracy and system efficiency in automated industrial applications.
With an IP66 protection rating, a wide operating temperature range, and adjustable supply pressure, the VYT-1000R is suitable for demanding industrial environments and can be integrated with a variety of pneumatic actuators.
Technical Specifications
| Specification | Value |
|---|---|
| Model | VYT-1000R |
| Product Type | Electro-Pneumatic Positioner |
| Suitable Valves | Ball Valves / Butterfly Valves |
| Control Signal | 4–20 mA |
| Signal Input | 4–20 mA |
| Supply Pressure | 1.7–7 bar |
| Air Connection | G1/4″ |
| Protection Rating | IP66 |
| Ambient Temperature | -20°C to 70°C |
Features
- Converts 4–20 mA electrical input into proportional pneumatic valve positioning.
- Designed for pneumatic ball valves and butterfly valves.
- Provides accurate and stable valve position control.
- Compatible with most pneumatic actuators.
- Wide supply pressure range of 1.7–7 bar.
- IP66 enclosure for protection against dust and water ingress.
- Suitable for harsh industrial environments.
- Improves process control accuracy and automation performance.
Typical Applications
- Industrial process automation
- Water and wastewater treatment
- Chemical processing
- Food and beverage industries
- Oil and gas systems
- Power generation
- HVAC and utility systems
- Automated control systems requiring proportional valve control
