Product Description

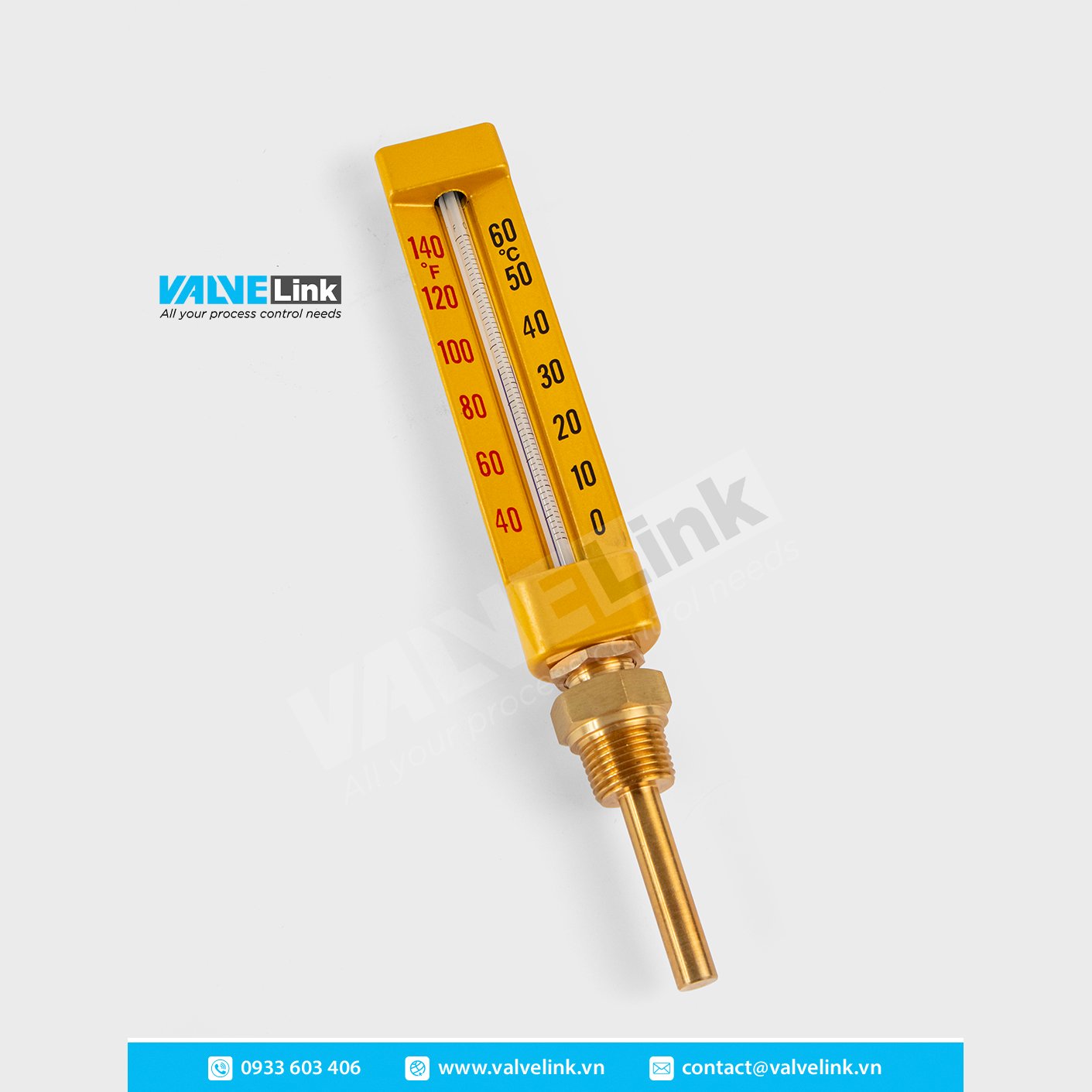

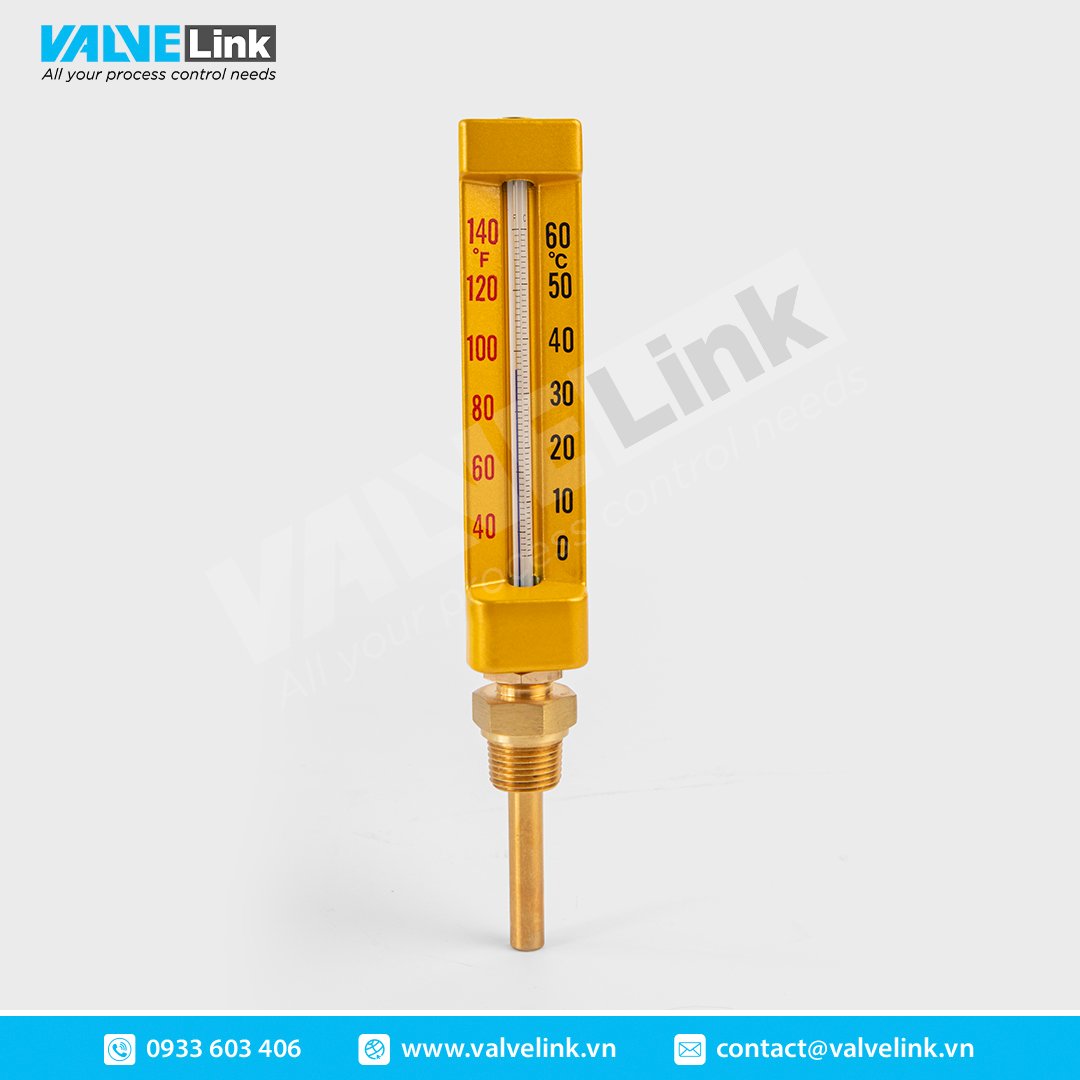

The ISEN-TV606-60 is a Contractor’s Thermometer designed for measuring and displaying temperature in industrial piping systems, storage tanks, and process equipment. The thermometer utilizes a mechanical temperature sensing mechanism and features a glass lens, an aluminum alloy case, and a temperature range of 0 to 60°C.

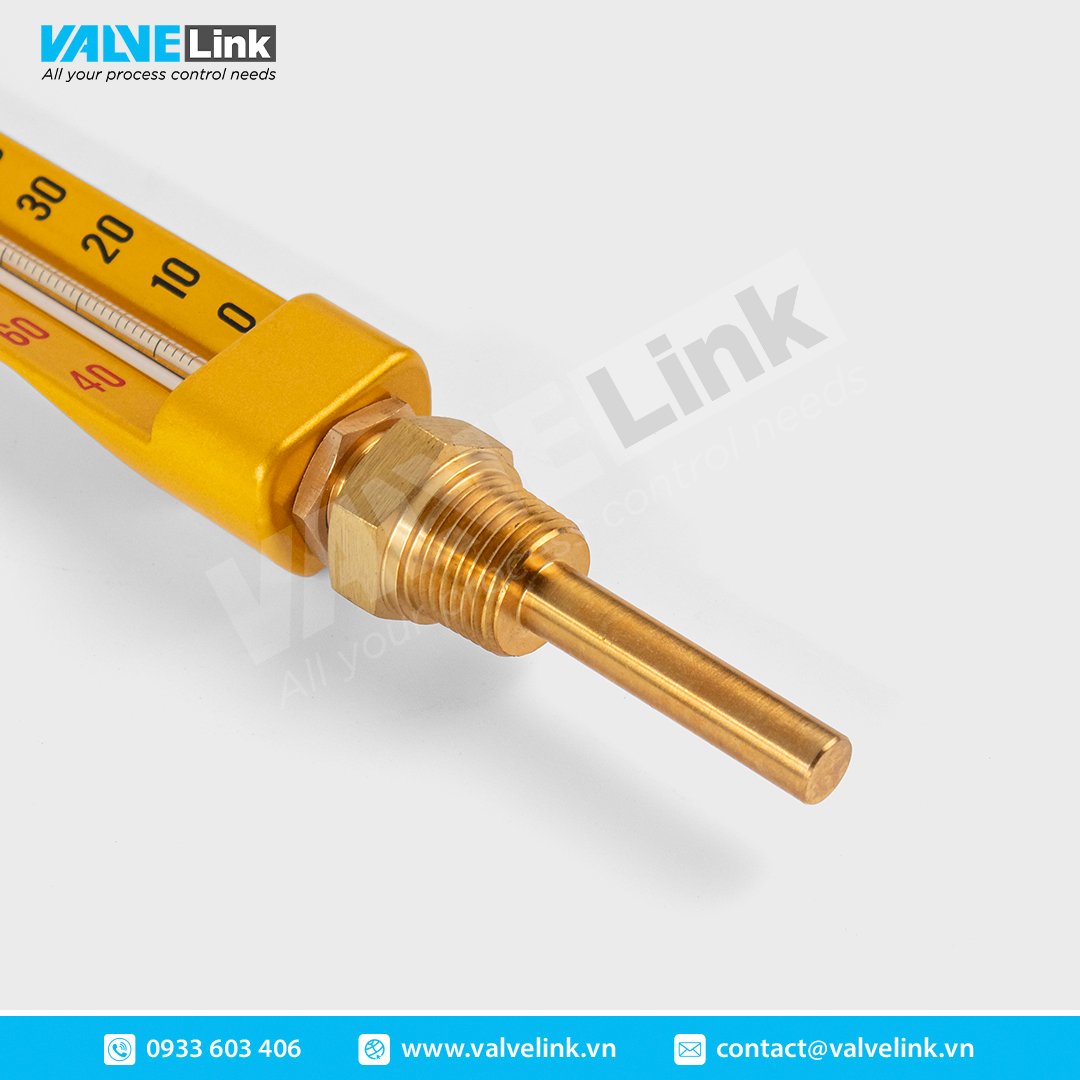

The thermometer is equipped with a brass thermowell, making it suitable for installation in pressurized systems while allowing the thermometer to be removed without depressurizing the pipeline. Its 1/2″ NPT threaded connection enables quick and convenient installation in a wide range of industrial applications.
Technical Specifications
| Specification | Value |
|---|---|
| Model | ISEN-TV606-60 |
| Product Type | Contractor’s Thermometer |
| Temperature Range | 0–60°C |
| Accuracy | ±1 |
| Case Material | Aluminum Alloy |
| Lens | Glass |
| Scale | Aluminum with White Finish and Black Markings |
| Tube | Lens Front |
| Stem Material | Brass |
| Jam Nut Material | Brass |
| Thermowell Material | Brass |
| Connection | 1/2″ NPT |
| Immersion Length | 2-1/2″ |
| Application | Pressurized Systems |
Features
- Temperature measuring range of 0 to 60°C.
- Accuracy of ±1.
- Durable aluminum alloy case.
- Protective glass lens for clear reading.
- Brass stem and brass thermowell for corrosion resistance.
- Includes a thermowell for safe installation in pressurized systems.
- Standard 1/2″ NPT threaded connection for easy installation.
Applications
The ISEN-TV606-60 Contractor’s Thermometer is widely used for temperature monitoring in:
- Industrial piping systems
- Storage tanks
- Water supply systems
- HVAC systems
- Industrial process equipment
- General applications requiring temperature measurement within the 0 to 60°C range
